Home >> Jaguar >> 2012 >> XJ (X351) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C44-L-VL004 >> C44-L

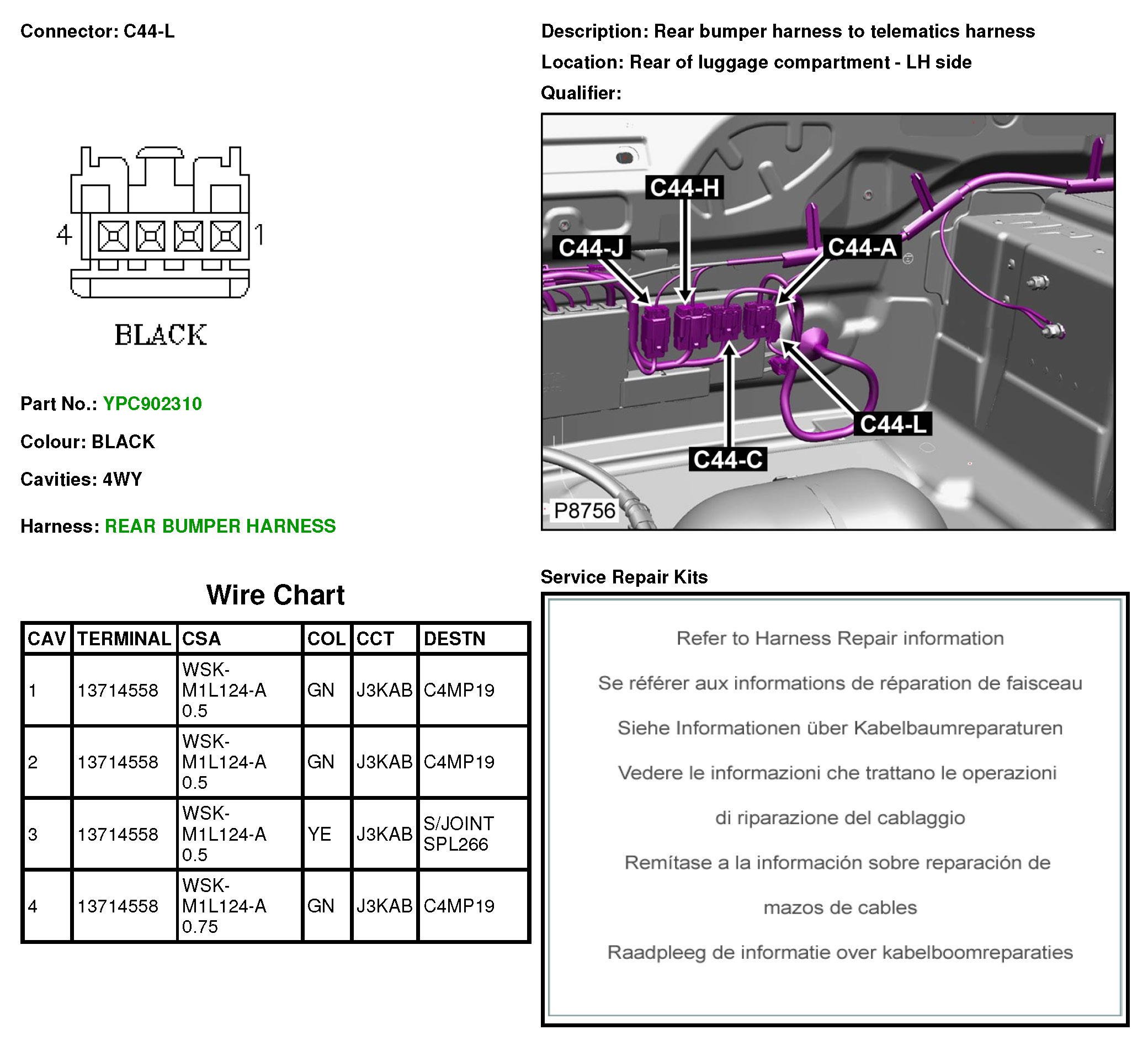

C44-L

C44-L
