Refrigerant Pressure Sensor / Switch: Service and Repair

Pressure Cutoff Switch

Removal

NOTE:
Removal steps in this procedure may contain installation details.
1
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
2 For additional information, refer to Air Conditioning (A/C) System Recovery, Evacuation and Charging Air Conditioning (A/C) System Recovery, Evacuation and Charging
3 For additional information, refer to Radiator Splash Shield Radiator Splash Shield

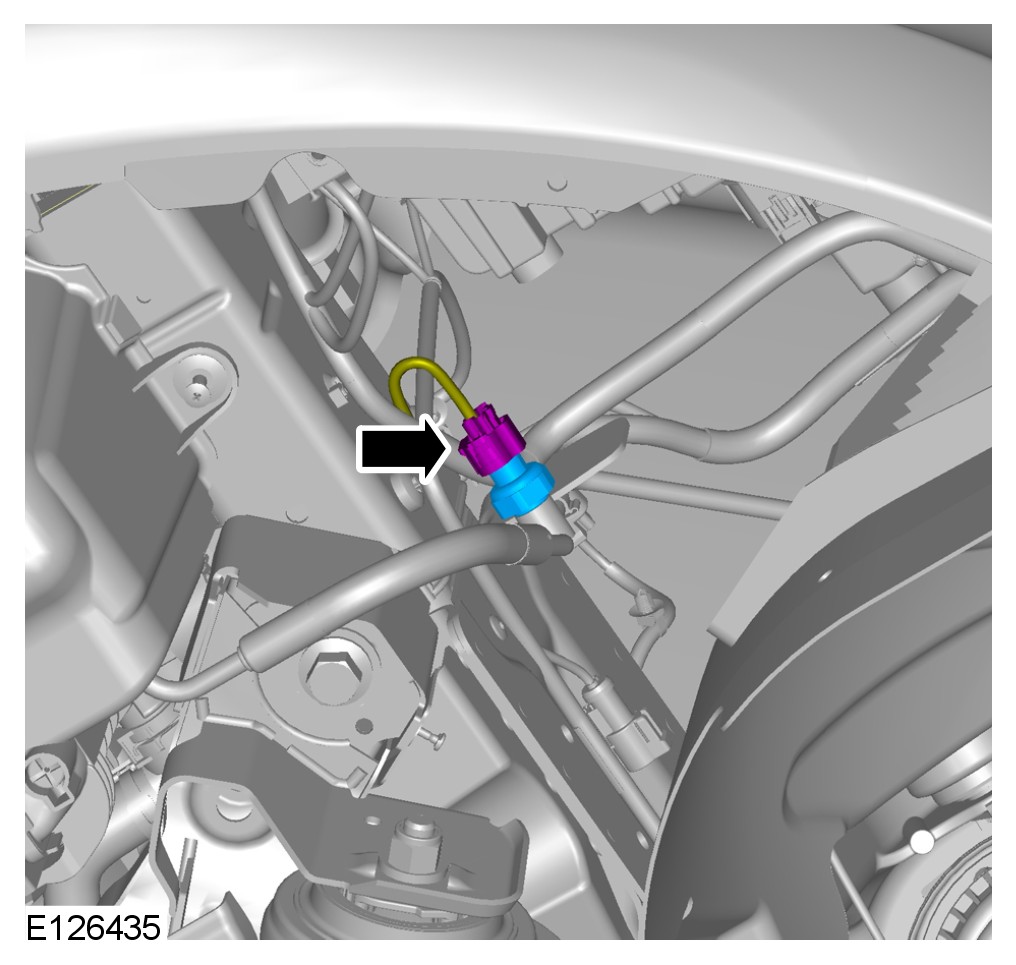

4
CAUTION: Make sure the air conditioning (A/C) hose does not turn when removing the low pressure switch.
TORQUE: 8 Nm

Installation
1 To install, reverse the removal procedure.
