Refrigerant Oil Adding

Refrigerant Oil Adding

CAUTION: Collect the refrigerant oil in a clean measuring cylinder.

CAUTION: Make sure that all openings are sealed. Use new blanking caps.

CAUTION: Be prepared to collect escaping fluids.

NOTE:
Removal steps in this procedure may contain installation details.





NOTE:
This step only needs to be carried out when replacing the A/C compressor.

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

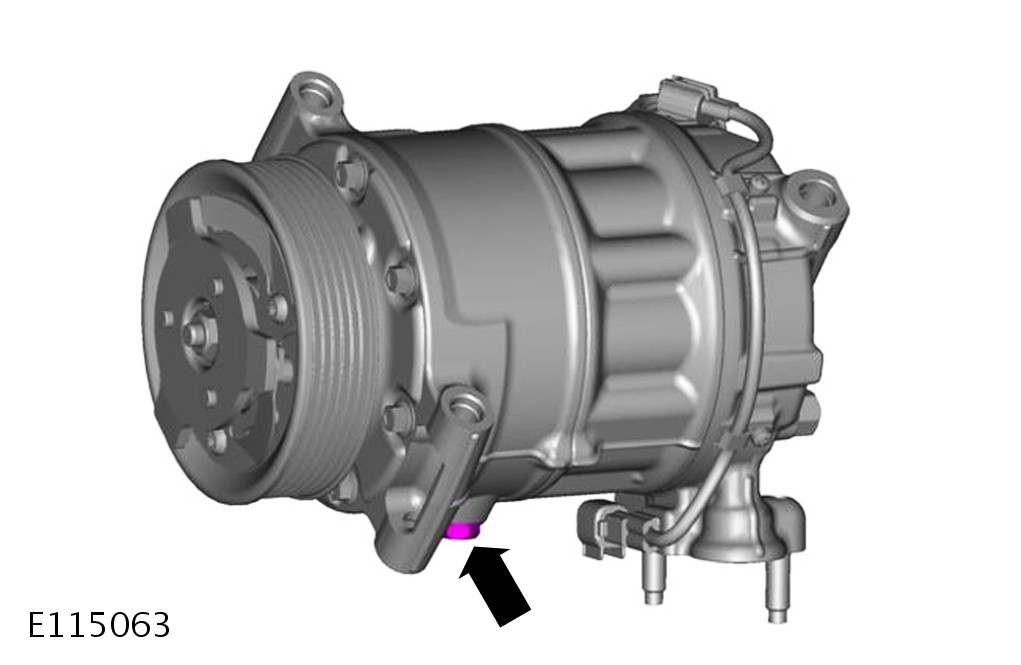

Torque to: 15 Nm





NOTE:
This step only needs to be carried out when replacing the A/C compressor.

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

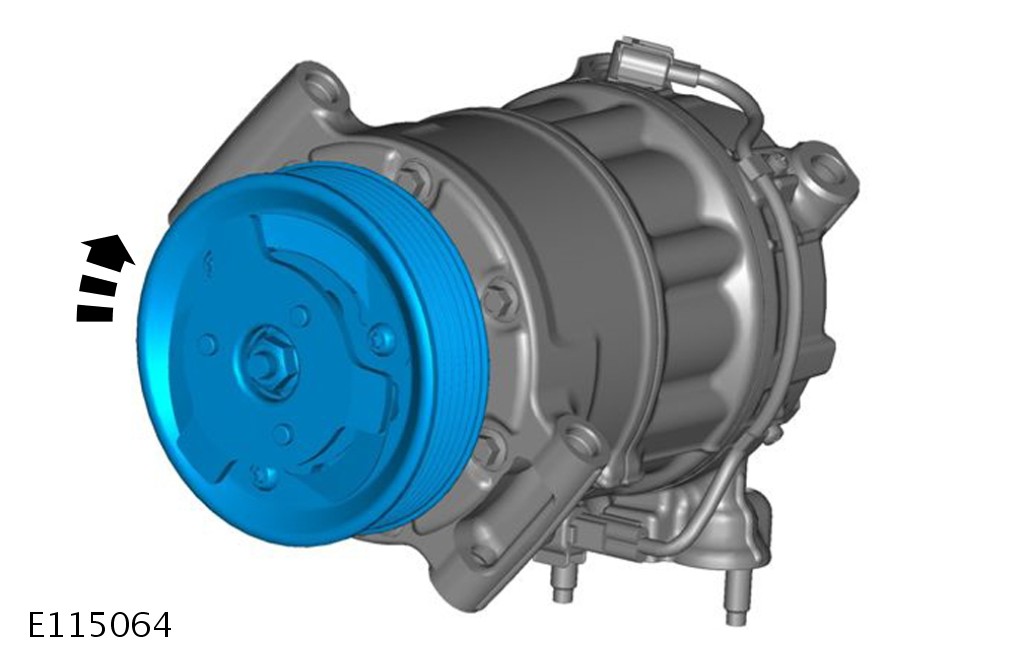

1 Rotate the A/C compressor shaft at least 6 to 8 turns when draining the refrigerant oil.

CAUTION: The refrigerant oil top-up quantity must not exceed the refrigerant oil fill quantity.

CAUTION: If other A/C components are being renewed in addition to the A/C compressor, there is no need to top up with additional refrigerant oil, apart from filling the compressor.
2 Top up with the calculated quantity of new refrigerant oil.
For additional information, refer to Specifications Specifications
1 To install, reverse the removal procedure.
