Rear Suspension





Rear Suspension

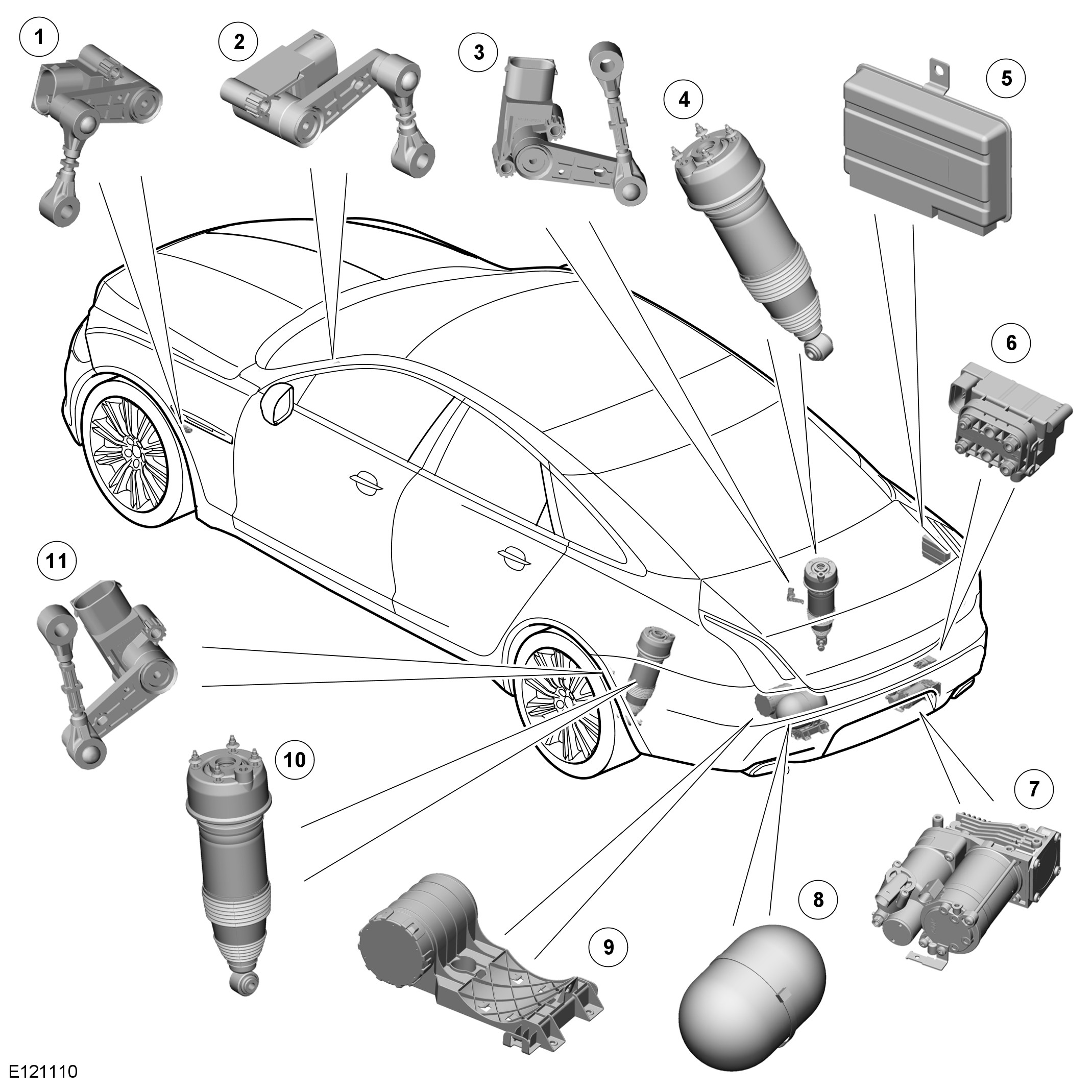

COMPONENT LOCATION - SHEET 1 OF 3

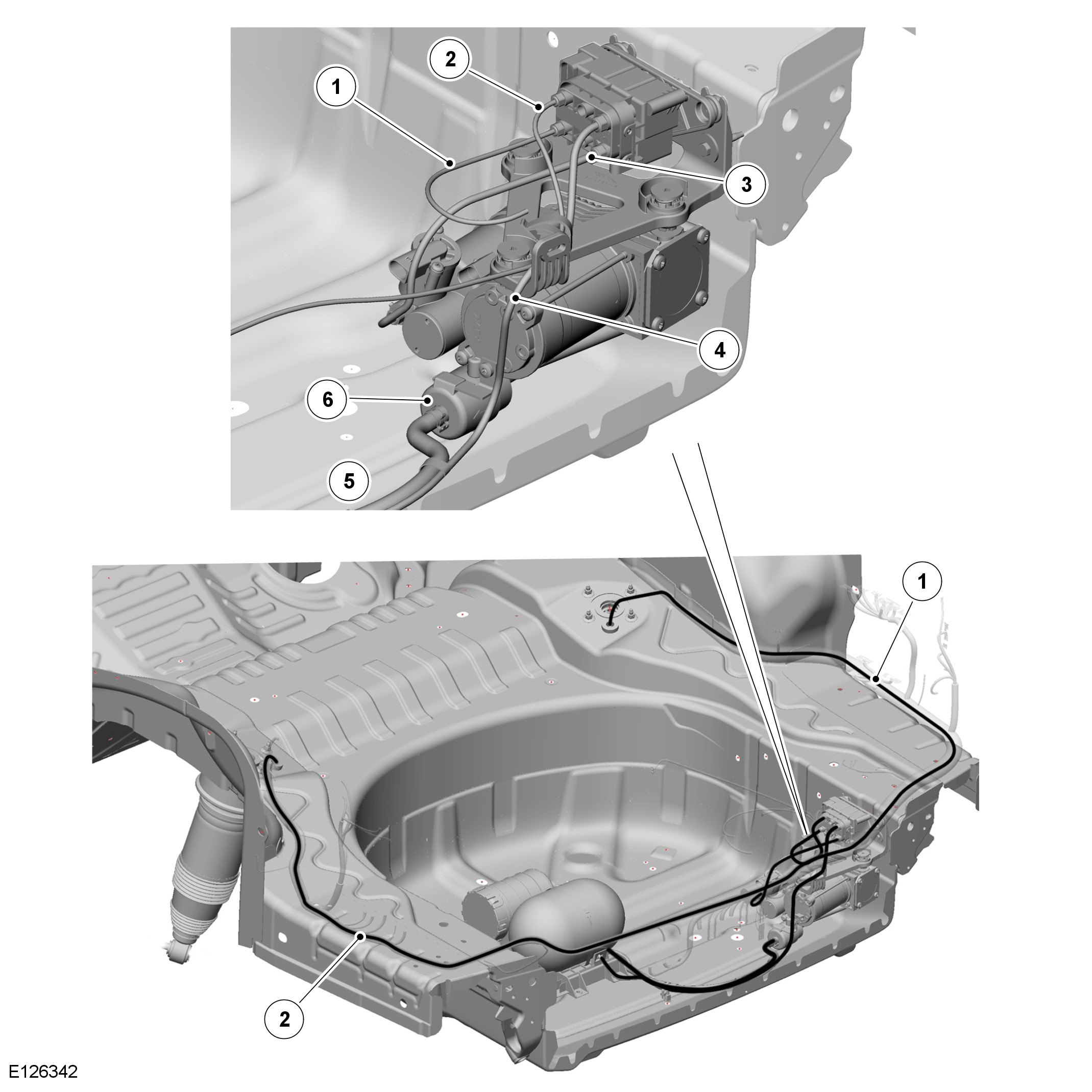

COMPONENT LOCATION - SHEET 2 OF 3

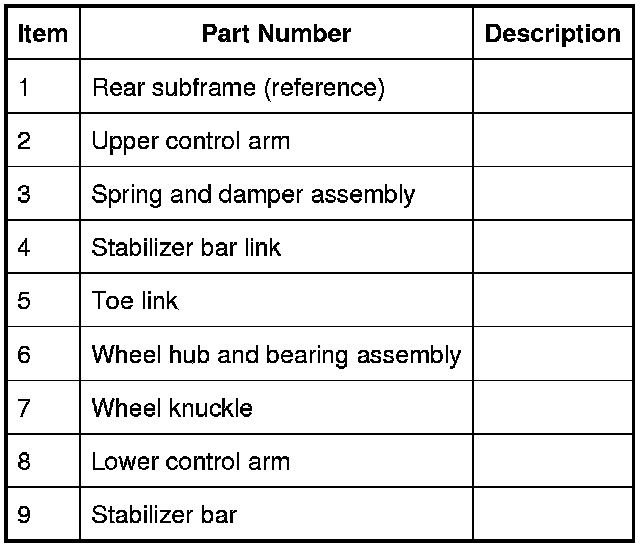

COMPONENT LOCATION - SHEET 3 OF 3
