Axle Shaft Assembly: Service and Repair
Rear Halfshaft
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures
For additional information, refer to TAS Symbol Glossary TAS Symbols Glossary
Removal
CAUTION: The final tightening of the suspension components must be carried out with the vehicle on its wheels.
CAUTION: LH illustration shown, RH is similar.
1 Raise and lower the vehicle on a 4 post ramp.
WARNING: Make sure to support the vehicle with axle stands.
2 Raise and support the vehicle.
For additional information, refer to Wheel and Tire Service and Repair

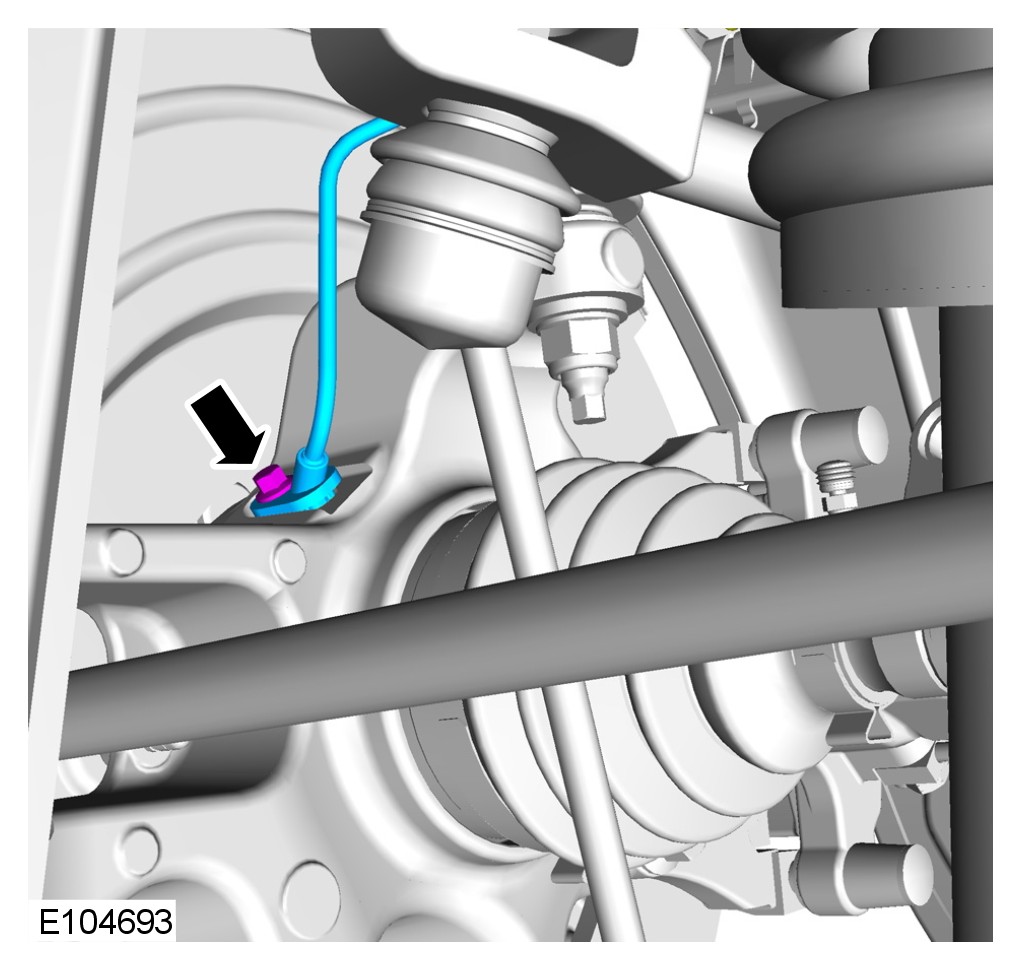

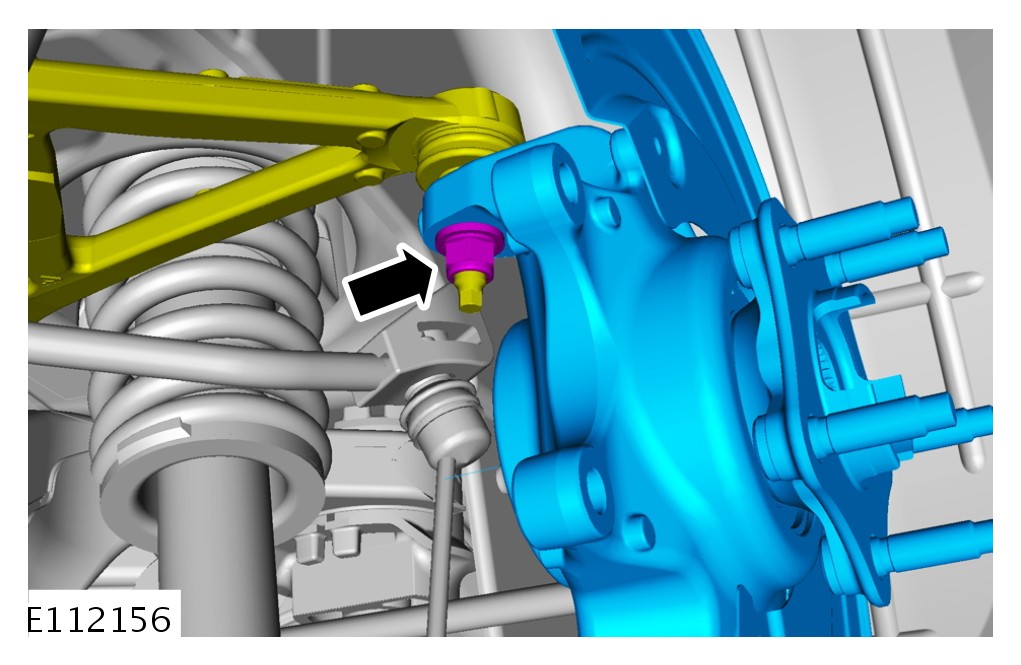

CAUTION: Discard the nut.

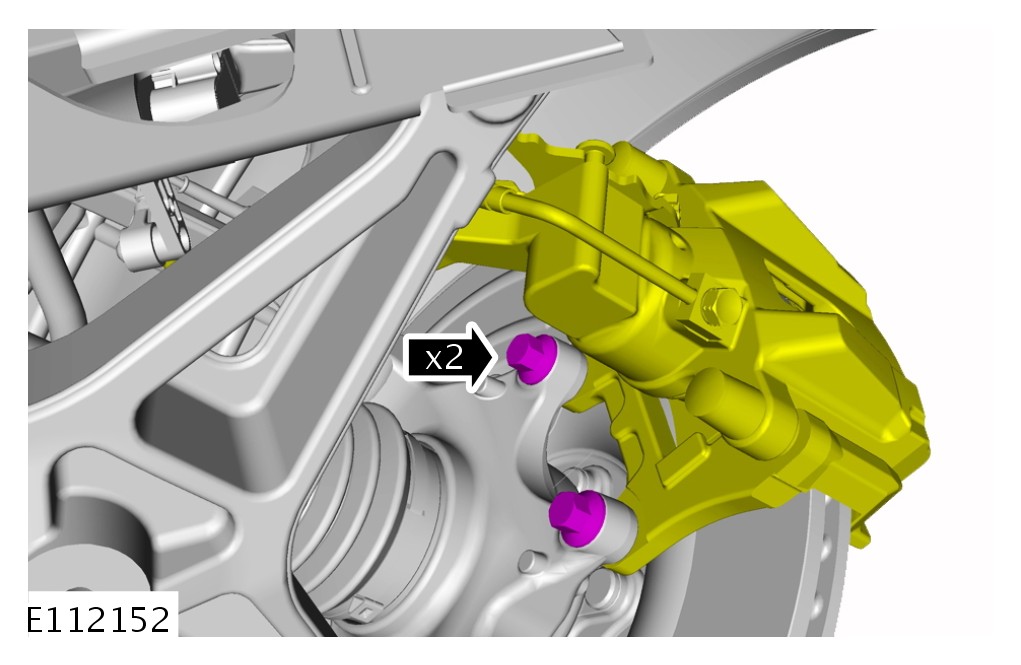

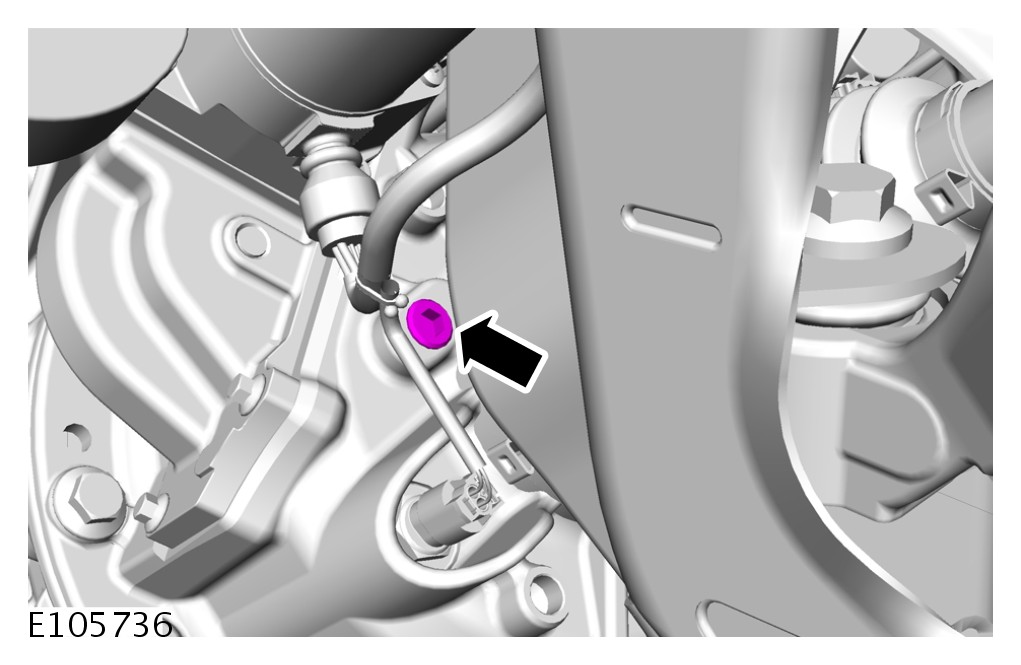

Special Service Tool

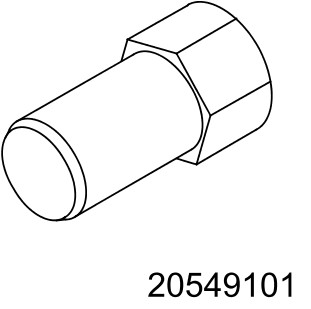

Adapter nuts, 205-491-1
Special Service Tool

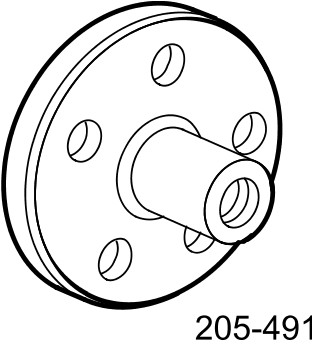

Hub puller, 205-491
Special Service Tool

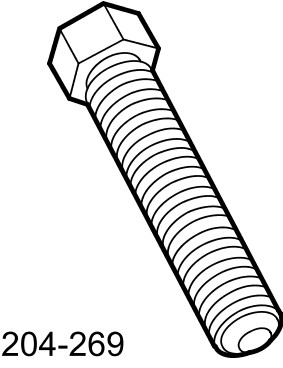

Flange remover forcing screw, 204-269
NOTE:
Use an additional wrench to prevent the component from rotating.
Special Service Tool

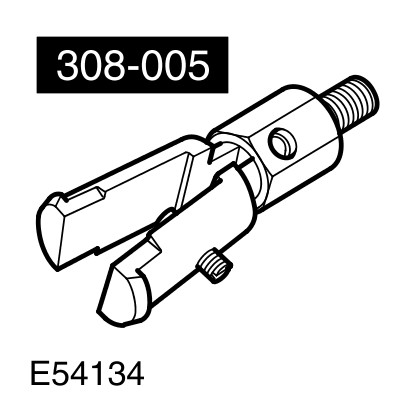

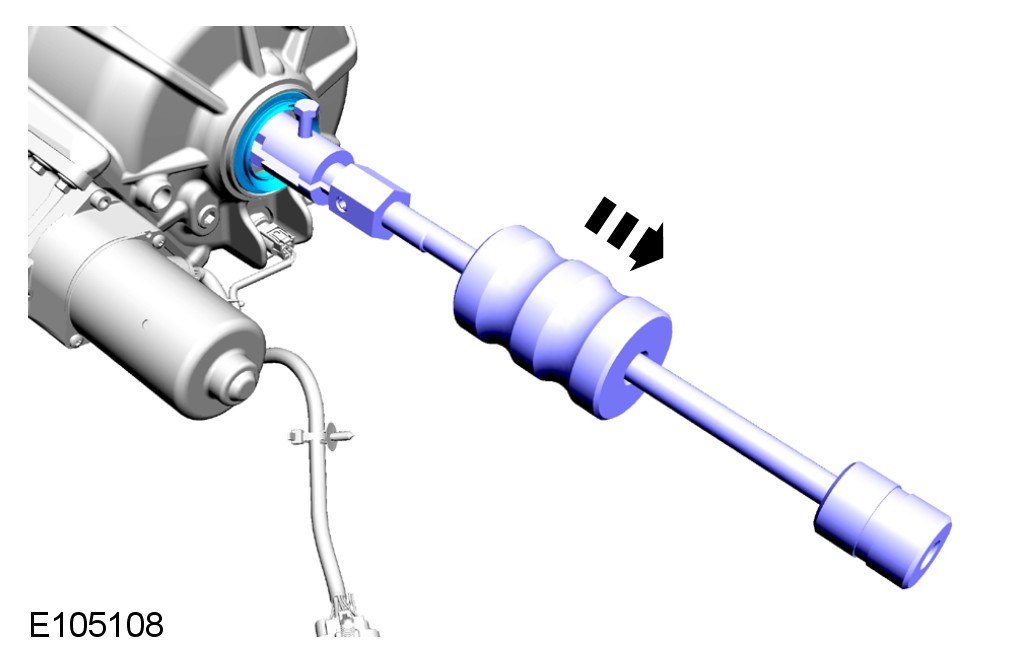

Axle oil seal remover, 308-005
Special Service Tool

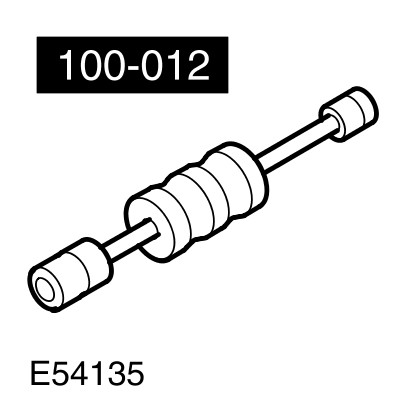

Slide Hammer, 100-012
Installation
1 Clean the components mating faces.
Special Service Tool
Installer halfshaft oil seal, 308-621-1
Special Service Tool
Installer/Guide halfshaft oil seal, 308-621-2
Special Service Tool
Slide Hammer, 100-012

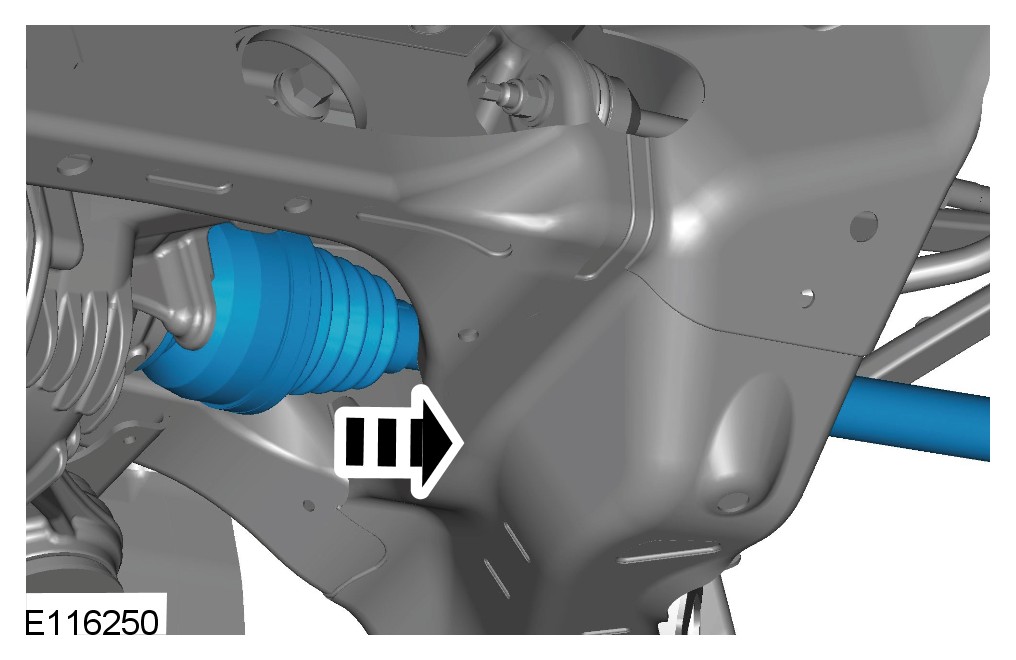

CAUTION: Do not install the rear halfshaft fully at this stage.
CAUTION: Only install the rear halfshaft until the halfshaft splines have past the halfshaft oil seal.

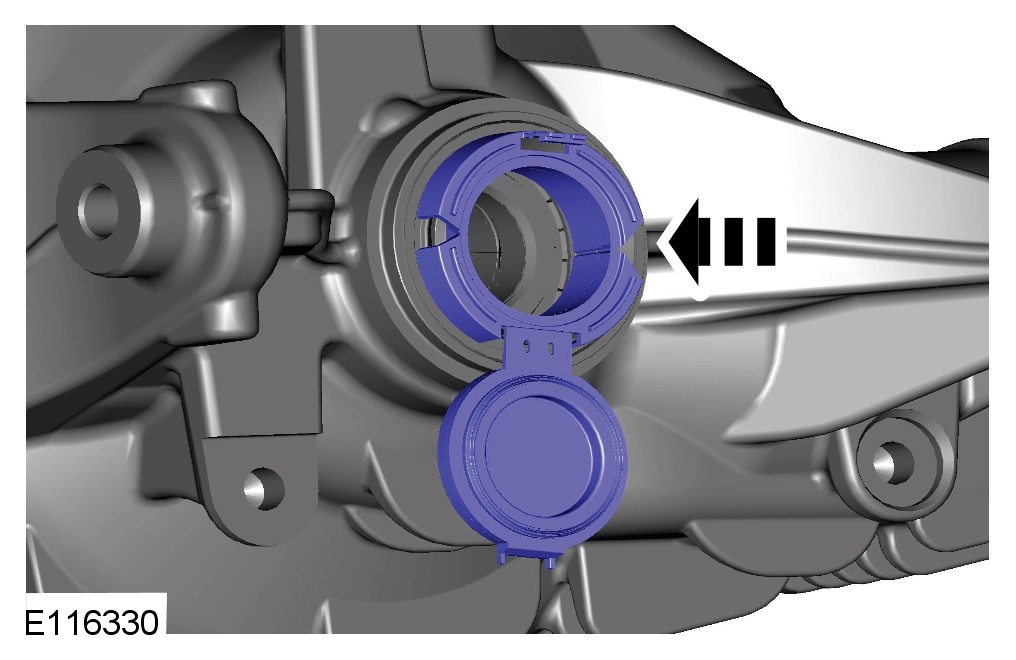

2 Remove and discard the halfshaft oil seal plutector.

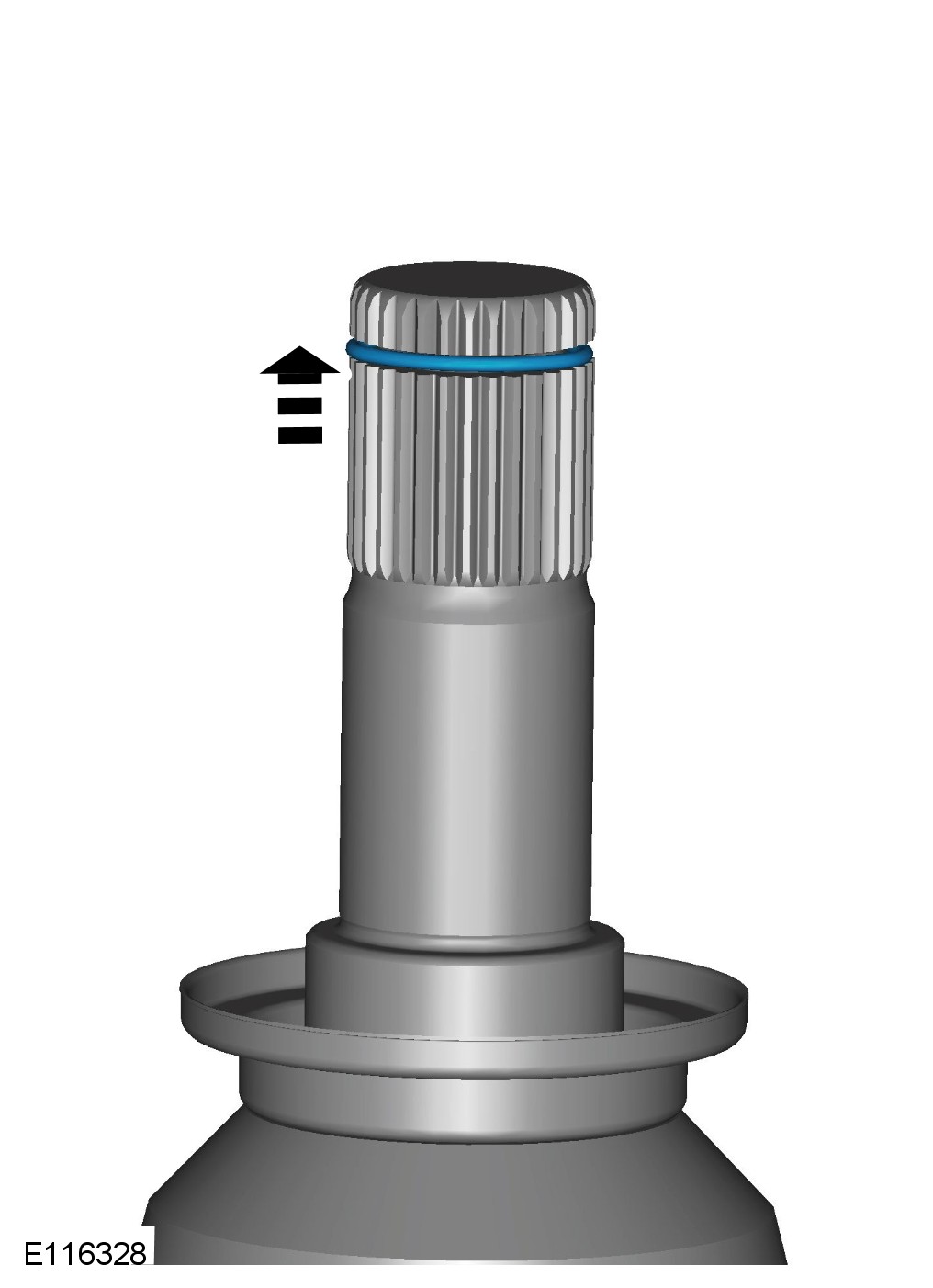

CAUTION: Make sure that the rear halfshaft circlip is installed correctly by pulling the halfshaft gently to make sure it is engaged.
NOTE:
Do not tighten at this stage.
WARNING: Make sure that a new nut is installed.
NOTE:
Do not tighten at this stage.
NOTE:
Do not tighten at this stage.
NOTE:
Do not tighten at this stage.
Torque to: 6 Nm
3 Install the brake disc.
Torque to: 103 Nm
For additional information, refer to Wheel and Tire Service and Repair
4 Lower the vehicle.
Torque to: 90 Nm
Torque to: 150 Nm
Torque to: 55 Nm
Torque to: 300 Nm
5 Check and top-up the differential case.
