Repair and Diagnosis: Application and ID

Identification Codes

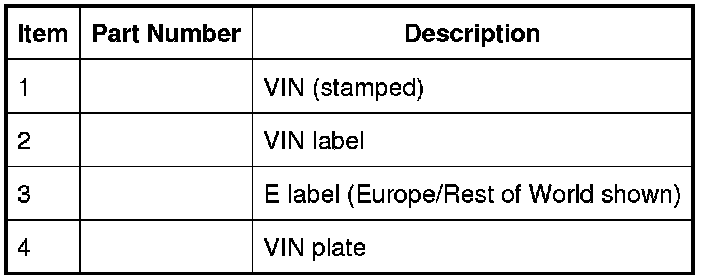

Vehicle Identification Number (VIN)
The official Vehicle Identification Number (VIN) for title and registration purposes is stamped on a metal plate and fastened to the instrument panel. It is positioned close on the left-hand side of the vehicle and is visible from the outside.
The VIN is also located on the vehicle certification label.

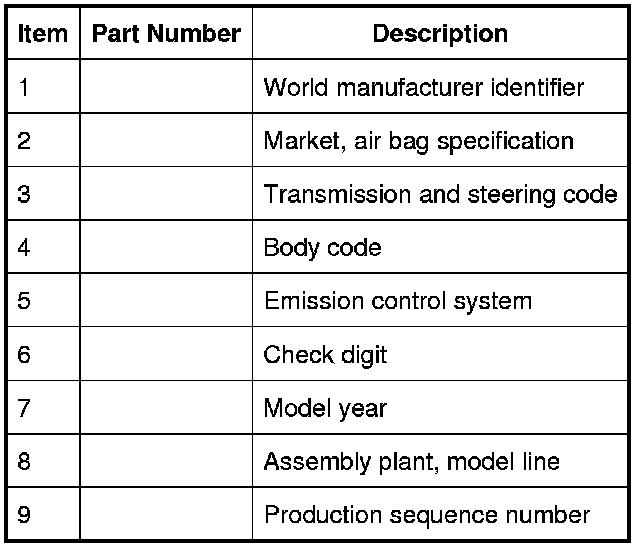

Vehicle Identification Number (Typical)









World Manufacturer Identifier

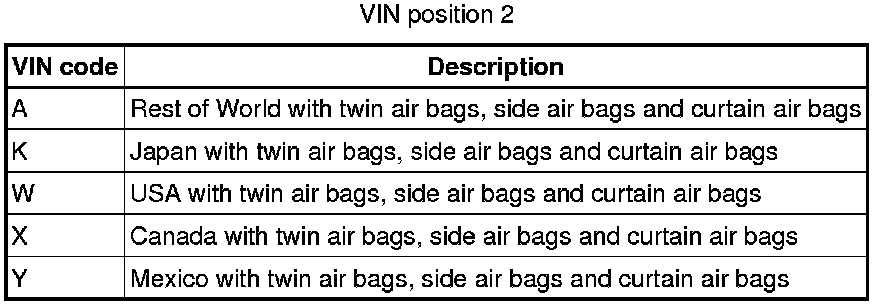

Market, Air Bag Specification

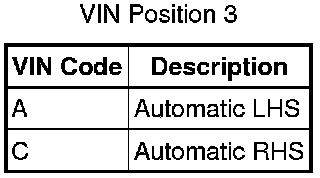

Transmission, Steering Code

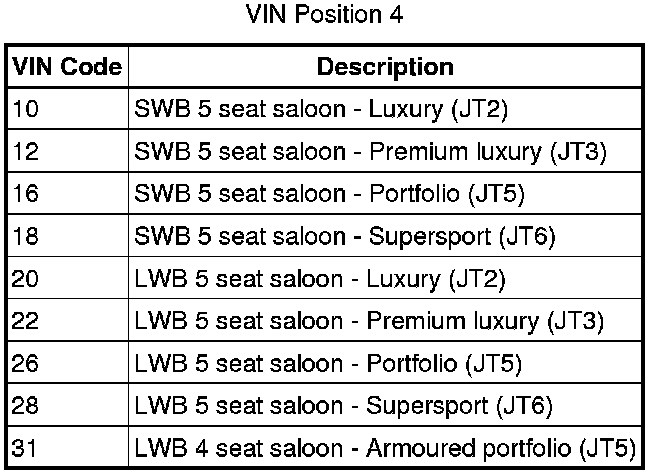

Body Code

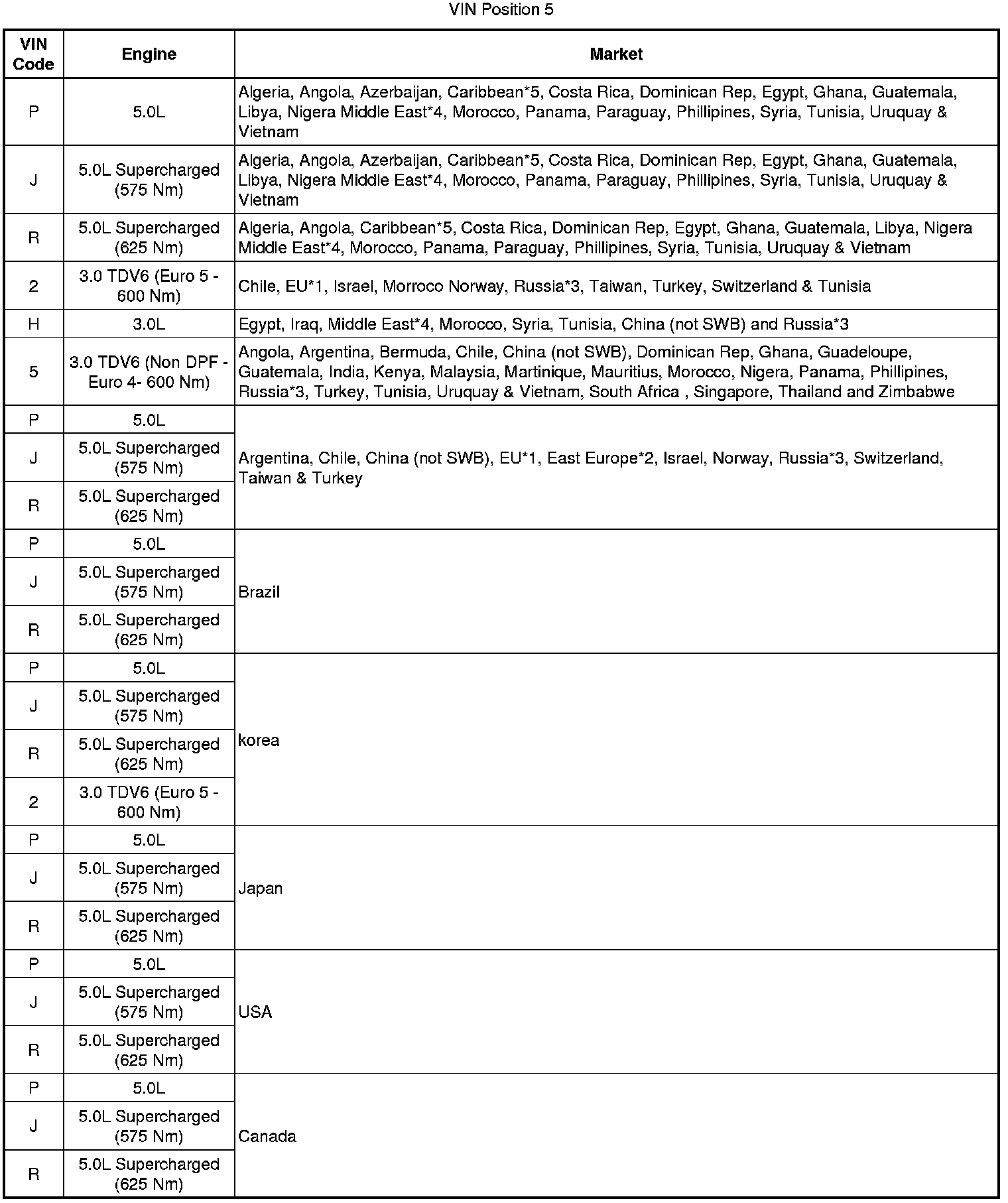

Engine Emission System

NOTE:
*1. "EU" includes the following markets: Austria, Belgium, Bulgaria, Cyprus, Czech Rep., Denmark, Estonia, Finland, France, Germany, Greece, Holland, Hungary, Italy, Latvia, Lithuania, Luxembourg, Malta, Moldova, Poland, Portugal, Rep. of Ireland, Romania, Slovenia, Slovakia, Spain (incl. Canary Islands) Sweden & UK

NOTE:
*2. East Europe includes the following markets: Croatia, Serbia, Albania, Bosnia, Kosovo, Macedonia & Montenegro

NOTE:
*3. Russia includes the following markets: Belarus,Kazakhstan, Ukraine & Uzbekistan

NOTE:
*4. Middle East includes the following markets: Abu Dhabi, Bahrain, Dubai, Jordan, Kuwait, Lebanon, Oman, Qatar, Saudi Arabia

NOTE:
*5. Caribbean includes the following markets: Grand Caymen, Bahamas, Barbados, Grenada, Jamaica, Trinadad & Tobago









Check Digit





Model Year





Assembly Plant and Model Line





Production Sequence Number





VIN Label

VIN Label (Europe and Rest of world)









VIN Label (North America)









VIN Label (Saudi Arabia and Gulf States)









VIN Label (Canada)









VIN Label (China)









VIN Label (Argentina)









Automatic Transmission Number
The serial number of the transmission unit is displayed on a metal label or bar code (if equipped) attached to the transmission casing.

Engine Number(s)

Engine Number - 3.0L Diesel
The serial number is stamped on an engine web on the right-hand side of the cylinder block behind the engine mounting.

Engine Number - 5.0L and 5.0L Supercharged
The serial number is stamped on an engine web on the left-hand side of the cylinder block behind the engine mounting.

Engine Number - 3.0L
The engine number is contained on a bar code label on the front cover and is also stamped in the cylinder block casting on the left-hand side of the engine below the engine mounting.
