Exterior Mirror

Exterior Mirror
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures
For additional information, refer to TAS Symbol Glossary TAS Symbols Glossary
Removal

CAUTION: LH illustration shown, RH is similar.

NOTE:
Removal steps in this procedure may contain installation details.

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.





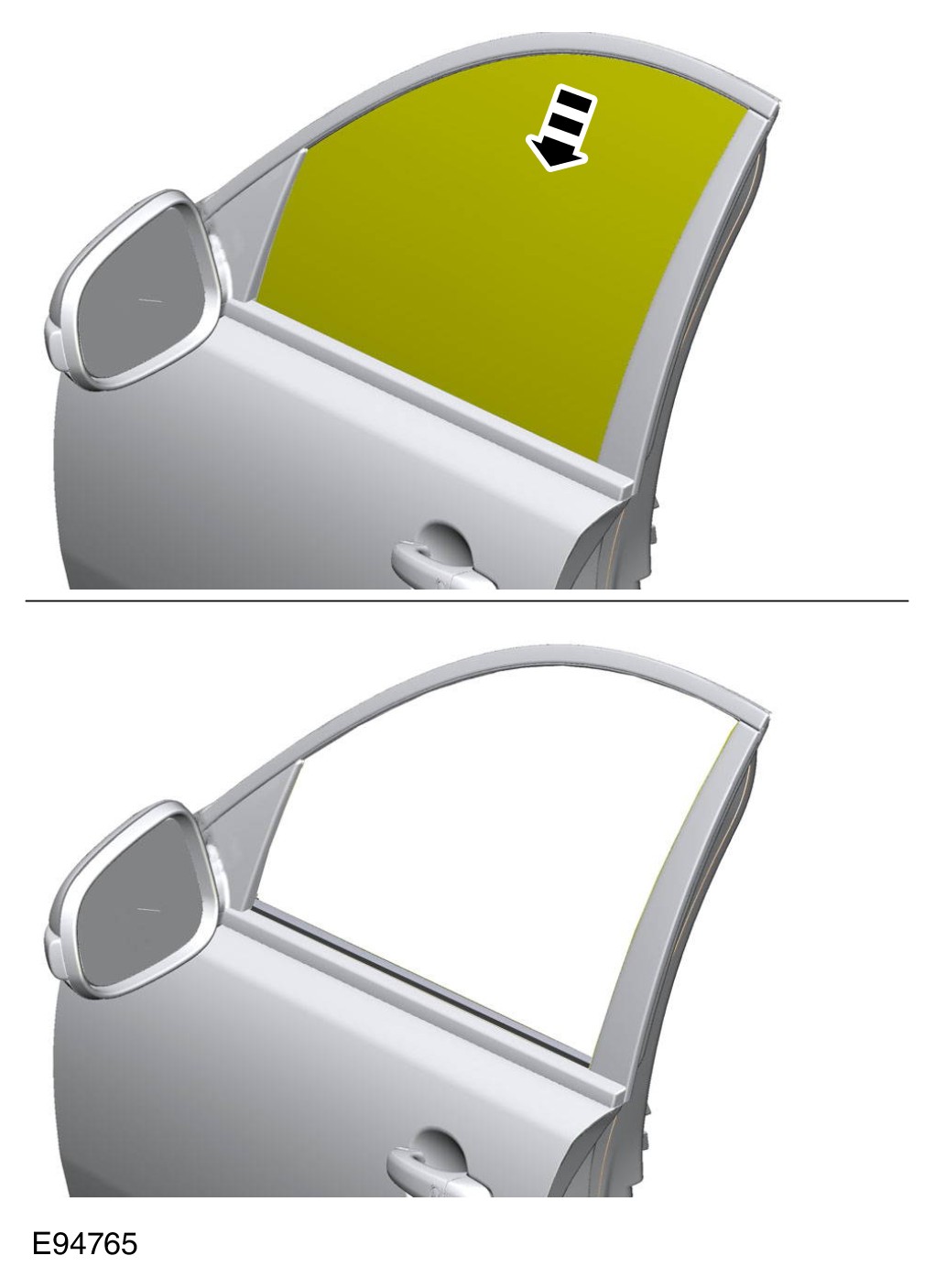

For additional information, refer to Front Door Trim Panel Service and Repair

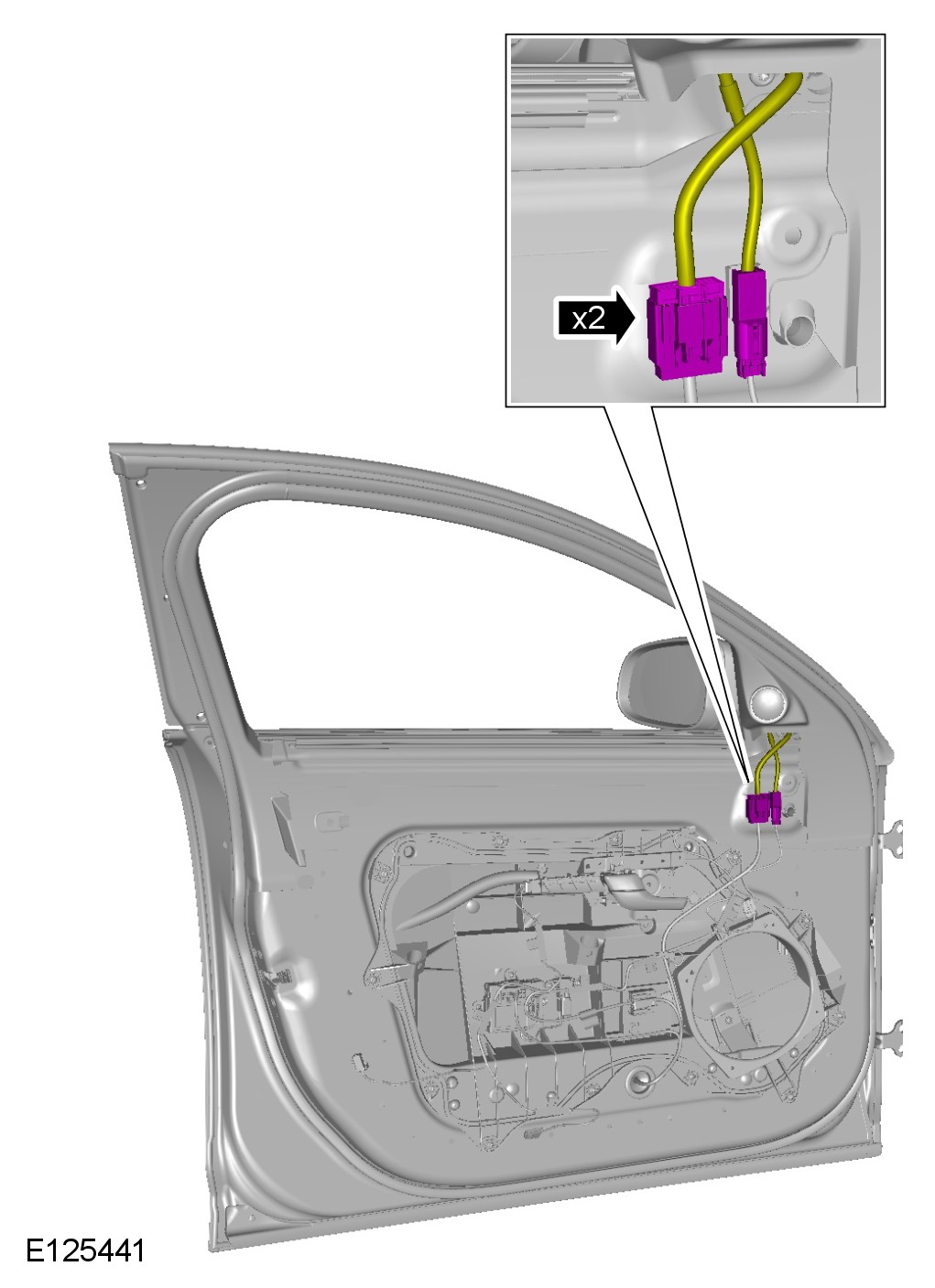

CAUTION: Take extra care not to damage the wiring harnesses.





CAUTION: Make sure the locating tangs are aligned. Failure to follow this instruction may result in damage to the vehicle.

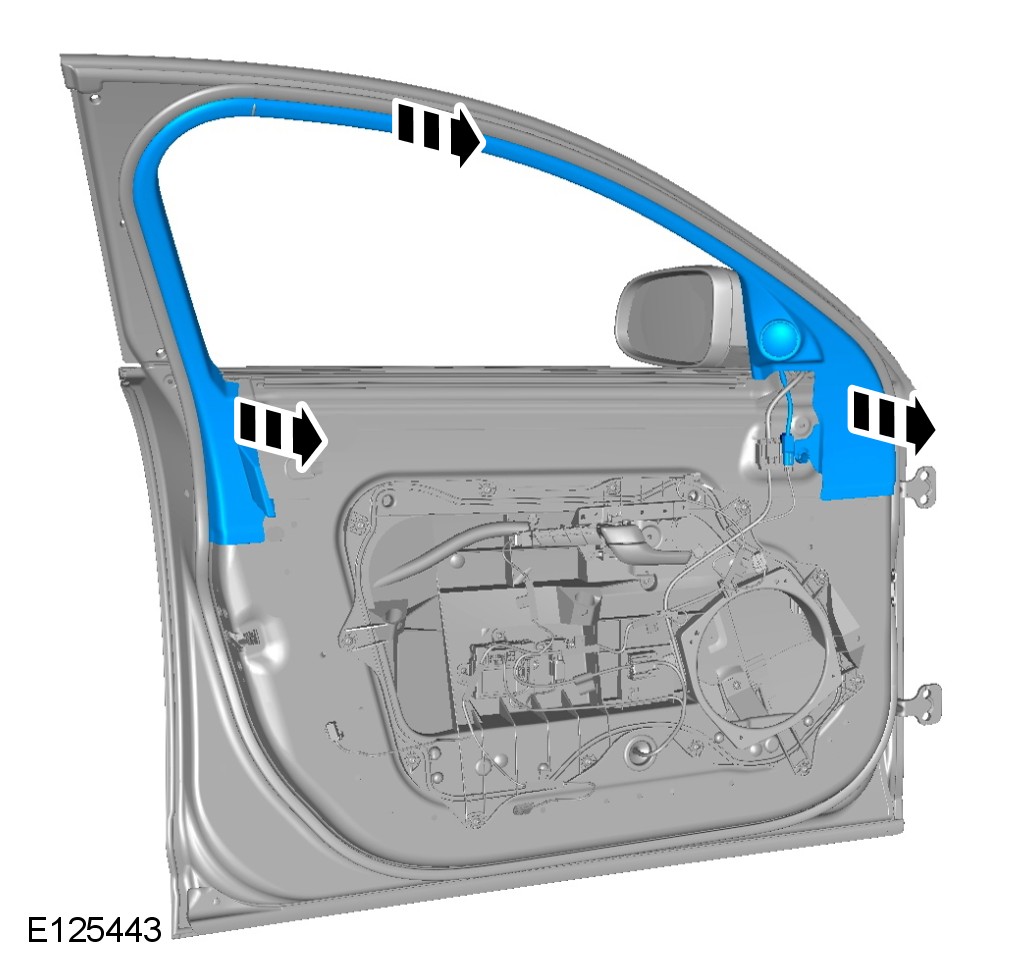

CAUTION: Take extra care not to damage the seal.





CAUTION: Make sure that the component is correctly located on the locating dowels.

NOTE:
Make sure that the harness is routed to the position noted on removal.

Torque to: 8 Nm

Installation
1 To install, reverse the removal procedure.
