Home >> Jaguar >> 2012 >> XJ (X351) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C32-G-C33-BG >> C33-A

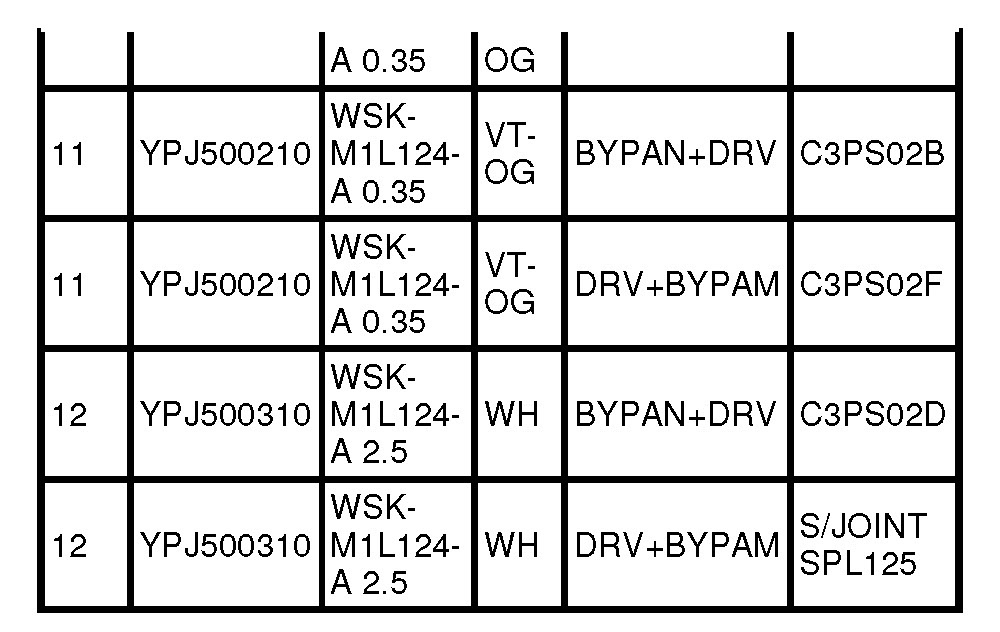

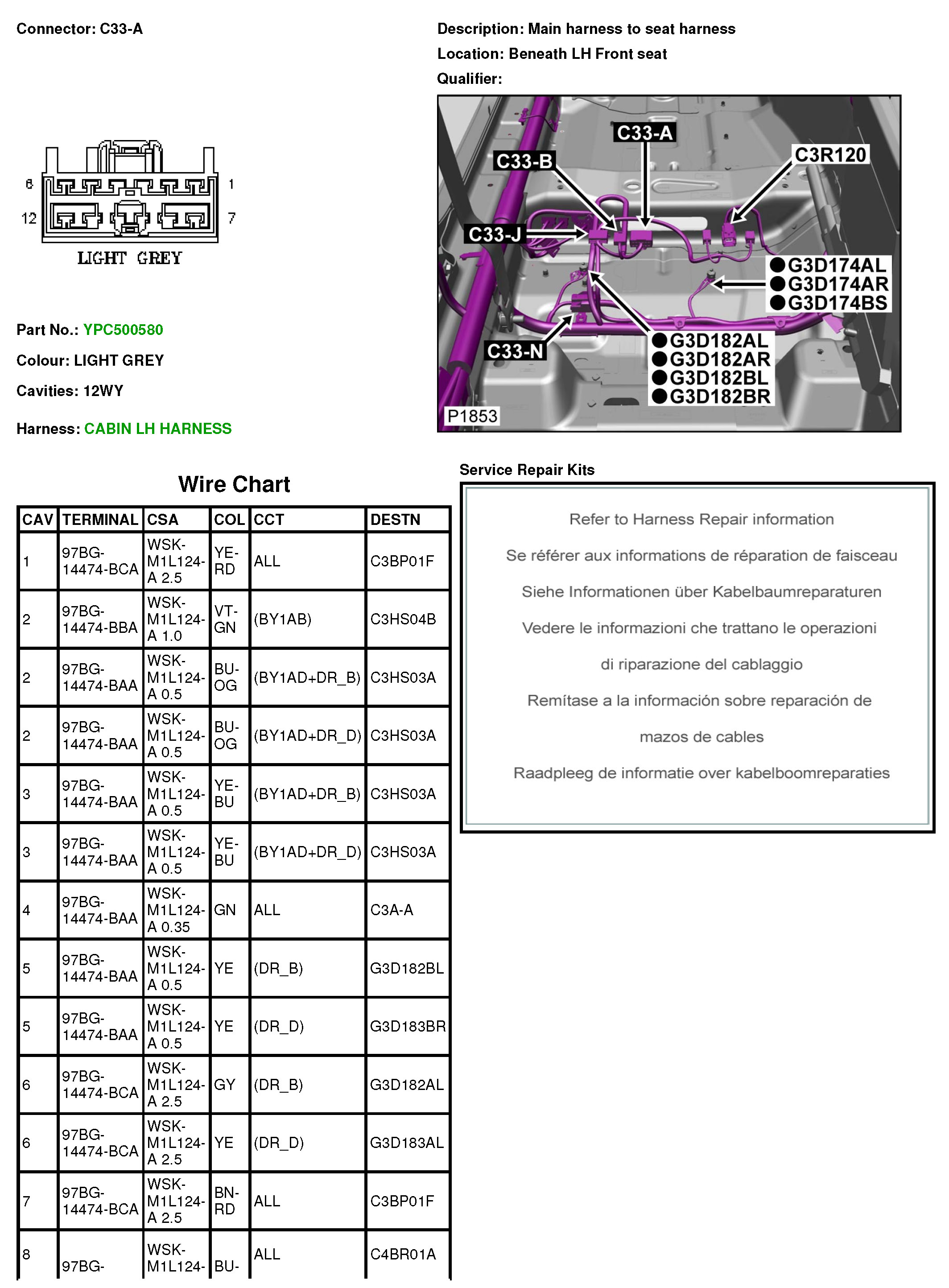

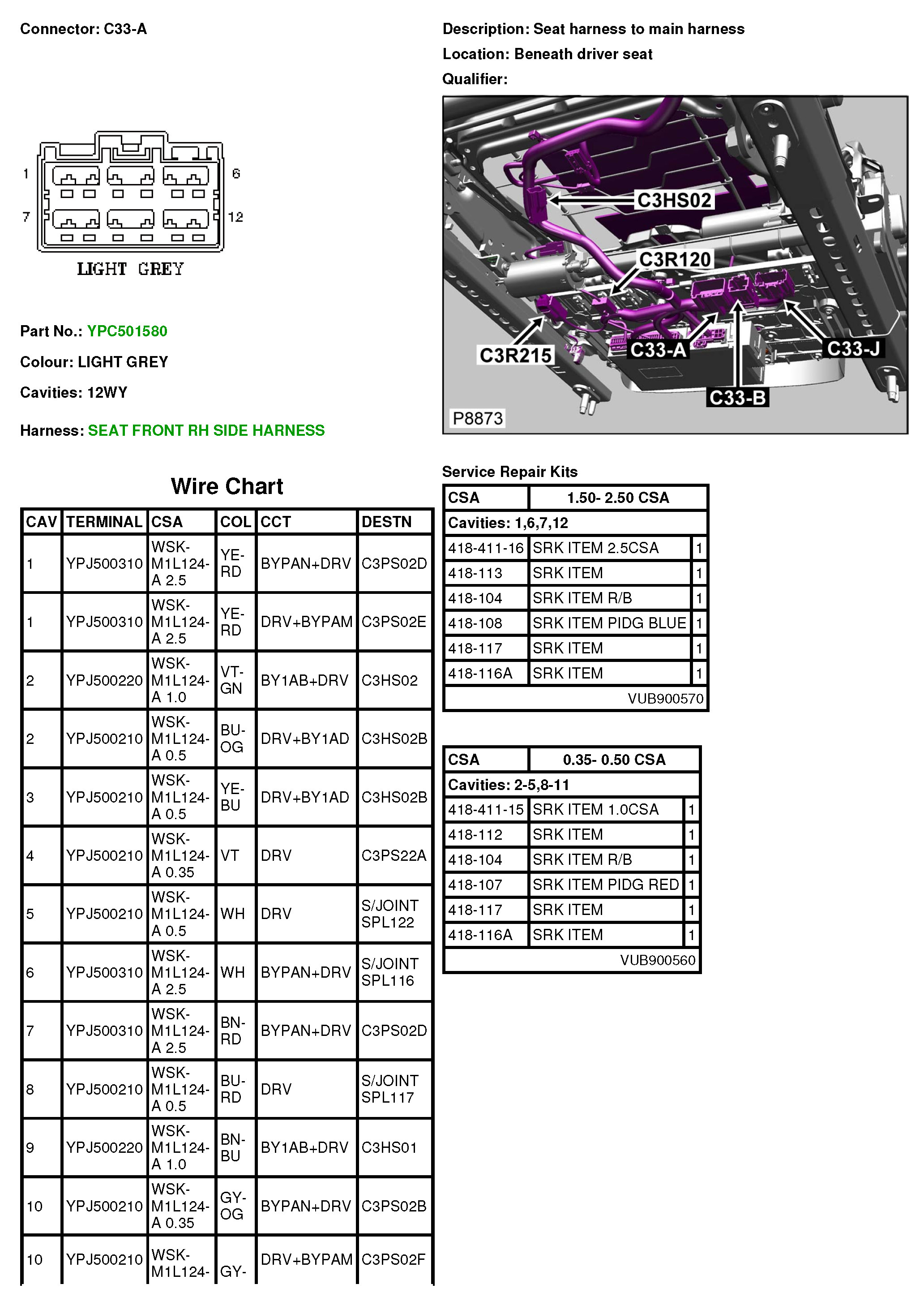

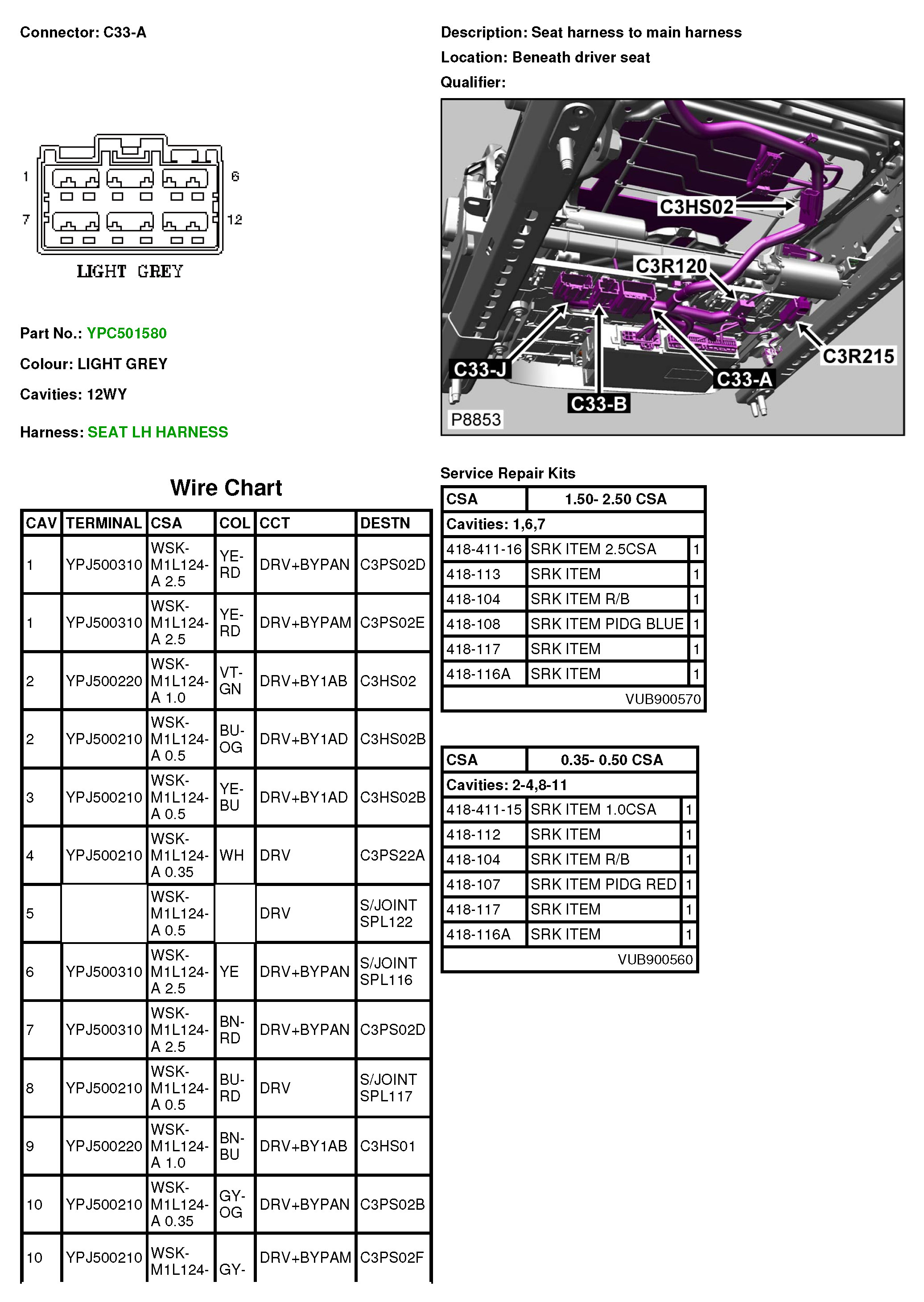

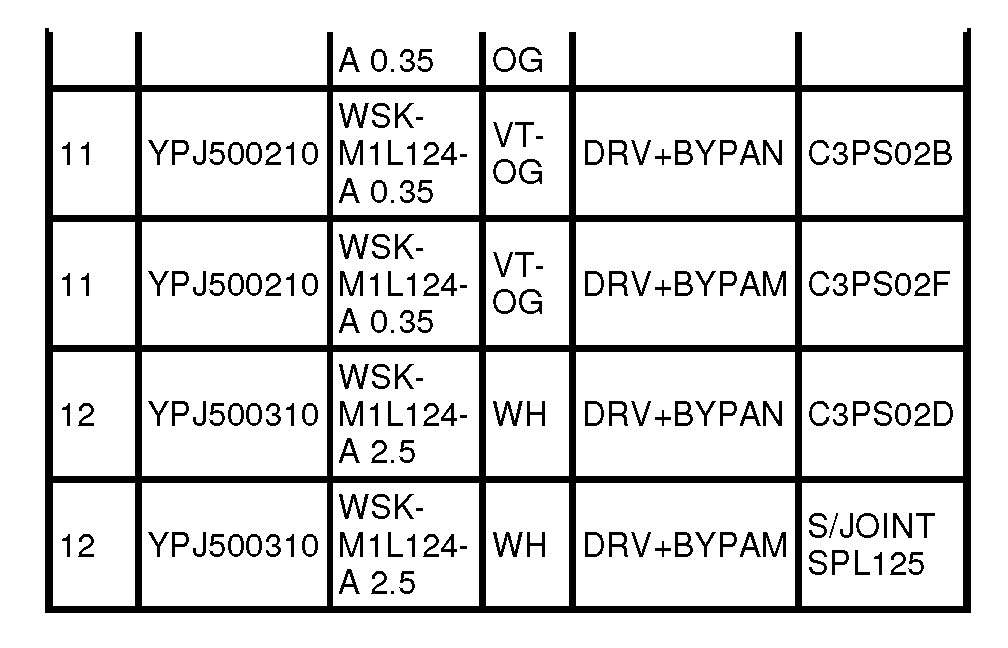

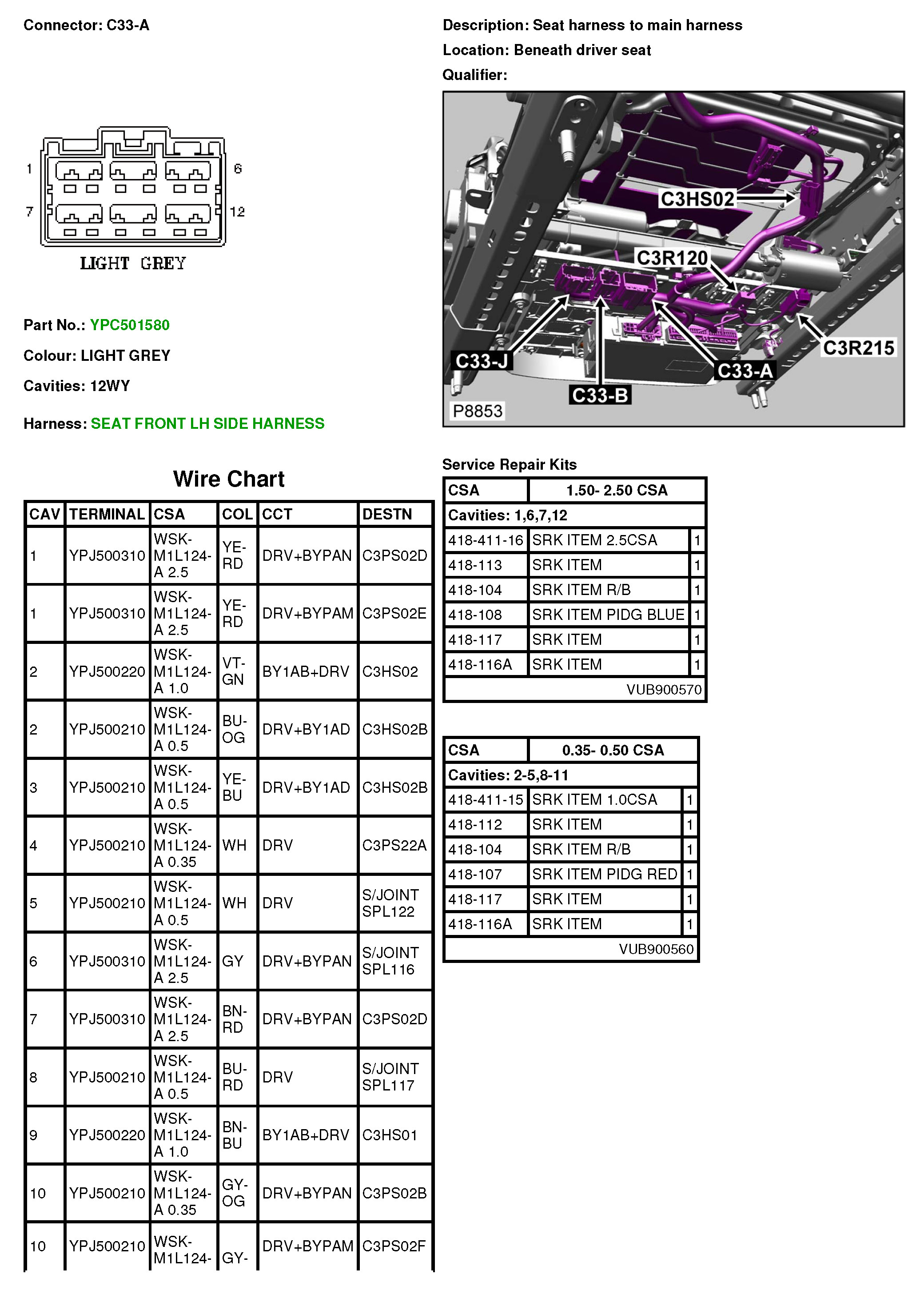

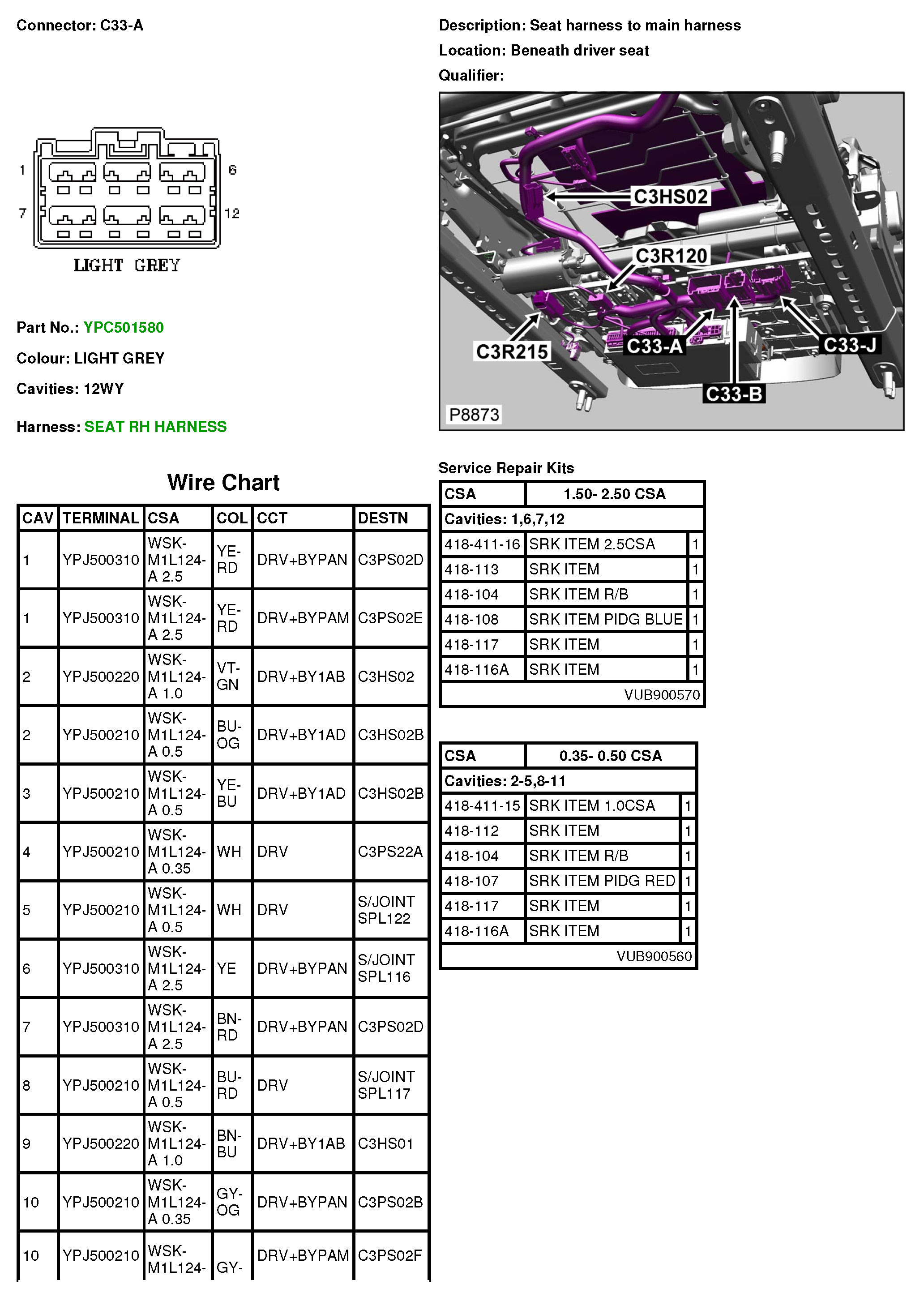

C33-A



C33-A
