Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2012
>>
XJ (X351) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Compressor/Pump, Suspension Control
>>

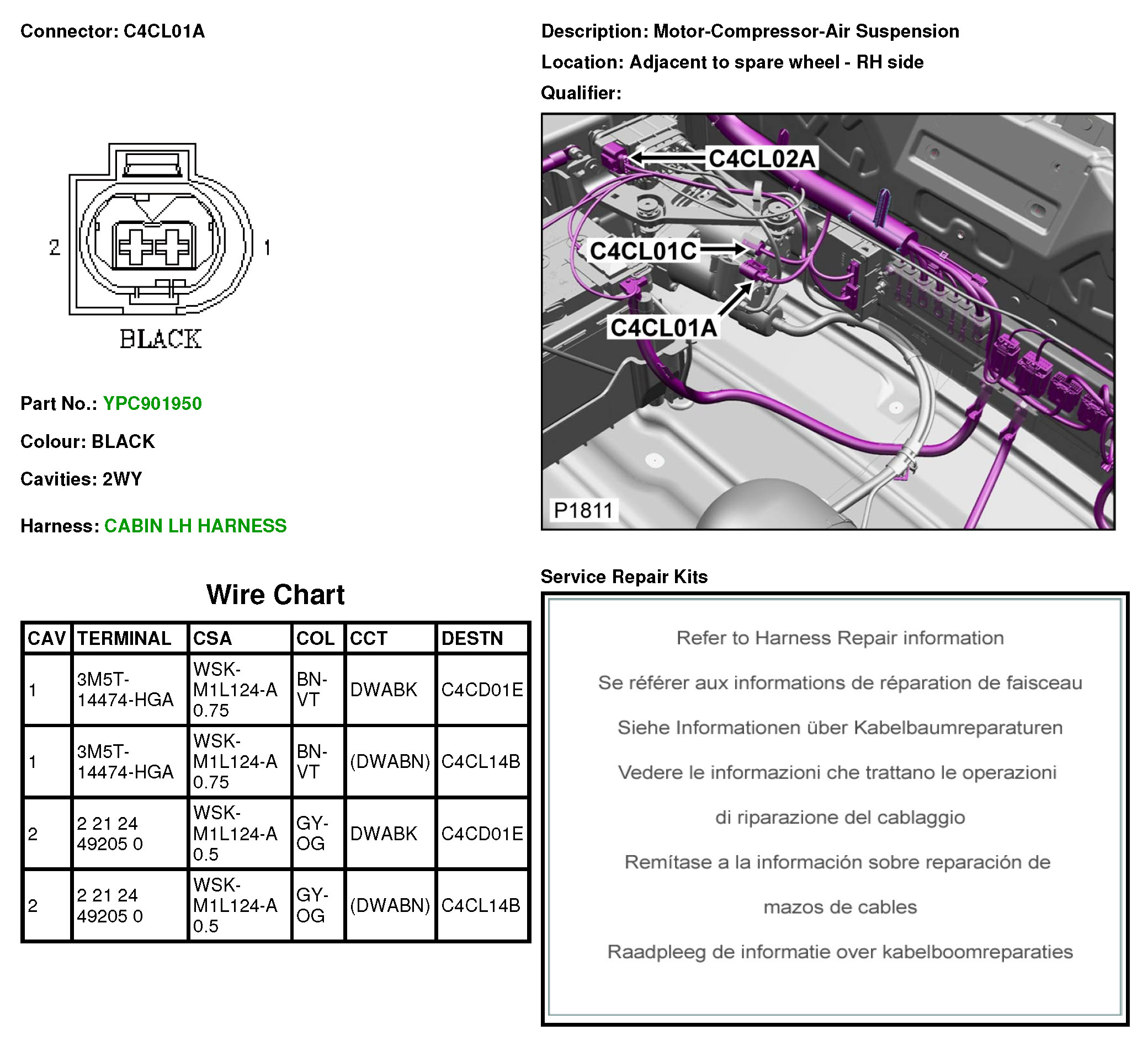

C4CL01A Motor-Compressor-Air Suspension
C4CL01A Motor-Compressor-Air Suspension
C4CL01A
