Control Unit, Differential Lock
>>

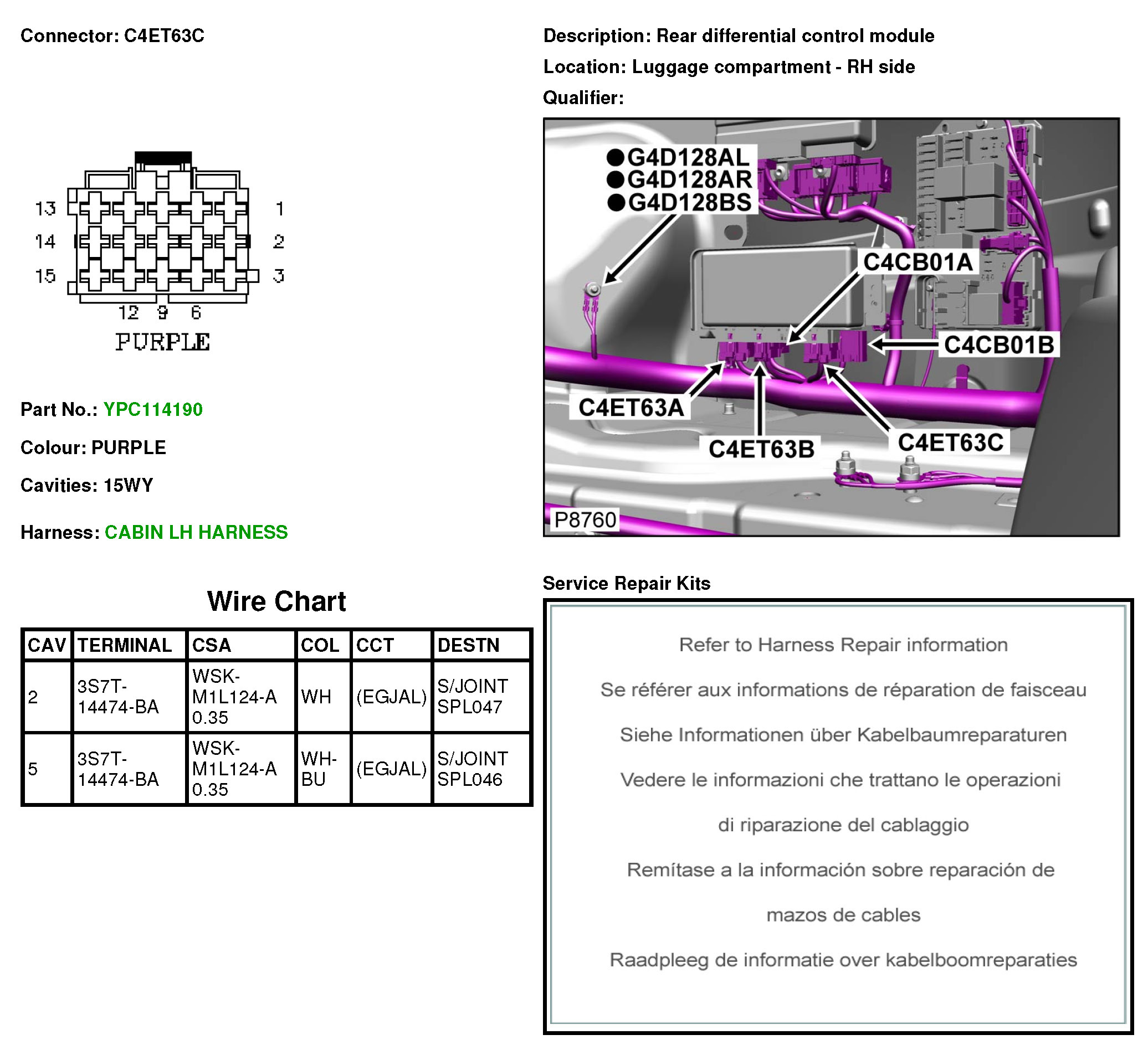

C4ET63C Rear Differential Control Module
C4ET63C Rear Differential Control Module
C4ET63C
