Home >> Jaguar >> 2012 >> XJ (X351) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Head Restraint Control Module >> C3PS69B Motor-Head Restraint-Passenger

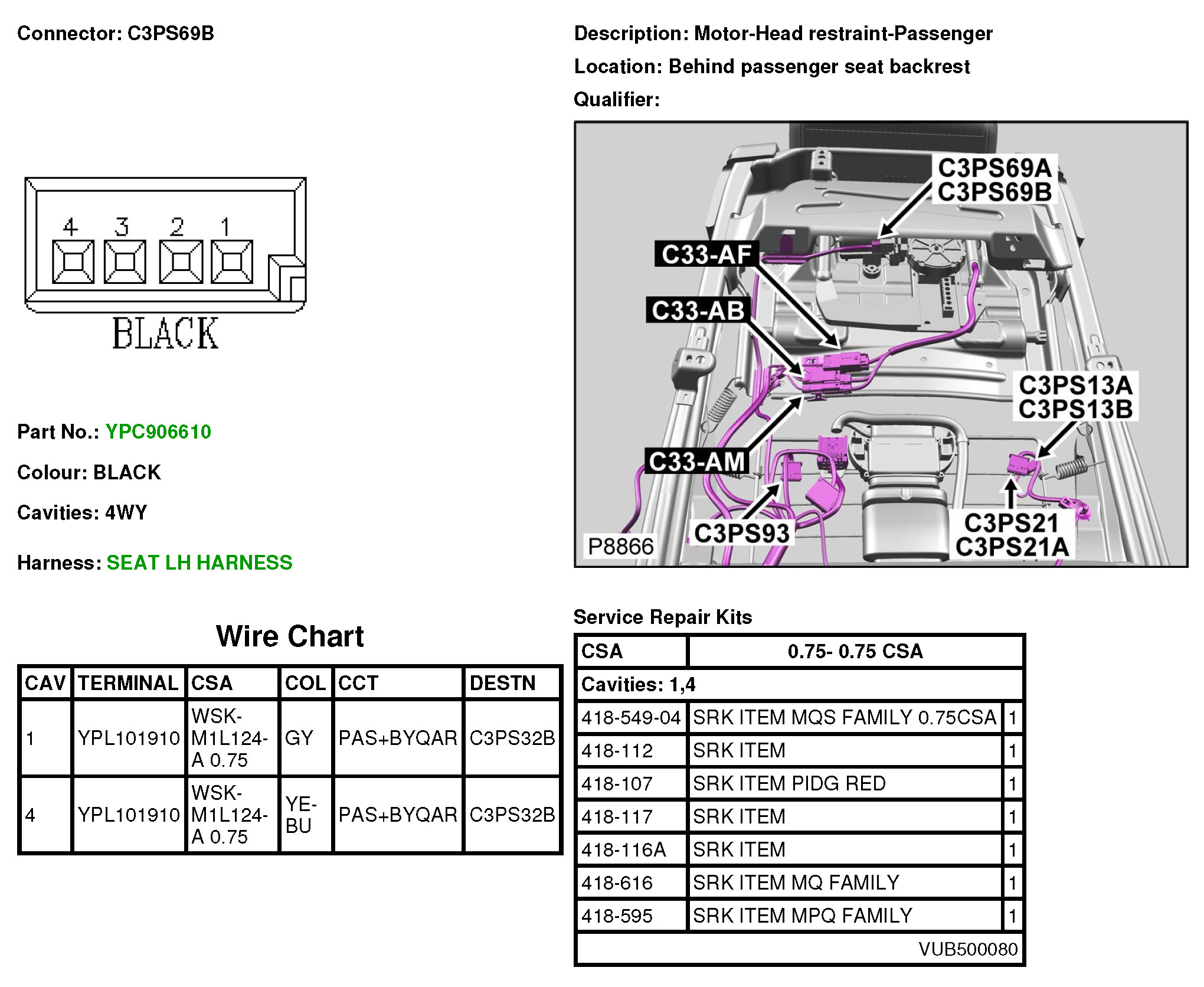

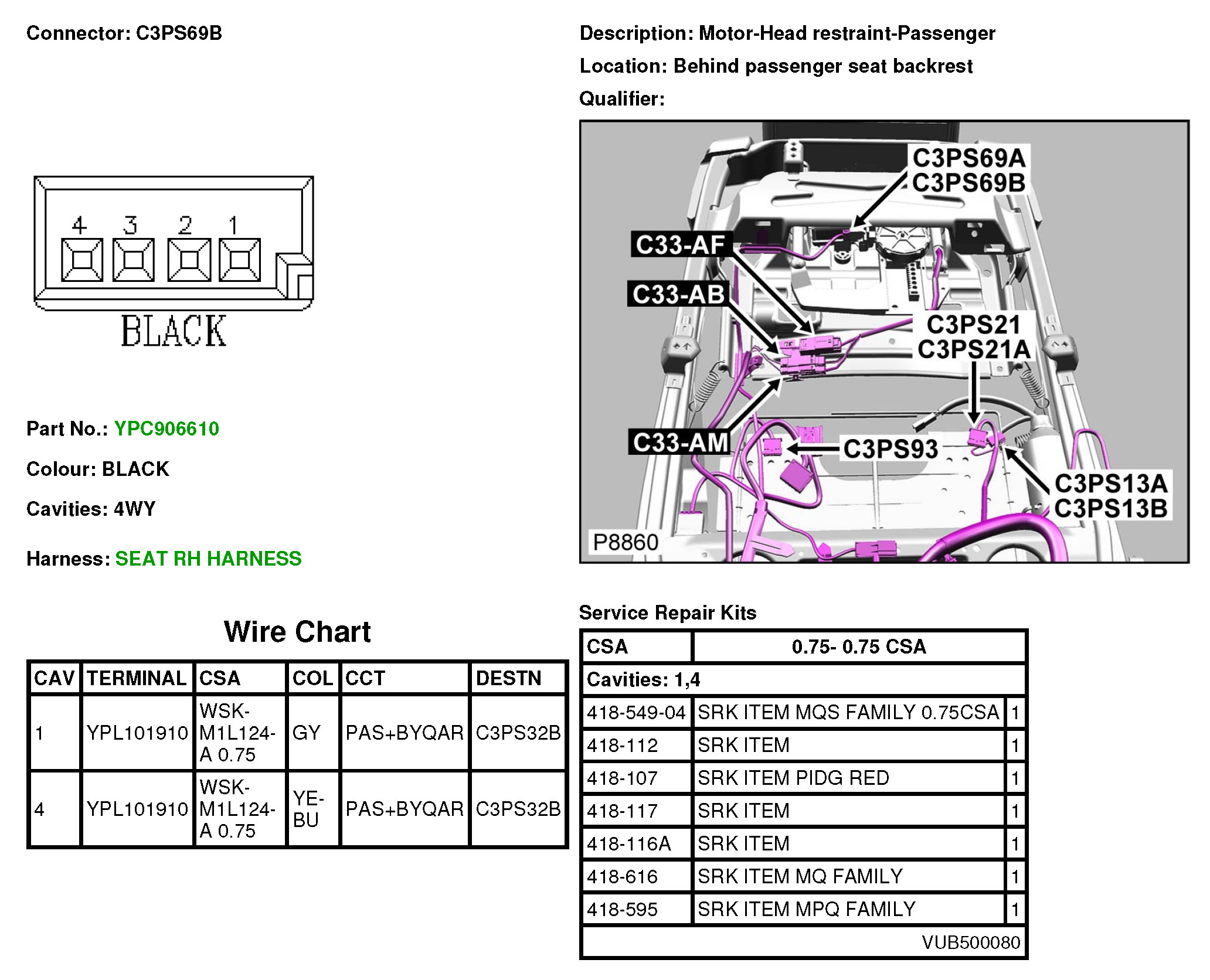

C3PS69B Motor-Head Restraint-Passenger



C3PS69B
