Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2012
>>
XJ (X351) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control Module
>>

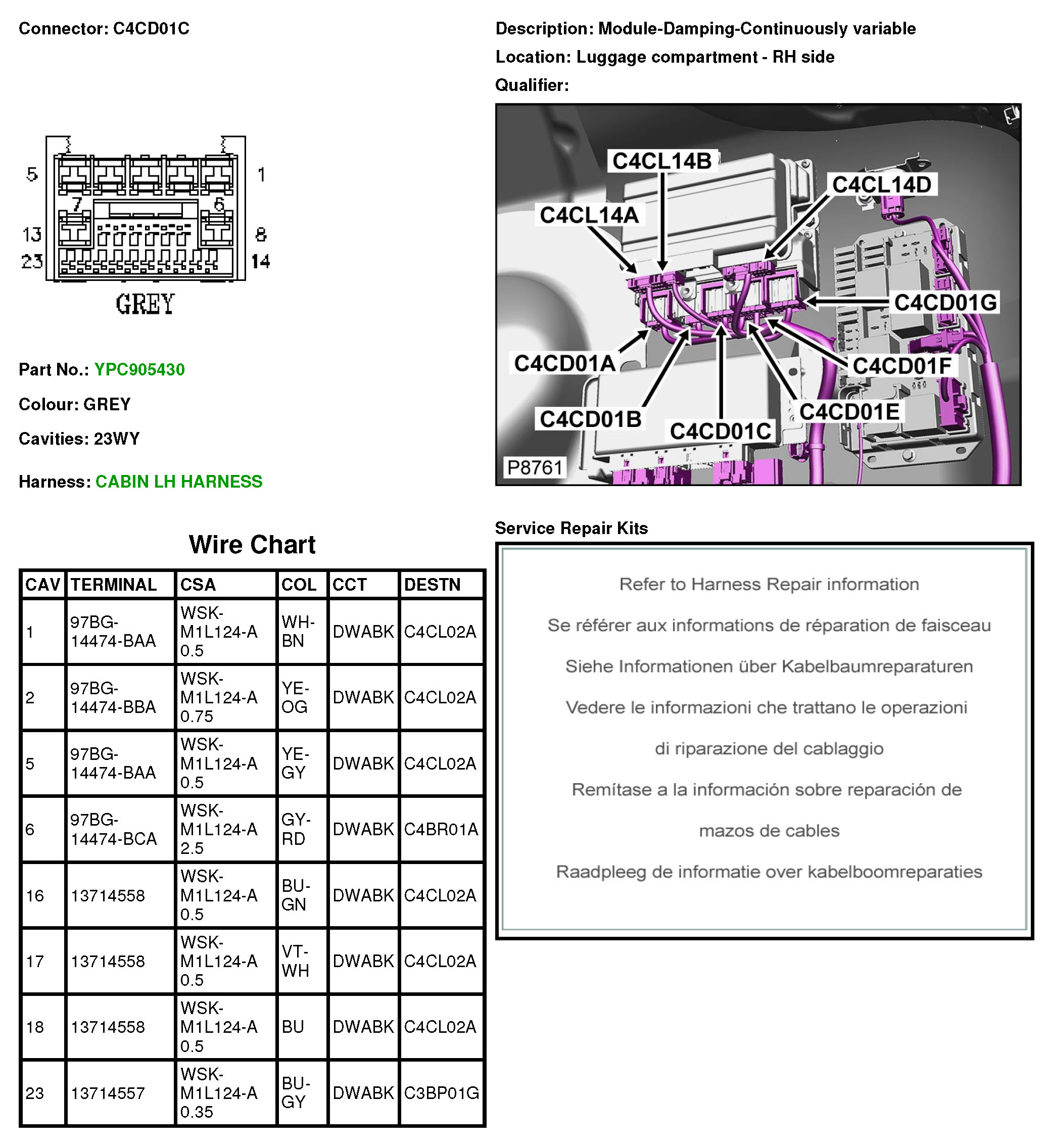

C4CD01C Module-Damping-Continuously Variable
C4CD01C Module-Damping-Continuously Variable
C4CD01C
