Home >> Jaguar >> 2012 >> XJ (X351) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connectors >> C9RW06-C32-F >> C11-P

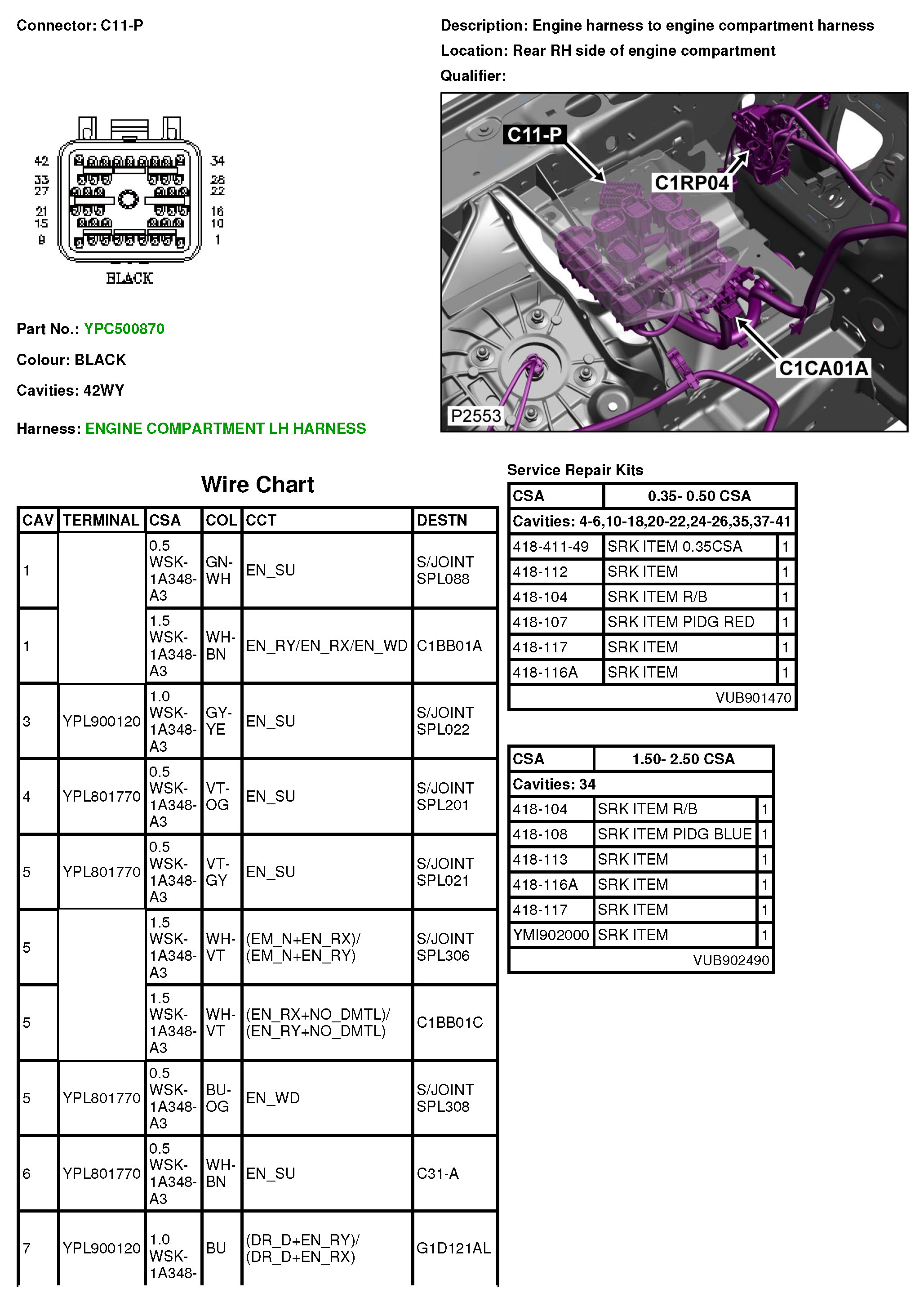

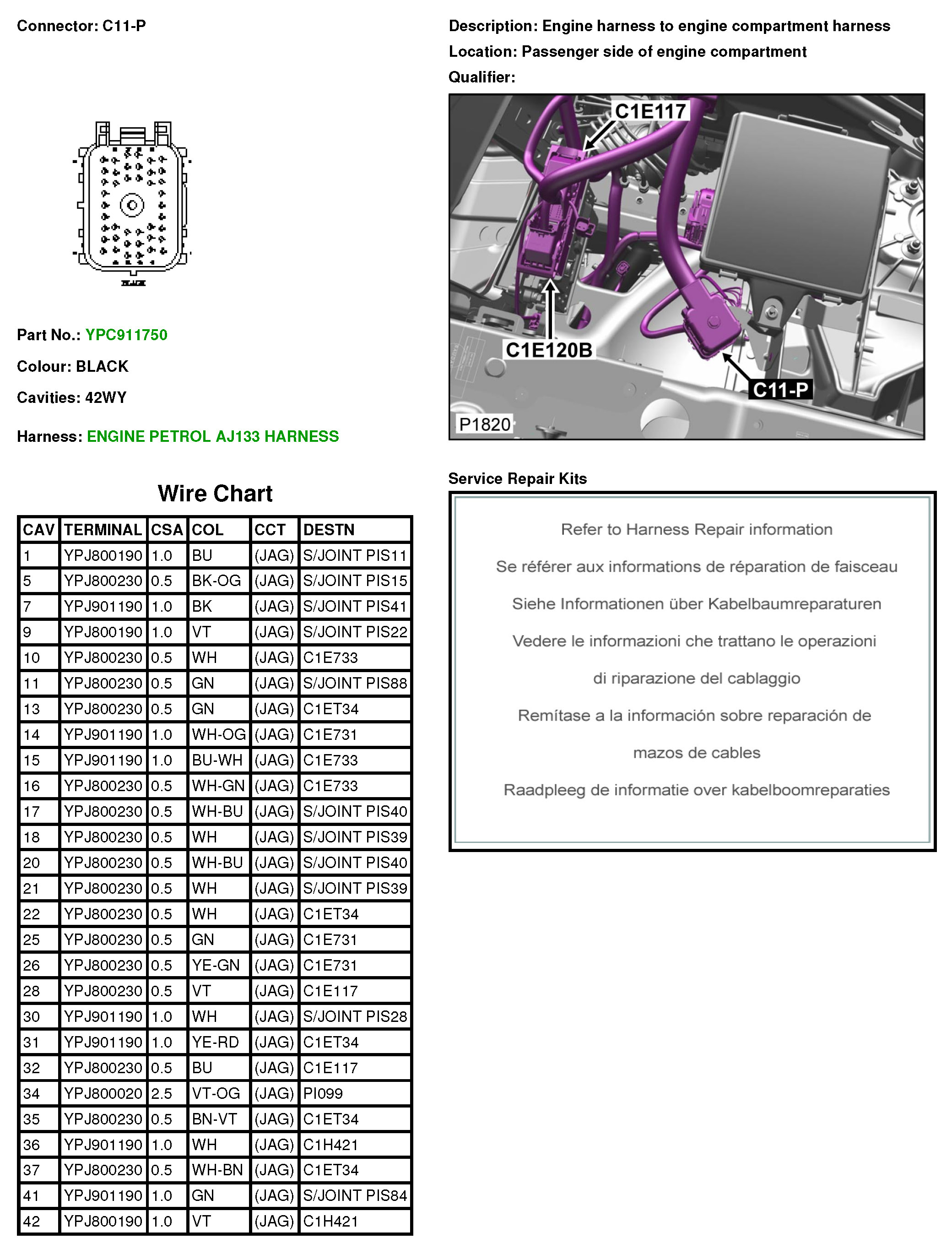

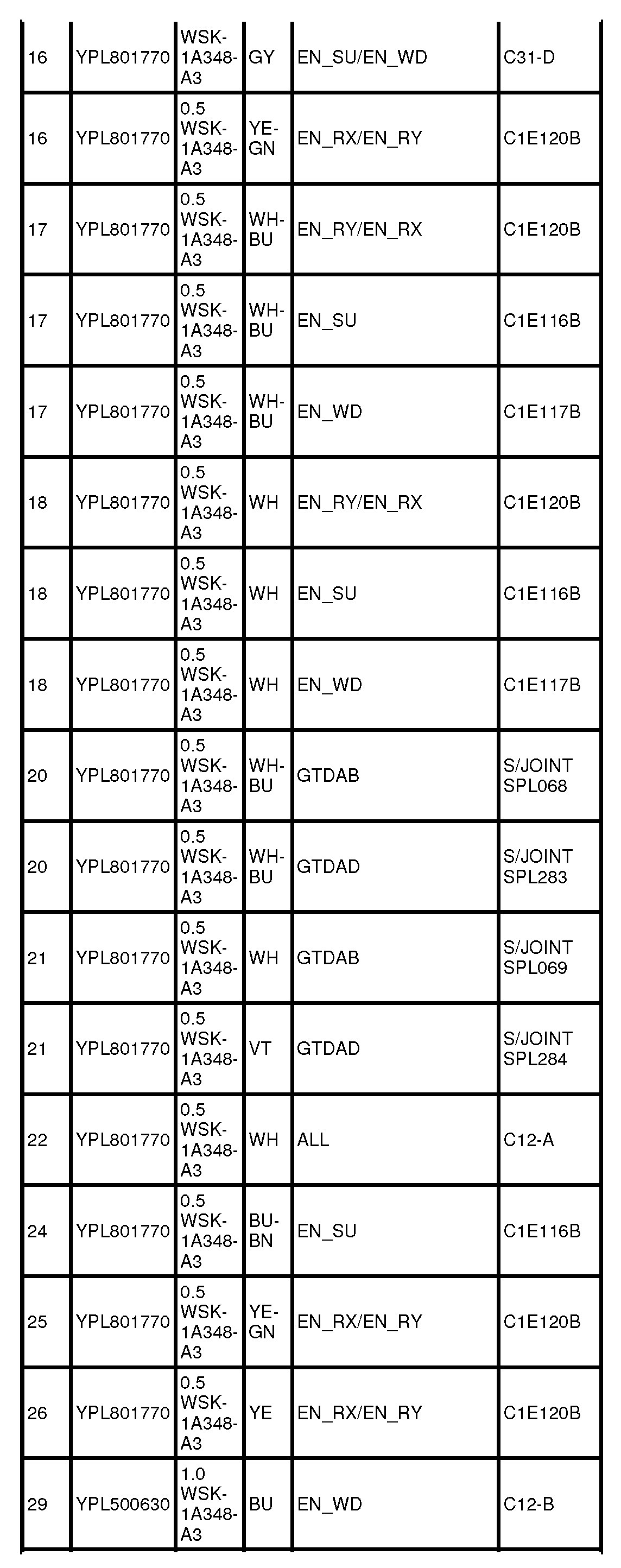

C11-P



C11-P
