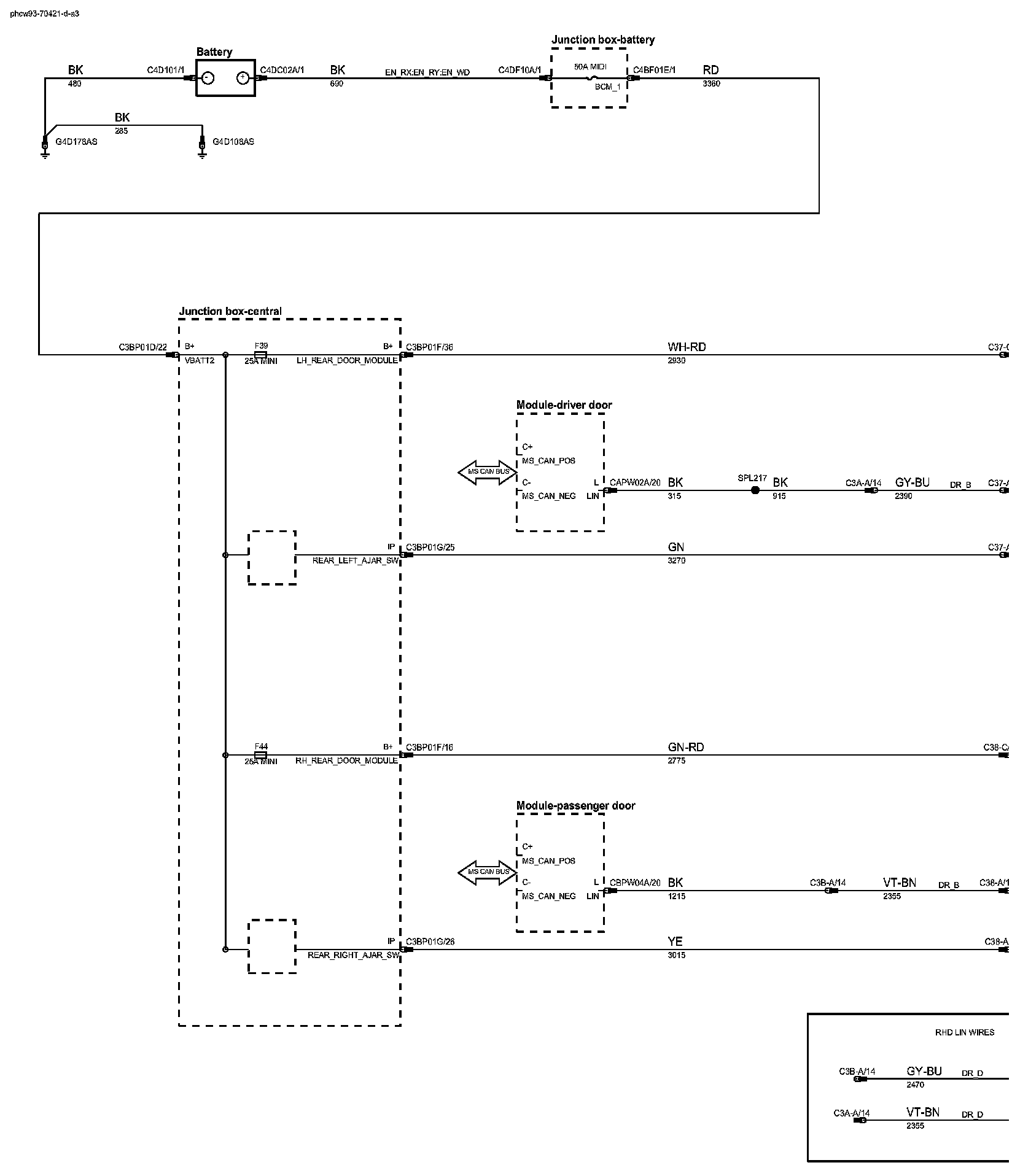

Handles, Locks, Latches and Entry Systems - Rear Dead Locks

Handles, Locks, Latches And Entry Systems - Rear Dead Locks

3�p9:

Locations: The location views for connectors and components depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Locations/Connectors. Connector Locations

Connector Views: The connector pin out views for connectors depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Diagrams/Connector Views. Connector Views
