Installation

Engine
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures
For additional information, refer to TAS Symbol Glossary TAS Symbols Glossary

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

NOTE:
Some illustrations may show the engine removed for clarity.





NOTE:
This step requires the aid of another technician.
Install the lifting chains.









Torque to: 7 Nm













Torque to: 45 Nm





Torque to: 10 Nm





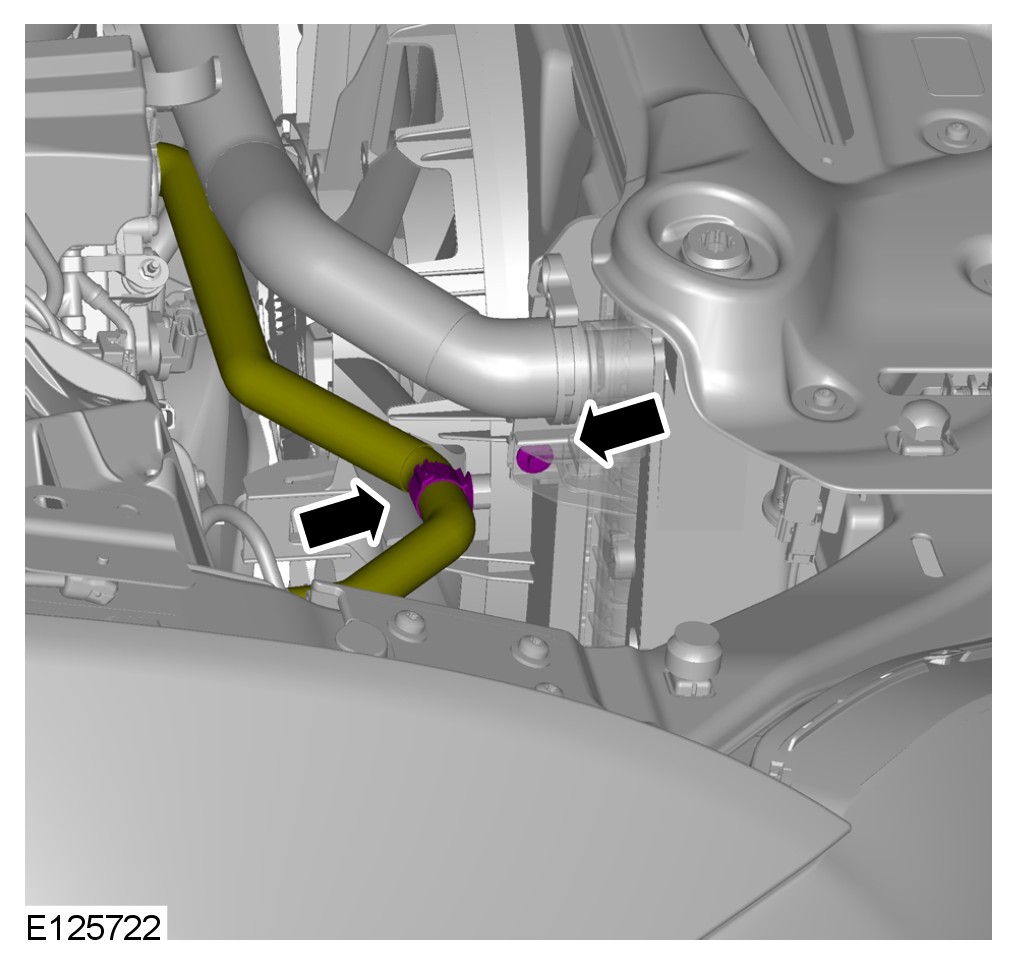

CAUTION: A new O-ring seal is to be installed.

Torque to: 24 Nm





CAUTION: A new O-ring seal is to be installed.

Torque to: 18 Nm
For additional information, refer to Transmission - 5.0L Installation





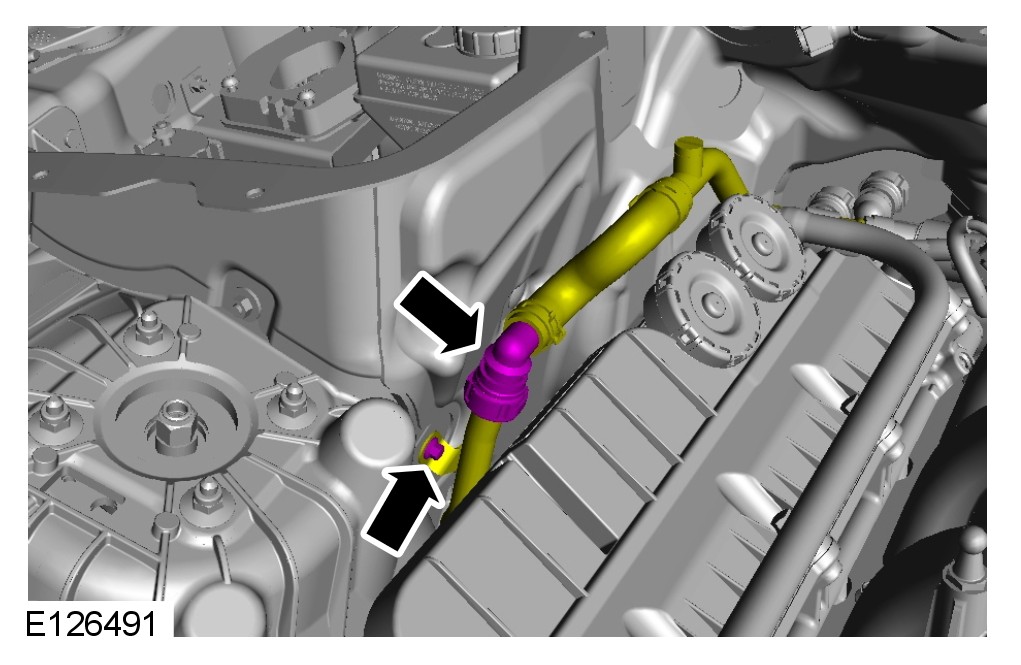

CAUTION: A new O-ring seal is to be installed.

Torque to: 18 Nm





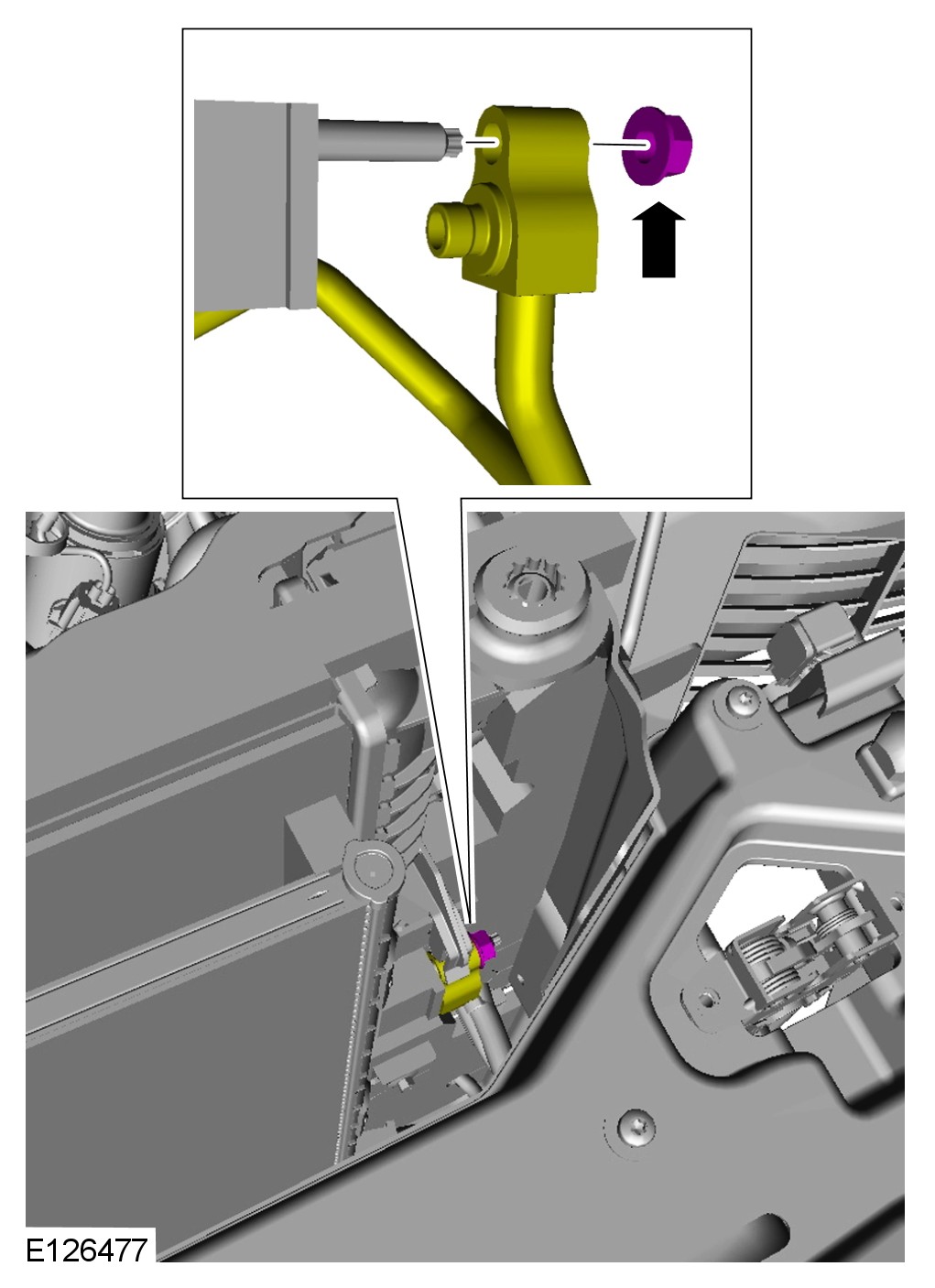

Torque to: 8 Nm

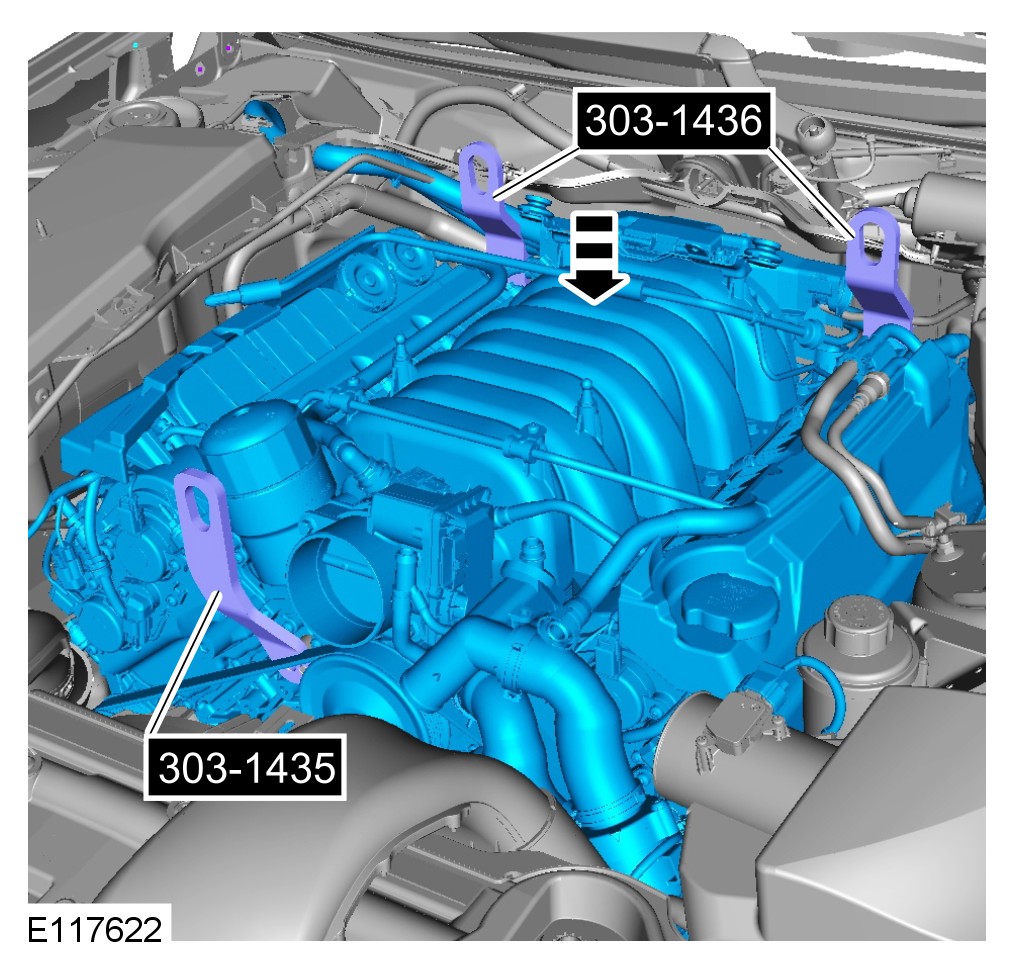

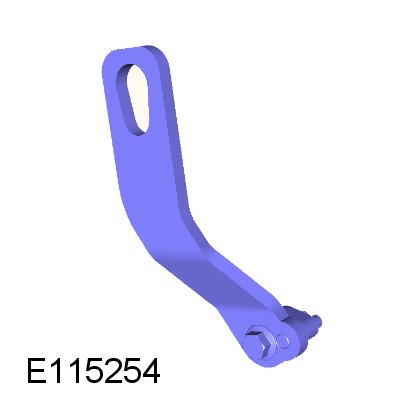

Special Service Tool




Engine Lifting Bracket Front, 303-1435





Torque to: 25 Nm

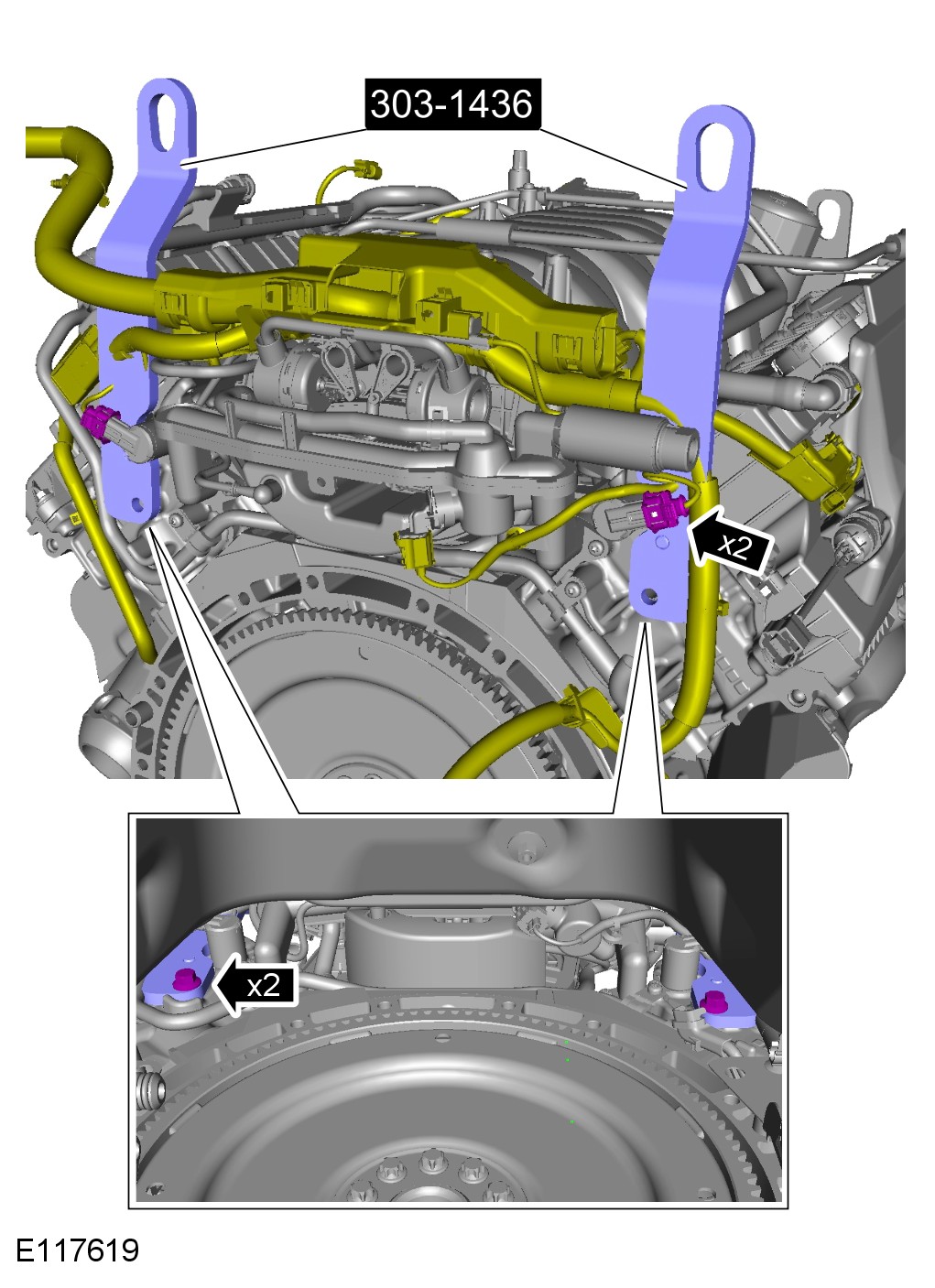

Special Service Tool




Engine Lifting Brackets Rear, 303-1436













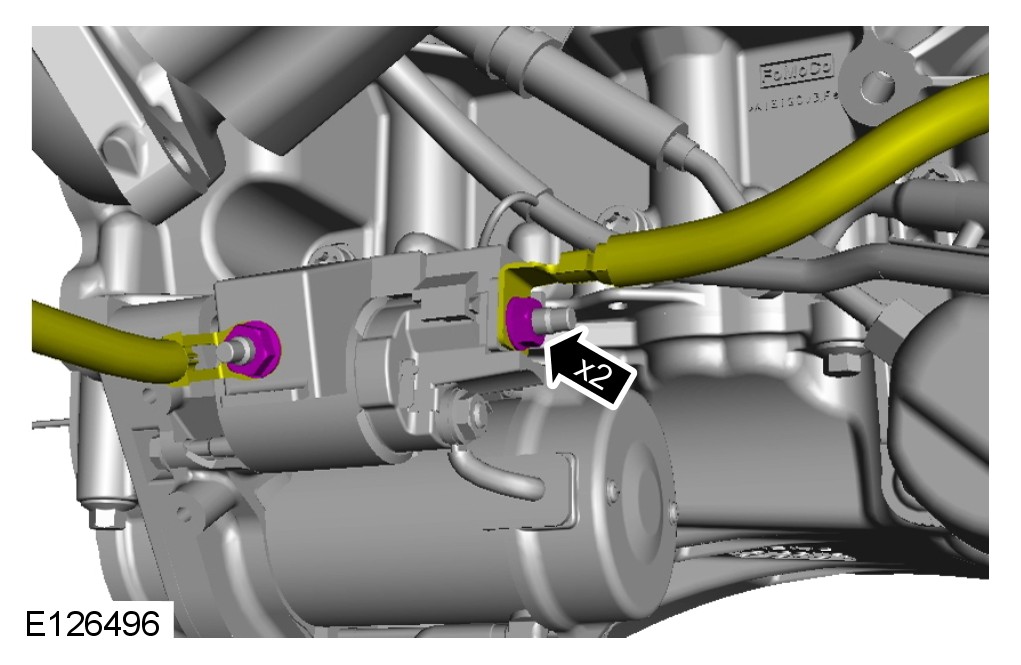

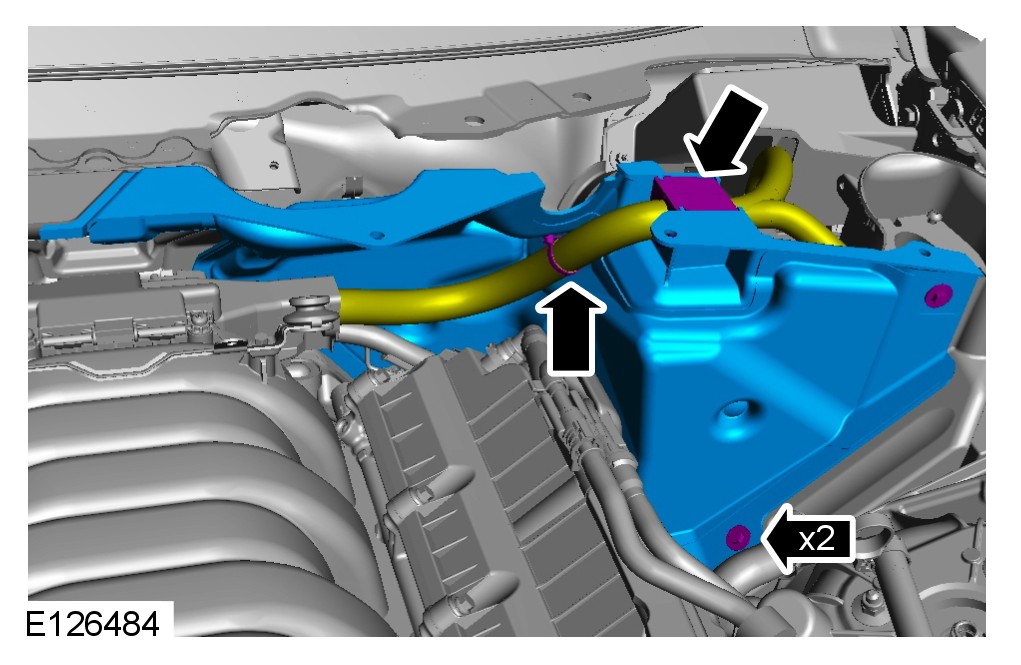

Torque to: 12 Nm





Torque to: 12 Nm





Torque to: 25 Nm





Torque to: 40 Nm





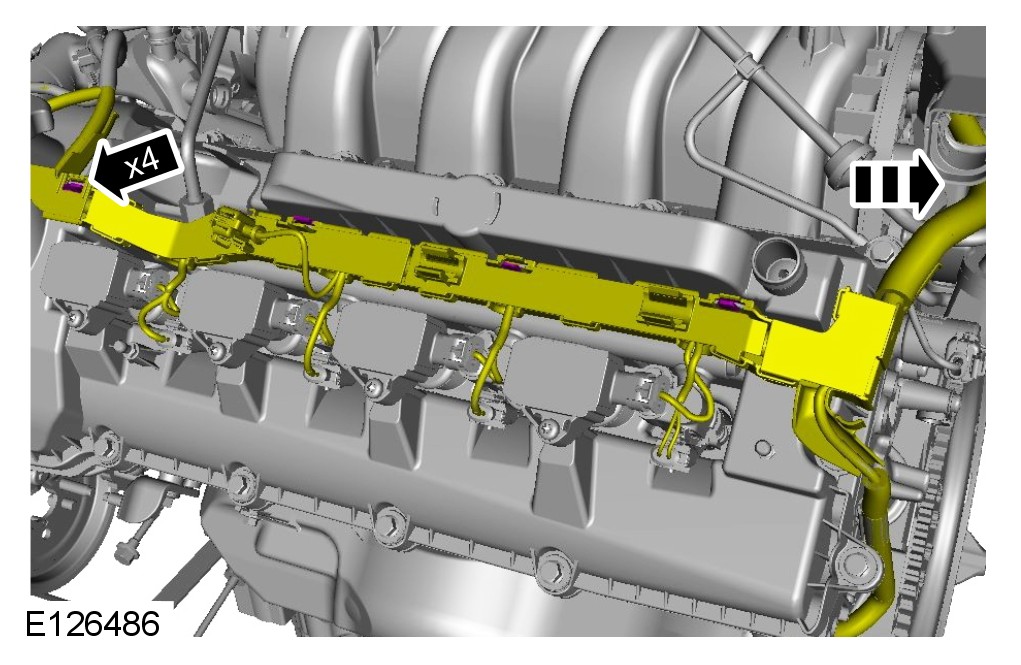

Torque to: 12 Nm





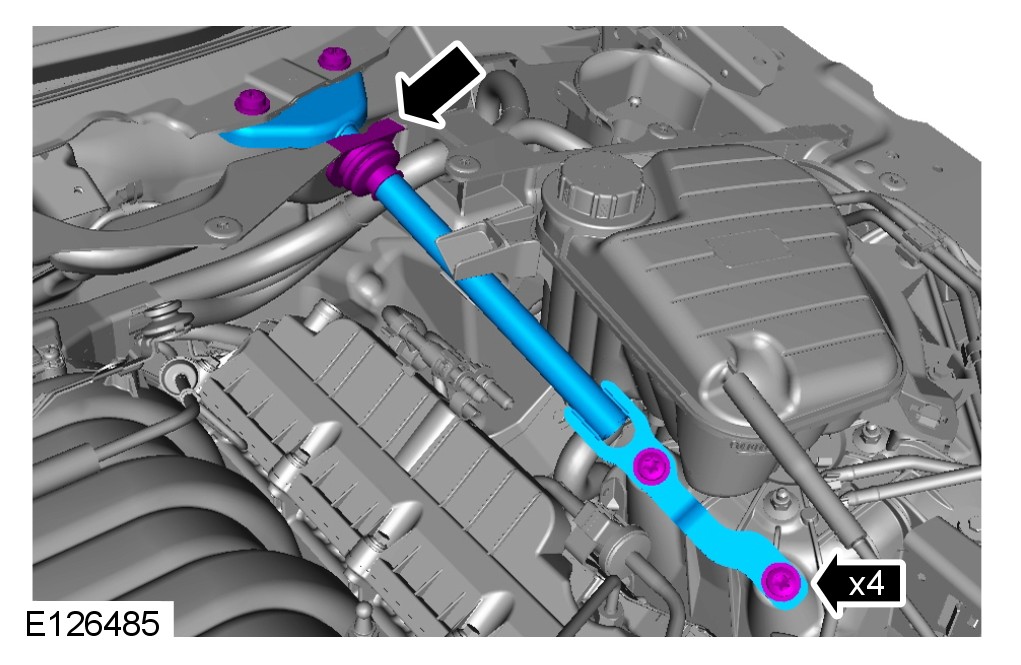

Torque to: 40 Nm









Torque to: 12 Nm





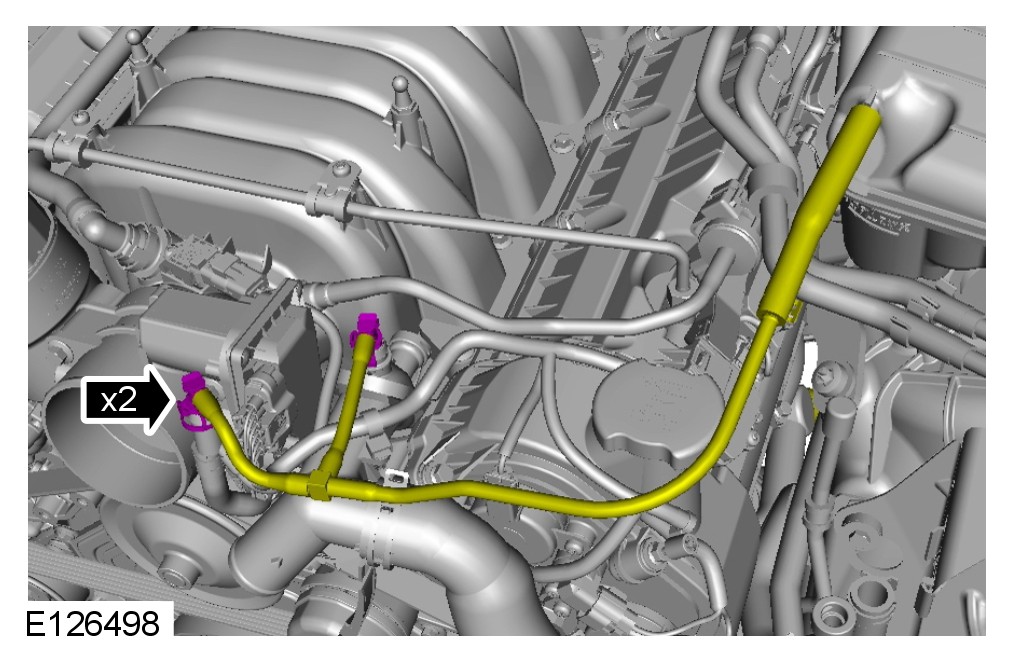

Torque to: 10 Nm





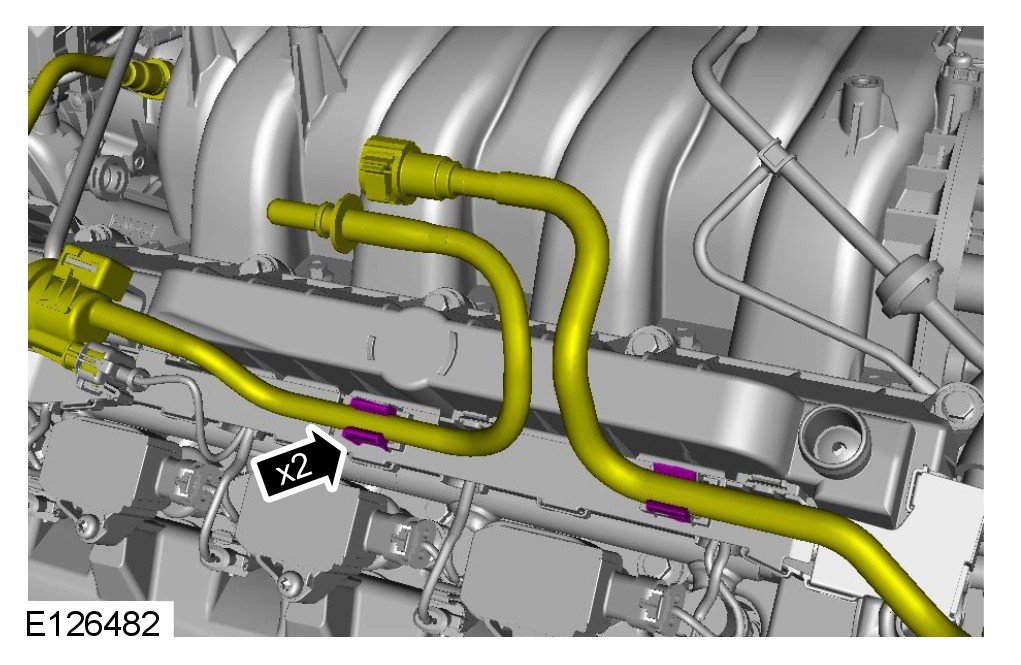

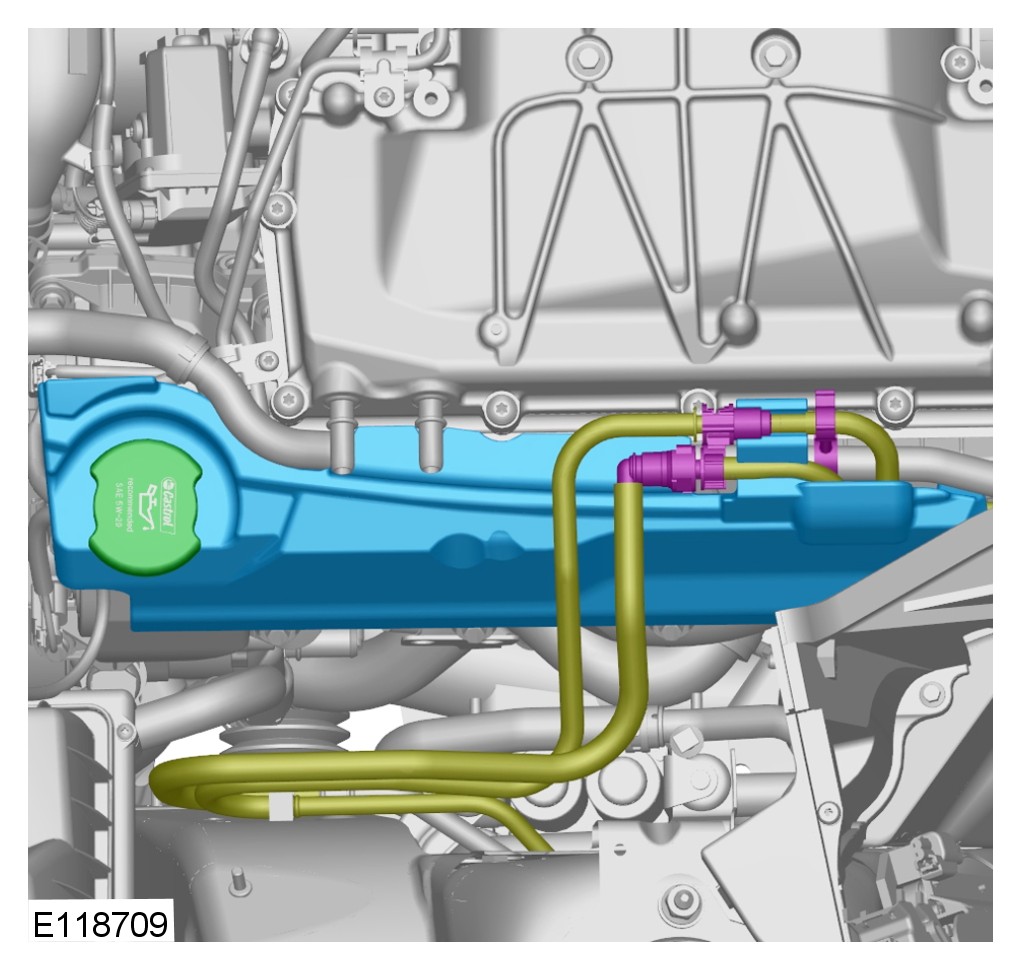

WARNING: Be prepared to collect escaping fluid.

CAUTION: Make sure that all openings are sealed. Use new blanking caps.





















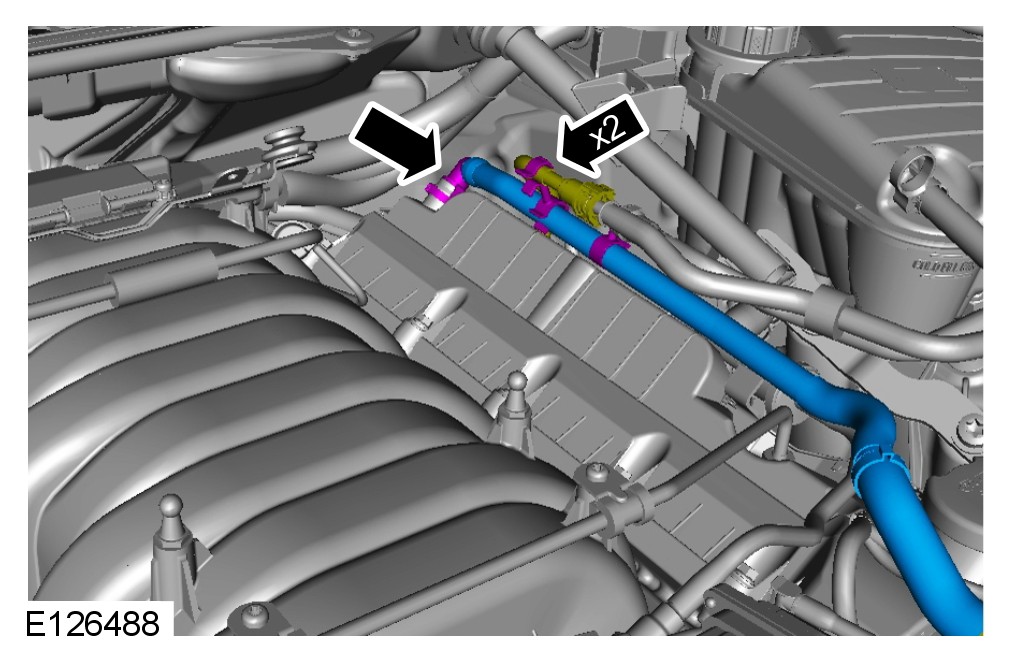

WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.













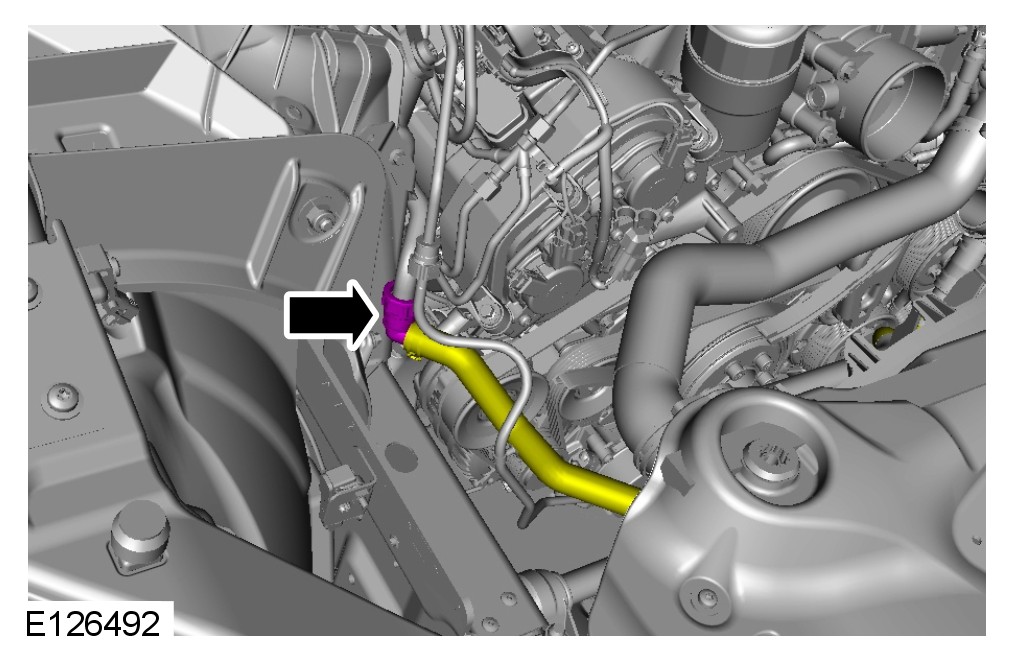

Torque to: 10 Nm

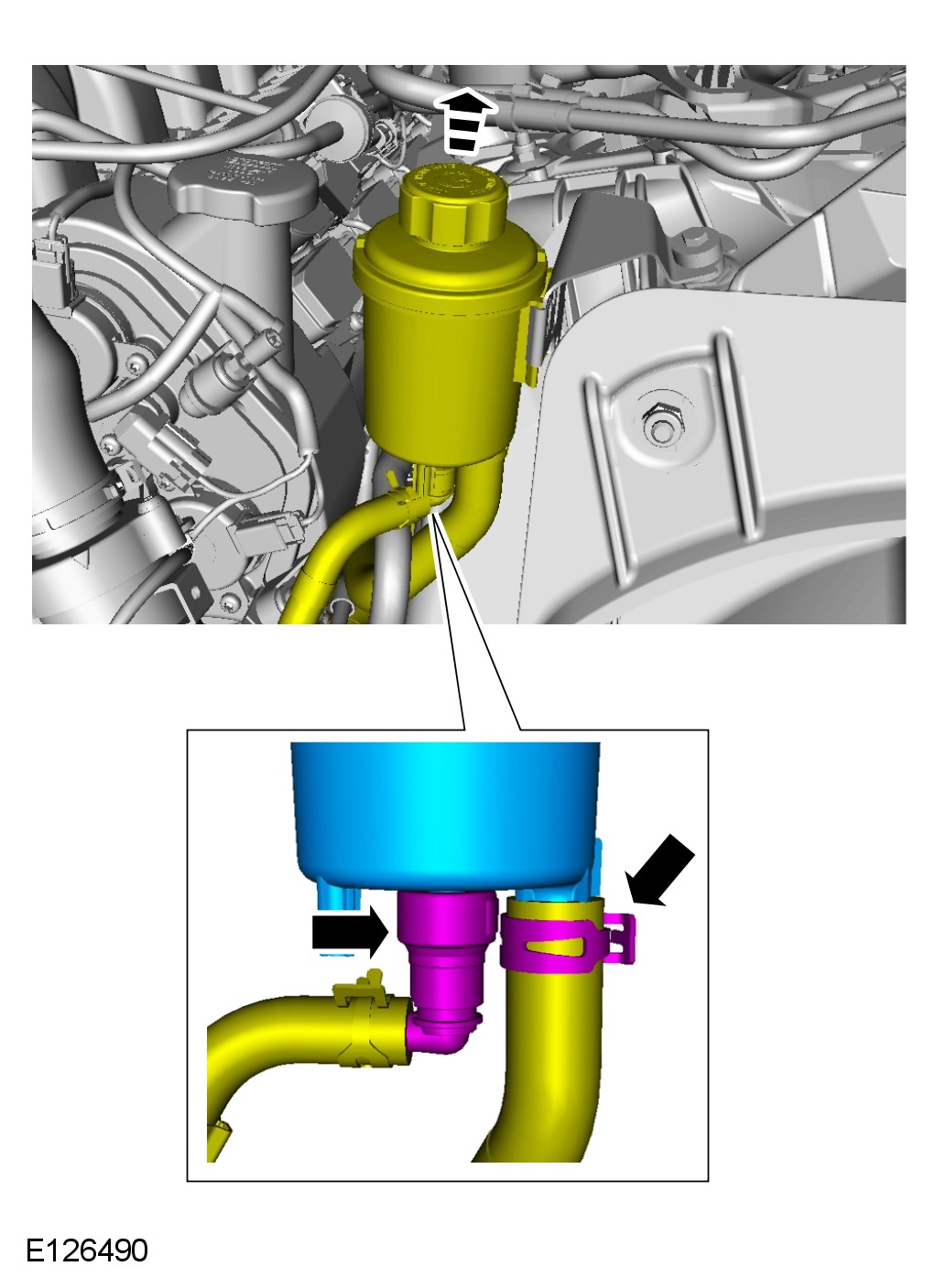

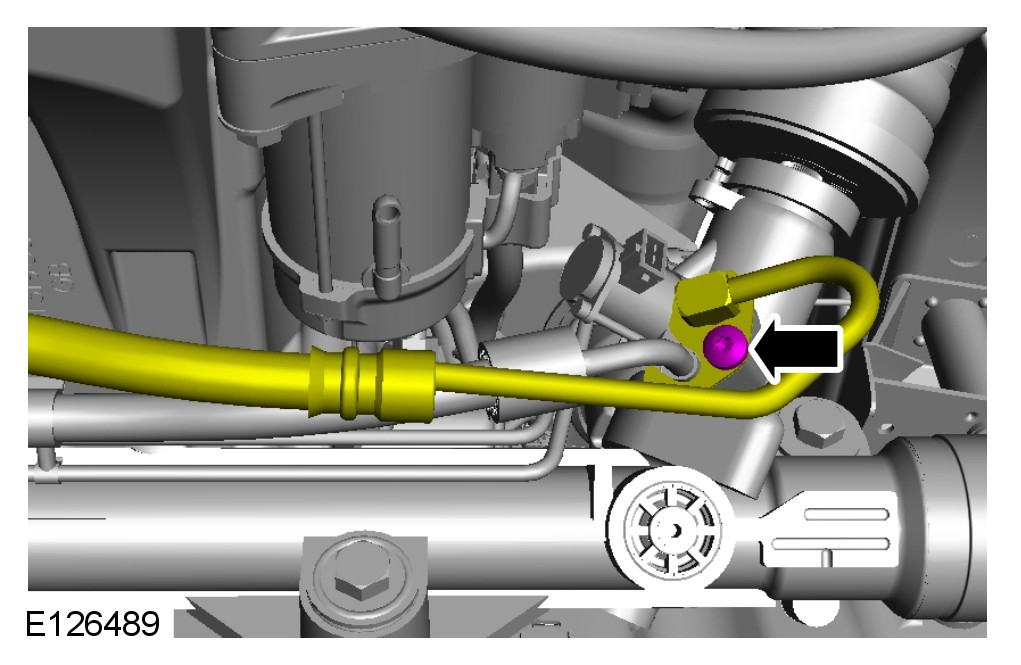

1 Fill and bleed the power steering system.

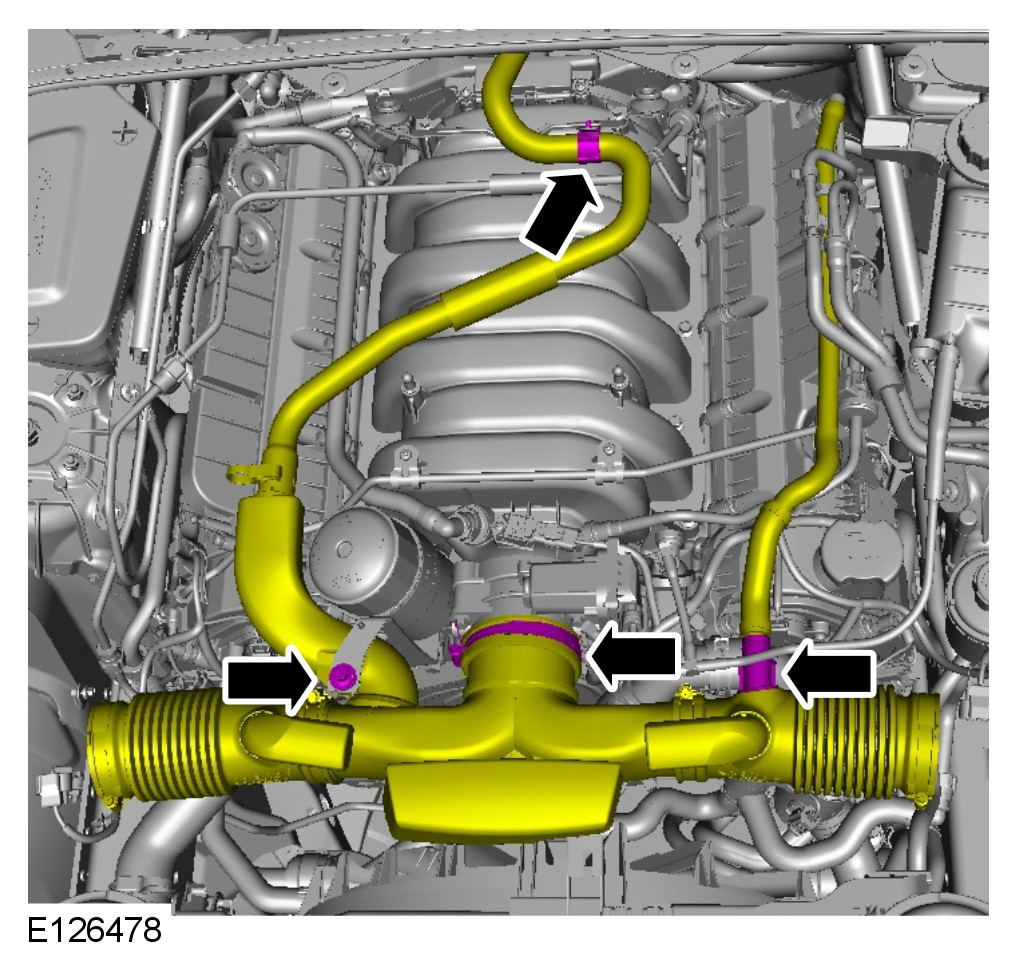

For additional information, refer to Air Cleaner RH Air Cleaner RH
For additional information, refer to Air Cleaner LH Air Cleaner LH

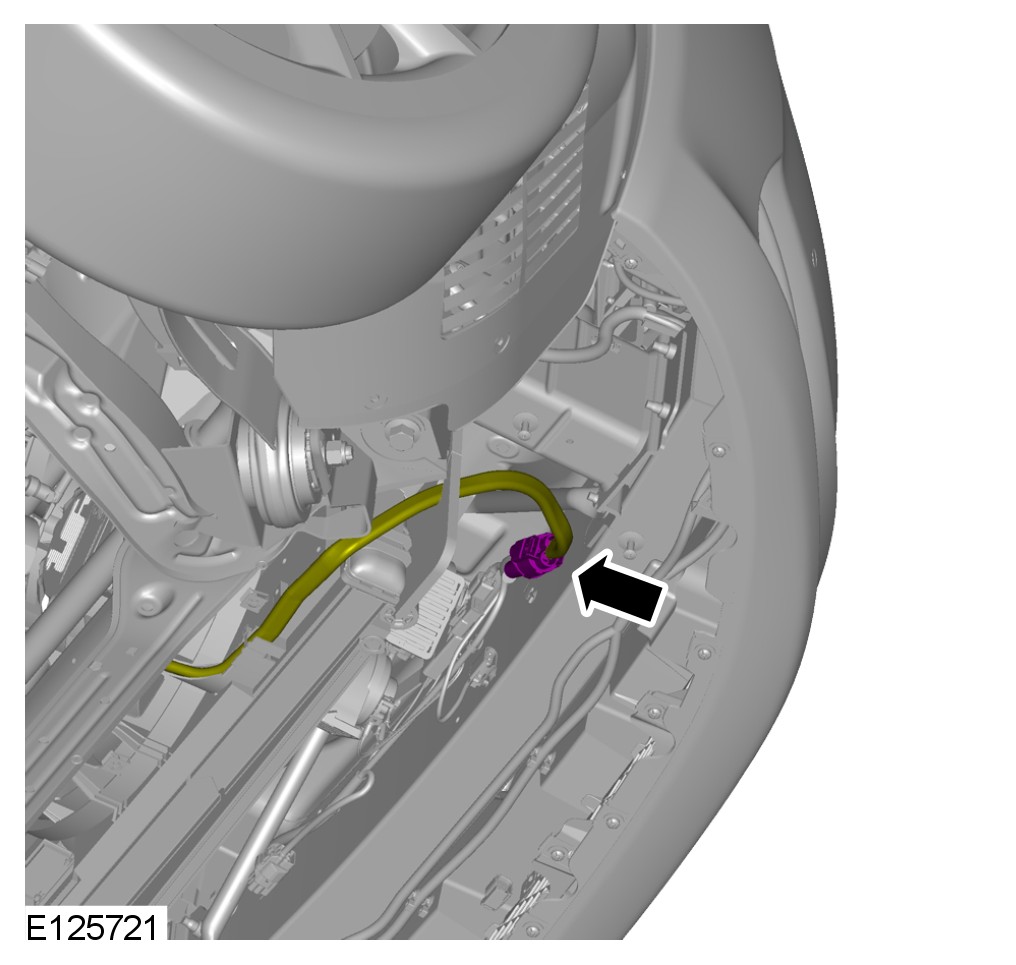

2 Release the 2 clips securing the hood switch to the hood
latch.

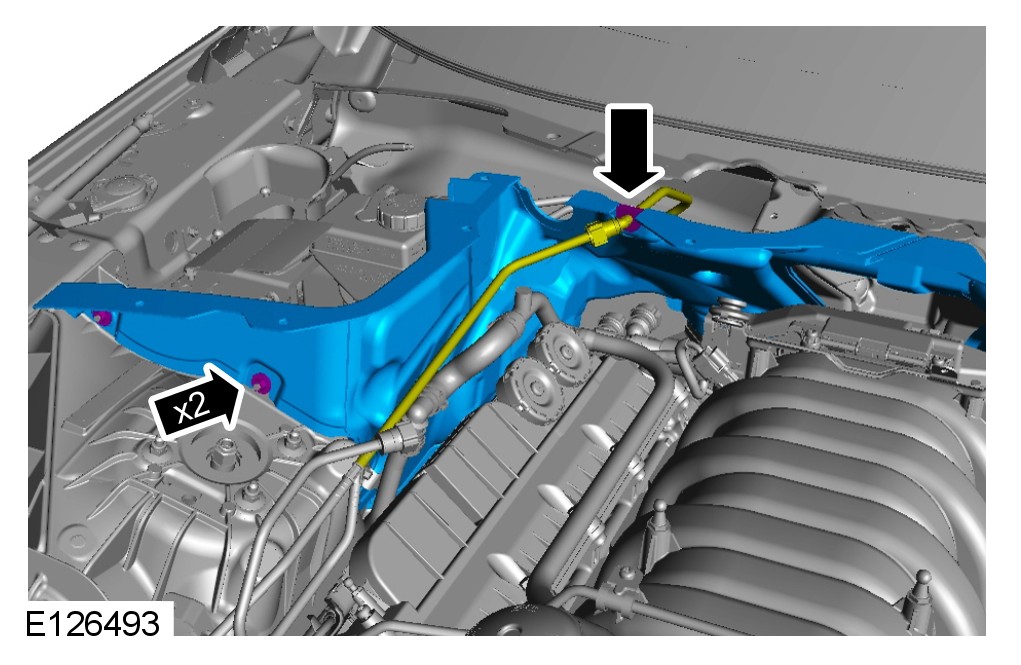

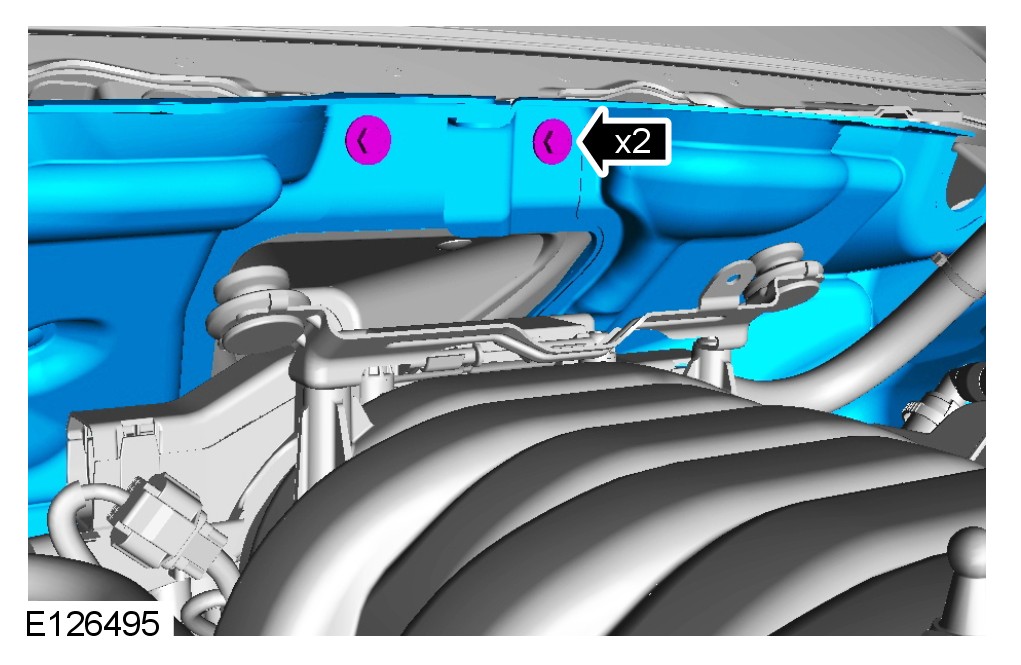

For additional information, refer to Cowl Vent Screen Service and Repair
For additional information, refer to Air Conditioning (A/C) System Recovery, Evacuation and Charging Air Conditioning (A/C) System Recovery, Evacuation and Charging

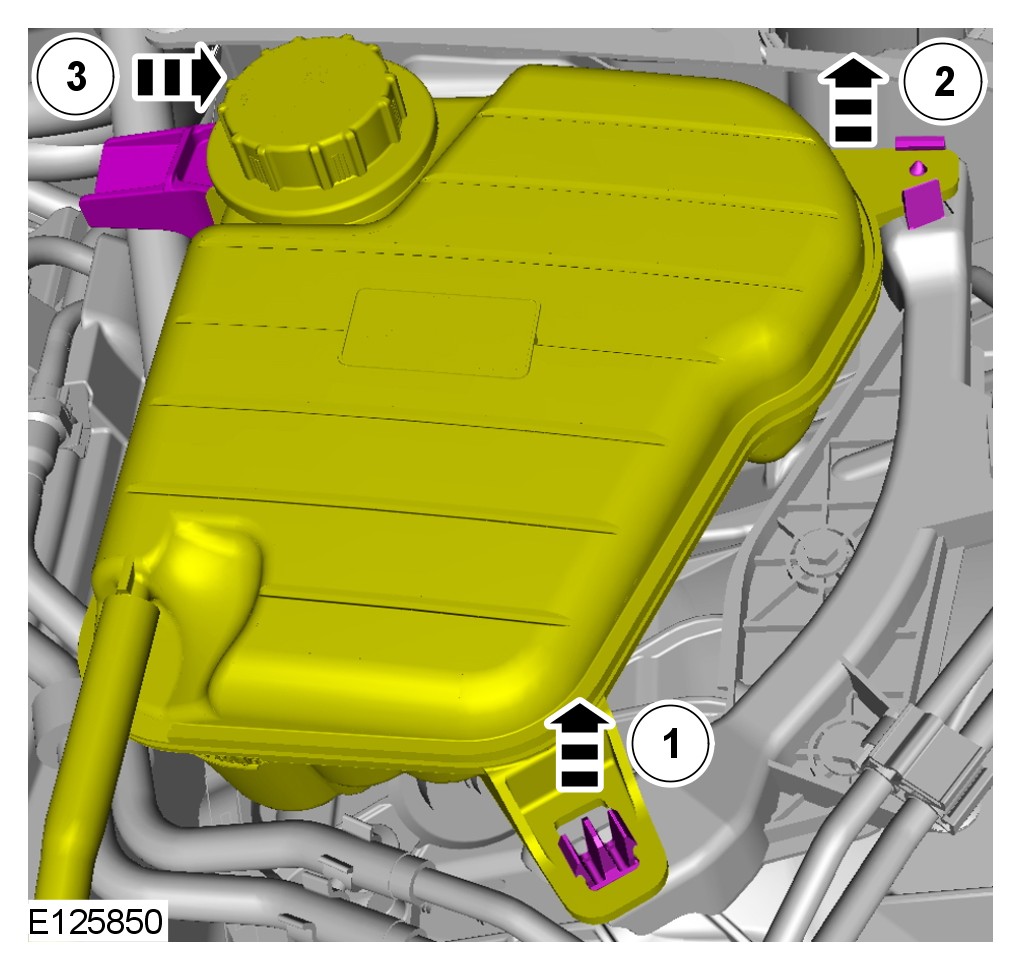

For additional information, refer to Cooling System Draining, Filling and Bleeding - Vehicles Without: Supercharger Cooling System Draining, Filling and Bleeding
For additional information, refer to Battery Disconnect and Connect Battery Disconnect and Connect
