Removal

Engine
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures
For additional information, refer to TAS Symbol Glossary TAS Symbols Glossary

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

NOTE:
Some illustrations may show the engine removed for clarity.
For additional information, refer to Battery Disconnect and Connect Battery Disconnect and Connect
For additional information, refer to Cooling System Draining, Filling and Bleeding - Vehicles Without: Supercharger Cooling System Draining, Filling and Bleeding
For additional information, refer to Air Conditioning (A/C) System Recovery, Evacuation and Charging Air Conditioning (A/C) System Recovery, Evacuation and Charging
For additional information, refer to Cowl Vent Screen Service and Repair
1 Secure the hood in the service position.
For additional information, refer to Air Cleaner LH Air Cleaner LH
For additional information, refer to Air Cleaner RH Air Cleaner RH

WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.

CAUTION: Be prepared to collect escaping fuel.

CAUTION: Be prepared to collect escaping fluids.

CAUTION: Be prepared to collect escaping coolant.

Torque to: 25 Nm

Special Service Tool

Engine Lifting Bracket Front, 303-1435

Torque to: 25 Nm

CAUTION: Be prepared to collect escaping coolant.

NOTE:
Remove and discard the O-ring seal.

WARNING: Make sure to support the vehicle with axle stands.
2 Raise and support the vehicle.
For additional information, refer to Transmission - 5.0L Removal

NOTE:
Remove and discard the O-ring seal.

WARNING: Be prepared to collect escaping fluids.

NOTE:
Drain the fluid into a suitable container.

NOTE:
This step requires the aid of another technician.
3 Using a suitable tool, remove the engine.

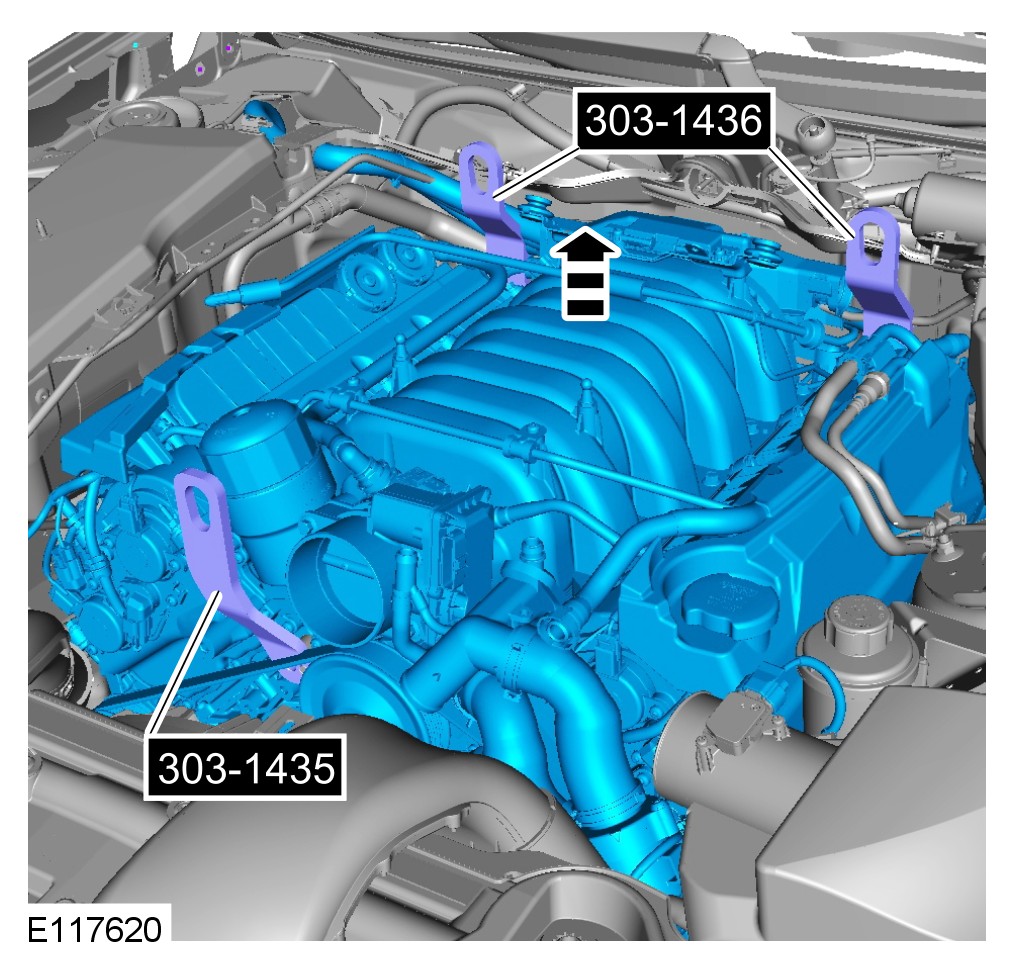

Special Service Tool

Engine Lifting Brackets Rear, 303-1436
