Removal and Replacement

Headlamp Assembly
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures
For additional information, refer to TAS Symbol Glossary TAS Symbols Glossary
Removal

NOTE:
Removal steps in this procedure may contain installation details.

NOTE:
The ignition must be switched off.

NOTE:
RH illustration shown, LH is similar.

WARNING: Make sure to support the vehicle with axle stands.
1 Raise and support the vehicle.
For additional information, refer to Front Bumper Cover Front Bumper Cover









CAUTION: Protect the surrounding paintwork to avoid damage.

CAUTION: Protect the surrounding trim to avoid damage.





NOTE:

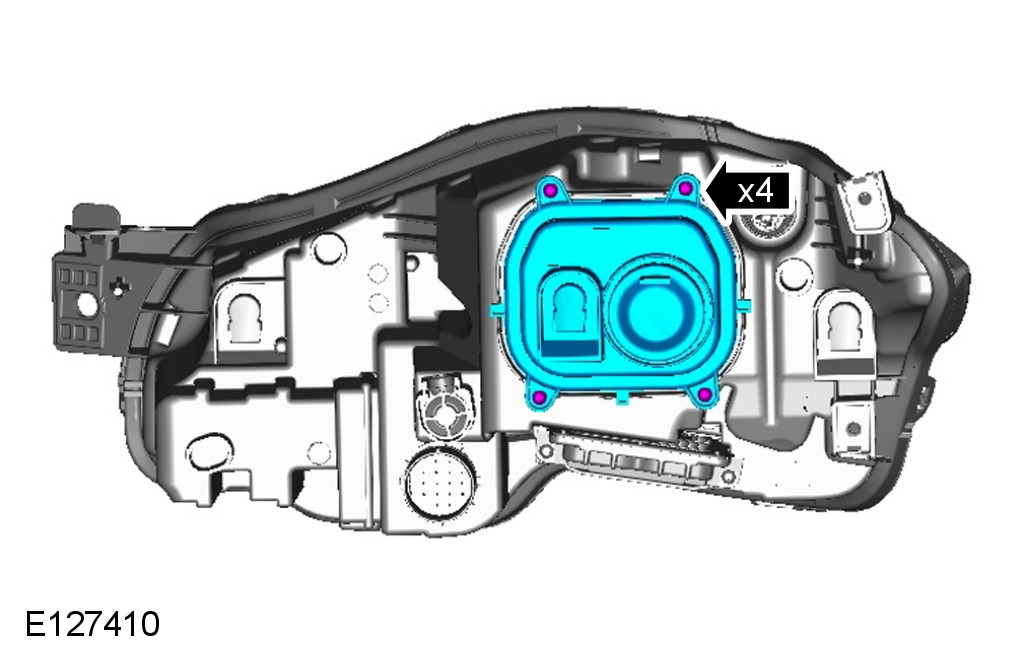

Do not disassemble further if the component is removed for access only.

Torque to: 2.5 Nm





Torque to: 2.5 Nm

Installation






CAUTION: Protect the surrounding paintwork to avoid damage.

CAUTION: Protect the surrounding trim to avoid damage.

CAUTION: Make sure that the component is correctly located on the locating dowels.





NOTE:
Make sure the headlamp is pressed into and up to the finishing edge of the front fender.

NOTE:
The gap between the front lamp and the front fender must not exceed 1mm +/- 0.5

NOTE:
Tighten the bolts in the indicated sequence.
1: 6.2 Nm
2: 6.2 Nm
3: 9 Nm
For additional information, refer to Front Bumper Cover Front Bumper Cover
1 Lower the vehicle.
For additional information, refer to Headlamp Adjustment Adjustments
