Tail Lamp: Service and Repair

Rear Lamp Assembly
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures
For additional information, refer to TAS Symbol Glossary TAS Symbols Glossary

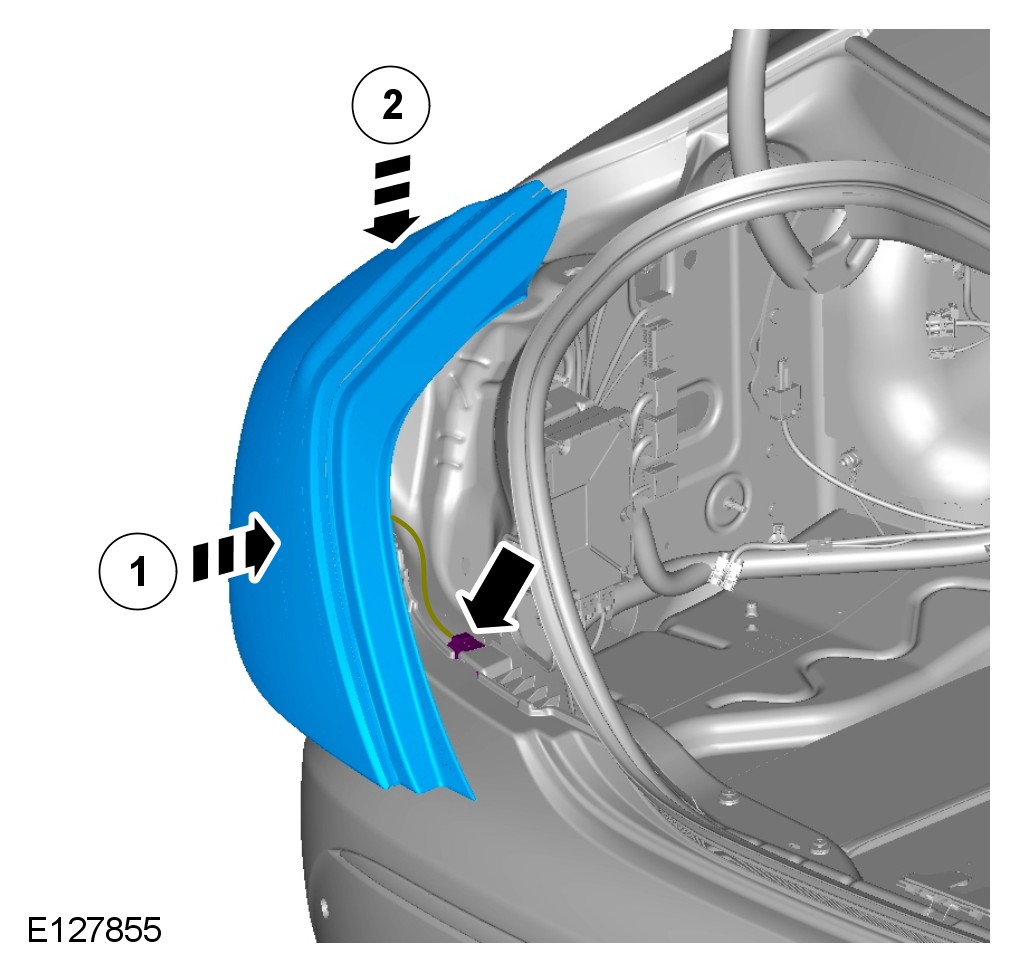

Removal

CAUTION: LH illustration shown, RH is similar.

NOTE:
Removal steps in this procedure may contain installation details.
For additional information, refer to Loadspace Trim Panel LH Loadspace Trim Panel LH









CAUTION: Take extra care not to damage the edges of the component.

CAUTION: Protect the surrounding paintwork to avoid damage.

Installation










NOTE:
Using the 3 adjustment torx studs, make sure that the rear lamp fits flush with all the surrounding bodywork.

NOTE:
The gap between the rear lamp and the bodywork must not exceed 1 mm.

NOTE:
Tighten the bolts in the indicated sequence.

Torque to: 3 Nm
For additional information, refer to Loadspace Trim Panel LH Loadspace Trim Panel LH
