Upper Arm LH

Upper Arm LH

Removal
1
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
2 Remove the shock absorber and spring assembly. For additional information, refer to Front Shock Absorber Front Shock Absorber
3 Remove the secondary bulkhead LH panel. For additional information, refer to Secondary Bulkhead Panel LH Secondary Bulkhead Panel LH

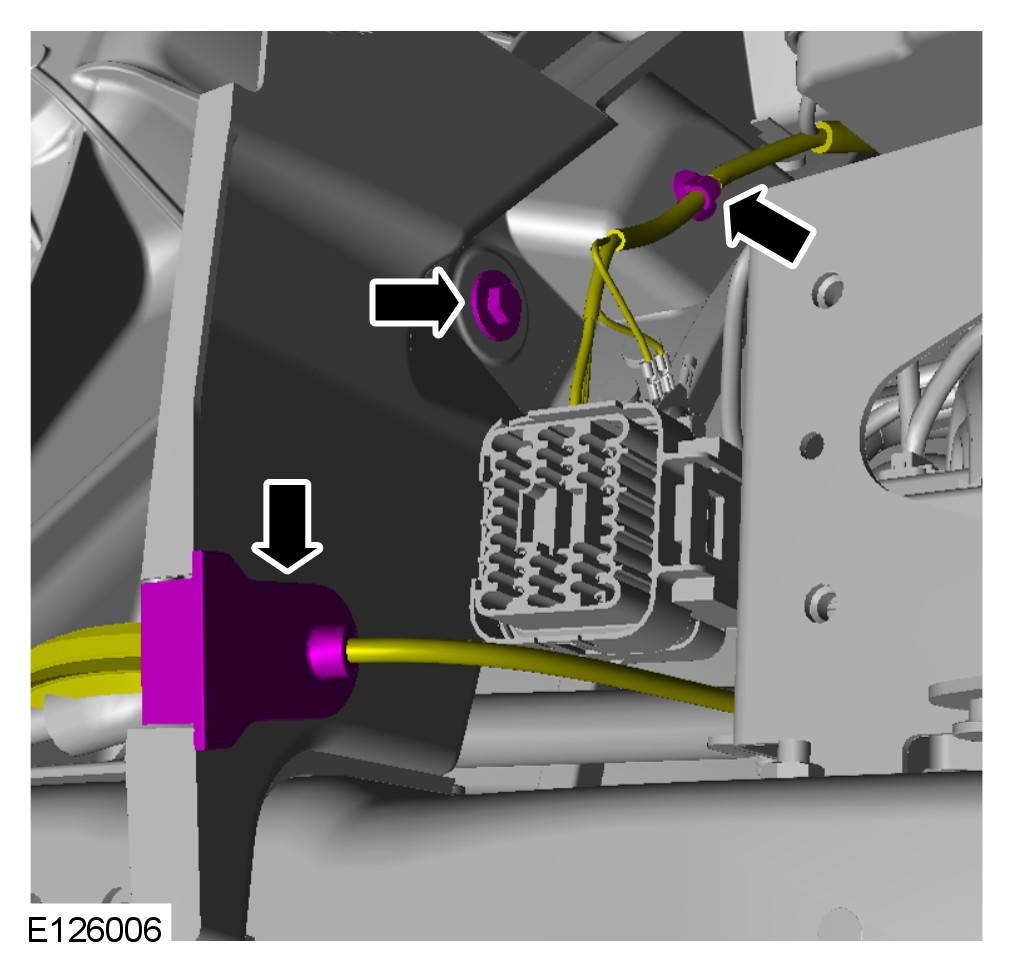

4 Release the secondary bulkhead outer LH panel.
- Remove the bolt.
- Release the cable clip.
- Release the wiring harness clip.




5 Aside the secondary bulkhead outer LH panel.
- Tie aside.
6 Remove the air cleaner. For additional information, refer to Air Cleaner LH Air Cleaner LH




7 Remove the upper arm retaining nut.




8 Remove the upper arm retaining nut.




9 Remove the upper arm.

Installation





1 Install the upper arm.




2 Install the upper arm retaining nut, but do not tighten fully at this stage.




3 Install the upper arm retaining nut, but do not tighten fully at this stage.
4 Install the shock absorber and spring assembly. For additional information, refer to Front Shock Absorber Front Shock Absorber




5
CAUTION: The final tightening of the suspension components must be carried out with the vehicle on its wheels.
Tighten to 70 Nm (52 lb.ft).




6
CAUTION: The final tightening of the suspension components must be carried out with the vehicle on its wheels.
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
Tighten to 70 Nm (52 lb.ft).
7 Install the air cleaner. For additional information, refer to Air Cleaner LH Air Cleaner LH




8 Release the secondary bulkhead outer LH panel.
- Cut the cable tie.




9 Secure the secondary bulkhead outer LH panel.
- Tighten the bolt to 7 Nm (5 lb.ft).
- Secure the cable in the clip.
- Secure the wiring harness clip.

10 Install the secondary bulkhead LH panel. For additional information, refer to Secondary Bulkhead Panel LH Secondary Bulkhead Panel LH
