Suspension Control ( Automatic - Electronic ): Adjustments

Ride Height Adjustments

Special Service Tools

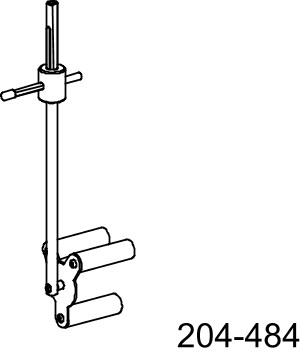

Ride height gauge.

204-484

CAUTION: Make sure the wheels and tires, tie rod ends, suspension joints and wheel bearings are free from damage, wear and free play.

CAUTION: Make sure there are no heavy objects in the vehicle.

CAUTION: The ride height must be measured with the vehicle weight supported by the suspension.

CAUTION: With the engine running and all vehicle doors closed, make sure the air suspension is functioning and the vehicle height can be raised and lowered using the air suspension switch.

CAUTION: Drive the vehicle on to a flat, level surface.

CAUTION: Make sure the steering is in the straight ahead position.

NOTE:
This procedure must be carried out after replacement of the air suspension control module, removal or replacement of a height sensor, removal or replacement of the front or rear suspension arms, replacement of body panels incorporating suspension fixing points.
1
CAUTION: Make sure the vehicle is not moved once it has been positioned to take measurements.
Position the vehicle on a flat level surface.




2
NOTE:
Make sure the fender splash shields are correctly fitted.
NOTE:

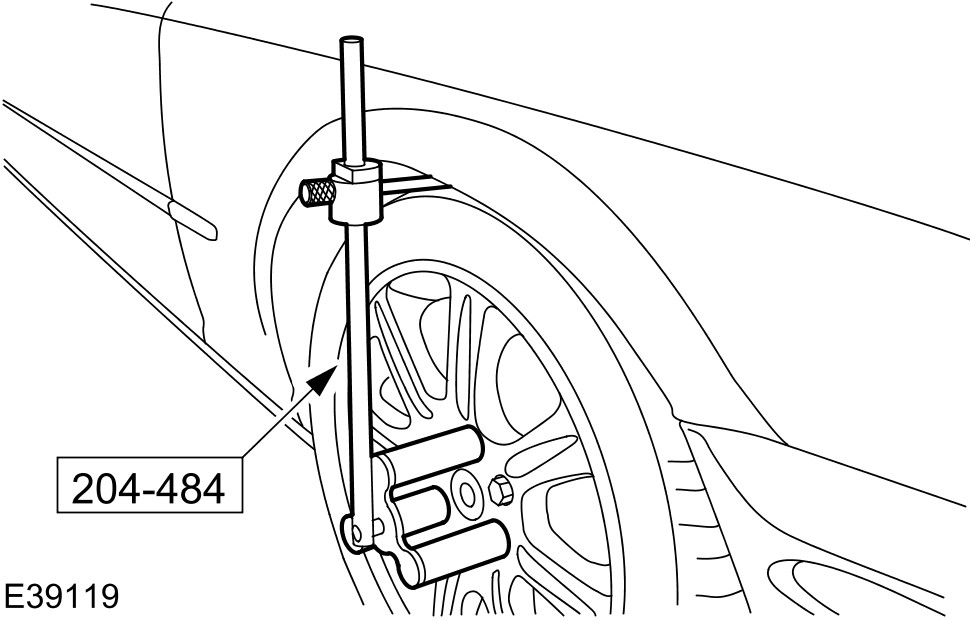

Fit special tool 204-484 as illustrated.
NOTE:
Make sure the special tool is square to the wheel face with the measuring rod in a vertical position.
NOTE:
Take the measurement from the top edge of the slider on the special tool.
Using the Jaguar approved diagnostic system carry out the ride height adjustments.
