Battery: Service and Repair

Trustmark Authoring Standards (TAS) Repair Procedures

NOTE: TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.

A TAS removal and installation procedure uses a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.

Specification data
Specification procedures will only contain technical data that is not already part of a repair procedure.

Sequence of tasks
If components must be removed or installed in a specific sequence, the sequence will be identified numerically in a graphic and the corresponding text will be numbered accordingly.

Special Tools, Equipment, Materials and Torque Figures

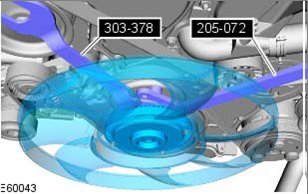

Special tools will be shown with the tool numbers in the illustration. The special tool numbers, general equipment, materials and torque figures used for the procedure step will be shown in the text column.

TAS Graphics
Colors used in the graphic are as follows:
Blue - Component to be removed/installed or disassembled/assembled.
Green and Brown - Additional components that need to be removed/installed or disassembled/assembled prior to the target component.
Yellow - Component that is touched or affected in a way but remains in the vehicle. It may be detached, attached, moved, modified, checked, adjusted etc.
Magenta - Electrical connectors and fasteners such as nuts, bolts, clamps and clips.
Pale Blue - Special tool(s) and general equipment.

One illustration may have multiple steps assigned to it.

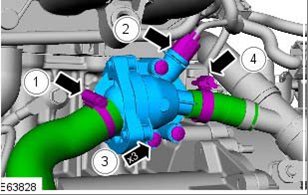

Numbered pointers are used to indicate the number of electrical connectors and fasteners such as nuts, bolts, clamps and clips.

Items in the illustration can be transparent or use cutouts to show hidden details.

Battery, Mounting and Cables - Battery Disconnect and Connect

General Procedures

Disconnect

1. Refer to: Battery and Battery Charging Health and Safety Precautions.
2. Obtain and record the audio unit preset radio frequencies.

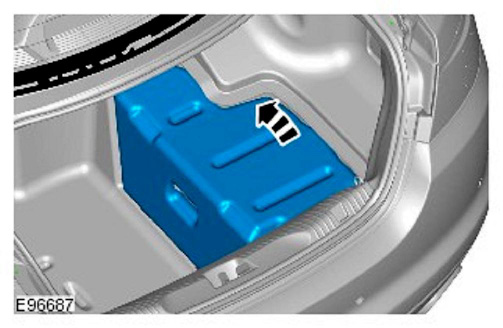

3. NOTE: Where fitted.

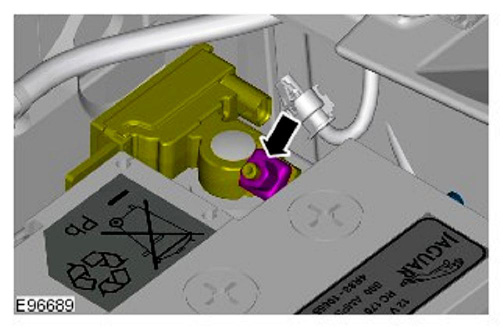

4. CAUTION: Take extra care not to damage the wiring harness.

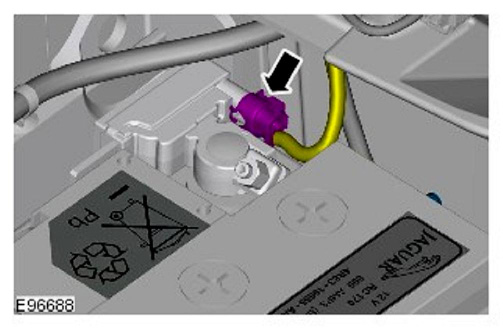

5.

Connect

1. Torque: 6 Nm

3. NOTE: Make sure that both the positive and negative battery terminals are correctly located.

4. NOTE: Where fitted.

5. NOTE: This step is only necessary when installing a new component.

Using the Jaguar approved diagnostic equipment, reset the battery monitoring system.

6. Refer to: Door Window Motor Initialization.
7. Enter the audio unit preset radio frequencies.
8. Reset the clock to the correct time.
9. Start the engine and allow to idle until the engine reaches normal operating temperature.
10. Switch the engine off.
