Interior - Business/Picnic Tray Latch Broken

JTB00275NAS1
12-DEC-12

SECTION: 501-00
Business / Picnic Tray Latch Broken

AFFECTED VEHICLE RANGE:
XJ (X351) VIN: V25520-V44088
Model Year: 2012-2013

CONDITION SUMMARY:

Situation:
The Business / Picnic tray latch may be broken or the tray may not latch closed.

Cause:
This may be caused by a stress riser on the molding due to an incorrect specification knurled pin.

Action:
In the event of a customer concern of the above, refer to the Repair Procedure outlined below.





PARTS

TOOLS:
Refer to Workshop Manual for any required special tools





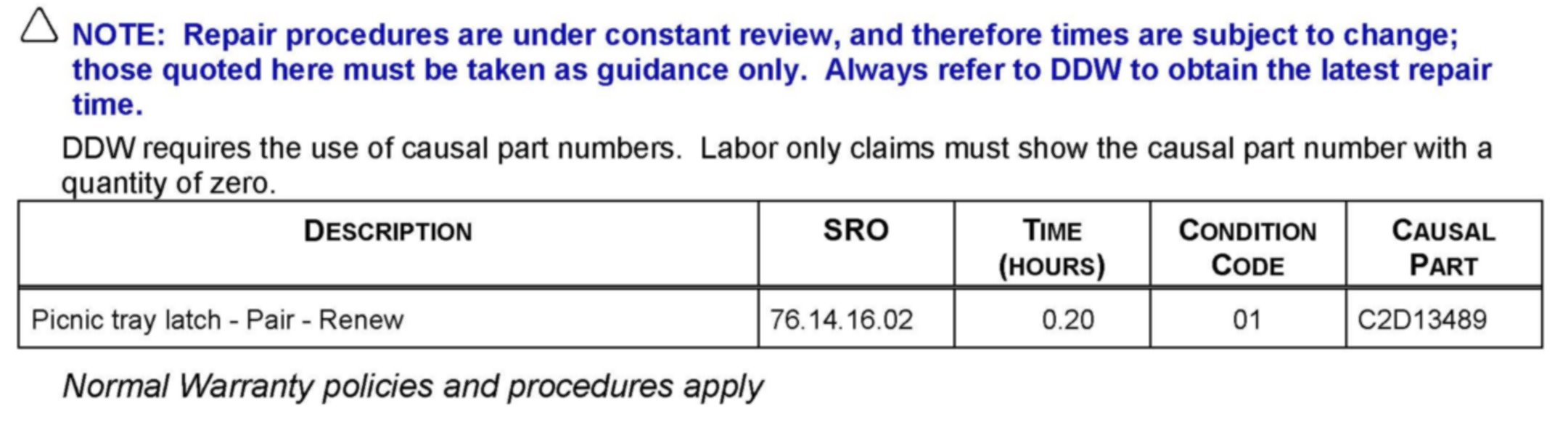

WARRANTY

REPAIR PROCEDURE

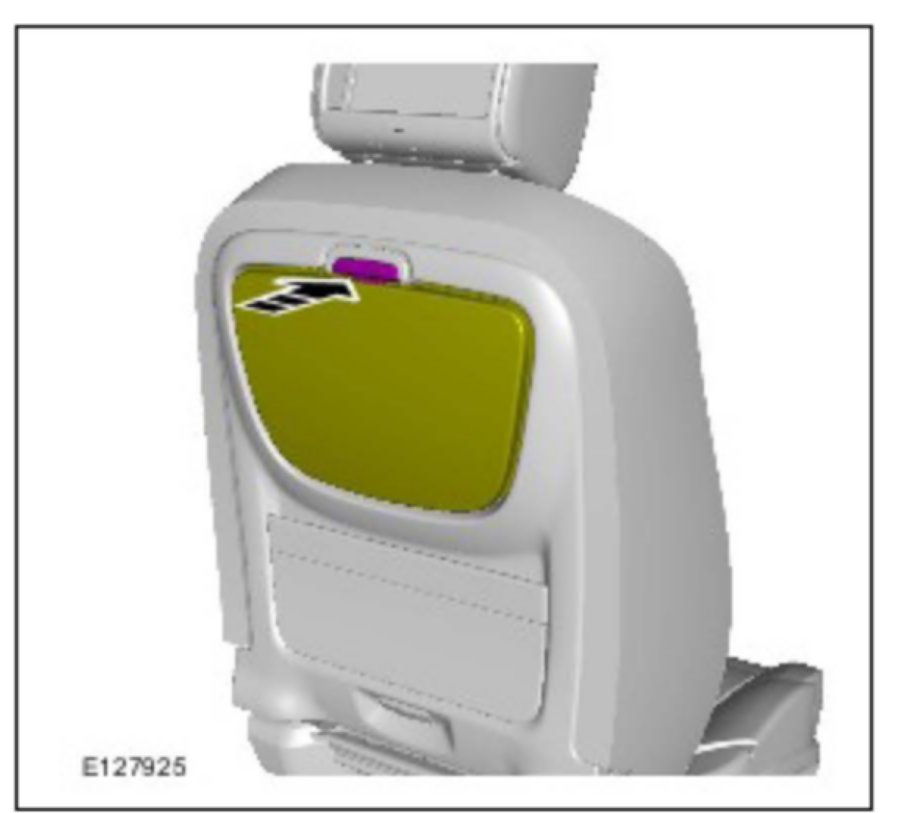

1. Open the business tray.





2. NOTE: If a washer is present behind the business tray latch, it must be installed in the same position on the new latch.

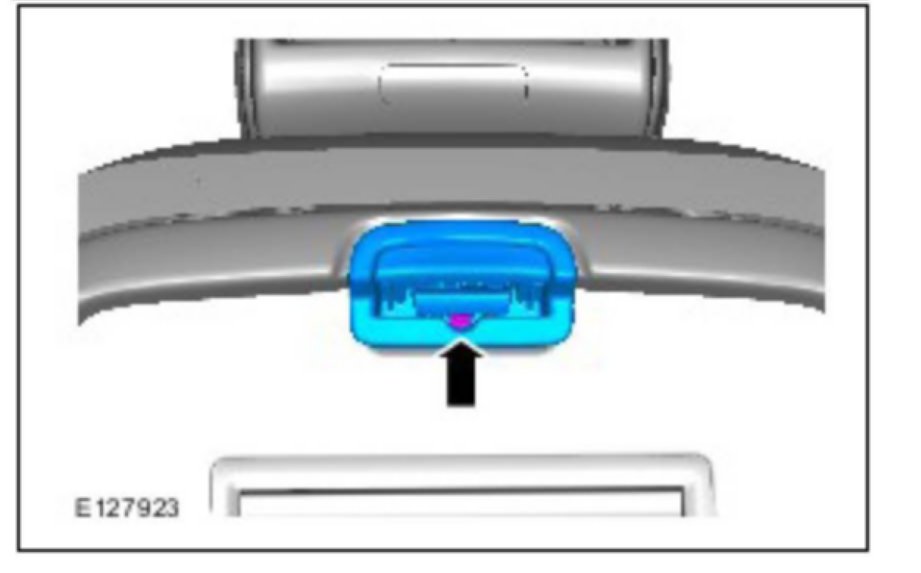

Remove the business tray latch.

^ Remove the fixing.

3. NOTE: Make sure the latch is fully seated prior to installing and tightening the fixing.

To install, reverse the removal procedure.

4. Carry out steps 1 to 3 to the opposite side business tray latch.
