B123F

B123F-MENU SWITCH STUCK

B123F-Menu Switch Stuck:

WHEN MONITORED
With the ignition on.

SET CONDITION
The Instrument Cluster detects the Menu Switch active for greater than 20 seconds.

POSSIBLE CAUSES
- (G102) menu switch input circuit short to ground
- Upper switch bank
- Instrument cluster

DIAGNOSTIC TEST

1. CHECK FOR ACTIVE DTC
Press and release the switch three times.
Turn the ignition on.
With the scan tool, record and erase Instrument Cluster DTCs.
Turn the ignition off.
Turn the ignition on.
Wait 30 seconds.
With the scan tool, read Instrument Cluster DTCs.

Q: Is DTC: B123F-MENU SWITCH STUCK active?

YES: Go To 2
NO: The condition that caused this code to set is not present at this time. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals.
Perform BODY VERIFICATION TEST VER 1. Body Verification Test

2. CHECK OPERATION OF THE UPPER SWITCH BANK




Turn the ignition off.

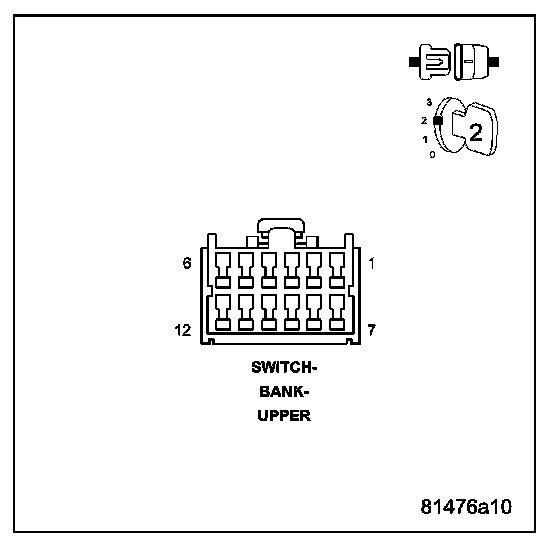

Disconnect the Upper Switch Bank Harness Connector.
Turn the ignition on.
Wait 30 seconds.
With the scan tool, read Instrument Cluster DTCs.

Q: Does the scan tool display: B123F-MENU SWITCH STUCK?

YES: Go To 3
NO: Replace the Upper Switch Bank.
Perform BODY VERIFICATION TEST VER 1. Body Verification Test

3. CHECK THE (G102) MENU SWITCH INPUT CIRCUIT FOR A SHORT TO GROUND




Turn the ignition off.
Disconnect the Instrument Cluster C1 harness connector.
Measure the resistance of the (G102) Menu Switch Input circuit for a short to ground.

Q: Is the resistance below 10K ohms?

YES: Repair the (G102) Menu Switch Input circuit for a short to ground.
Perform BODY VERIFICATION TEST VER 1. Body Verification Test
NO: Replace the Instrument Cluster.
Perform BODY VERIFICATION TEST VER 1. Body Verification Test
