B1660

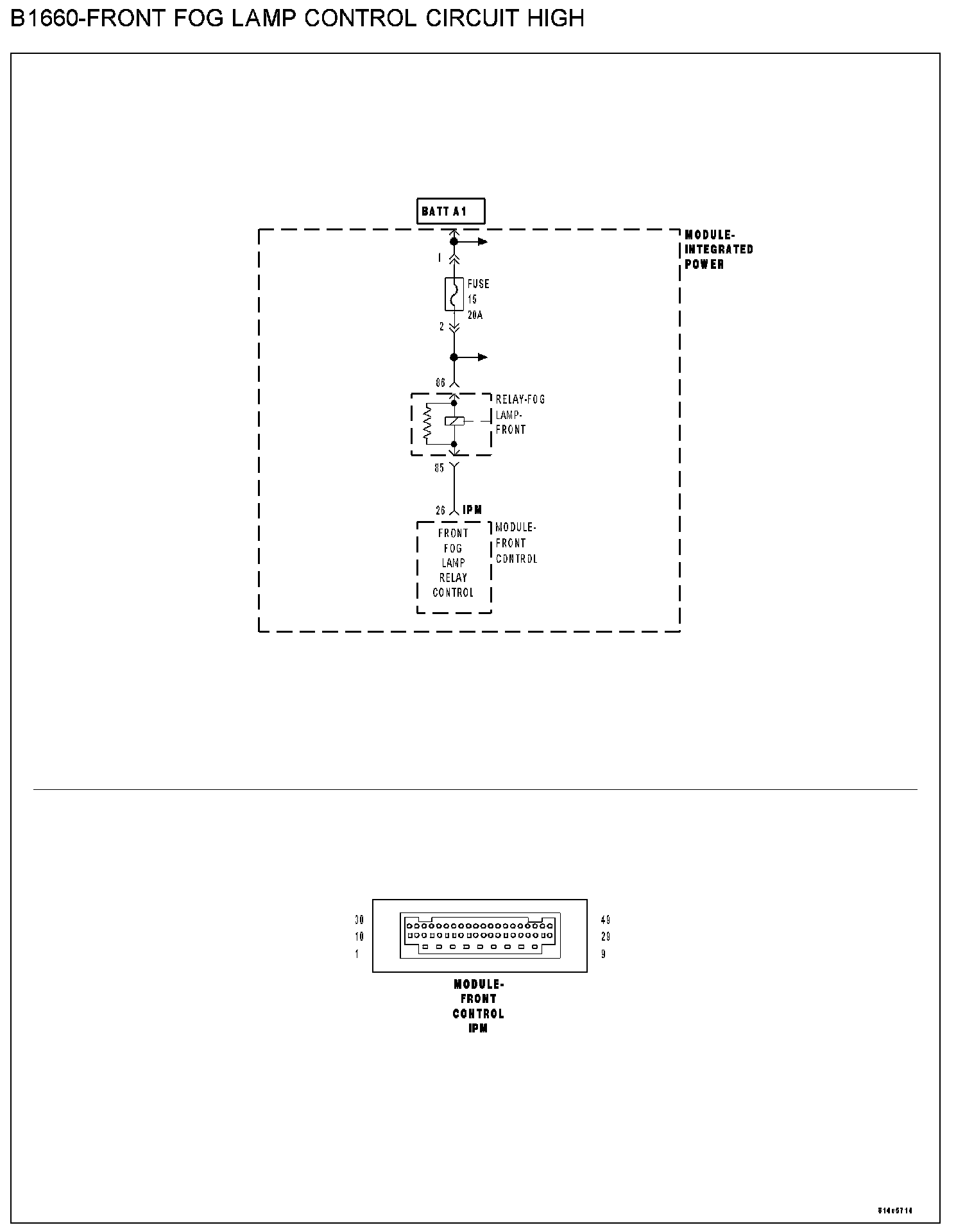

B1660-FRONT FOG LAMP CONTROL CIRCUIT HIGH

B1660-Front Fog Lamp Control Circuit High:

WHEN MONITORED
With the Front Fog Lamps activated.

SET CONDITION
When the IPM detects a HIGH condition.

POSSIBLE CAUSES
- Integrated power module

DIAGNOSTIC TEST

1. INTEGRATED POWER MODULE
Turn the ignition off.
Replace the Fog Lamp relay with and known good relay.
With the Scan Tool, clear all IPM DTC's.
Turn the Fog Lamps ON then OFF.
With the Scan Tool, read the DTC's.

Q: Does the Scan Tool read: B1660-FRONT FOG LAMP CONTROL CIRCUIT HIGH?

YES: Replace the Integrated Power Module.
Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Test complete.
Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
