B184E

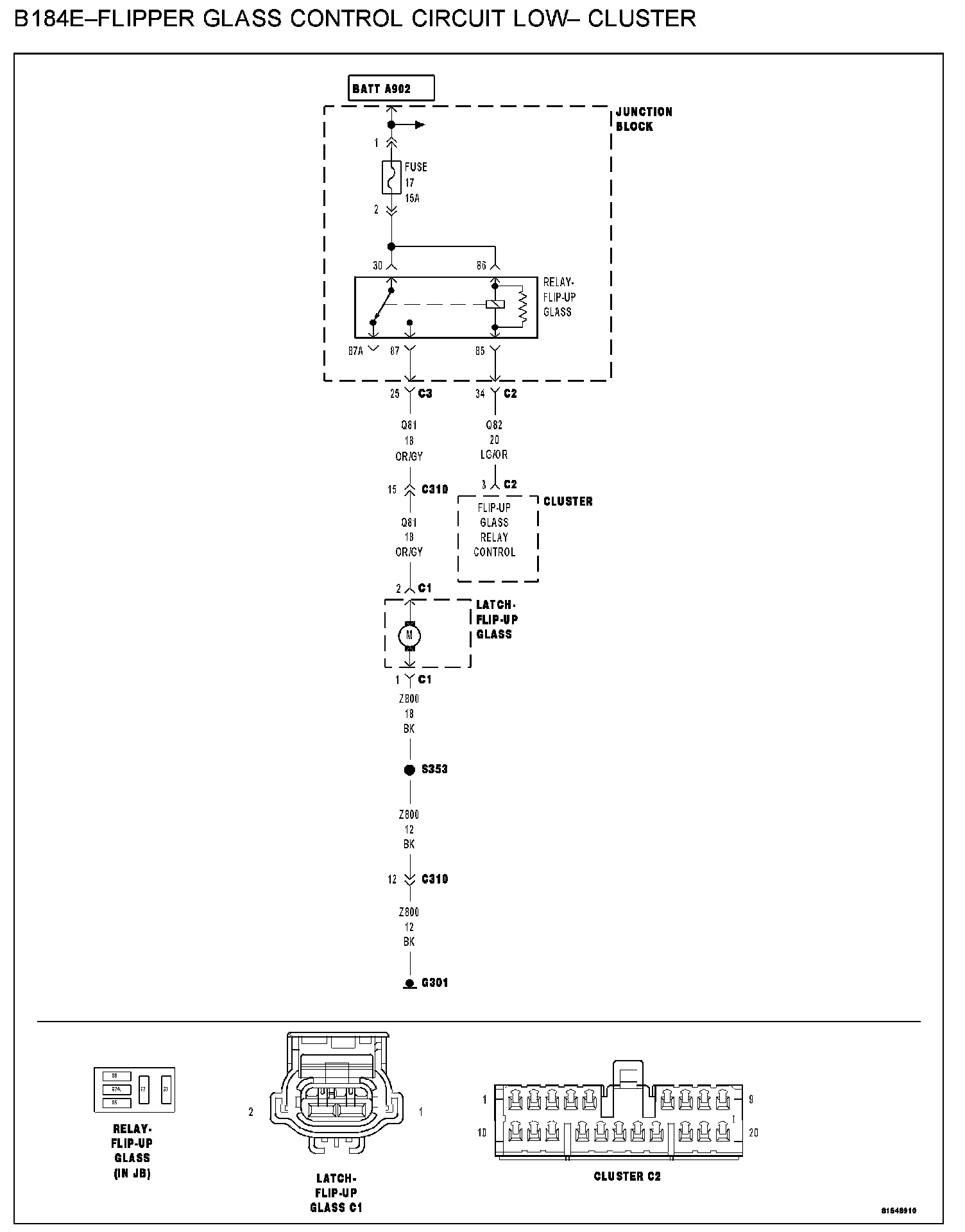

B184E-FLIPPER GLASS CONTROL CIRCUIT LOW - CLUSTER

B184E-Flipper Glass Control Circuit Low - Cluster:

WHEN MONITORED
Continuously

SET CONDITION
When the Cluster senses a low condition on the Flip-UP (Flipper) Glass Relay Control circuit for over 10 seconds, this code will set.

POSSIBLE CAUSES
- (Q82) flip-up glass relay control circuit short to ground
- Flip-up glass relay
- Instrument cluster

DIAGNOSTIC TEST

1. TEST FOR INTERMITTENT CONDITION
With the scan tool, record and erase DTC's
Operate the Flip-Up Glass Switch several times.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read DTC's.

Q: Does the scan tool display B184E-FLIPPER GLASS CONTROL CIRCUIT LOW?

YES: Go To 2
NO: The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

2. FLIP-UP GLASS RELAY SHORTED




With the scan tool, erase DTC's.
Install a substitute relay in place of the Flip-Up Glass relay (in Junction Block).
With the scan tool actuate the Flip-Up Glass.
With the scan tool, read DTC's.

Q: Does the scan tool display FLIPPER GLASS RELAY CONTROL CIRCUIT LOW?

NO: Replace the Flip-Up Glass relay.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
YES: Go To 3

3. (Q82) FLIP-UP GLASS RELAY CONTROL CIRCUIT SHORT TO GROUND




Turn the ignition off.
Remove the Flip-Up Glass relay.
Disconnect the Cluster C2 connector.
Measure the resistance between ground and the (Q82) Flip-Up Glass Relay Control circuit.

Q: Is the resistance below 10000.0 ohms?

YES: Repair the (Q82) Flip-Up Glass Relay Control circuit for a short to ground.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Replace the Instrument Cluster.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
