B1863

B1863-PASSENGER WINDOW POSITION SENSOR POWER SUPPLY LOW - PDM

B1863-Passenger Window Position Sensor Power Supply Low - PDM:

WHEN MONITORED
Whenever the module is awake.

SET CONDITION
When the Passenger Window Hall Sensor Supply circuit falls below 2.0 volts of battery voltage for over 200ms., this code will set.

POSSIBLE CAUSES
- (Q306) passenger window hall sensor supply circuit short to ground
- (Q306) passenger window hall sensor supply circuit open
- Window motor open or shorted
- Passenger door module (PDM)

DIAGNOSTIC TEST

1. TEST FOR INTERMITTENT CONDITION
Turn the ignition on.
With the scan tool, record and erase DTC's
Operate the Passenger Window up and down several times.
Wait 30 seconds.
With the scan tool, read DTC's.

Q: Does the scan tool display B1863-PASSENGER WINDOW POSITION SENSOR POWER SUPPLY LOW?

YES: Go To 2
NO: The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

2. WINDOW MOTOR OPEN OR SHORTED




Turn the ignition off.
Disconnect the Passenger Window Motor connector.
Turn the ignition on.
Measure the voltage between ground and the (Q306) Passenger Window Hall Sensor Supply circuit.

Q: Is the voltage above 10.5.volts?

YES: Replace the Window Motor.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Go To 3

3. (Q306) PASSENGER WINDOW HALL SENSOR SUPPLY CIRCUIT SHORT TO GROUND




Turn the ignition off.

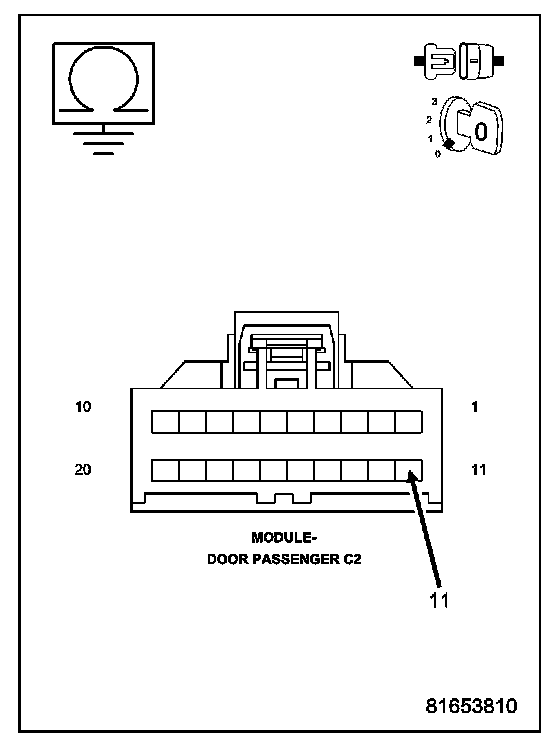

Disconnect the Passenger Door Module C2 connector.
Measure the resistance between Ground and the (Q306) Passenger Window Hall Sensor Supply circuit.

Q: Is the resistance below 1000.0 ohms?

YES: Repair the (Q306) Passenger Window Hall Sensor Supply circuit for a short to ground.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Go To 4

4. (Q306) PASSENGER WINDOW HALL SENSOR SUPPLY CIRCUIT OPEN

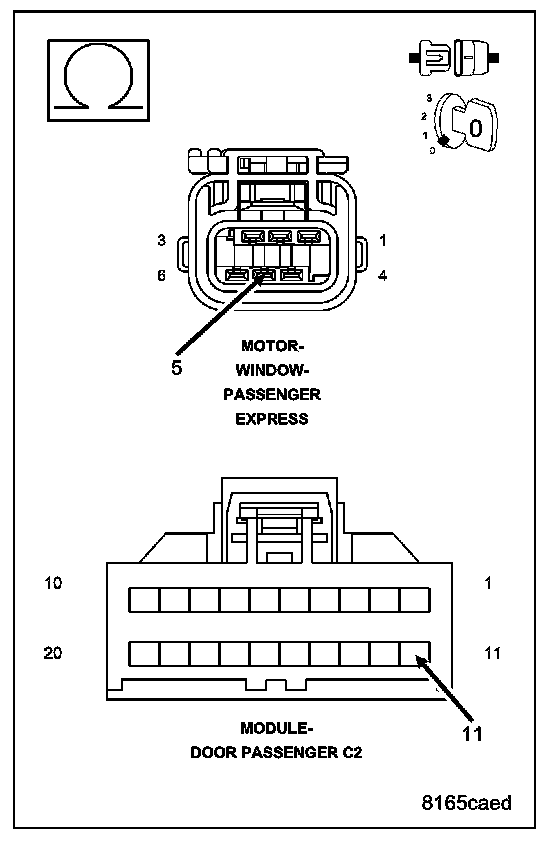

Measure the resistance of the (Q306) Passenger Window Hall Sensor Supply circuit between the Passenger Window Motor connector and the Passenger Door Module C2 connector.

Q: Is the resistance below 5.0 ohms?

NO: Repair the (Q306) Passenger Window Hall Sensor Supply circuit for an open.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
YES: Replace the Passenger Door Module.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
