B2254

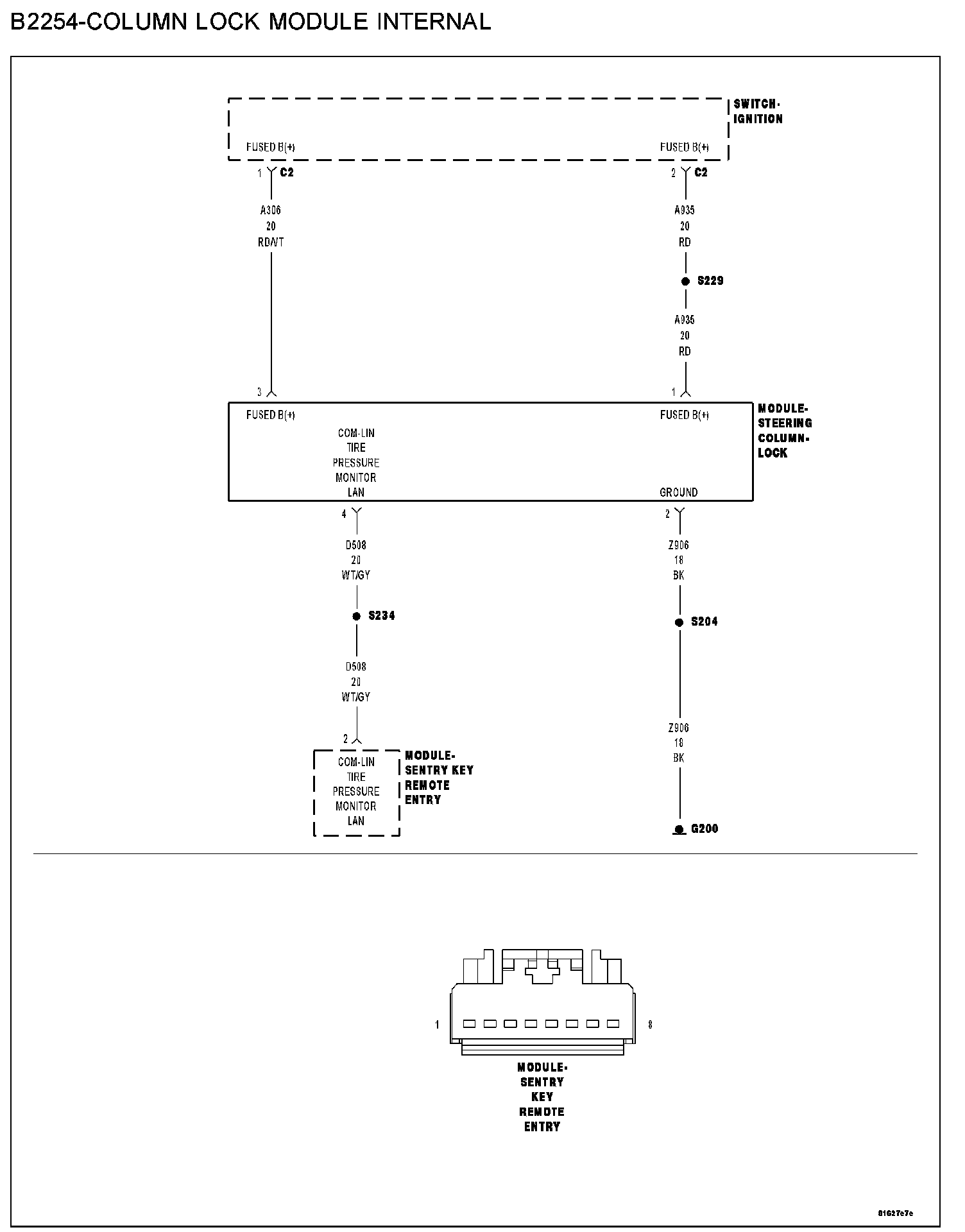

B2254-COLUMN LOCK MODULE INTERNAL

B2254-Column Lock Module Internal:

WHEN MONITORED
Continuously.

SET CONDITION
If the SKREEM does not receive the correct response message back from the Steering Column Lock Module.

POSSIBLE CAUSES
- - Intermittent condition
- (A306) fused B+ circuit open
- (A935) fused B+ circuit open
- (Z906) ground circuit open
- (D508) com-lin tire pressure monitor LAN circuit open
- Steering column lock module

DIAGNOSTIC TEST

1. INTERMITTENT DTC
With the scan tool, erase the current SKREEM DTC's.
Turn the ignition off.
Arm the VTSS and wait one minute.
Disarm the VTSS and turn the ignition on.

Q: Does the scan tool display the same DTC?

YES: Go To 2
NO: The condition that caused this symptom is currently not present. Inspect the related wiring harness for a possible intermittent condition. Look for any chafed, pierced, pinched or partially broken wires.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

2. (A306)/(A935) FUSED B+ CIRCUIT OPEN
Gain access to the Steering Column Lock Module.
Disconnect the Steering Column Lock Module connector.
Using a 12-volt test light connected to ground, check the (A306) and (A935) Fused B(+) circuits in the Steering Column Lock Module connector.

Q: Does the test light illuminate brightly for both circuits?

YES: Go To 3
NO: Repair the Fused B+ circuit for an open.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

3. (Z906) GROUND CIRCUIT OPEN
Using a 12-volt test light connected to 12-volts, check the (Z906) Ground circuit at the Steering Column Lock Module connector.

Q: Does the test light illuminate brightly?

YES: Go To 4
NO: Repair the (Z906) Ground circuit for an open.
Perform BODY VERIFICATION TEST - 1A. Body Verification Test

4. (D508) COM-LIN TIRE PRESSURE MONITOR LAN CIRCUIT OPEN
Disconnect the SKREEM harness connector.
Measure the resistance of the (D508) COM-LIN Tire Pressure Monitor LAN circuit between the SKREEM and the Steering Column Lock Module connectors.

Q: Is the resistance below 1.0 ohms?

YES: Replace the Steering Column Lock Module.
Perform SKREEM VERIFICATION TEST. Vehicle Theft Security Verification Tests
NO: Repair the (D508) COM-LIN Tire Pressure Monitor LAN circuit for an open.
Perform BODY VERIFICATION TEST - 1A. Body Verification Test
