P0499

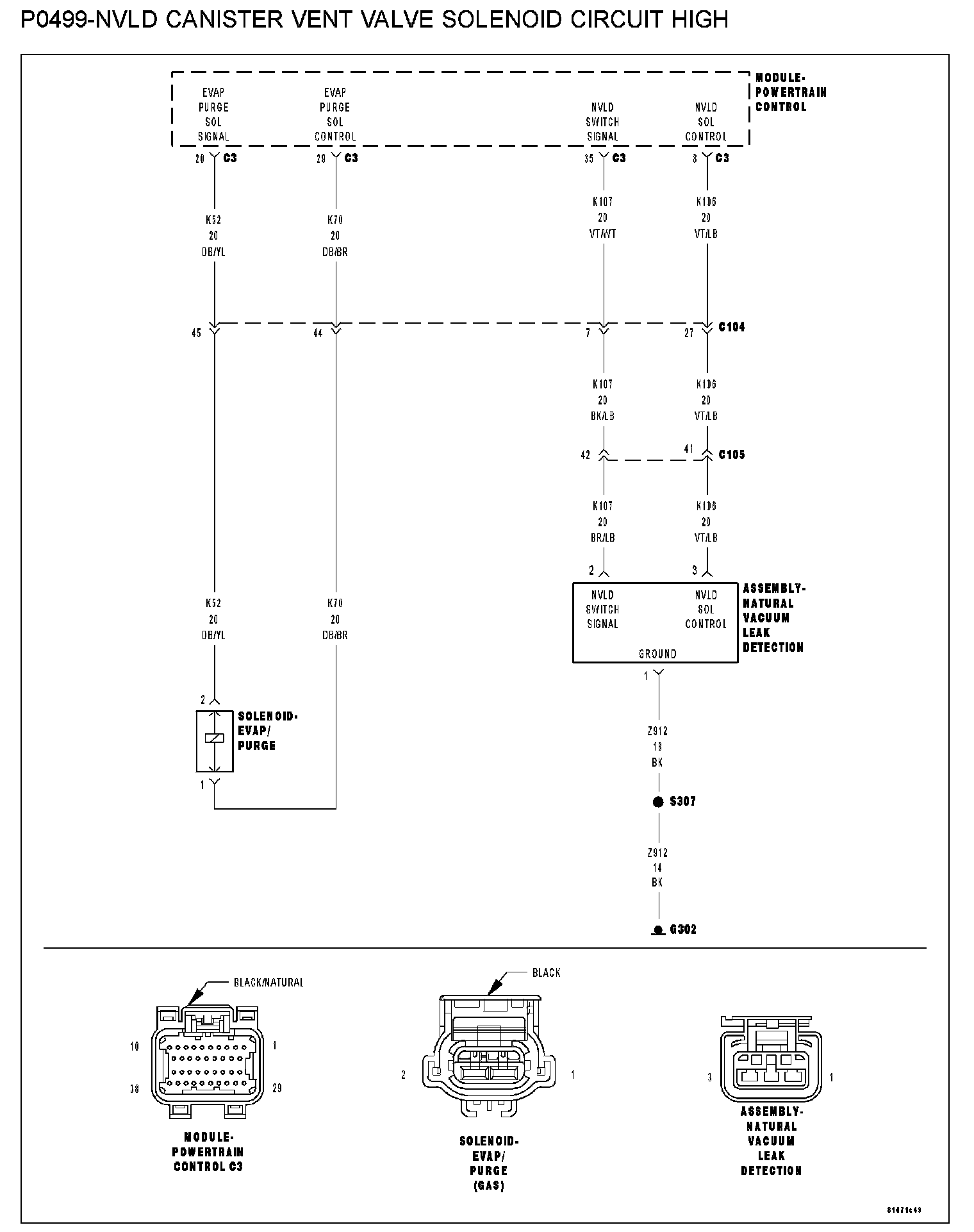

P0499-NVLD CANISTER VENT VALVE SOLENOID CIRCUIT HIGHP0499-NVLD Canister Vent Valve Solenoid Circuit High:
WHEN MONITORED
Engine running.
SET CONDITION
The PCM detects an open in the NVLD Canister vent solenoid circuits for more than 9.375 seconds. One Trip Fault. Three good trips to turn off the MIL.
POSSIBLE CAUSES
- (K106) NVLD solenoid control circuit shorted to battery voltage
- (K106) NVLD solenoid control circuit open
- (Z42) Ground circuit open
- NVLD solenoid
- PCM
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.
Diagnostic Test
1. VEHICLE HISTORY AND SERVICE BULLETIN INVESTIGATION
Ignition on, engine not running.
With a scan tool, read DTCs and record the related Freeze Frame data if any DTCs are present.
Whether or not any DTCs are present you will want to check the following items which may assist in repairing the customer's complaint successfully.
Check the vehicles repair history.
If the vehicle has a repair history that pertains to the customer's current complaint, review the repair.
Inspect the vehicle for any aftermarket accessories that may have been installed incorrectly.
Check for any service bulletin(s) related to the customer's complaint or DTCs.
If a service bulletin applies, follow the instructions.
Choose the following scenario that best applies.
The service bulletin repaired the customer's complaint.
Testing complete.
A DTC is present, no service bulletins apply, or the service bulletin didn't repair the customer's complaint.
Go To 2.
2. ACTIVE DTC
Ignition on, engine not running.
With a scan tool, read DTCs.
Q: Is the DTC active at this time?
YES: Go To 3
NO: Refer to the INTERMITTENT CONDITION Diagnostic Procedure. Component Tests and General Diagnostics
Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
3. NVLD SOLENOID
Turn the ignition off.
Disconnect the NVLD Assembly harness connector.

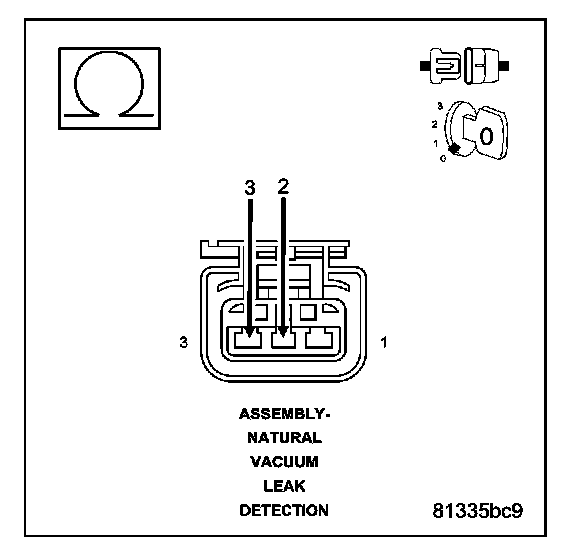

Measure the resistance of the NVLD Solenoid coil.
Q: Is the resistance between 7.5 to 8.5 ohms?
YES: Go To 4
NO: Replace the NVLD Assembly. Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
4. (K106) NVLD SOLENOID CONTROL CIRCUIT SHORTED TO BATTERY VOLTAGE
Disconnect the C3 PCM harness connector.
Take this measurement with the Ignition in the off (lock) position and in the Ignition on, engine off position.
Measure the voltage on the (K106) NVLD Solenoid Control circuit in the NVLD Assembly harness connector.
Q: Is the voltage above 0 volts?
YES: Repair the short to battery voltage in the (K106) NVLD
Solenoid Control circuit. Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
NO: Go To 5
5. (K106) NVLD SOLENOID CONTROL CIRCUIT OPEN
Turn the ignition off.
CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.
Measure the resistance of the (K106) NVLD Solenoid Control circuit from the NVLD Assembly harness connector to the appropriate terminal of special tool #8815.
Q: Is the resistance below 5.0 ohms?
YES: Go To 6
NO: Repair the open in the (K106) NVLD Solenoid Control circuit. Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
6. (Z42) GROUND CIRCUIT OPEN
Measure the resistance between the (Z42) Ground circuit and ground.
Q: Is the resistance below 5.0 ohms?
YES: Go To 7
NO: Repair the open in the (Z42) Ground circuit. Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
7. PCM
NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.
Q: Were there any problems found?
YES: Repair as necessary. Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
NO: Replace and program the Powertrain Control Module. Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
