Cruise Control Servo: Service and Repair

SERVO-SPEED CONTROL

REMOVAL

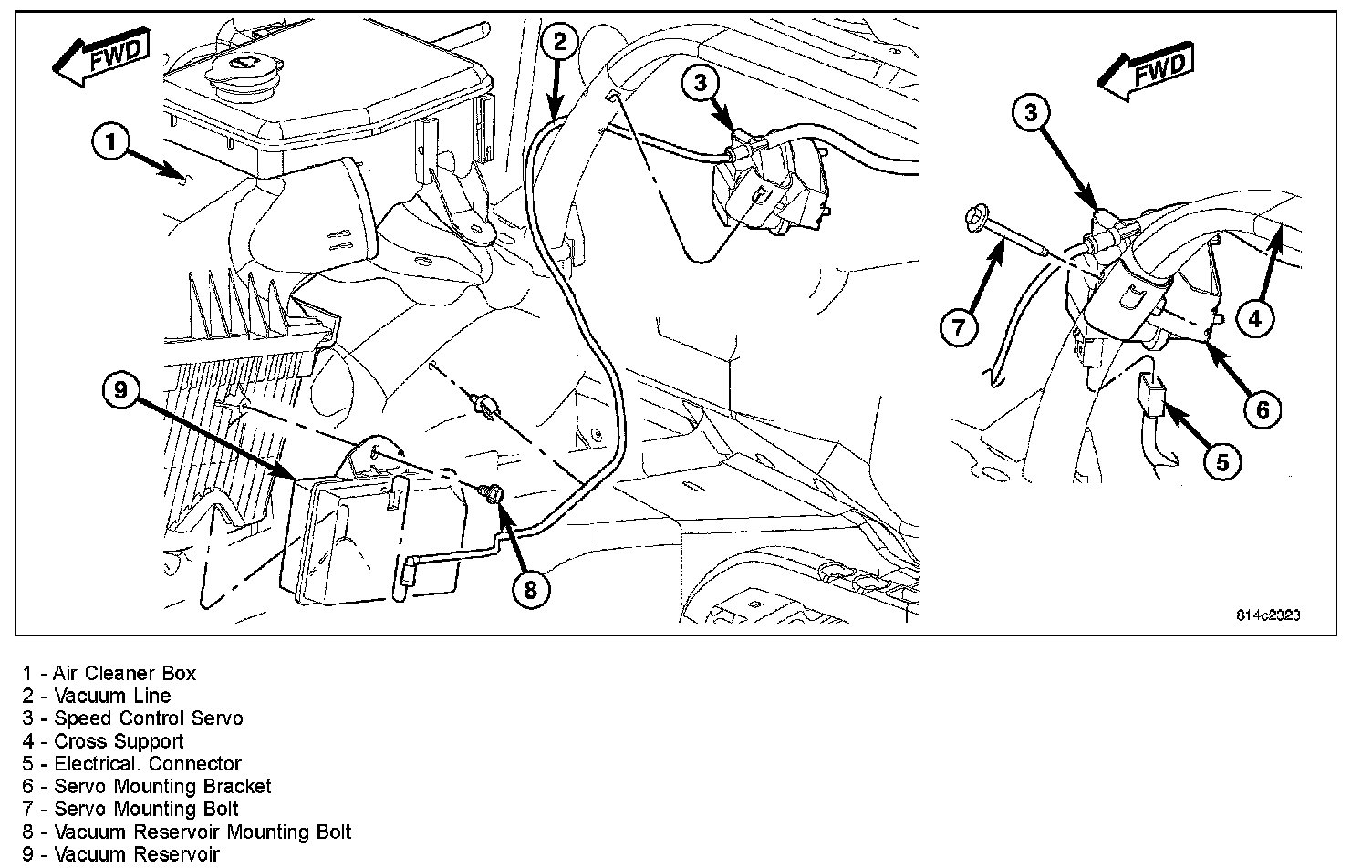

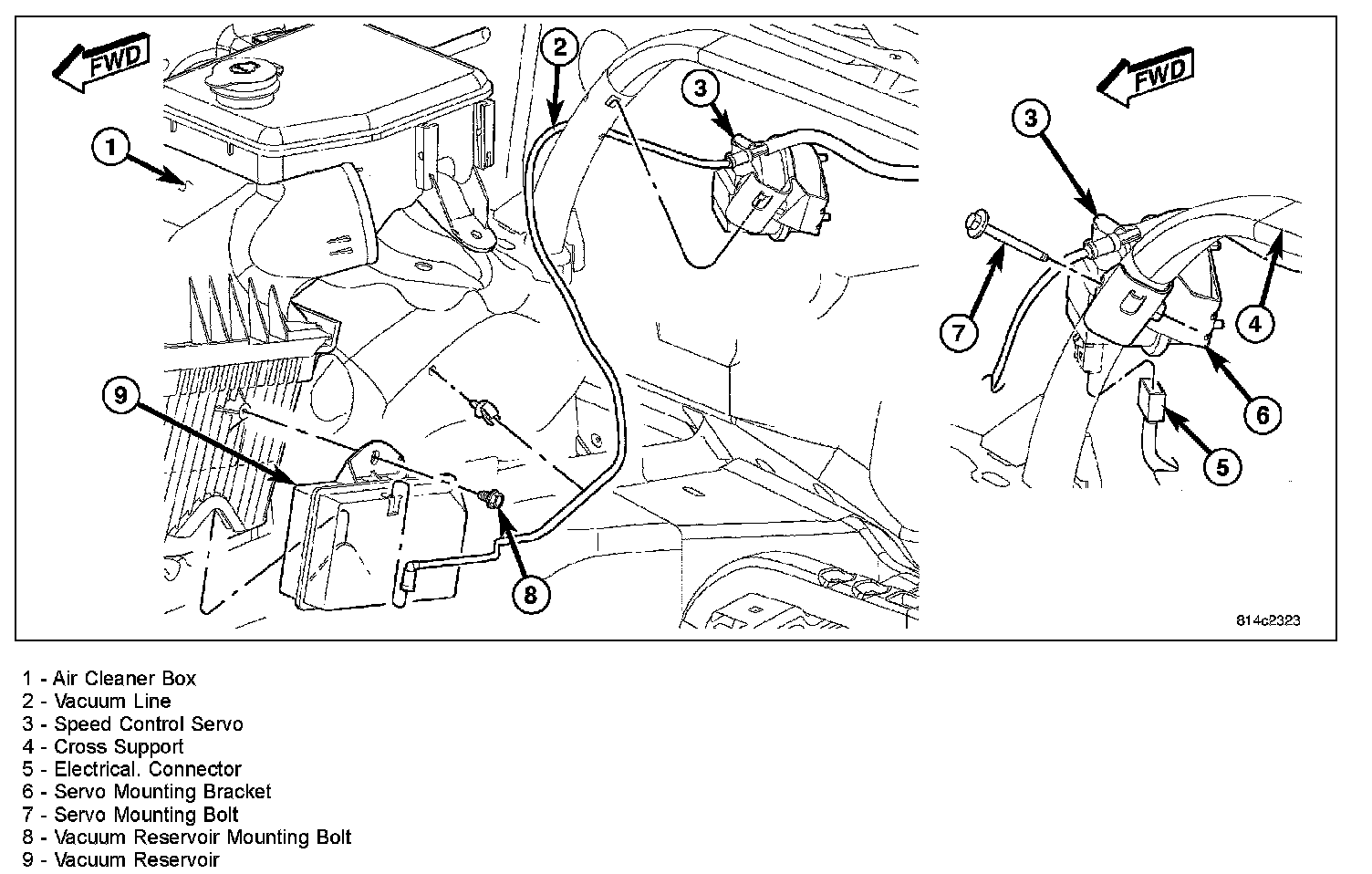

The speed control servo assembly (3) is attached to a cross-support (4) located in the engine compartment.

1. Disconnect negative battery cable at battery.
2. Disconnect vacuum line at servo.
3. Disconnect electrical connector (5) at servo.
4. Remove servo mounting bolt (7).
5. Disconnect servo cable at throttle body.

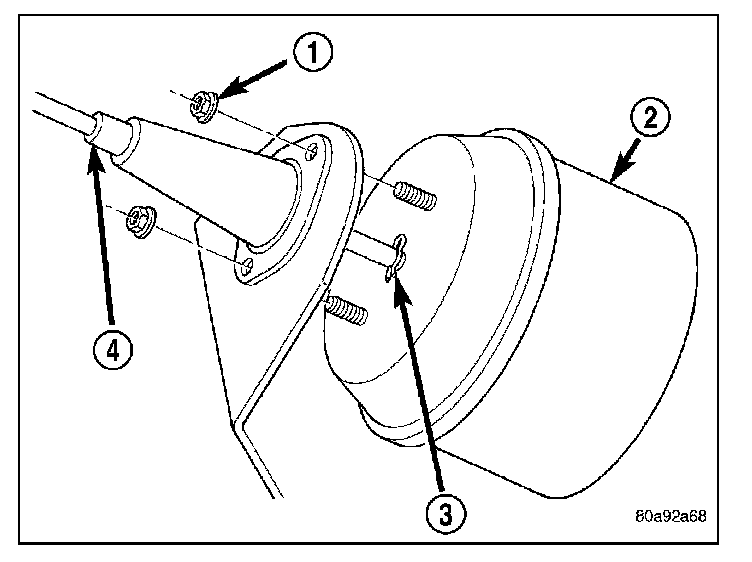

6. Remove 2 mounting nuts (1) holding servo cable sleeve (4) to bracket.
7. Pull speed control cable sleeve and servo away from servo mounting bracket to expose cable retaining clip (3) and remove clip. Note: The servo mounting bracket displayed is a typical bracket and may/may not be applicable to this model vehicle.
8. Remove servo (2) from mounting bracket. While removing, note orientation of servo to bracket.

INSTALLATION




1. Position servo (2) to mounting bracket.
2. Align hole in cable connector with hole in servo pin. Install cable-to-servo retaining clip (3).
3. Insert servo mounting studs through holes in servo mounting bracket.
4. Install two servo-to-mounting bracket nuts (1) and tighten.




5. Position servo assembly (3) to cross-support (4) and install mounting bolt (7). Tighten bolt.
6. Connect vacuum line at servo.
7. Connect electrical connector (5) at servo.
8. Connect servo cable to throttle body.
9. Connect negative battery cable to battery.
10. Before starting engine, operate accelerator pedal to check for any binding.
