Amplifier, Sound System
Amplifier, Sound System

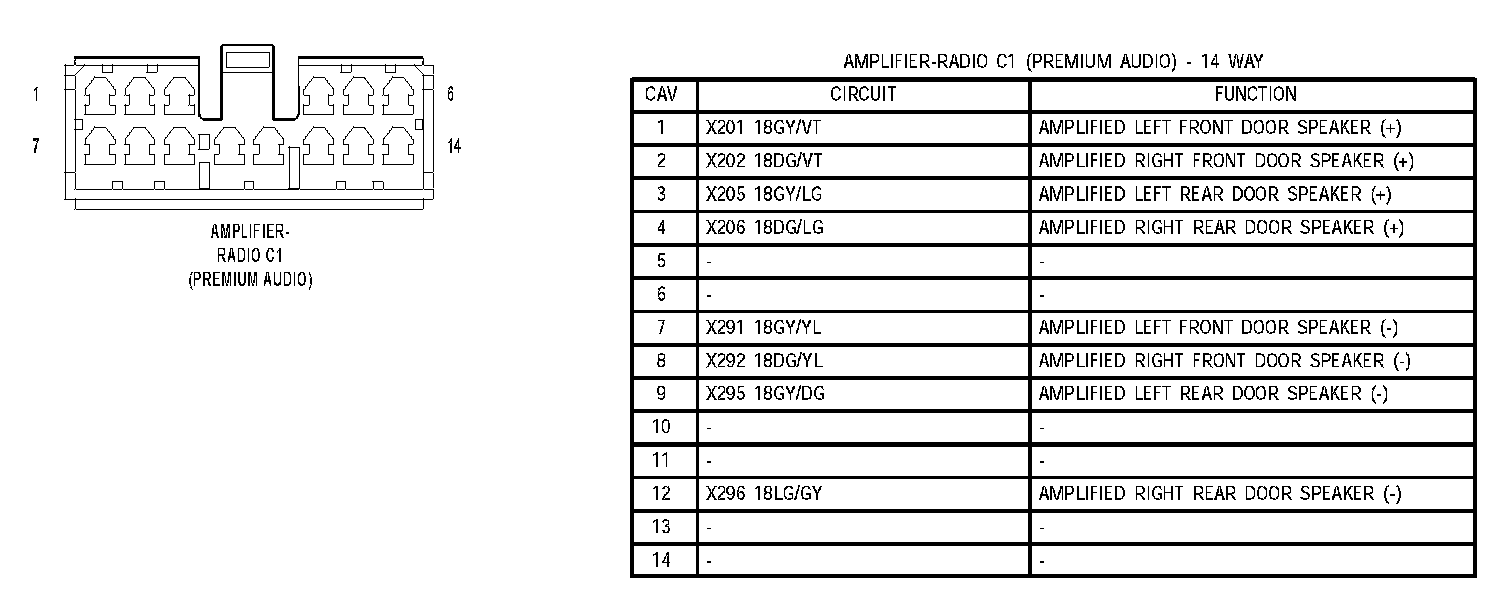

Amplifier Radio C1 (Premium Audio):

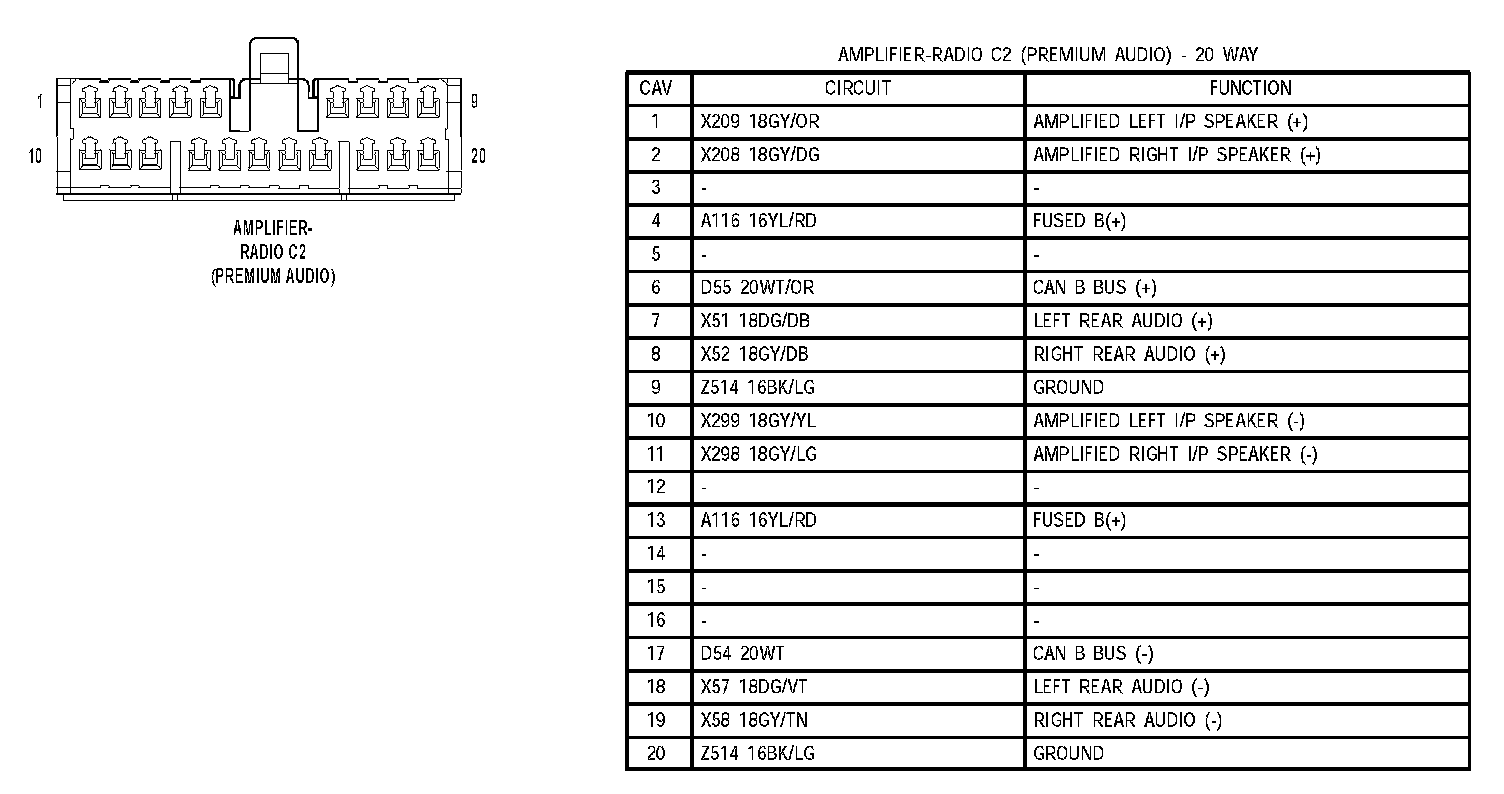

Amplifier Radio C2 (Premium Audio):
