Door Module

Module Door Driver C1:

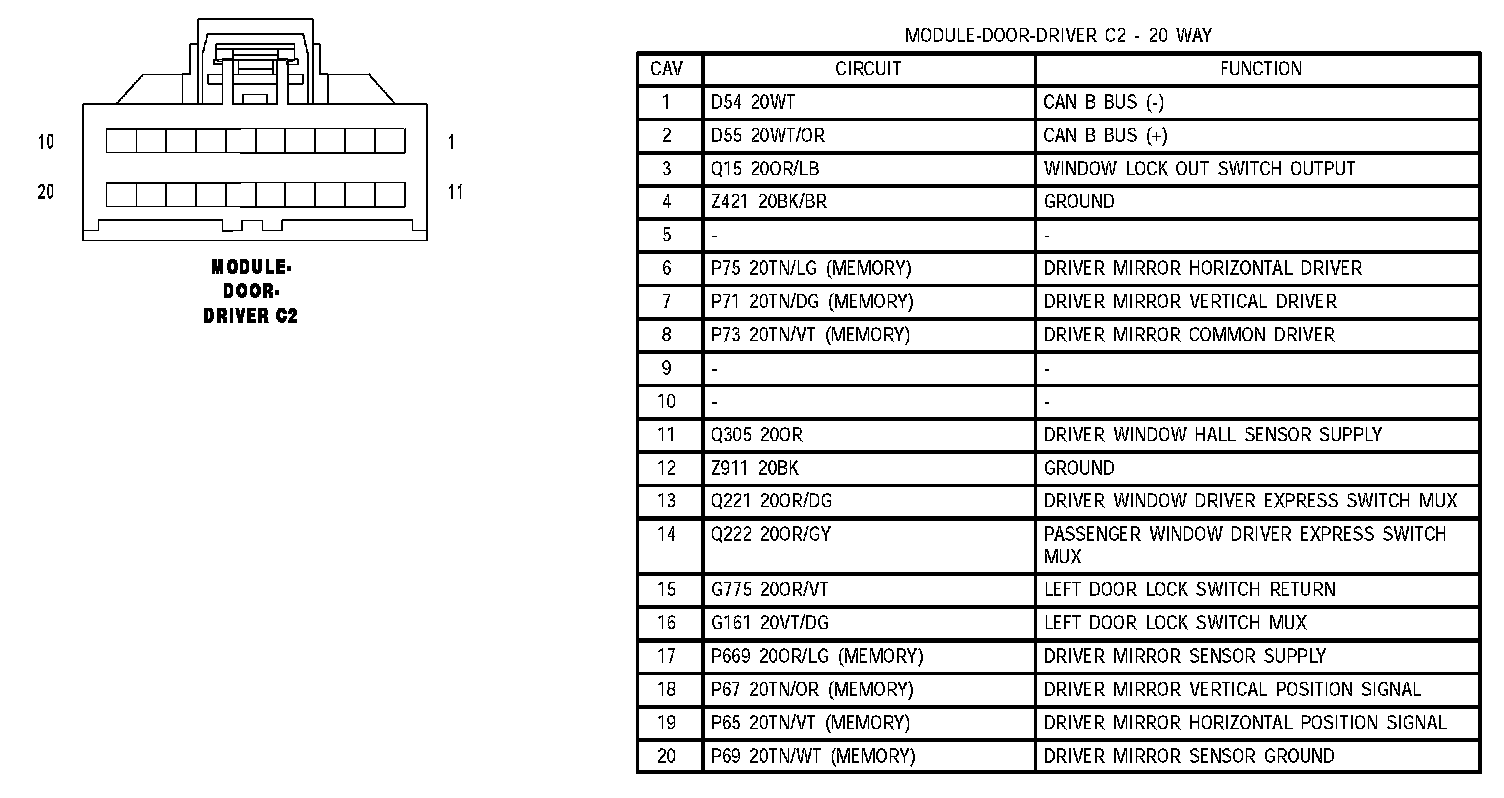

Module Door Driver C2:

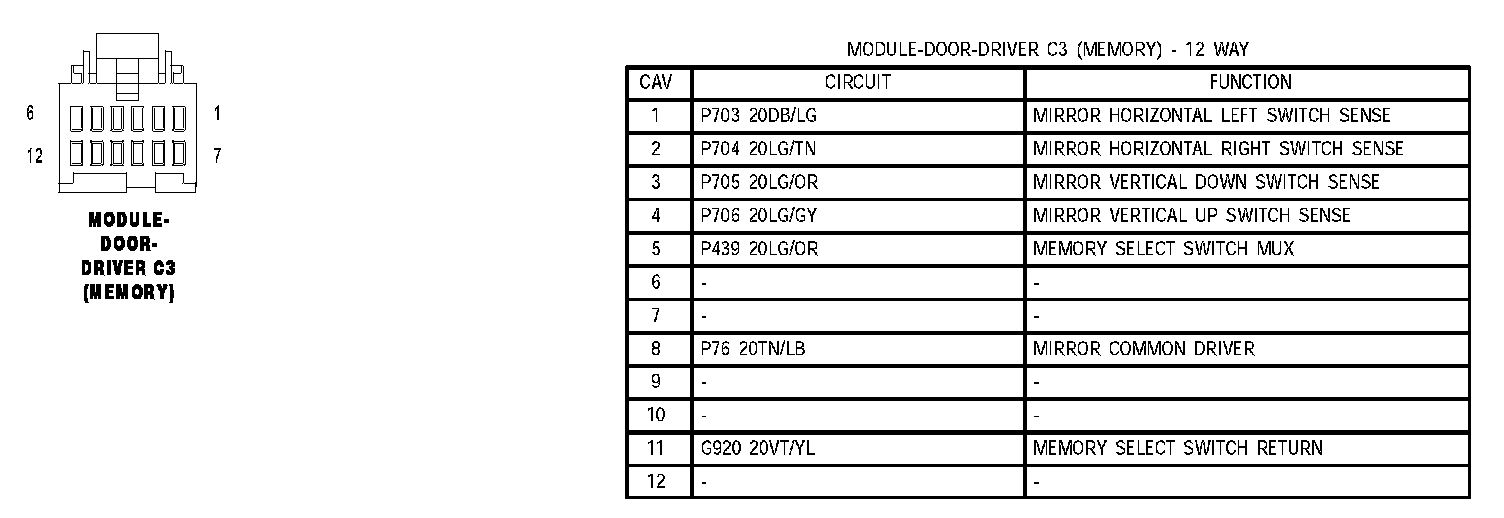

Module Door Driver C3 (Memory):



Module Door Passenger C1:

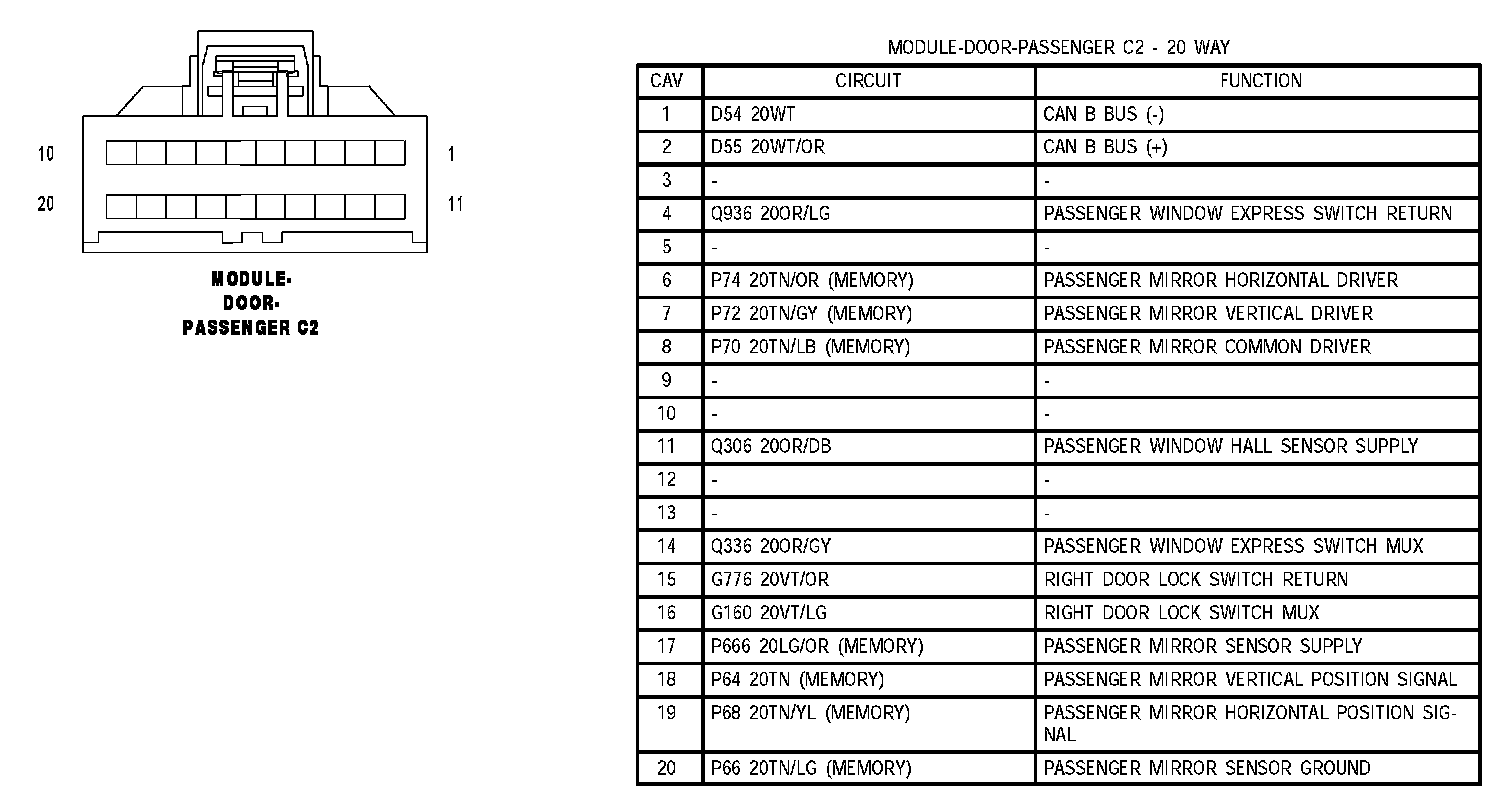

Module Door Passenger C2:
