Power Seat Control Module

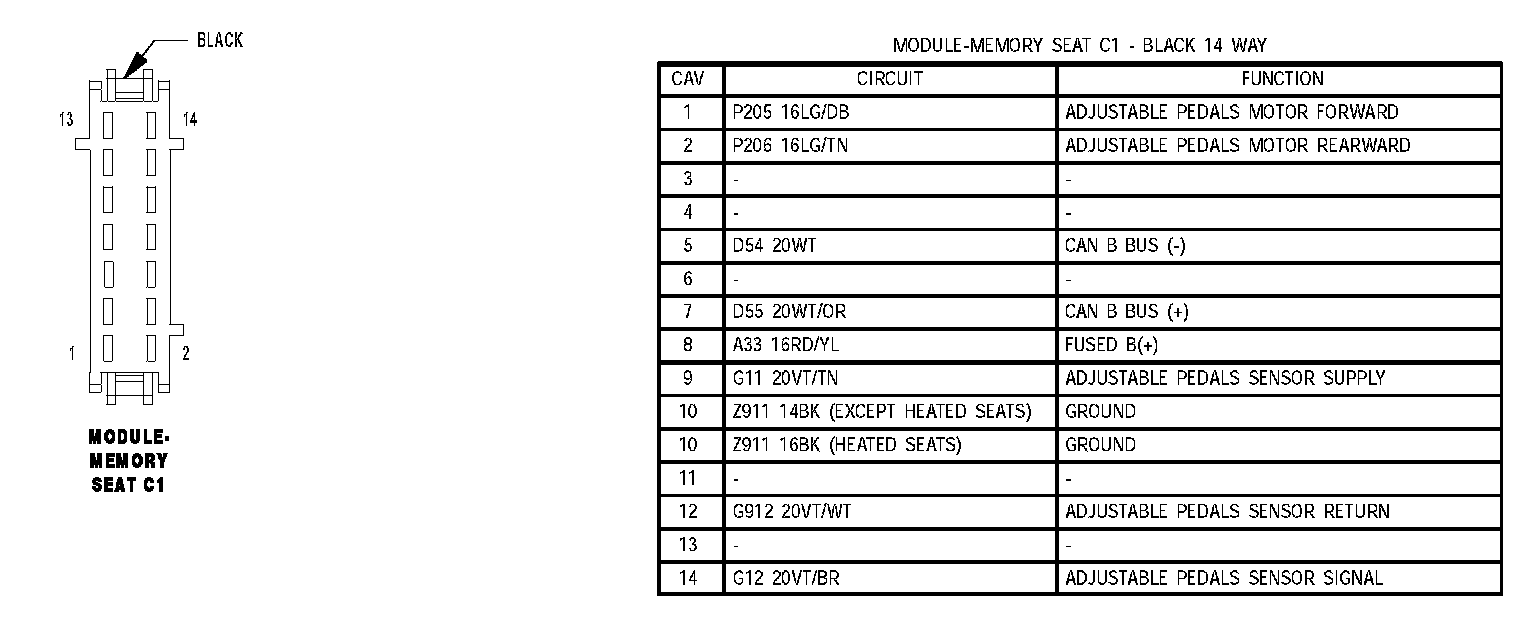

Module Memory Seat C1:

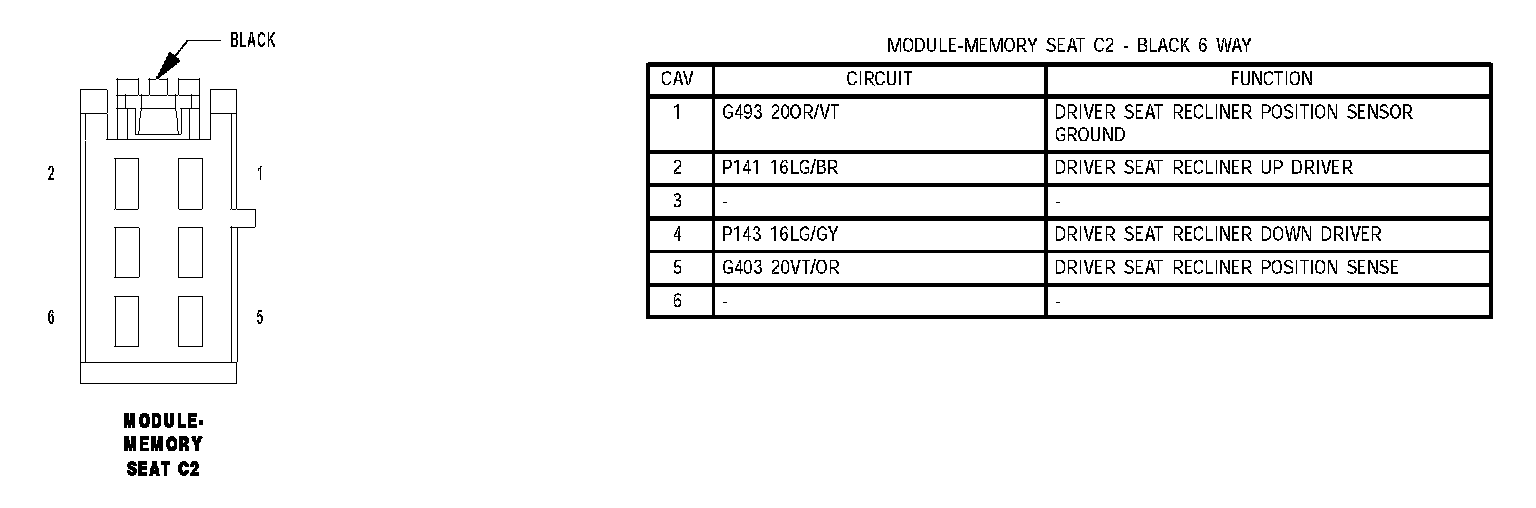

Module Memory Seat C2:

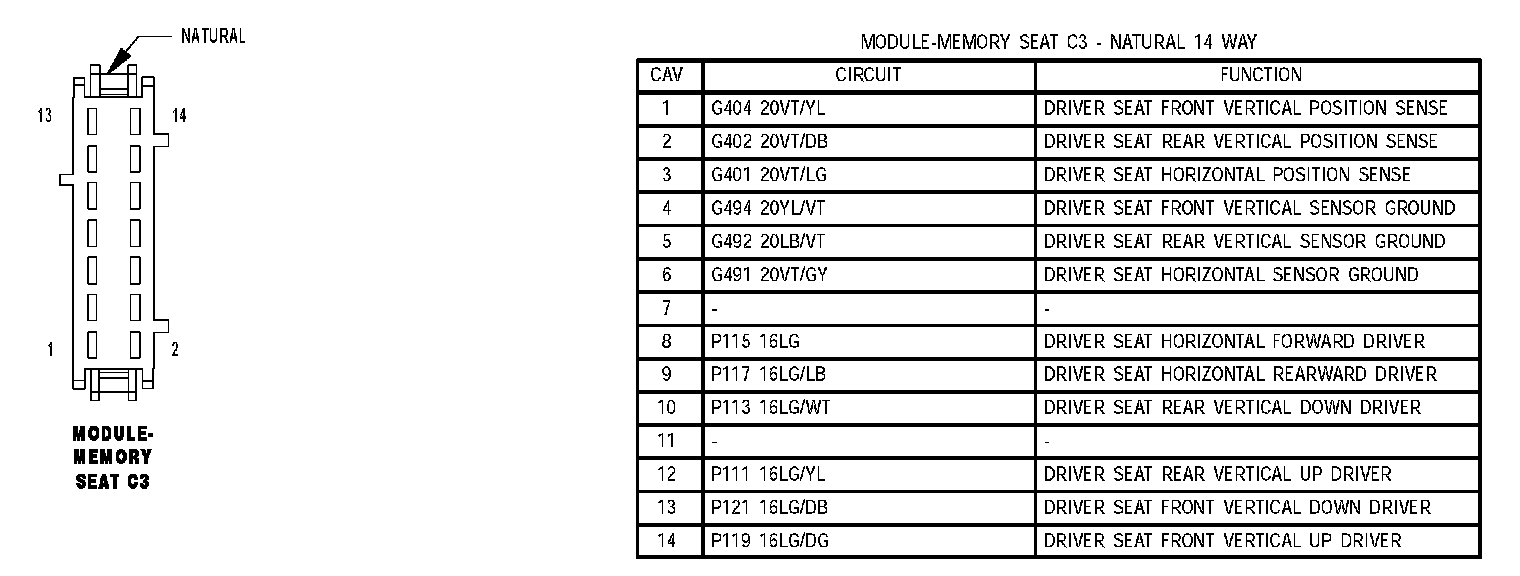

Module Memory Seat C3:

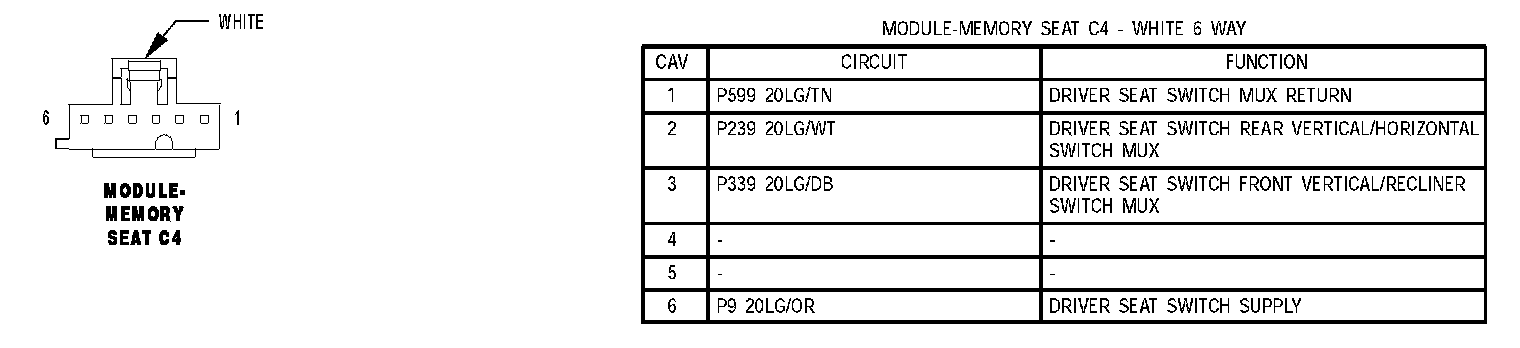

Module Memory Seat C4:



Module Memory Seat C5:
