Home >> Jeep Truck >> 2006 >> Commander 2WD V6-3.7L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor

Power Window Motor

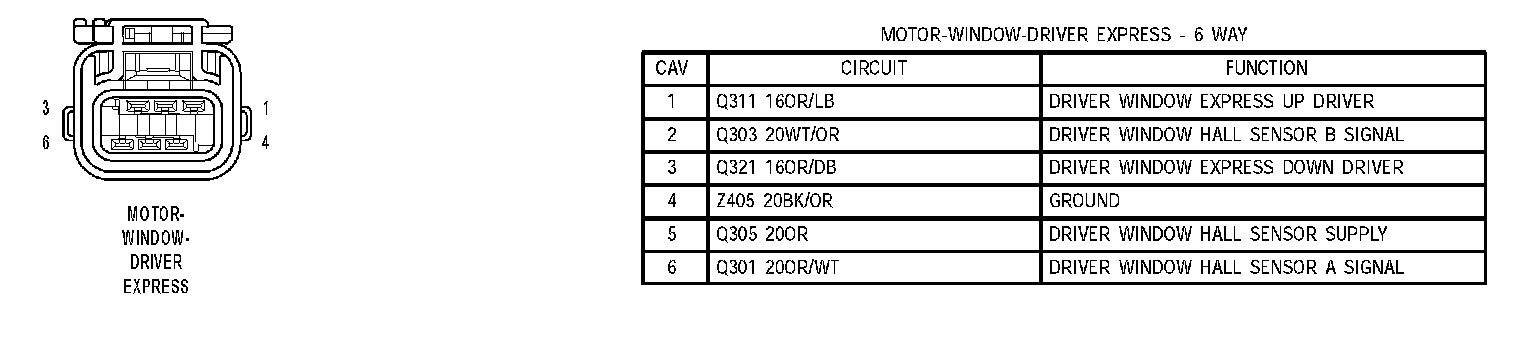

Motor Window Driver Express:

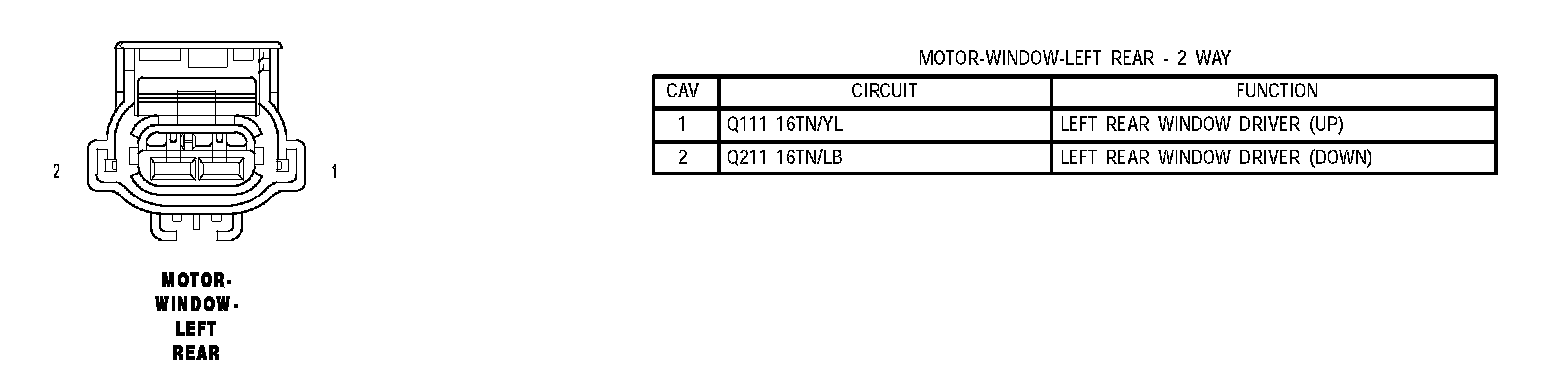

Motor Window Left Rear:

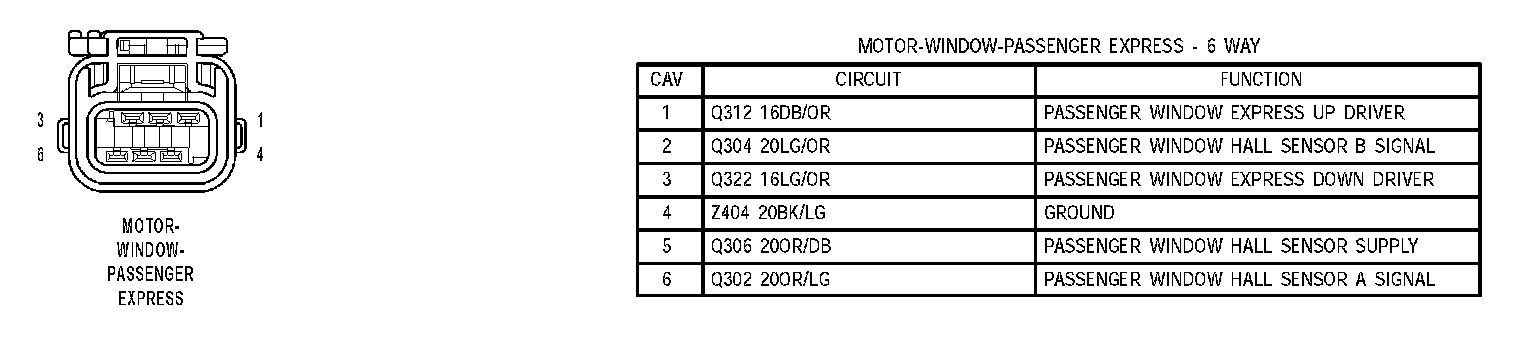

Motor Window Passenger Express:

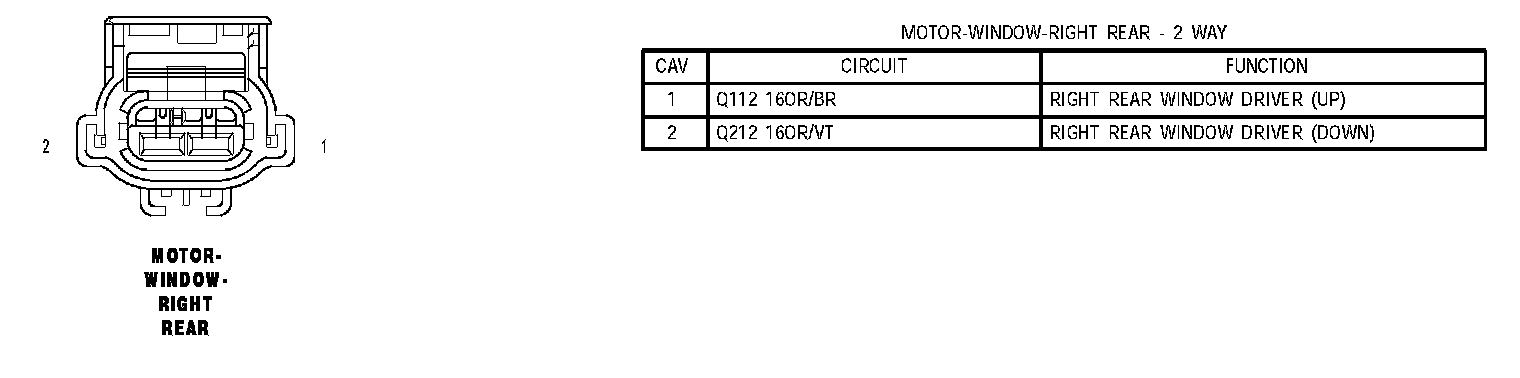

Motor Window Right Rear:
