Seat Temperature Element

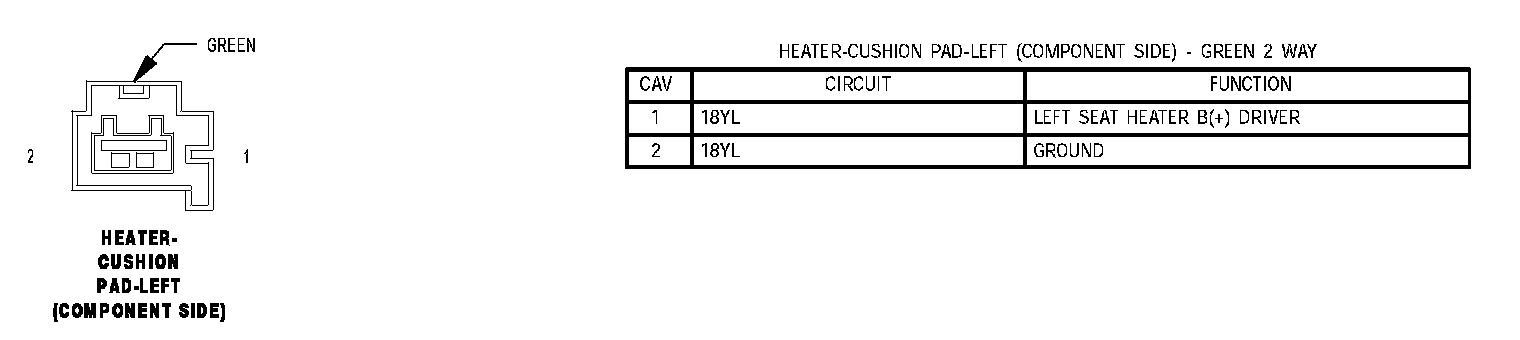

Heater Cushion Pad Left (Component Side):

Heater Cushion Pad Left:

Heater Cushion Pad Right (Component Side):

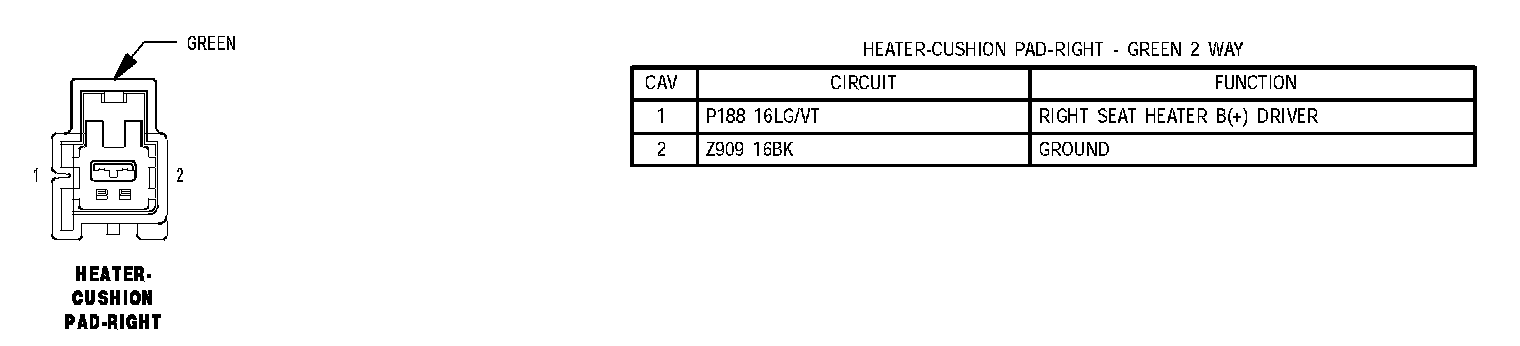

Heater Cushion Pad Right:

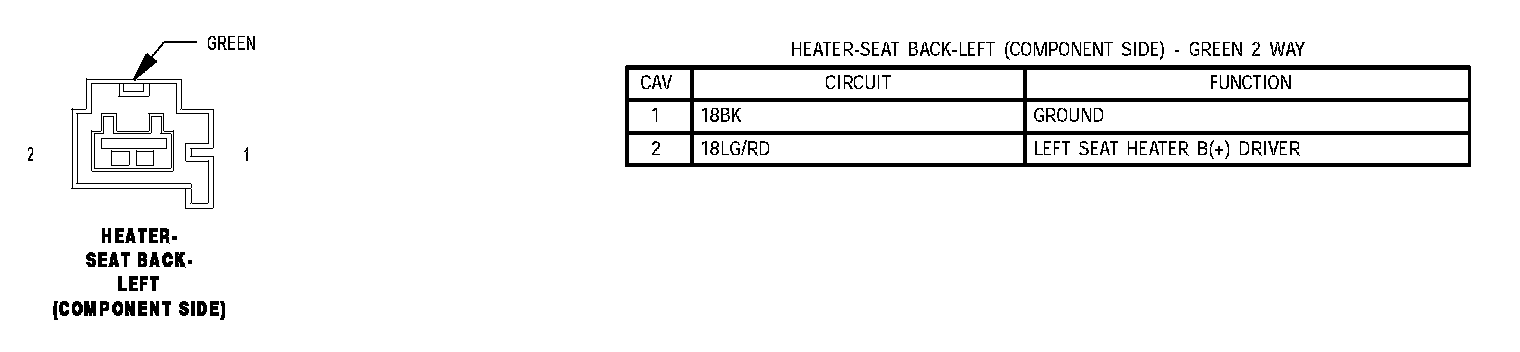

Heater Seat Back Left (Component Side):

Heater Seat Back Left:

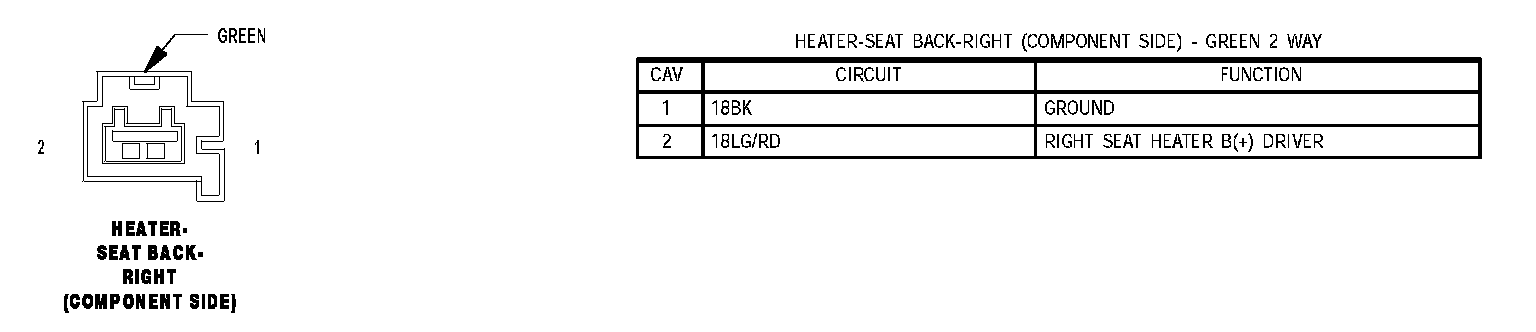

Heater Seat Back Right (Component Side):

Heater Seat Back Right:
