Jeep Truck
>>
2006
>>
Commander 2WD V6-3.7L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
Speaker

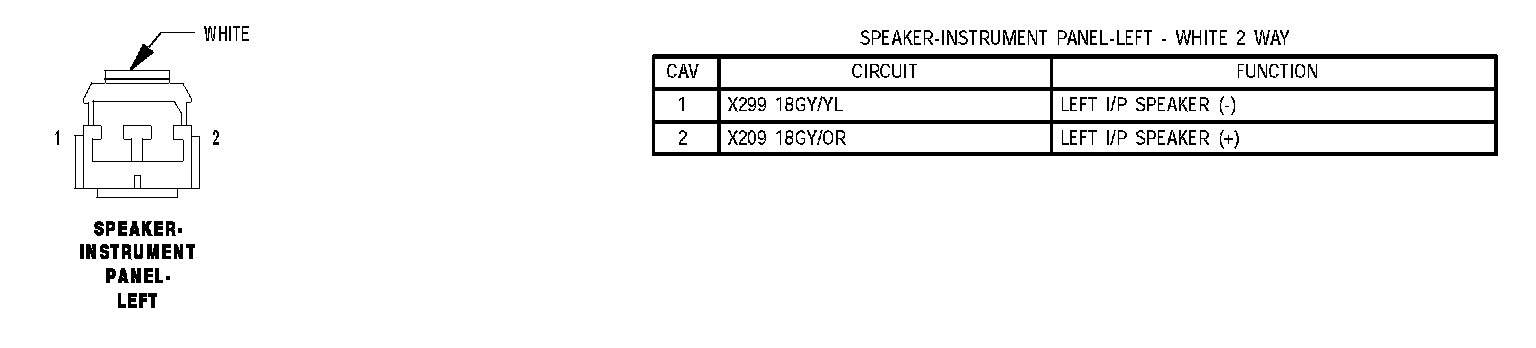

Speaker Instrument Panel Left:
Speaker Instrument Panel Right:

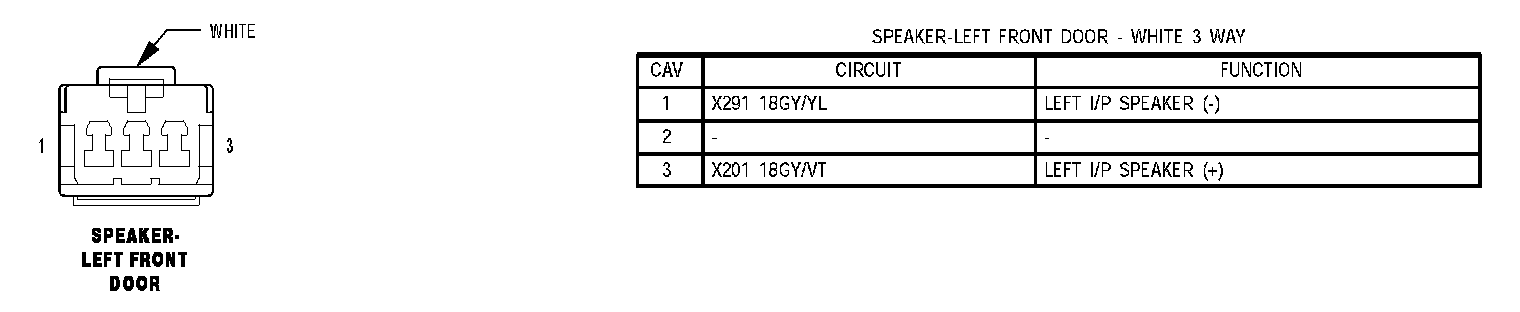

Speaker Left Front Door:

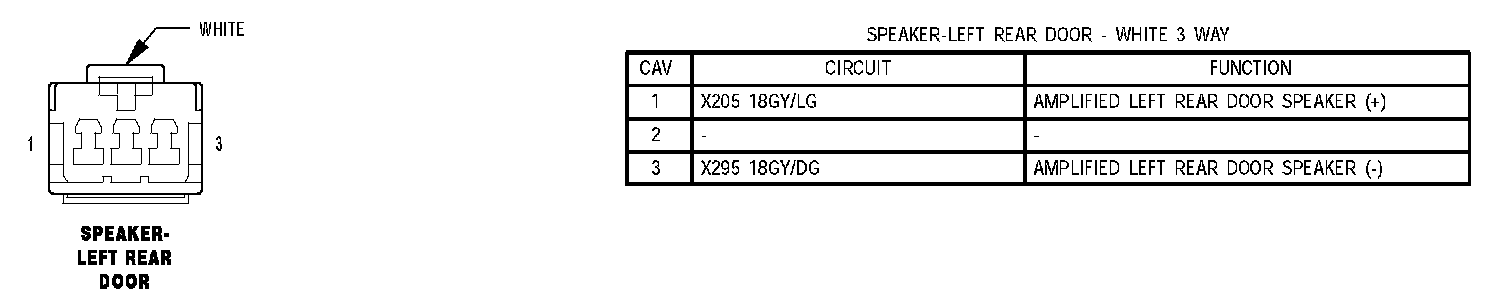

Speaker Left Rear Door:

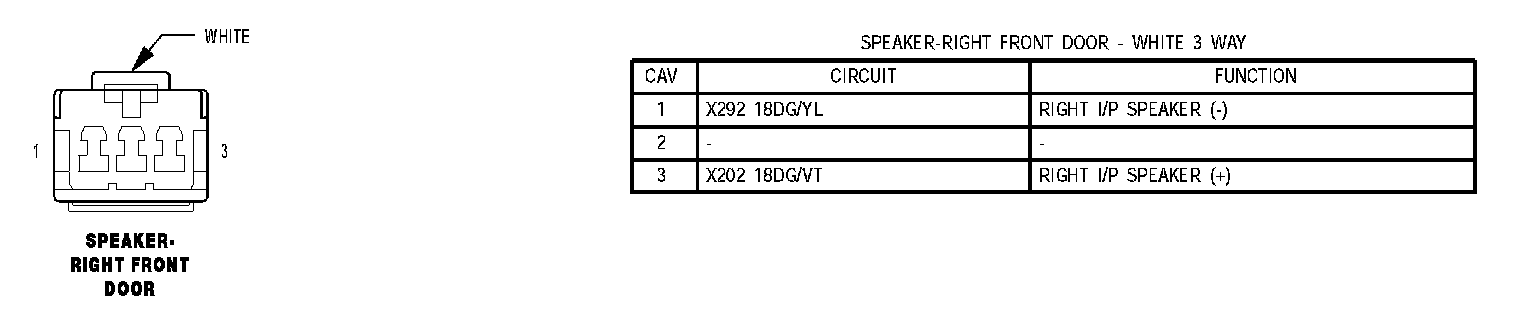

Speaker Right Front Door:

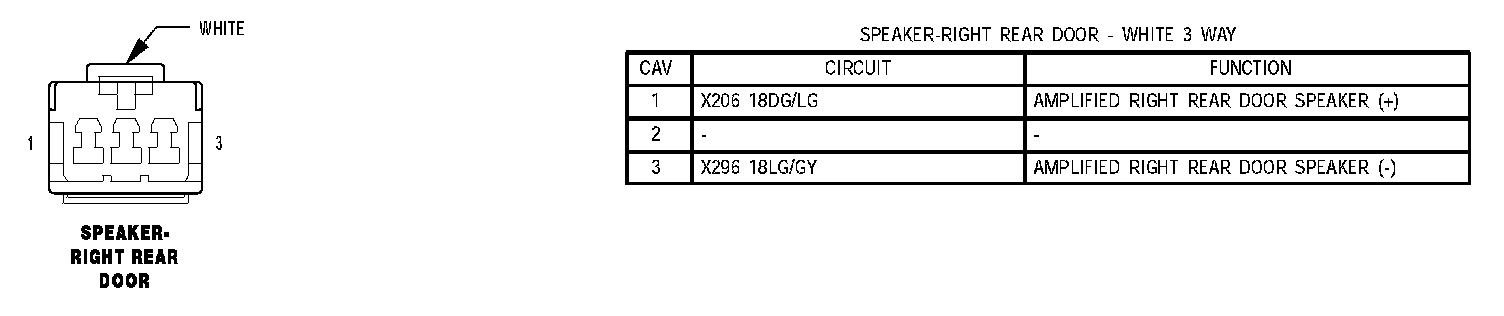

Speaker Right Rear Door:
