Tire Monitoring System

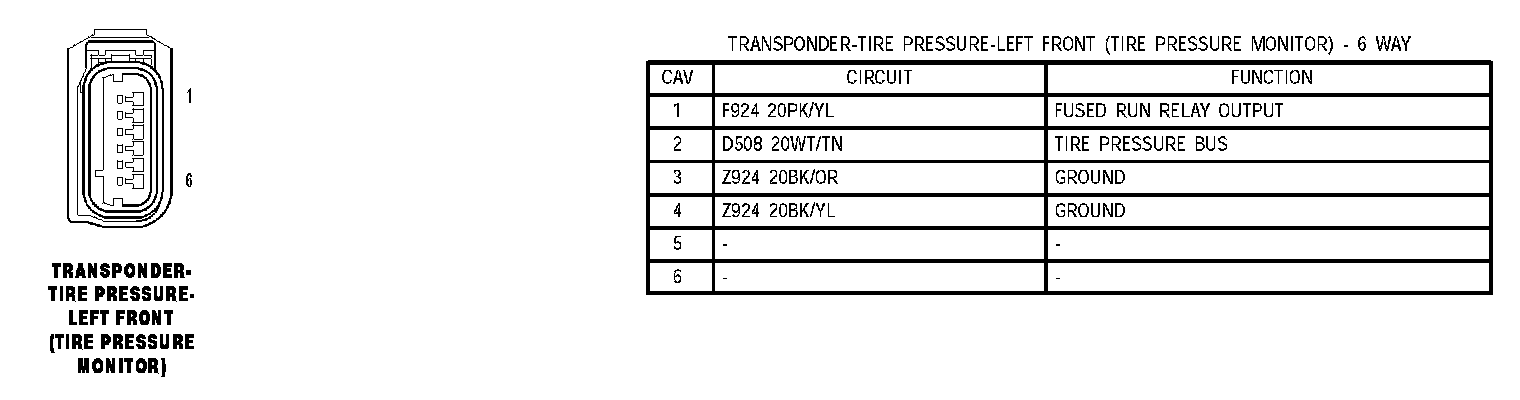

Transponder Tire Pressure Left Front (Tire Pressure Monitor):

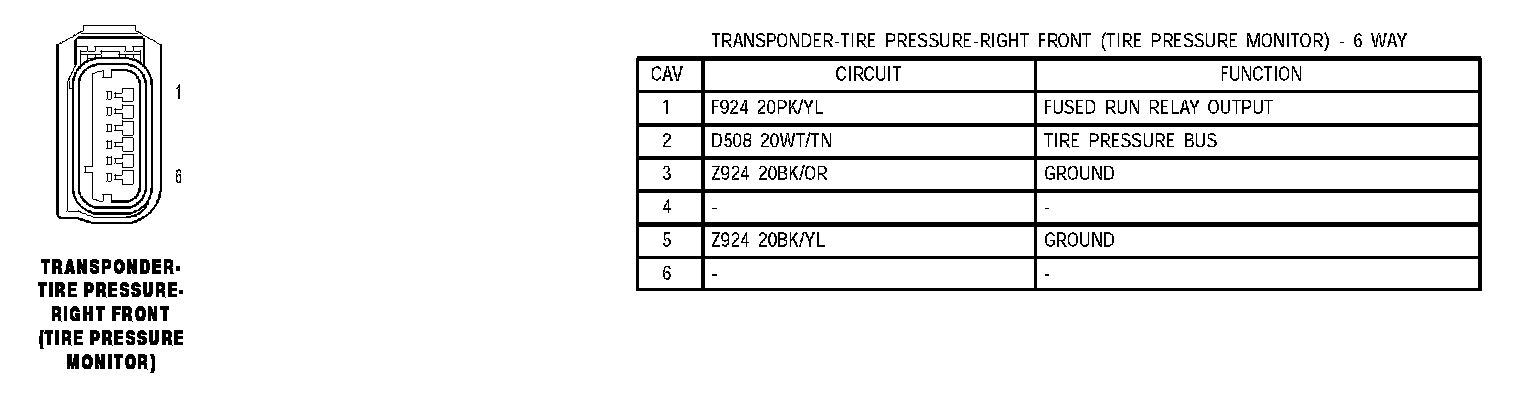

Transponder Tire Pressure Right Front (Tire Pressure Monitor):

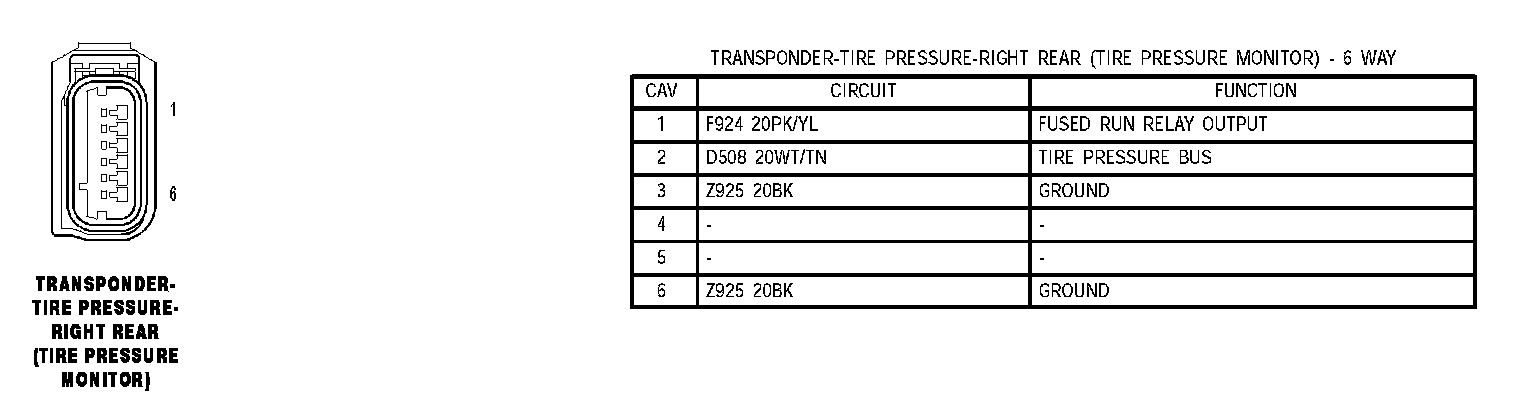

Transponder Tire Pressure Right Rear (Tire Pressure Monitor):
