Jeep Truck
>>
2006
>>
Commander 2WD V6-3.7L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trailer Lamps
Trailer Lamps

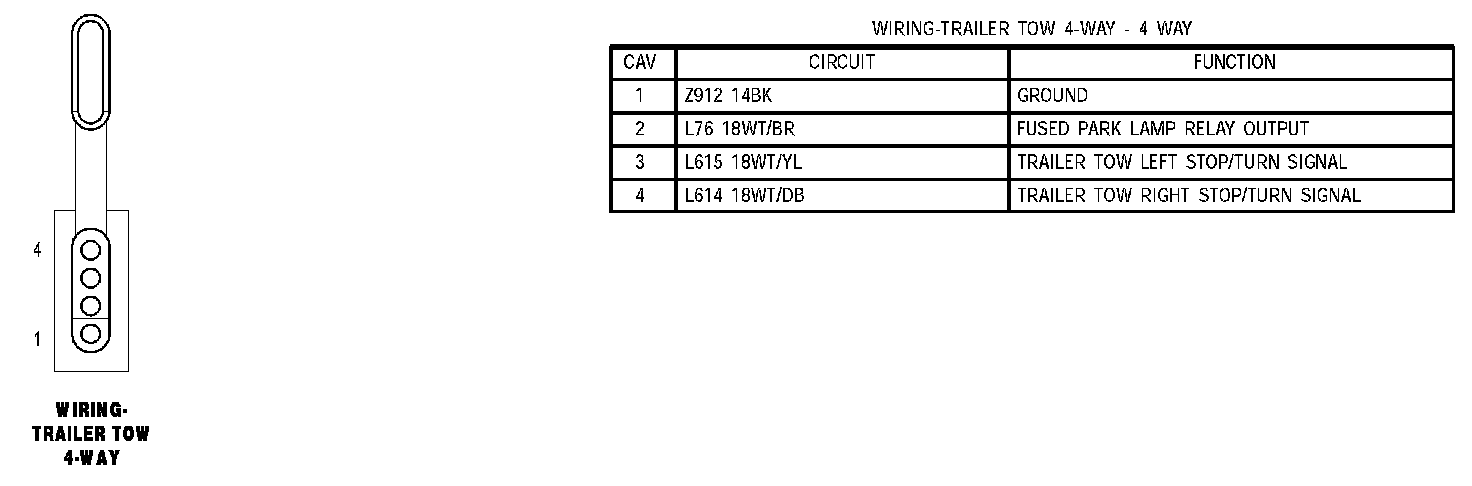

Wiring Trailer Tow 4 Way:

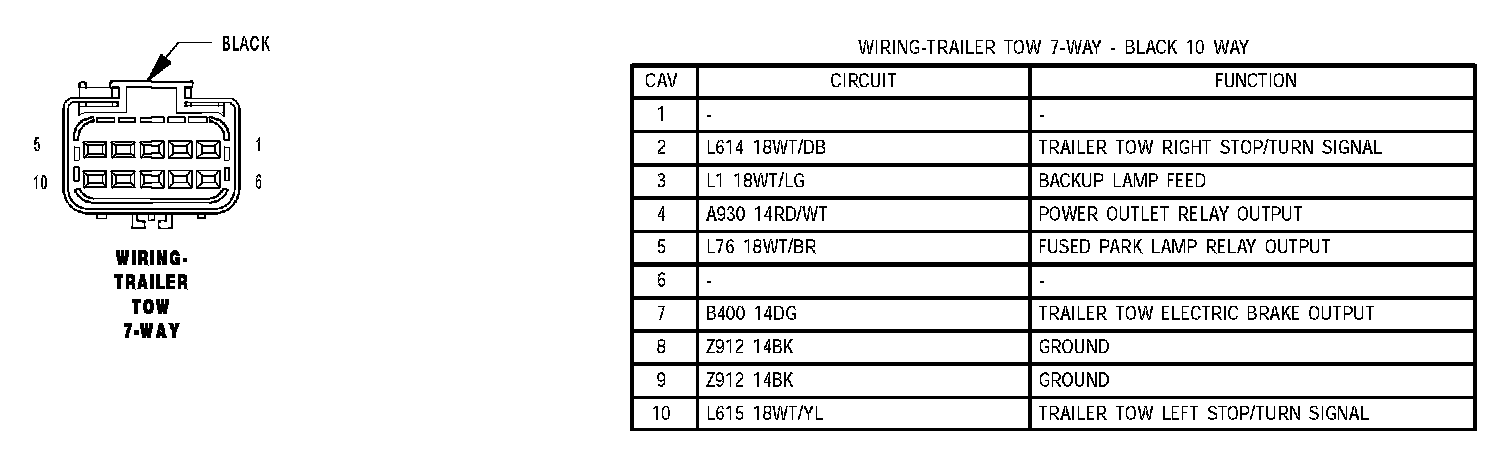

Wiring Trailer Tow 7 Way:
