Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep Truck
>>
2006
>>
Commander 2WD V6-3.7L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Turn Signal Lamp
Turn Signal Lamp

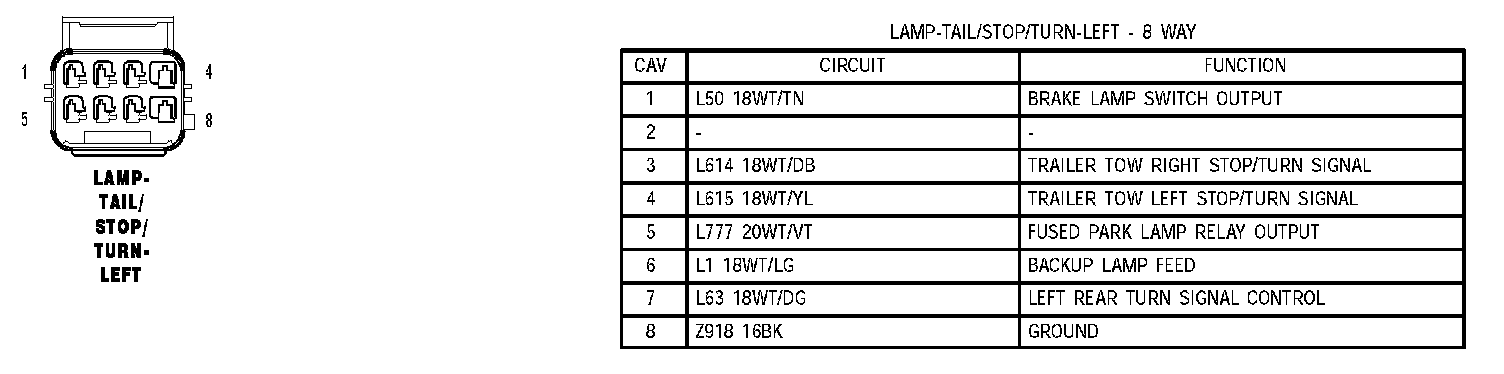

Lamp Tail/Stop/Turn Left:

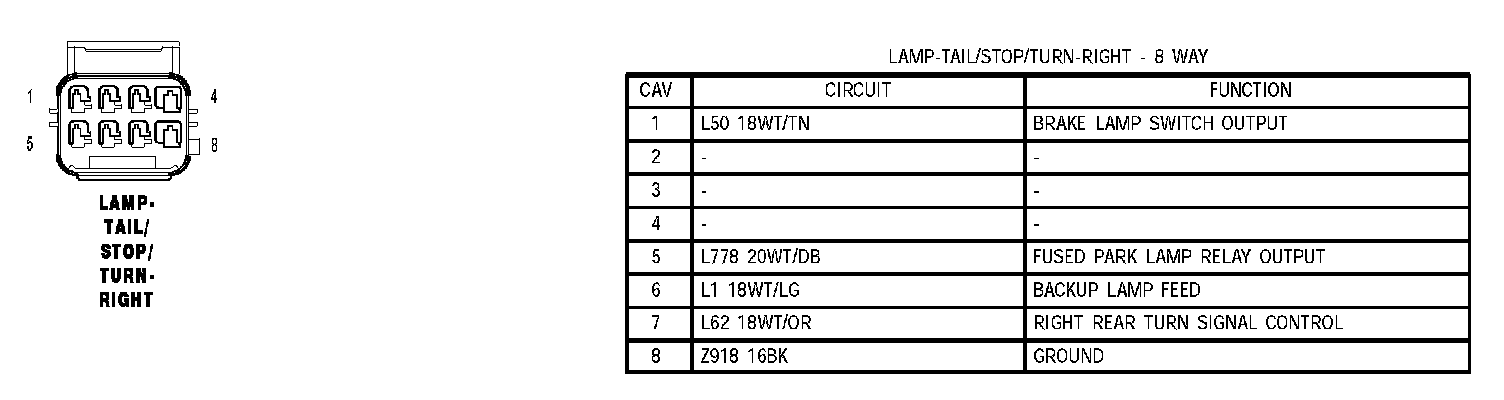

Lamp Tail/Stop/Turn Right:
