Automatic Transmission/Transaxle

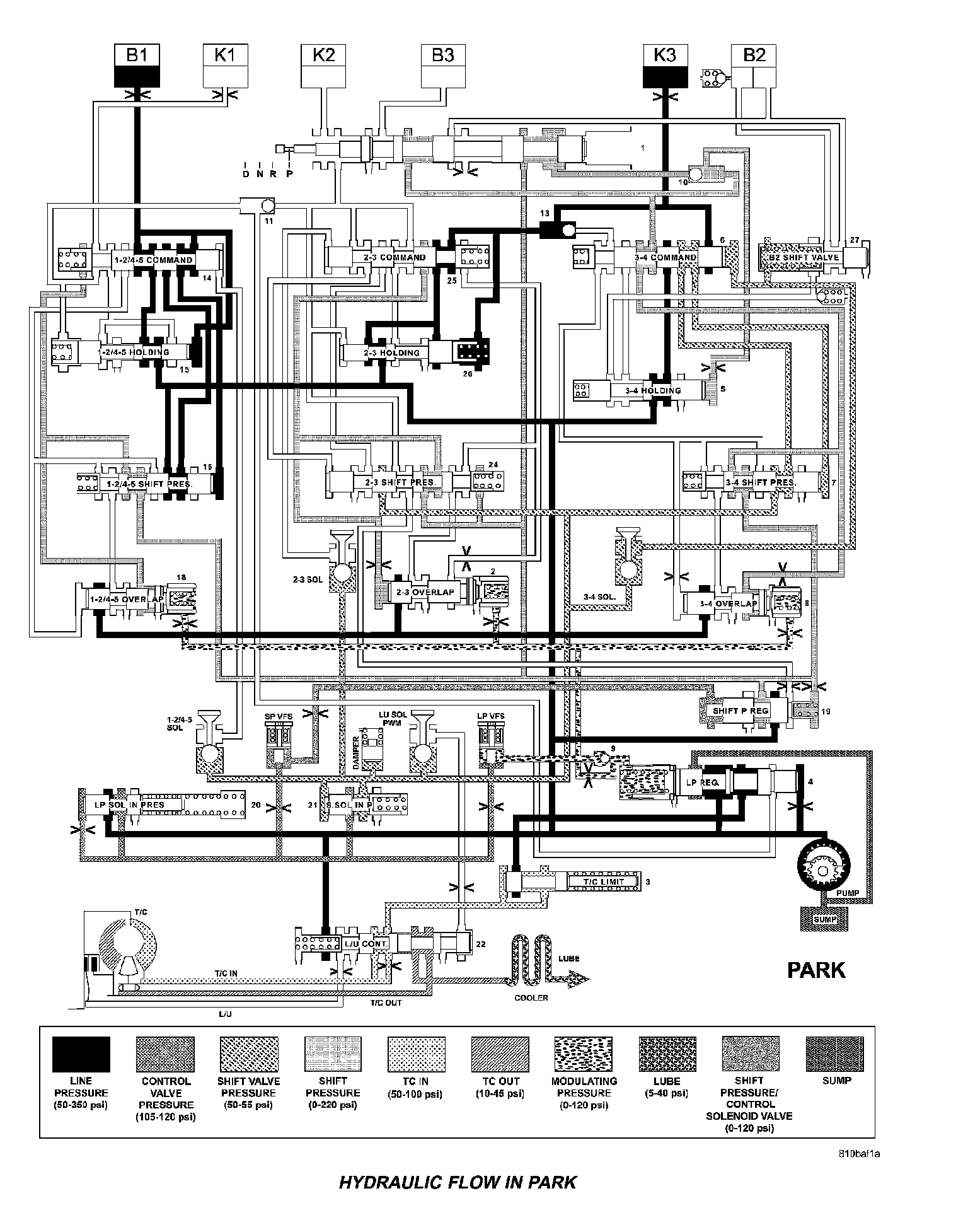

HYDRAULIC FLOW IN PARK:

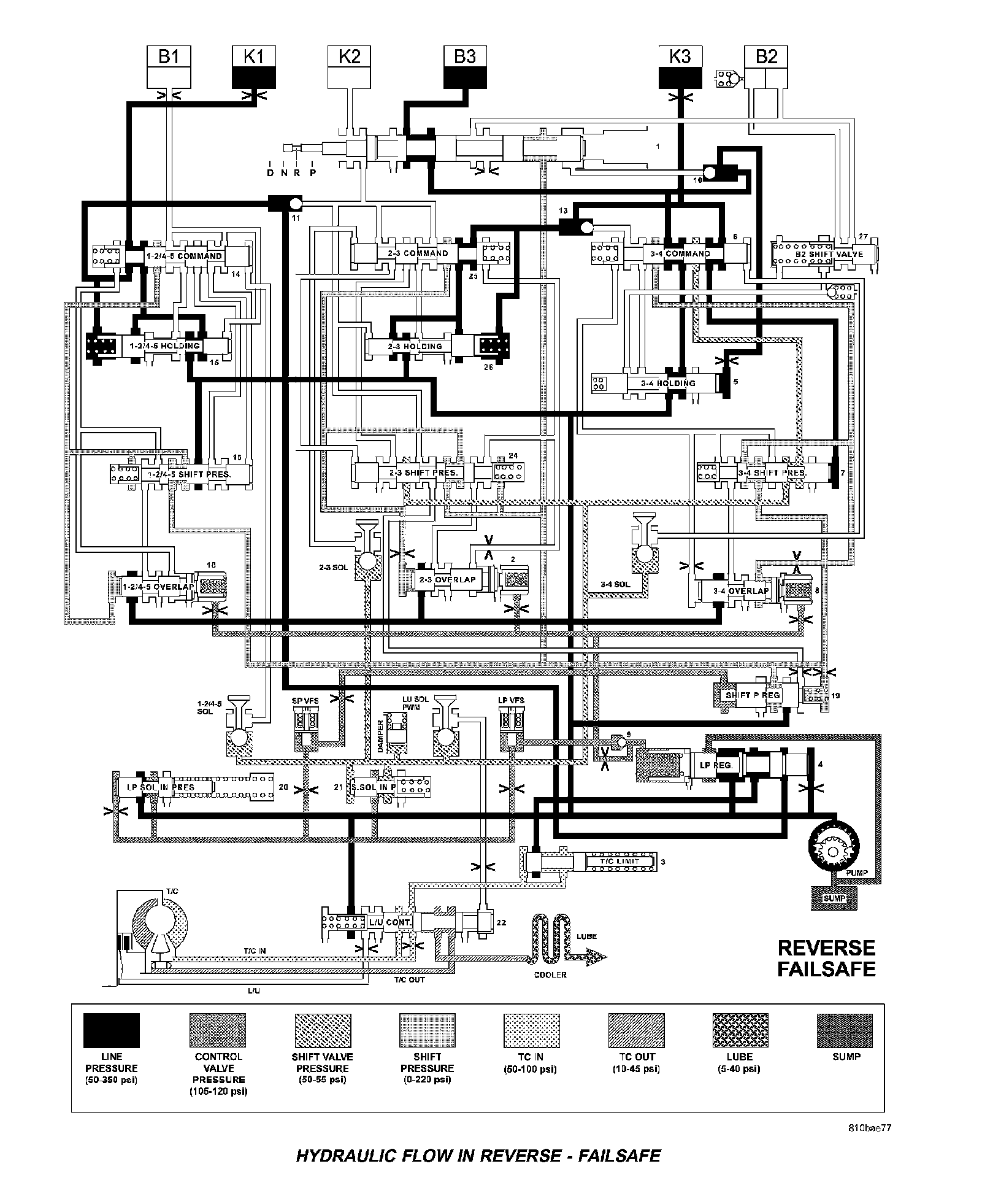

HYDRAULIC FLOW IN REVERSE - FAILSAFE:

HYDRAULIC FLOW IN REVERSE:

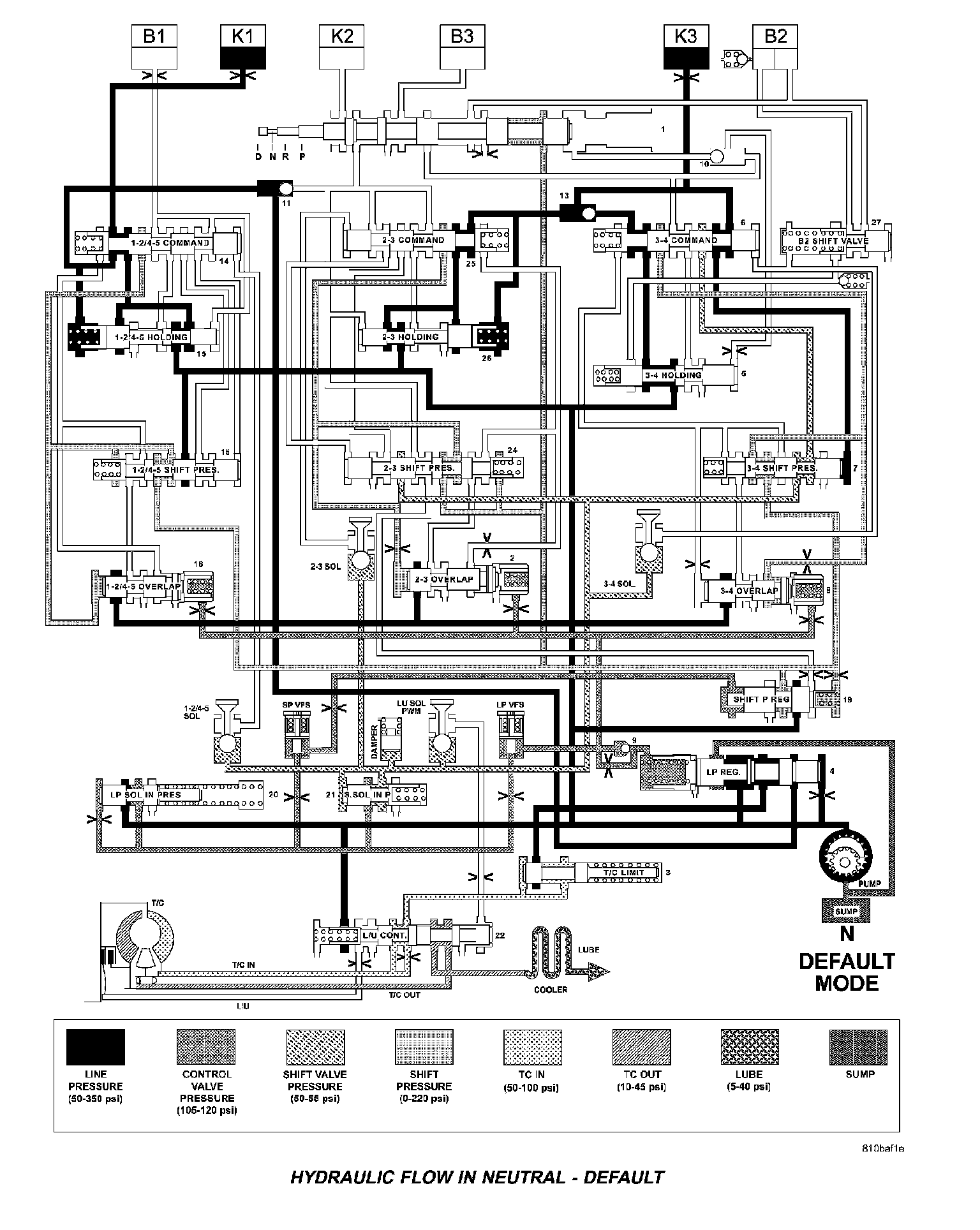

HYDRAULIC FLOW IN NEUTRAL - DEFAULT:

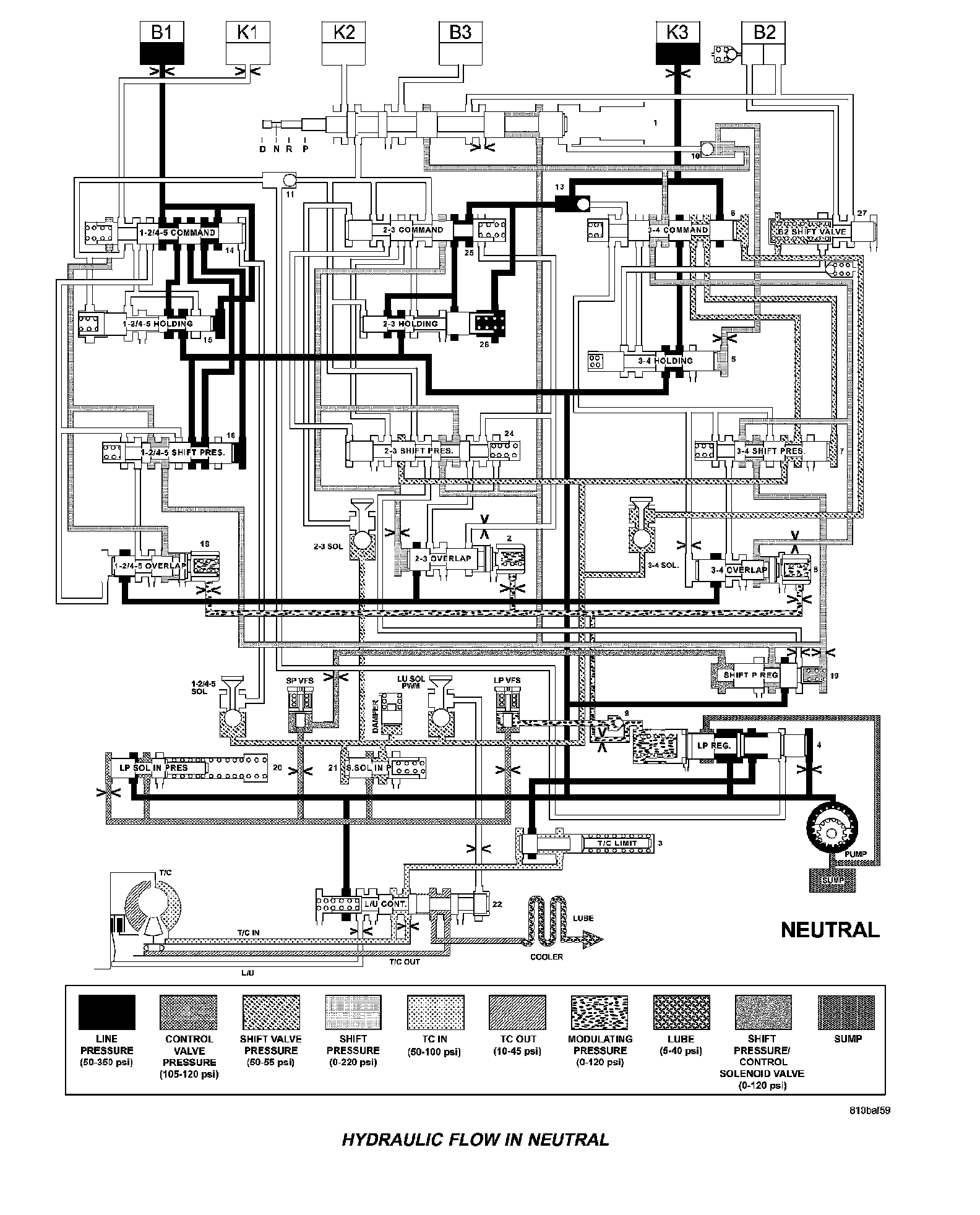

HYDRAULIC FLOW IN NEUTRAL:

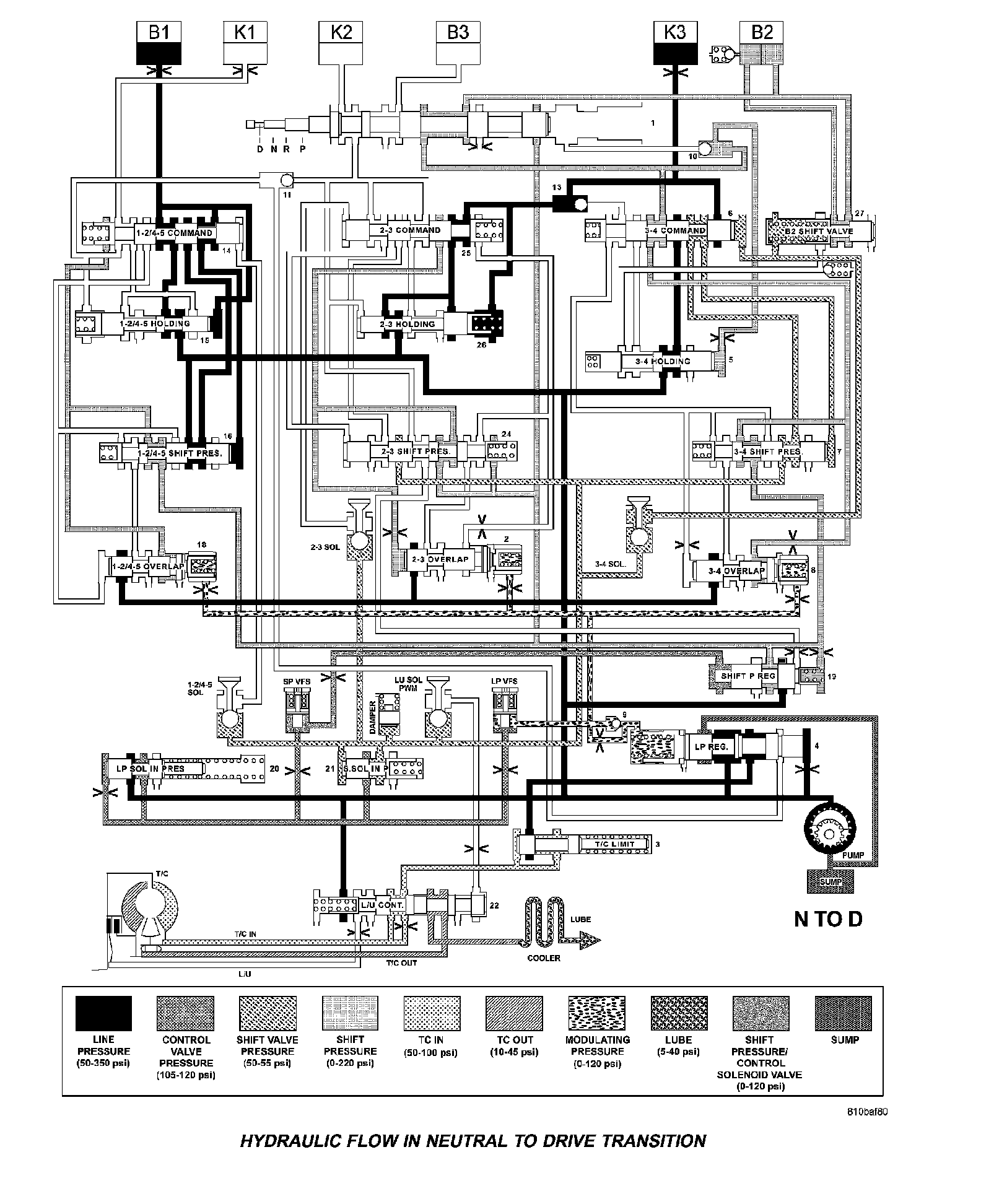

HYDRAULIC FLOW IN NEUTRAL TO DRIVE TRANSITION:

HYDRAULIC FLOW IN DRIVE - FAILSAFE:

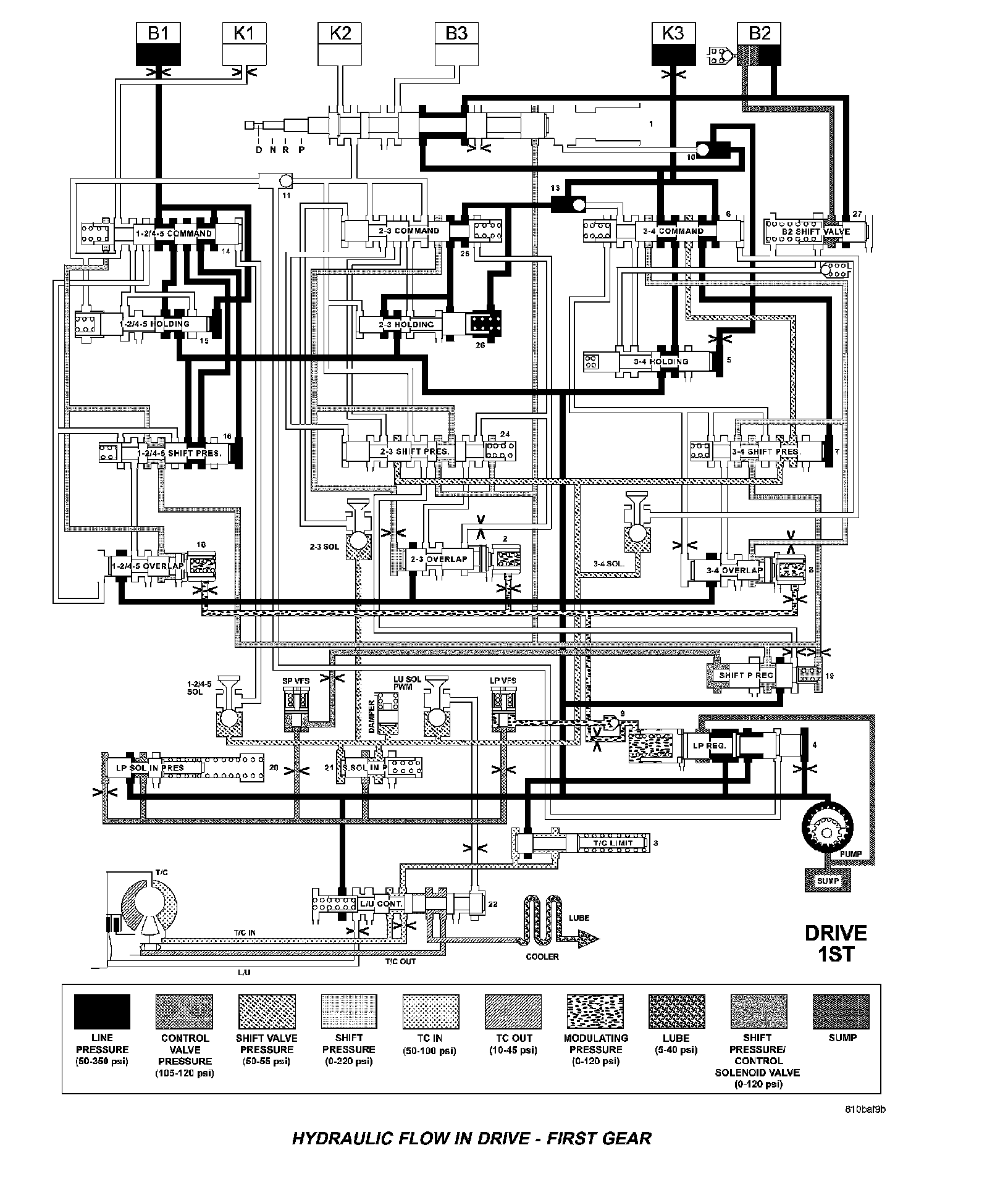

HYDRAULIC FLOW IN DRIVE - FIRST GEAR:

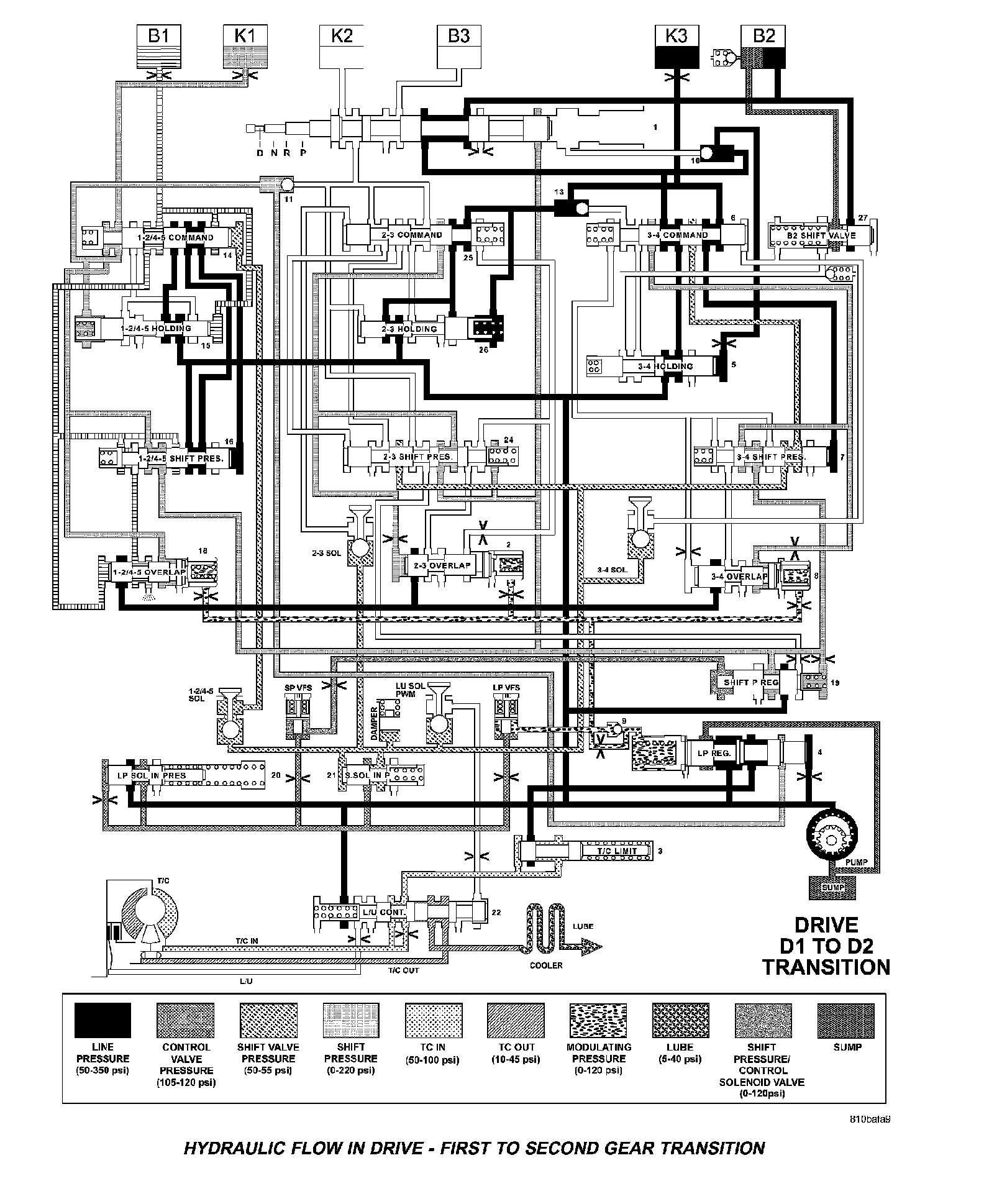

HYDRAULIC FLOW IN DRIVE - FIRST TO SECOND GEAR TRANSITION:

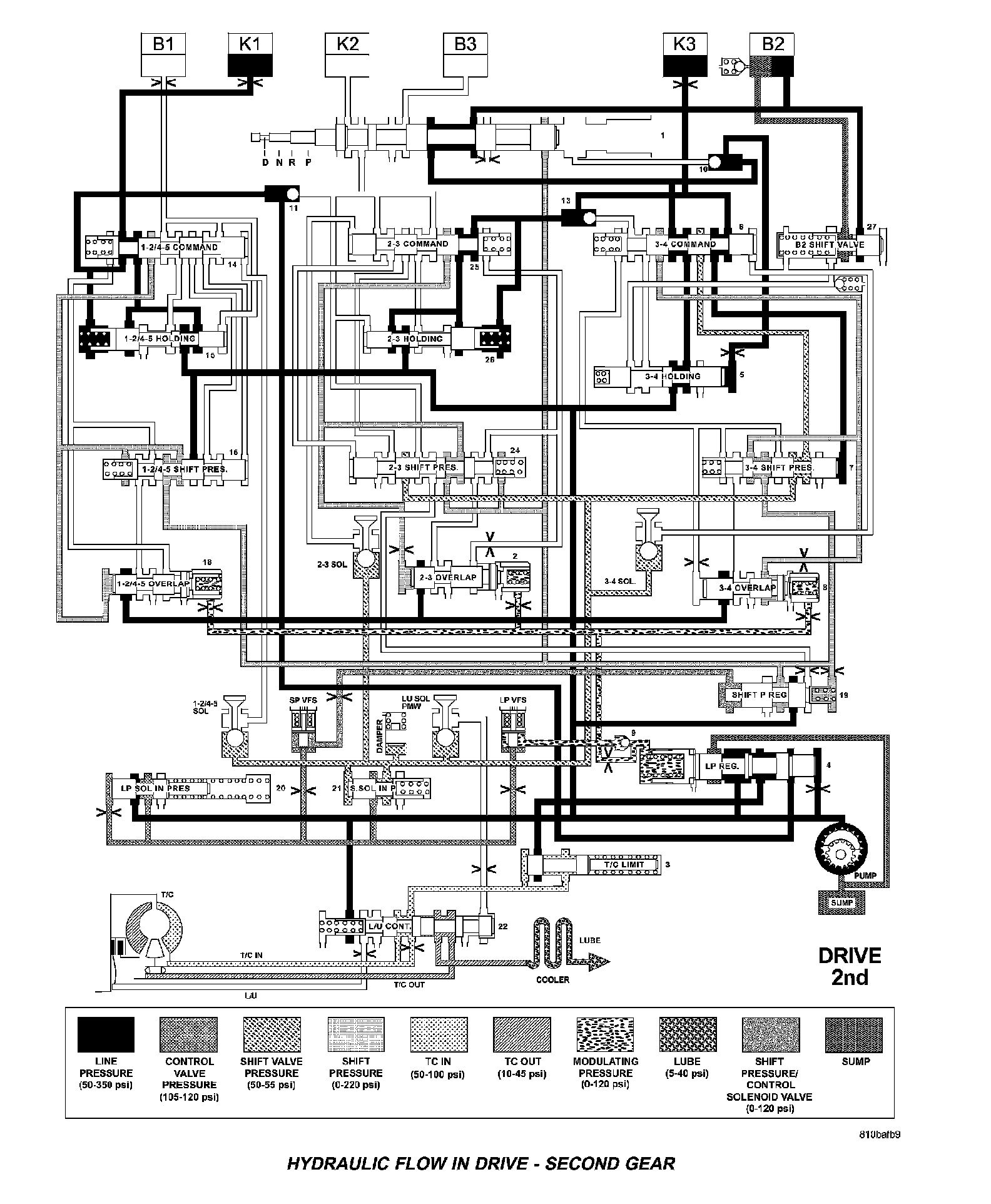

HYDRAULIC FLOW IN DRIVE - SECOND GEAR:

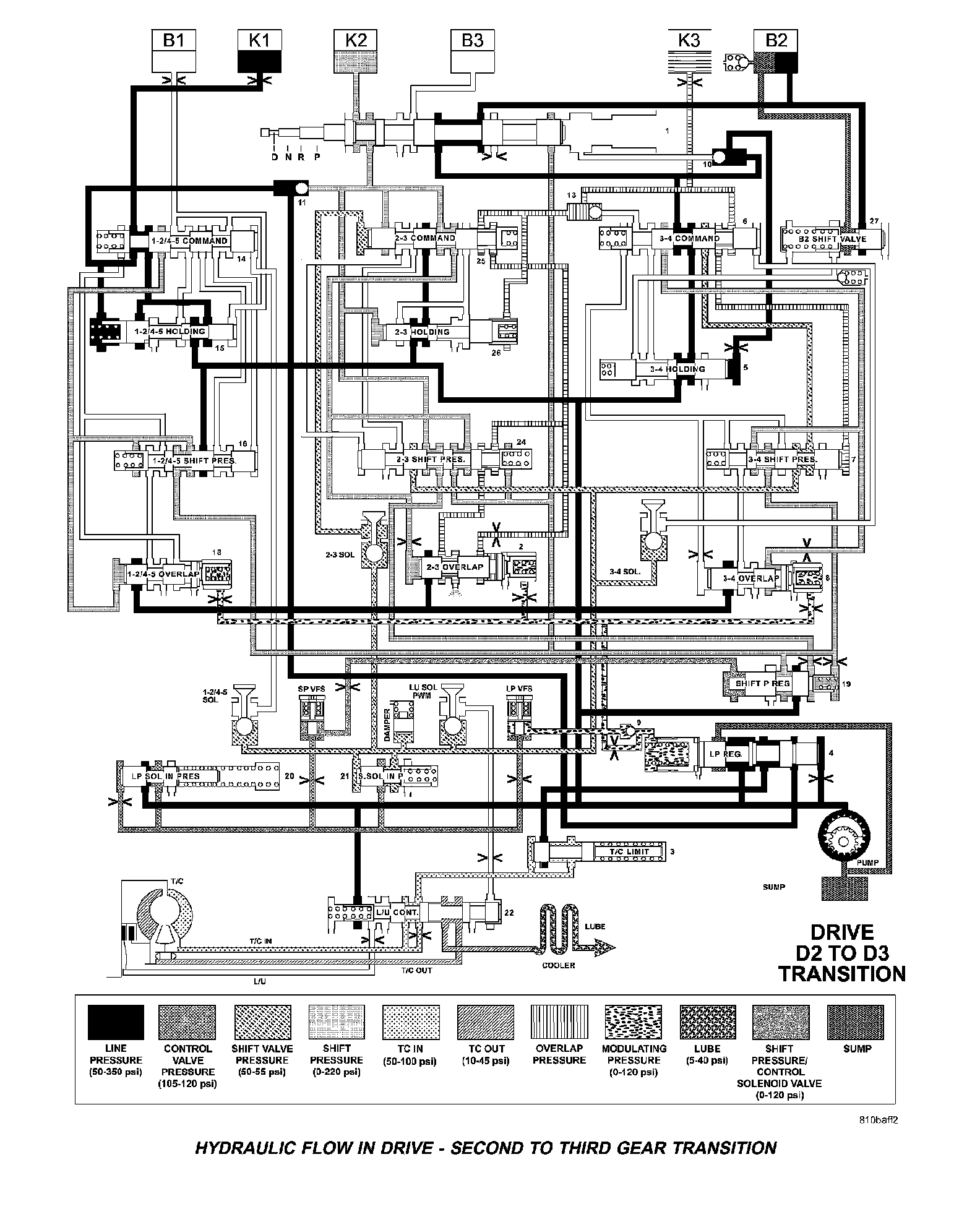

HYDRAULIC FLOW IN DRIVE - SECOND TO THIRD GEAR TRANSITION:

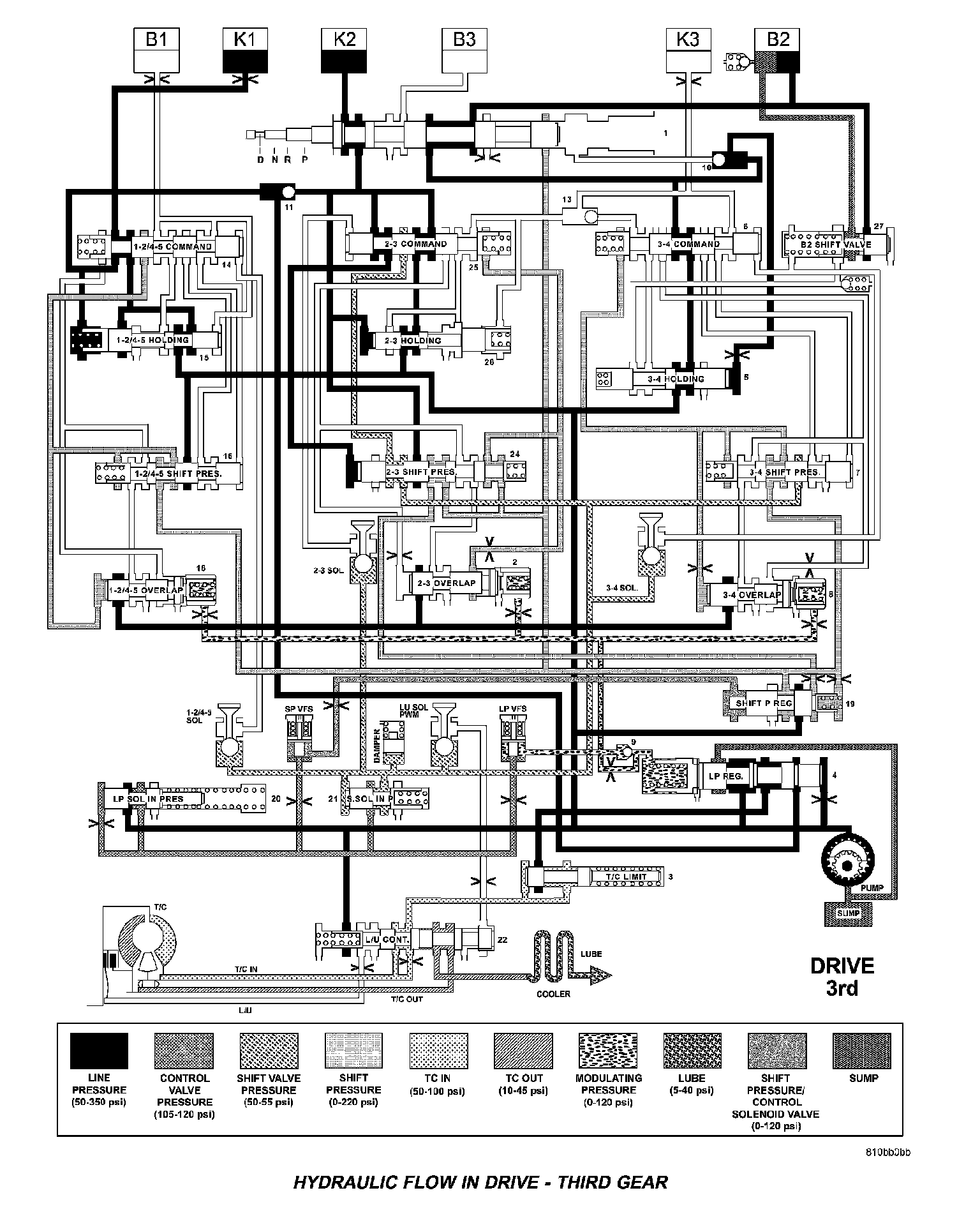

HYDRAULIC FLOW IN DRIVE - THIRD GEAR:

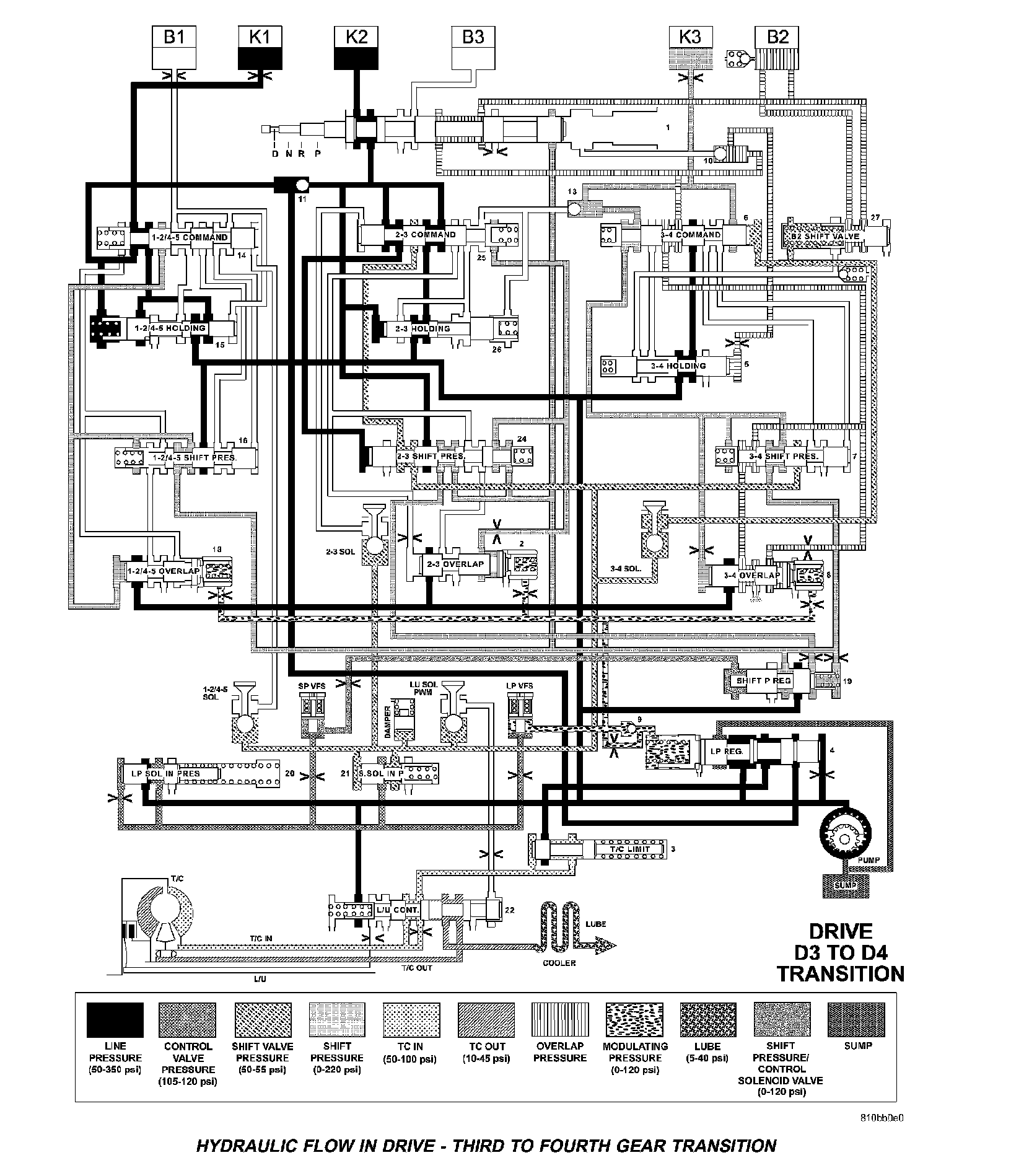

HYDRAULIC FLOW IN DRIVE - THIRD TO FOURTH GEAR TRANSITION:

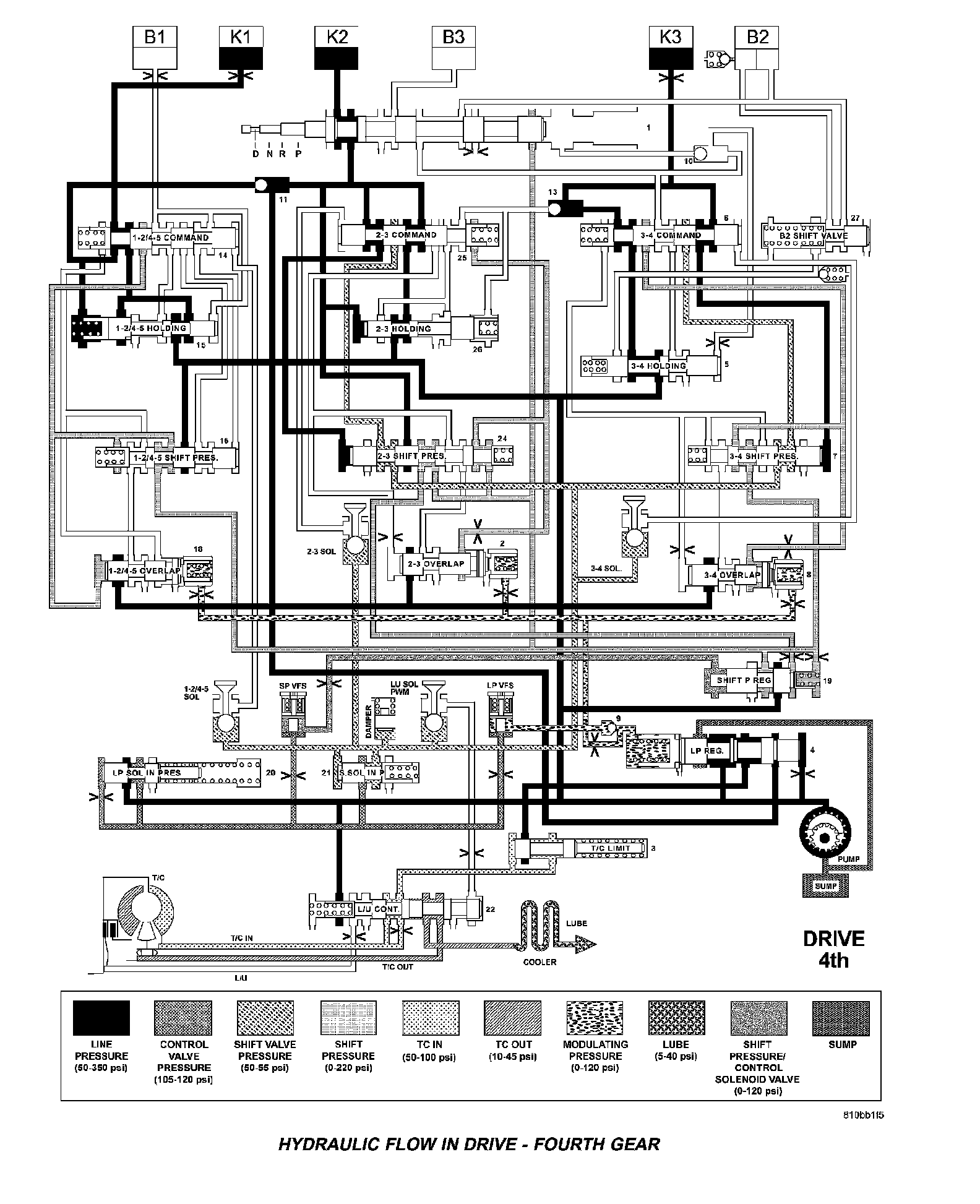

HYDRAULIC FLOW IN DRIVE - FOURTH GEAR:

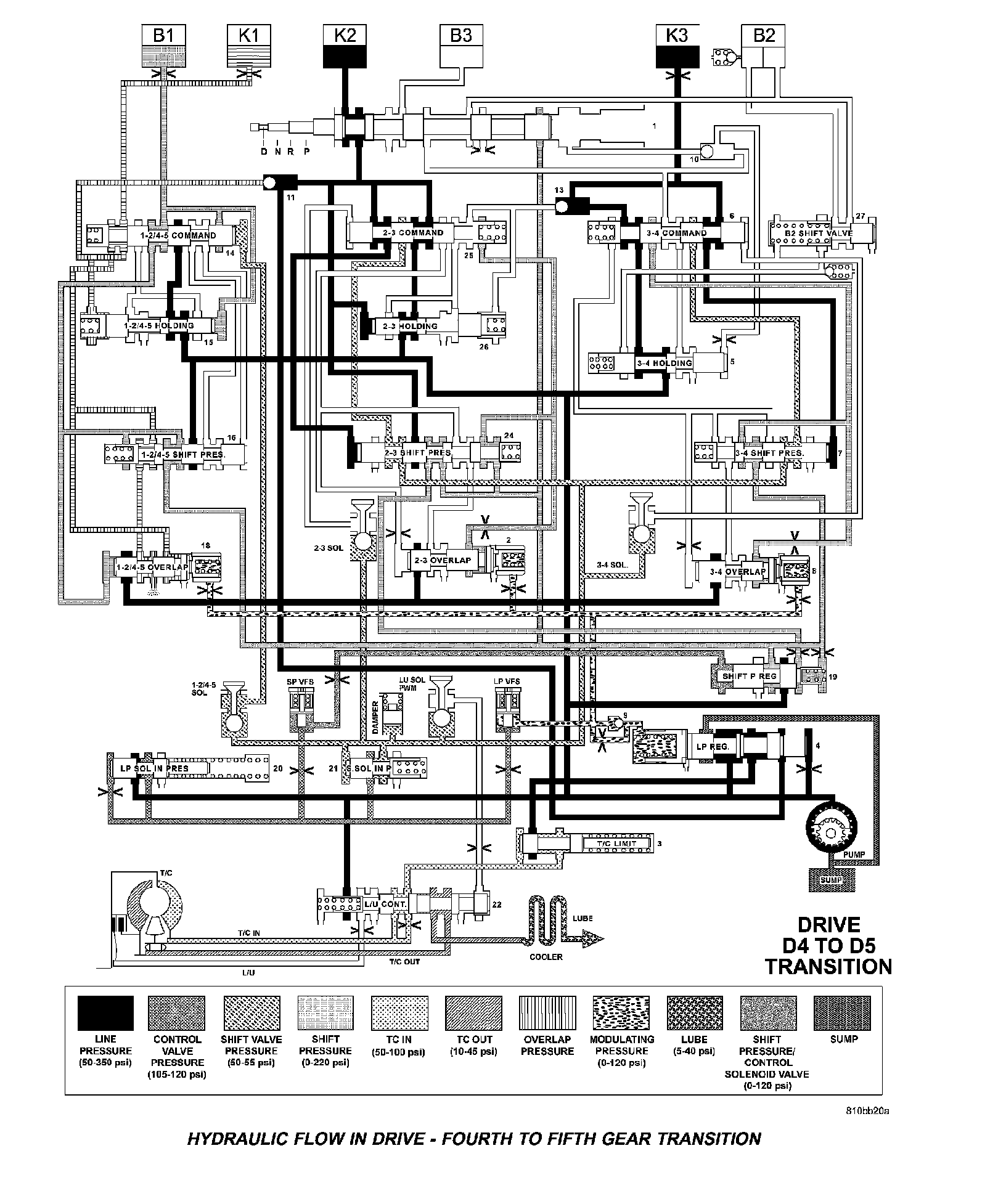

HYDRAULIC FLOW IN DRIVE - FOURTH TO FIFTH GEAR TRANSITION:

HYDRAULIC FLOW IN DRIVE - FIFTH GEAR:

HYDRAULIC FLOW IN DRIVE - FIFTH GEAR - EMCC:

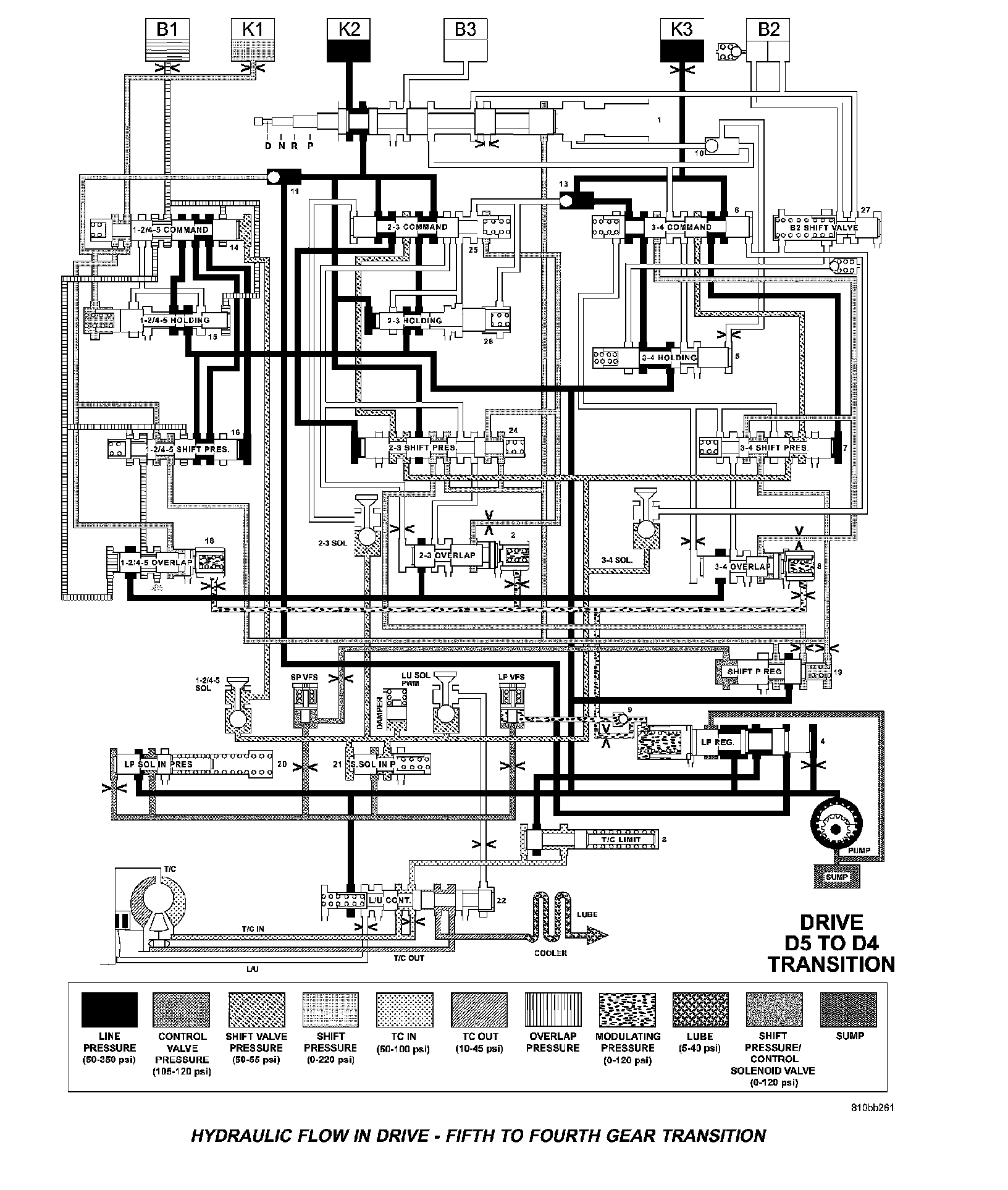

HYDRAULIC FLOW IN DRIVE - FIFTH TO FOURTH GEAR TRANSITION:

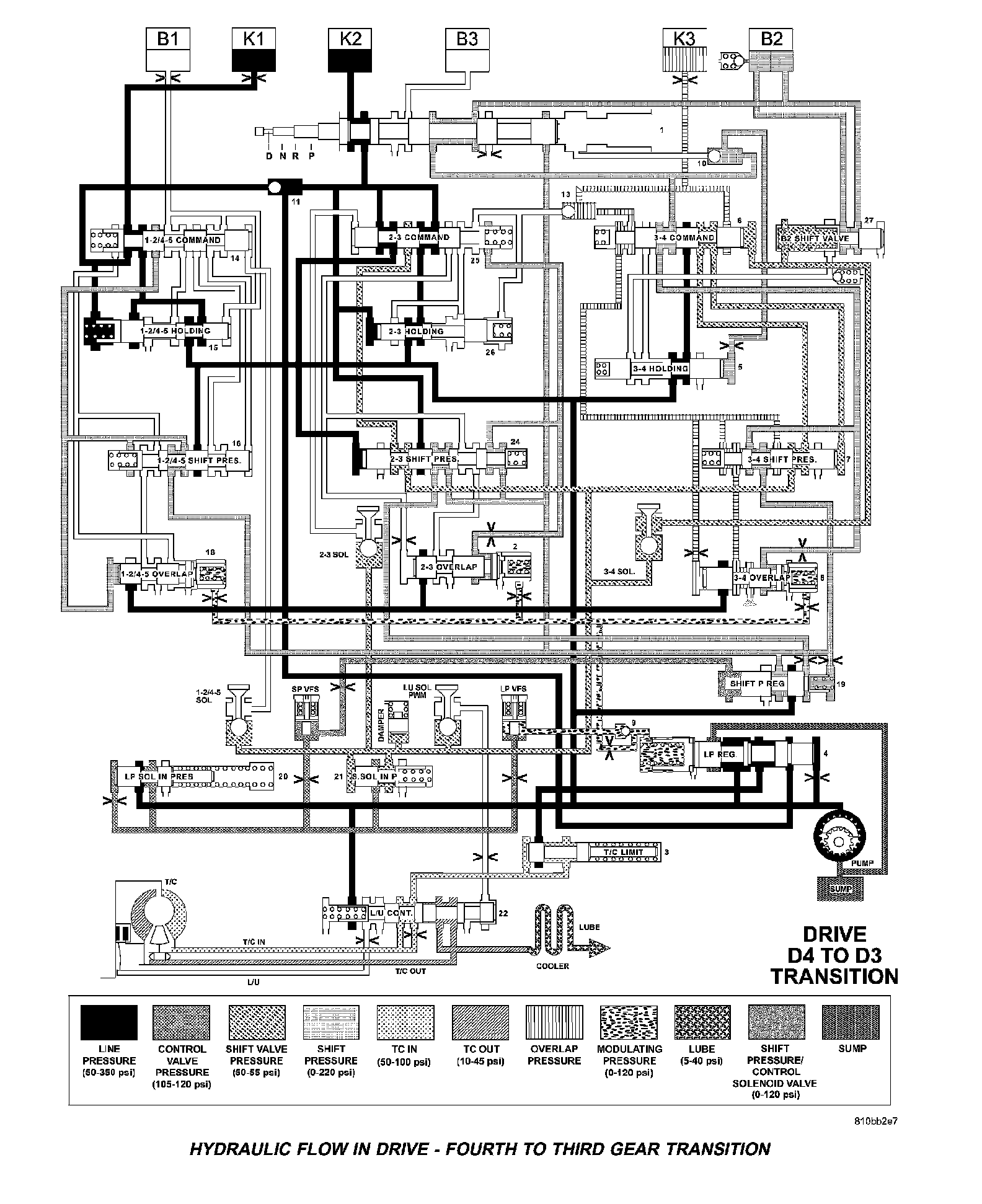

HYDRAULIC FLOW IN DRIVE - FOURTH TO THIRD GEAR TRANSITION:

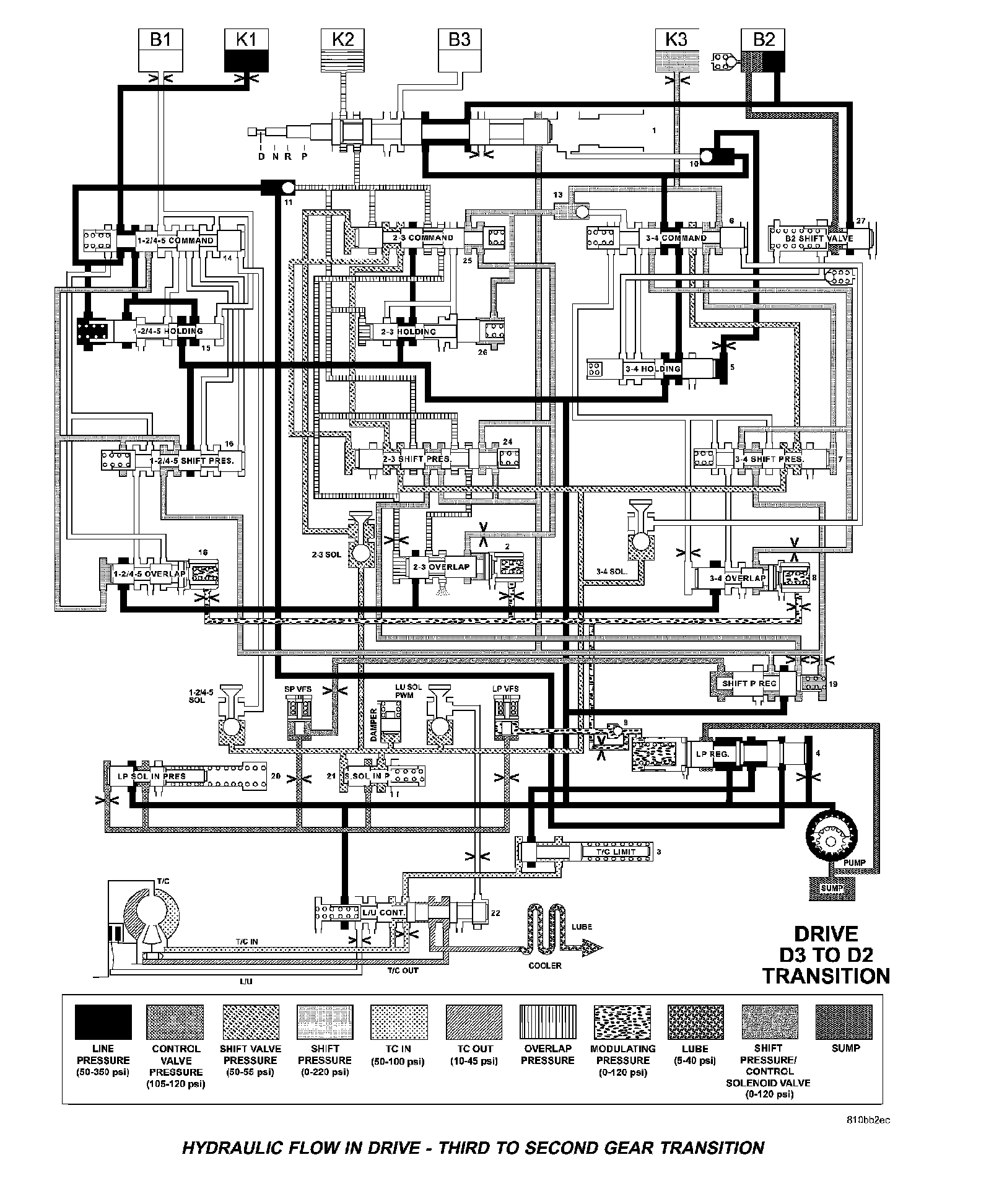

HYDRAULIC FLOW IN DRIVE - THIRD TO SECOND GEAR TRANSITION:

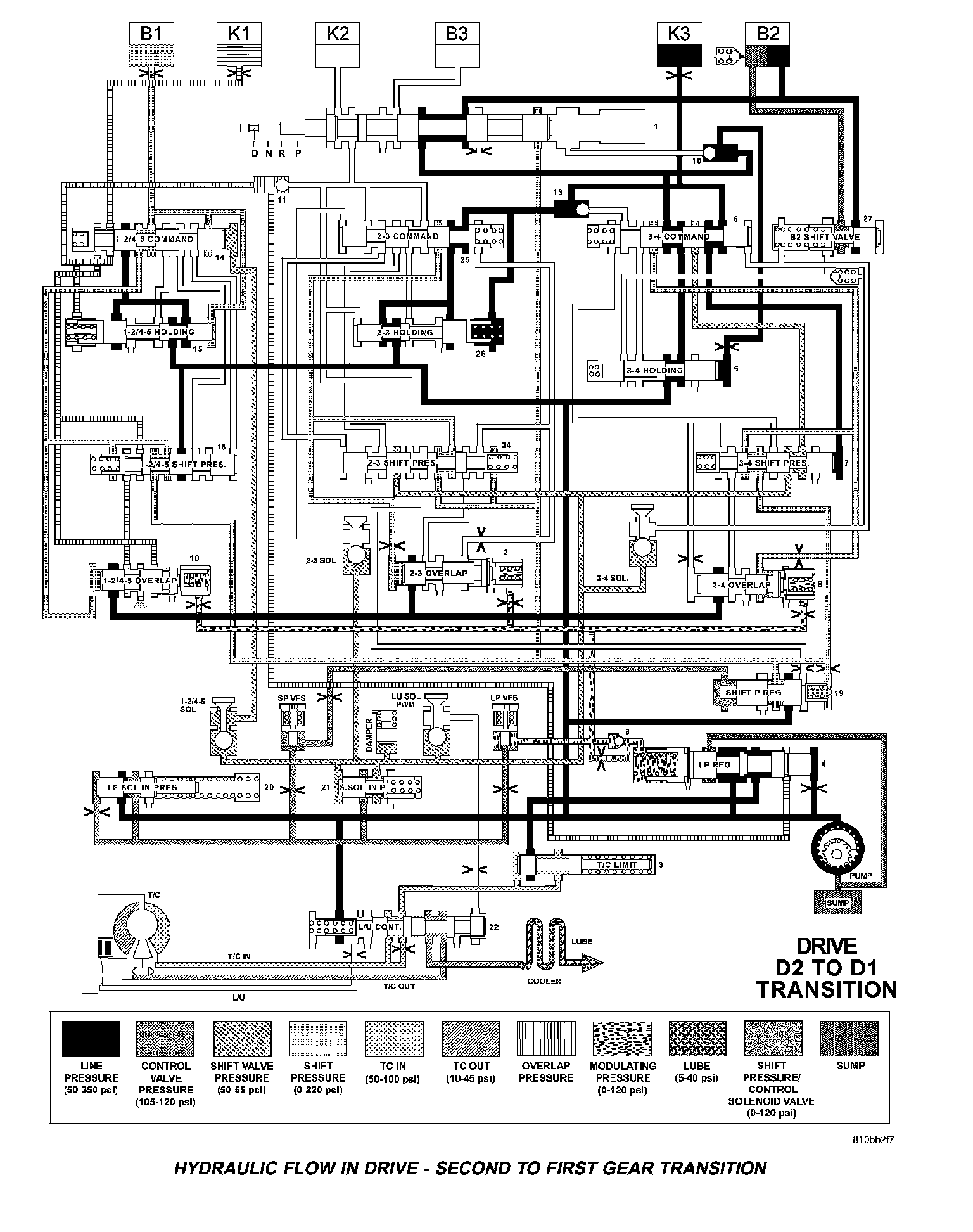

HYDRAULIC FLOW IN DRIVE - SECOND TO FIRST GEAR TRANSITION:
