Cooling System: Description and Operation
COOLINGDESCRIPTION
3.7L/4.7L
The cooling system consists of the following items:
^ Electric cooling fan - Standard - 3.7L engine.
^ Electric cooling fan and mechanical thermal viscous fan with low disengaged - 4.7L engine only
^ Radiator
^ Radiator pressure cap
^ Thermostat
^ Coolant pressure bottle/overflow system
^ Transmission oil cooler (if equipped with an automatic transmission)
^ Power Steering Oil Cooler
^ Coolant
^ Water pump
^ Hoses and hose clamps
5.7L
The cooling system consists of the following items:
^ Hydraulic cooling fan
^ Radiator
^ Power steering oil cooler
^ Radiator pressure cap
^ Thermostat
^ Coolant reserve/overflow system
^ Transmission oil cooler (if equipped with an automatic transmission)
^ Coolant
^ Water pump
^ Hoses and hose clamps
COOLANT
Coolant flows through the engine water jackets and cylinder heads absorbing heat produced by the engine during operation. The coolant carries heat to the radiator and heater core. Here it is transferred to ambient air passing through the radiator and heater core fins.
The required ethylene-glycol (antifreeze) and water mixture depends upon the climate and vehicle operating conditions. The recommended mixture of 50/50 ethylene-glycol and water will provide protection against freezing to -37°C (-35°F). The antifreeze concentration must always be a minimum of 44 percent, year-round in all climates. If percentage is lower than 44 percent, engine parts may be eroded by cavitation, and cooling system components may be severely damaged by corrosion. Maximum protection against freezing is provided with a 68 percent antifreeze concentration, which prevents freezing down to -67.7°C (-90°F). A higher percentage will freeze at a warmer temperature. Also, a higher percentage of antifreeze can cause the engine to overheat because the specific heat of antifreeze is lower than that of water.
100 Percent Ethylene-Glycol-Should Not Be Used in Chrysler Vehicles.
Use of 100 percent ethylene-glycol will cause formation of additive deposits in the system, as the corrosion inhibitive additives in ethylene-glycol require the presence of water to dissolve. The deposits act as insulation, causing temperatures to rise to as high as 149°C (300°F). This temperature is hot enough to melt plastic and soften solder. The increased temperature can result in engine detonation. In addition, 100 percent ethylene-glycol freezes at -22°C (-8°F).
Propylene-glycol Formulations-Should Not Be Used in Chrysler Vehicles
Propylene-glycol formulations do not meet Chrysler coolant specifications. It's overall effective temperature range is smaller than that of ethylene-glycol. The freeze point of 50/50 propylene-glycol and water is -32°C (-26°F). 5°C higher than ethylene-glycol's freeze point. The boiling point (protection against summer boil-over) of propylene-glycol is 125°C (257°F) at 96.5 kPa (14 psi), compared to 128°C (263°F) for ethylene-glycol. Use of propylene-glycol can result in boil-over or freeze-up in Chrysler vehicles, which are designed for ethylene-glycol. Propylene glycol also has poorer heat transfer characteristics than ethylene glycol. This can increase cylinder head temperatures under certain conditions.
Propylene-glycol/Ethylene-glycol Mixtures-Should Not Be Used in Chrysler Vehicles
Propylene-glycol/Ethylene-glycol Mixtures can cause the destabilization of various corrosion inhibitors, causing damage to the various cooling system components. Also, once ethylene-glycol and propylene-glycol based coolants are mixed in the vehicle, conventional methods of determining freeze point will not be accurate. Both the refractive index and specific gravity differ between ethylene glycol and propylene glycol.
CAUTION: Richer antifreeze mixtures cannot be measured with normal field equipment and can cause problems associated with 100 percent ethylene-glycol.
HOSE CLAMPS
The cooling system utilizes spring type hose clamps. If a spring type clamp replacement is necessary, replace with the original MOPAR(R) equipment spring type clamp.

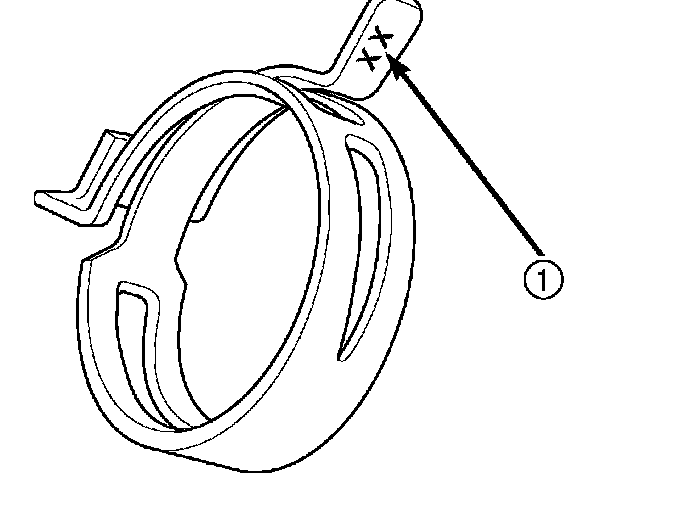

CAUTION: A number or letter is stamped into the tongue of constant tension clamps. If replacement is necessary, use only a original equipment clamp with matching number or letter.
OPERATION
COOLING SYSTEM
The cooling system regulates engine operating temperature. It allows the engine to reach normal operating temperature as quickly as possible. It also maintains normal operating temperature and prevents overheating.
The cooling system also provides a means of heating the passenger compartment and cooling the automatic transmission fluid (if equipped). The cooling system is pressurized and uses a centrifugal water pump to circulate coolant throughout the system.
HOSE CLAMPS
The spring type hose clamp applies constant tension on a hose connection. To remove a spring type hose clamp, only use constant tension clamp pliers designed to compress the hose clamp.
