Ambient Temperature Sensor / Switch HVAC: Locations

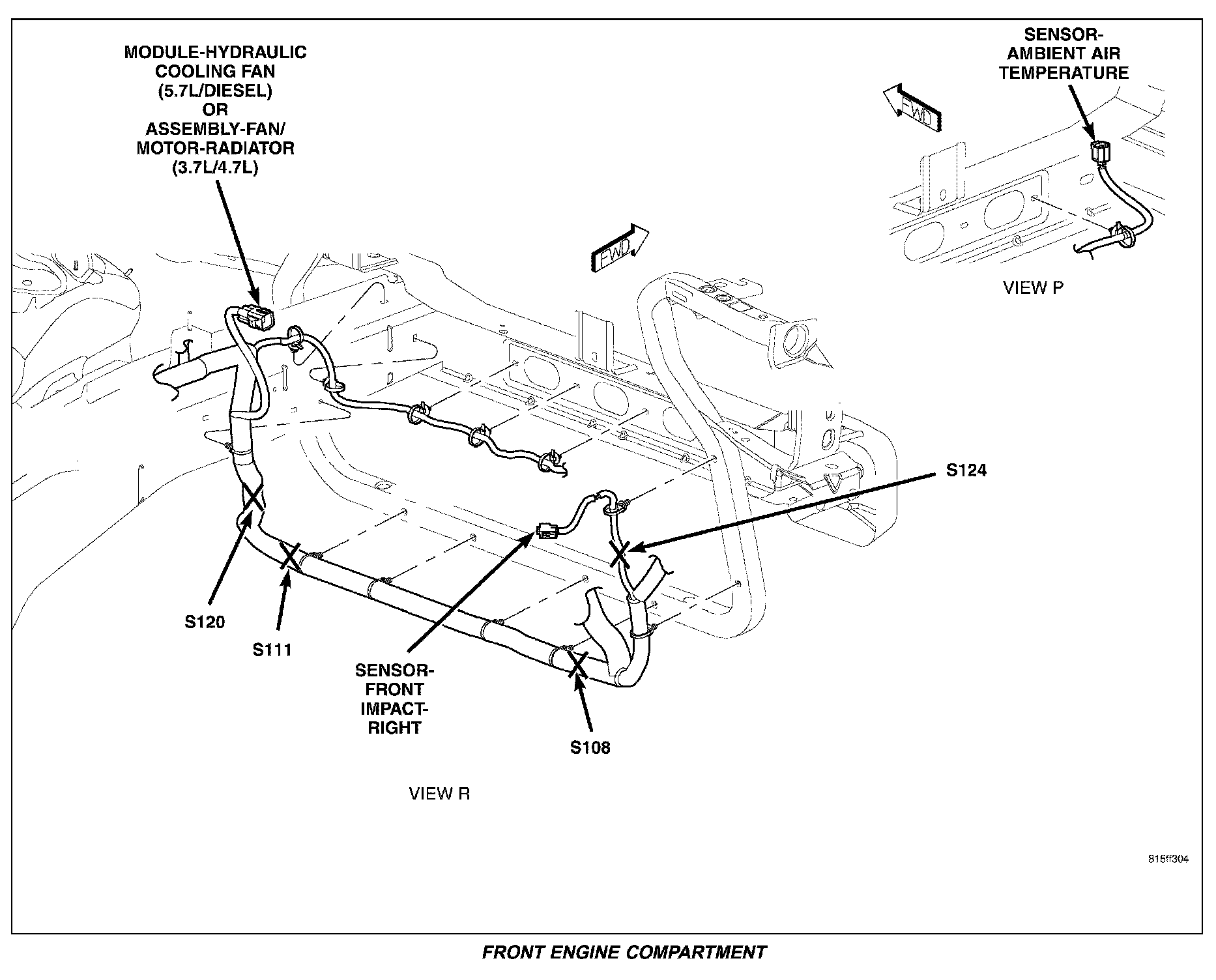

Front Engine Compartment:
Upper Left Front Engine Compartment:
Left Front Body:

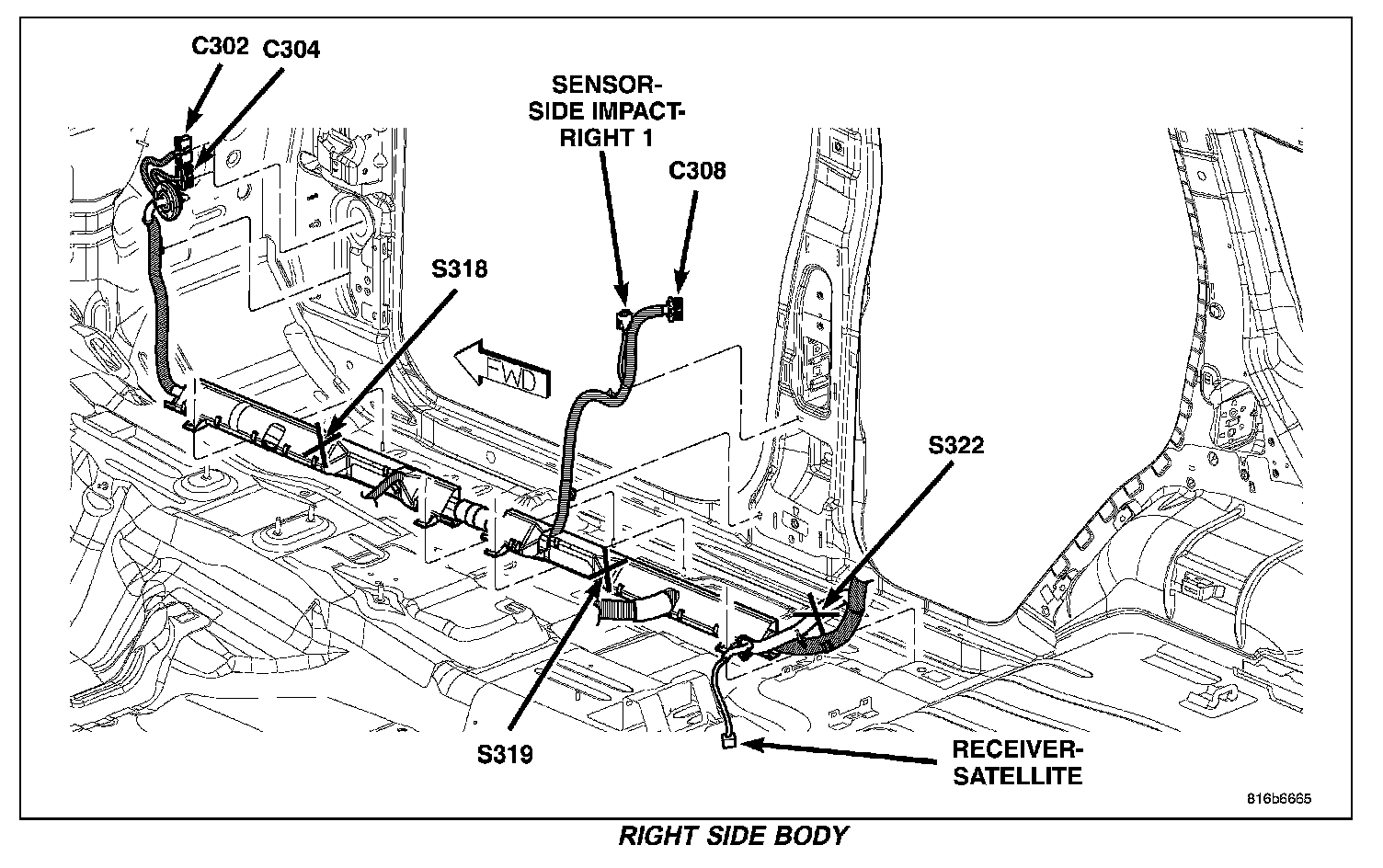

Right Side Body:

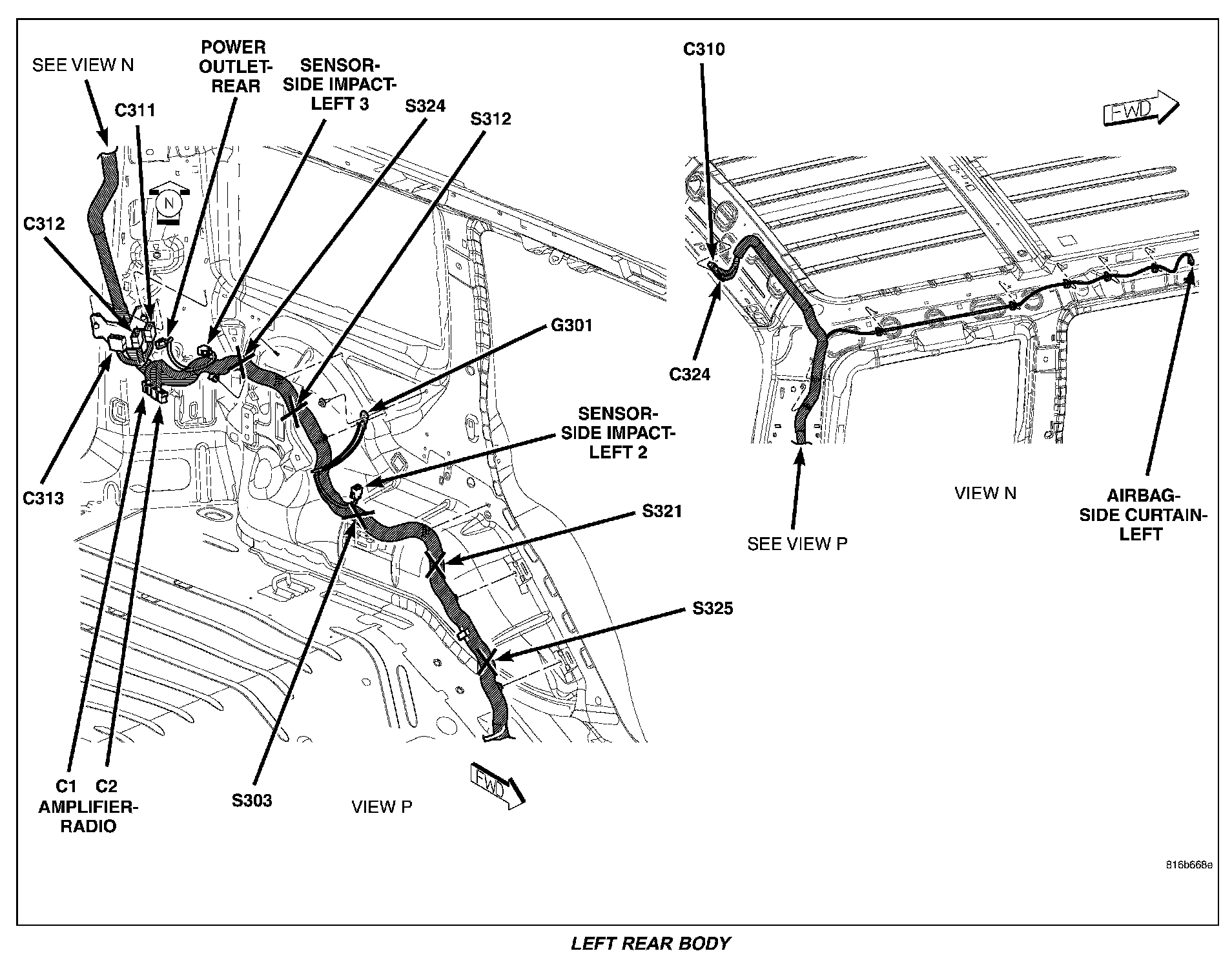

Left Rear Body:
Right Rear Body:
