Instrument Cluster / Carrier: Locations

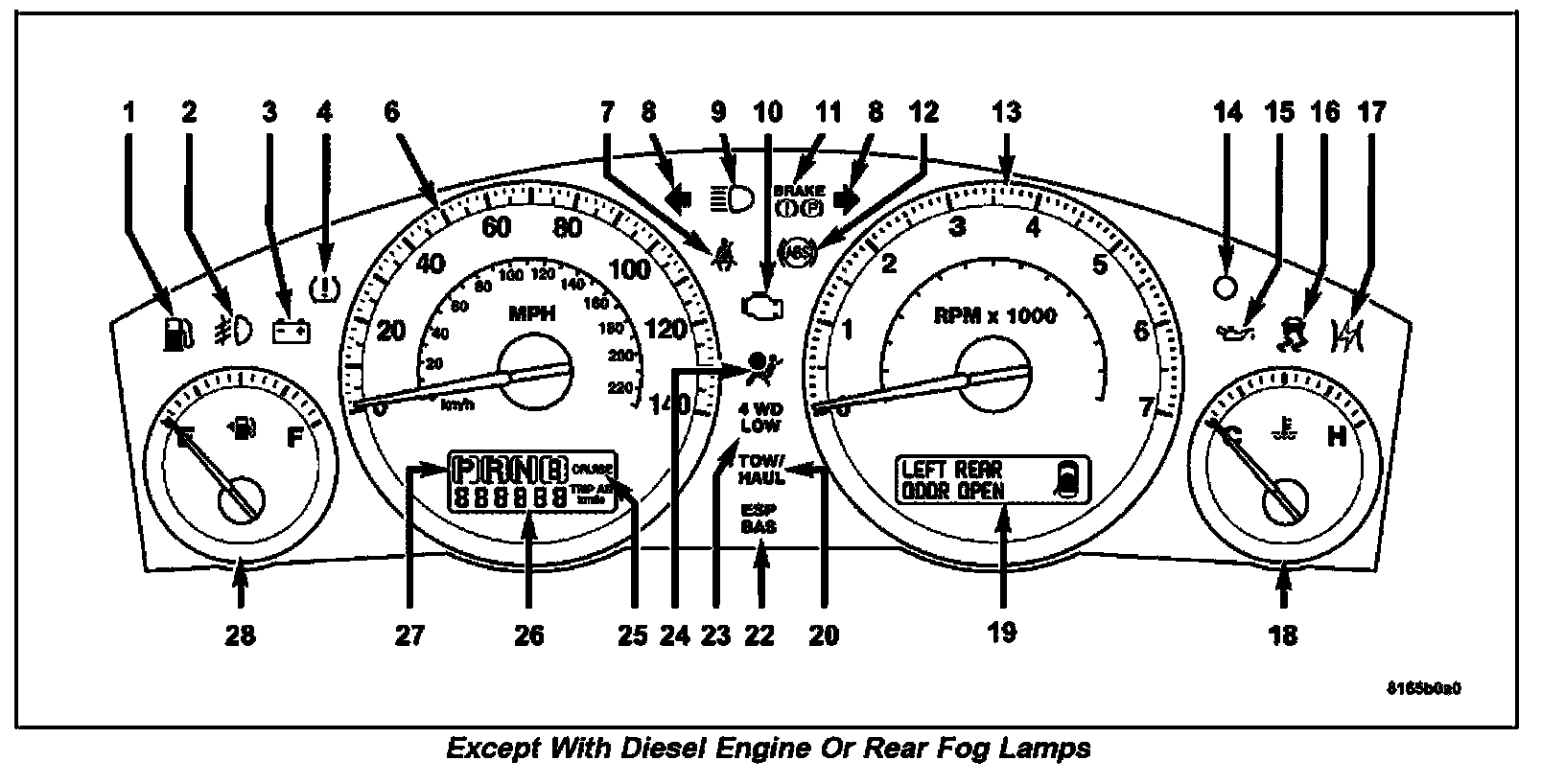

Except With Diesel Engine Or Rear Fog Lamps:

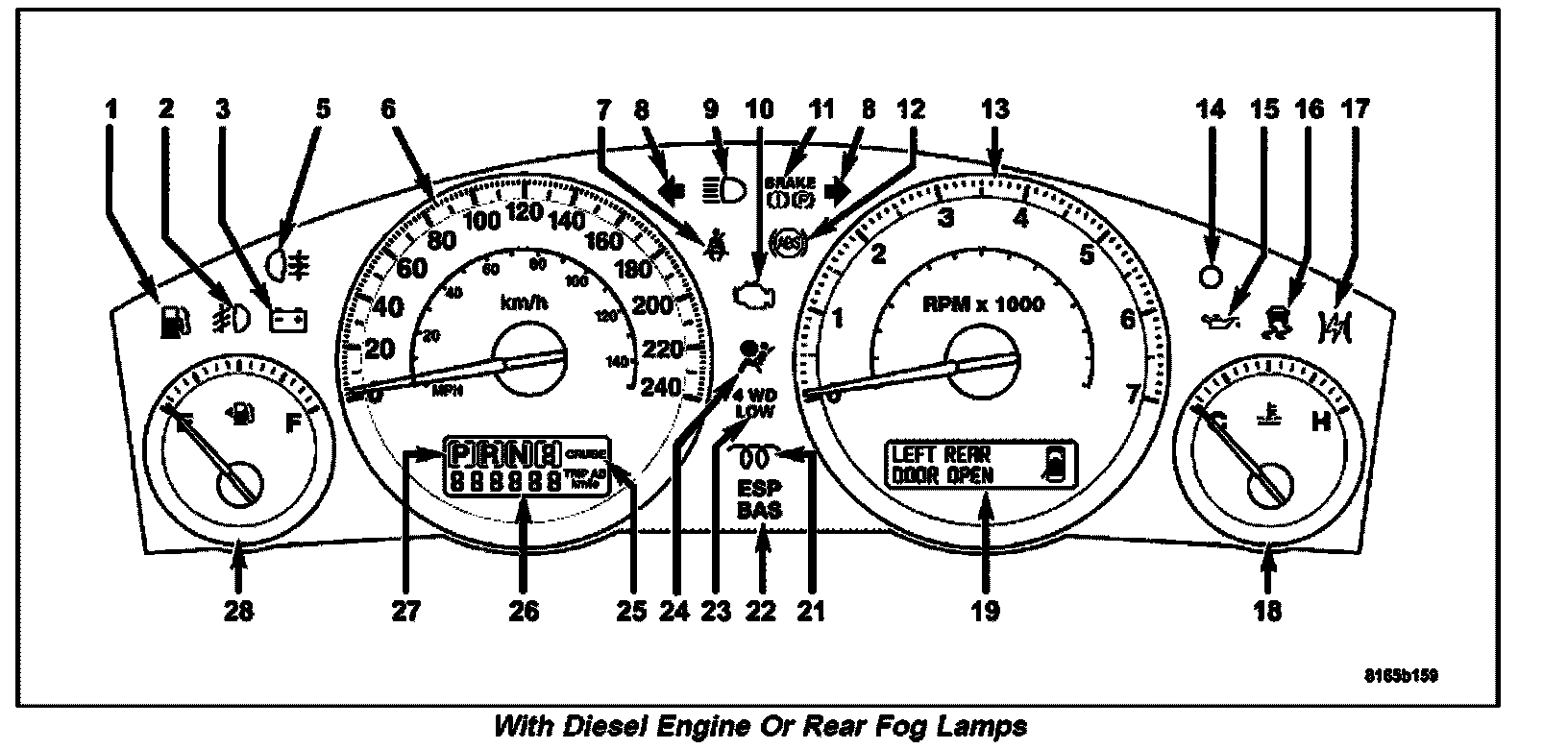

With Diesel Engine Or Rear Fog Lamps:

The EMIC houses four analog gauges and has provisions for up to 18 indicators. Some of the EMIC indicators are automatically configured when the EMIC is connected to the vehicle electrical system for compatibility with certain optional equipment or equipment required for regulatory purposes in certain markets. While each EMIC may have provisions for indicators to support every available option, the configurable indicators will not be functional in a vehicle that does not have the equipment that an indicator supports.

The EMIC includes the following analog gauges:

- Engine Temperature Gauge (18)
- Fuel Gauge (28)
- Speedometer (6)
- Tachometer (13)

The EMIC includes the following OLED display units:

- Dot Matrix Display (19) - Electronic Vehicle Information Center (EVIC), Trip Odometer A and B, Textual Messages
- Fixed Segment Display - Includes Gear Selector Indicator (27), Odometer (26) and Cruise Indicator (25)

The EMIC includes provisions for the following indicators:

- Adjustable Pedal System Indicator - textual messages in dot matrix display (19)
- Airbag Indicator (24)
- Ajar Indicators - textual messages and icon in dot matrix display (19) for doors, hood, liftgate and liftgate flip-up glass
- Antilock Brake System (ABS) Indicator (12)
- Brake/Park Brake Indicator (11)
- Charging Indicator (3)
- Check Gas Cap Indicator - textual message in dot matrix display (19)
- Check Gauges Indicator - textual message in dot matrix display (19)
- Check Shift Procedure Indicator - textual message in dot matrix display (19)
- Coolant Low Indicator - textual message and icon in dot matrix display (19)
- Cruise Indicator (25) - text in fixed segment display
- Electronic Stability Program (ESP)/Brake Assist System (BAS) Indicator (22) - and textual messages in dot matrix display (19)
- Electronic Throttle Control (ETC) Indicator (17)
- Four-Wheel Drive Low Indicator (23)
- Four-Wheel Drive System In Neutral Indicator - textual message and icon in dot matrix display (19)
- Front Fog Lamp Indicator (2)
- Gear Selector Indicator (27)
- High Beam Indicator (9)
- Low Brake Fluid Level Indicator - textual message in dot matrix display (19)
- Low Fuel Indicator (1)
- Low Oil Pressure Indicator (15)
- Malfunction Indicator Lamp (MIL) (10)
- Memory System Indicator - textual messages in dot matrix display (19)
- Park Assist Disabled Indicator - textual message in dot matrix display (19)
- Perform Service Indicator - textual message in dot matrix display (19)
- Rear Fog Lamp Indicator (5) - in markets where rear fog lamps are available only
- Seat Belt Indicator (7)
- Security Indicator (14) - also textual messages for Sentry Key Immobilizer System (SKIM) in dot matrix display (19)
- Service Column Lock Indicator - textual message in dot matrix display (19)
- Service Exhaust Indicator - textual message in dot matrix display (19) with diesel only
- Service Four-Wheel Drive System Indicator - textual message in dot matrix display (19)
- Service Park Assist System Indicator - textual message in dot matrix display (19)
- Smart (Auto High) Beam Indicator - textual messages in dot matrix display (19)
- Tire Pressure Monitor (TPM) Indicator (4) - also textual messages in dot matrix display (19)
- Tow/Haul Indicator (20)
- Traction Control/Electronic Stability Program (ESP) Indicator (16)
- Transmission Overtemp Indicator - textual message in dot matrix display (19)
- Turn Signal-ON Reminder Indicator - textual message and icon in dot matrix display (19)
- Turn Signal (Right and Left) Indicators (8)
- Wait-To-Start Indicator (21) - with diesel only
- Washer Fluid Indicator - textual message and icon in dot matrix display (19)
- Water-In-Fuel Indicator - textual message in dot matrix display (19) with diesel only
