Maintenance Required Lamp/Indicator: Service and Repair



ELECTRONIC VEHICLE INFORMATION CENTER

OPERATION

The Electronic Vehicle Information Center (EVIC) uses both non-switched and ignition switched sources of battery current so that some of its features remain operational at any time, while others may only operate with the ignition switch in the On position. When the ignition switch is turned to the On position, the EVIC display will return to the last function being displayed before the ignition was turned to the Off position.

The EVIC system is comprised of several different components that communicate over the Controller Area Network (CAN) Data Bus. If the system is inoperative a scan tool and the appropriate diagnostic information must be used to diagnose the system.

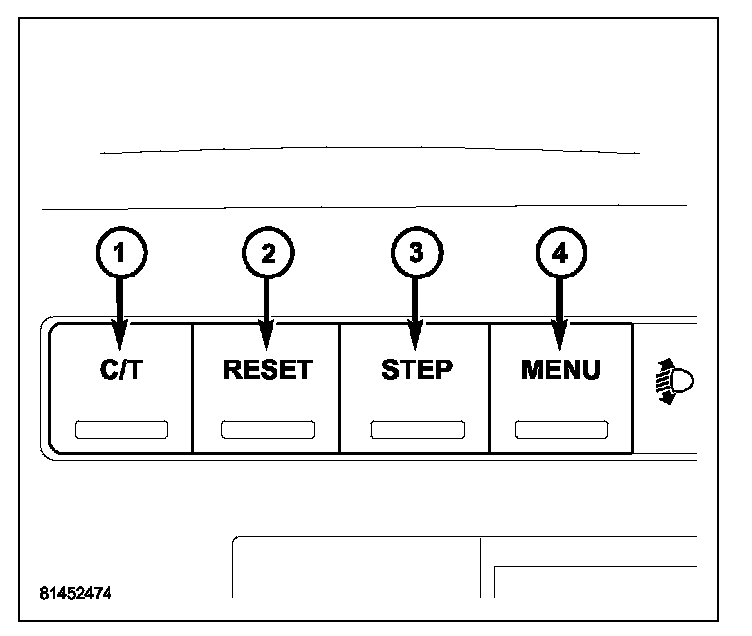

The EVIC control switches are used to operate the different functions of the EVIC system. Pressing and releasing the MENU button (4) will change the mode displayed to one of the Personal Settings. The STEP button (3) is used to make a selection from the Personal Setting displayed at that time. Pressing and releasing the C/T (compass/thermometer) button (1) will cause the EVIC to return to the compass/thermometer/ trip computer display mode from any other mode. From the compass/thermometer/trip computer display mode the STEP button (3) is used to scroll through and make selections in the Trip Functions. Pressing and releasing the RESET button (2) resets the trip computer screen displayed at that time.

EVIC DISPLAY MODES

SYSTEM STATUS MODE

Displays warnings and user interaction messages. Initial warnings will be displayed accompanied by a series of audible beeps. Critical text warnings will be displayed until the failure is corrected. Non-critical text warnings will be displayed for 60 seconds. The driver can scroll to view multiple messages by using the STEP button.

When the appropriate conditions exist, the EVIC displays the following messages:
- TURN SIGNAL ON
- PERFORM SERVICE
- KEY NOT PROGRAMMED - DAMAGED KEY
- KEY NOT PROGRAMMED - INVALID KEY
- KEY NOT PROGRAMMED - EXCEEDED KEY PROGRAM LIMIT
- PROGRAMMING ACTIVE - NEW KEY PROGRAMMED
- SERVICE SECURITY KEY
- INVALID KEY - TRY ALTERNATE KEY
- DRIVER/PASSENGER DOOR OPEN (with graphic)
- LEFT/RIGHT REAR DOOR OPEN (with graphic)
- X DOORS OPEN (with graphic)
- LIFTGATE OPEN (with graphic)
- LIFTGATE/DOOR OPEN (with graphic)
- LIFTGATE/DOORS OPEN (with graphic)
- LIFTGLASS OPEN (with graphic)
- HOOD OPEN (with graphic)
- HOOD/DOOR OPEN (with graphic)
- HOOD/DOORS OPEN (with graphic)
- LIFTGATE/HOOD OPEN (with graphic)
- HOOD/GLASS/DOOR OPEN (with graphic)
- HOOD/GLASS/DOORS OPEN (with graphic)
- HOOD/GATE/DOOR OPEN (with graphic)
- HOOD/GATE/DOORS OPEN (with graphic)
- LIFTGLASS/DOOR OPEN (with graphic)
- LIFTGLASS/DOORS OPEN (with graphic)
- LIFTGLASS/HOOD OPEN (with graphic)
- WASHER FLUID LOW (with graphic)
- CHECK GAUGES
- AUTO HIGHBEAM ON
- AUTO HIGHBEAM OFF
- PARK ASSIST DISABLED
- SERVICE PARK ASSIST SYSTEM
- TRANSMISSION OVER TEMP
- CHECK SHIFT PROCEDURE
- SERVICE 4WD SYSTEM
- 4WD SYSTEM IN NEUTRAL
- LOW BRAKE FLUID LEVEL
- WARNING! LIMIT SPEED
- CHECK GAS CAP
- ESP OFF
- MEMORY NUMBER 1 POSITIONS SET
- MEMORY NUMBER 2 POSITIONS SET
- MEMORY SYSTEM DISABLED - SEATBELT FASTENED (with graphic)
- MEMORY SYSTEM DISABLED - VEHICLE NOT IN PARK
- DRIVER 1 MEMORY
- DRIVER 2 MEMORY
- PEDAL ADJUST DISABLED - CRUISE CONTROL SET
- PEDAL ADJUST DISABLED - SHIFTER IN REVERSE
- SERVICE TIRE PRESS SYSTEM
- LEFT FRONT LOW PRESSURE (Premium Tire Pressure Monitoring (TPM) System Only)
- RIGHT FRONT LOW PRESSURE (Premium TPM System Only)
- LEFT REAR LOW PRESSURE (Premium TPM System Only)
- RIGHT REAR LOW PRESSURE (Premium TPM System Only)
- SPARE LOW PRESSURE (Premium TPM System Only)

PERSONAL SETTINGS MODE (CUSTOMER PROGRAMMABLE FEATURES)

Allows the driver to set and recall features when the transmission is in Park by pressing and releasing the MENU button until Personal Settings is displayed in the EVIC. The following personal settings can be set and recalled by pressing the STEP button:
- Language: English, Spanish and French (domestic markets) German and Italian (export markets)
- Display units in English or Metric
- Lock doors and liftgate automatically at 15 mph (24 Kph), On or Off
- Unlock door automatically on exit, On or Off
- Remote Keyless Entry unlock driver door on first press or unlock all doors on first press
- Recall Memory with Remote Keyless Entry Unlock, On or Off
- Sound horn with Remote Keyless Entry Lock, On or Off
- Flash lights with Remote Keyless Entry Lock, On or Off
- Delay turning headlamps off for 0, 30, 60 or 90 seconds
- Illuminated approach on for 0, 30, 60 or 90 seconds
- Auto headlamp low/high beam, low beam or low/high beam
- Headlamps on with wipers, On or Off
- Rain Sensing Intermittent Wipers, On or Off
- Service interval (Gasoline engines), 3,200,{9,600 KM, in increments of 800 KM/2,000,...6,000 miles in increments of 500 miles
- Service interval (Diesel engines), 4,000,...20,000 KM, in increments of 1,000 KM/2,500,{12,500 miles in increments of 625 miles
- Automatically move seat back on exit, On or Off
