Horn: Description and Operation
HORN SYSTEMDESCRIPTION
The dual-note horn system features dual electromagnetic horn units. The horn system includes the following major components:

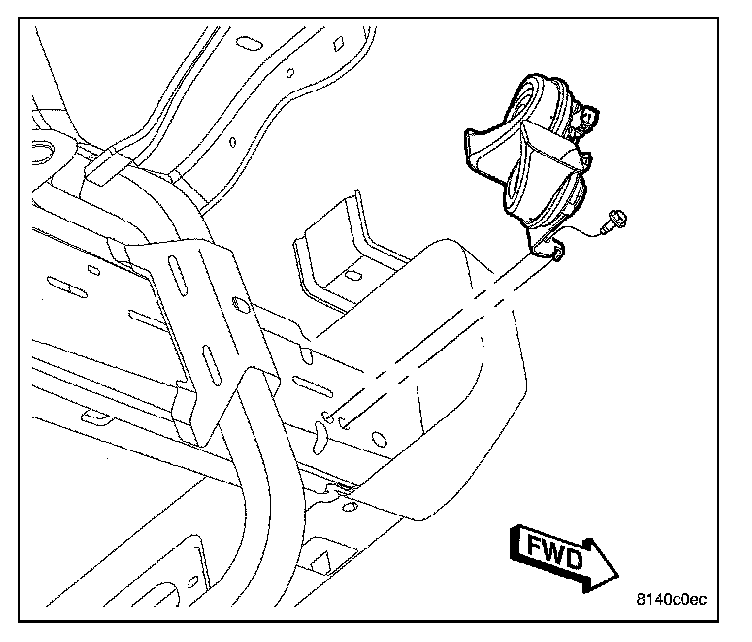

- Horn - The two horns are located on the right side of the vehicle behind the fascia.
- Horn Switch - The horn switch is located in the driver airbag trim cover.
OPERATION
The horn system operates on battery current received through a fuse in the Integrated Power Module (IPM). The horn system circuit is designed so that the system will remain operational, regardless of the ignition switch position.
