Horn: Service and Repair

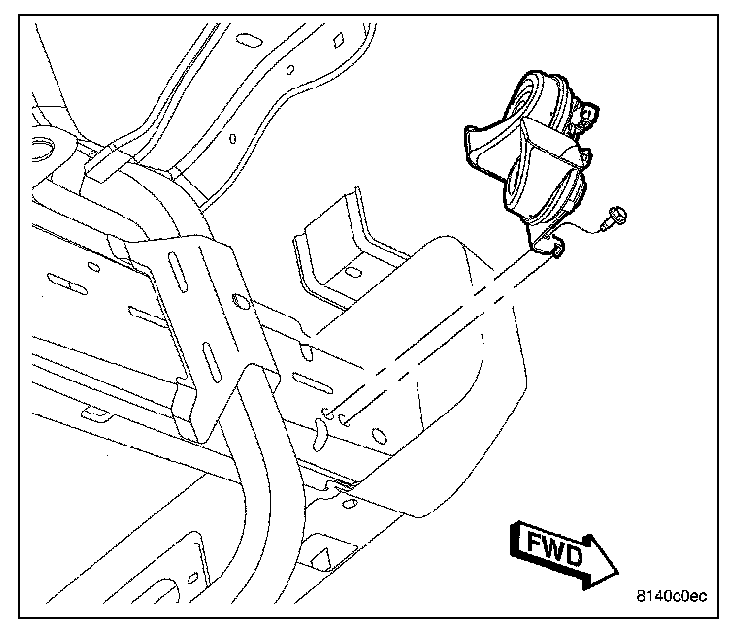

HORN

REMOVAL




1. Disconnect and isolate the battery negative cable.
2. Raise and support the vehicle.
3. Remove the lower front half of the inner liner from the right front fender wheel house.
4. Disconnect the electrical harness connectors.
5. Remove the mounting fastener.
6. Remove both horns and the mounting bracket as a unit.

INSTALLATION




1. Position both horns and the mounting bracket.
2. Install and tighten the mounting fastener.
3. Connect the electrical harness connectors.
4. Install the lower front half of the inner liner to the right front fender wheel house.
5. Lower the vehicle.
6. Connect the battery negative cable.
