A/C - Warm Air From I/P vents When Cold Air is Selected
NUMBER: 24-002-07 REV. AGROUP: Heating & NC
DATE: July 28, 2007
THIS BULLETIN SUPERSEDES TECHNICAL SERVICE BULLETIN 24-002-07, DATED APRIL 14, 2007. ALL REVISIONS ARE HIGHLIGHTED WITH **ASTERISKS** AND INCLUDE AN UPDATED CLEAN DATE.
SUBJECT:
Warm Air From Instrument Panel Outlets When Cold Air Is Selected
OVERVIEW:
This bulletin involves replacing the heater A/C housing assembly.
MODELS:
2007 (WK) Grand Cherokee
2007 (WH) Grand Cherokee (International Markets)
2007 (XK) Commander
2007 (XH) Commander ( International Markets)
NOTE:
This bulletin applies to vehicles equipped with manual Heater A/C built between **November 29, 2006** and January 15, 2007 (MDH - 0929XX and 0115XX)
SYMPTOM/CONDITION:
Manual heater A/C system will not distribute cold air when control head temperature knob is rotated from full hot to full cold position with blower on high and in panel mode.
DIAGNOSIS:
If a customer indicates that the condition is present, perform the Repair Procedure.

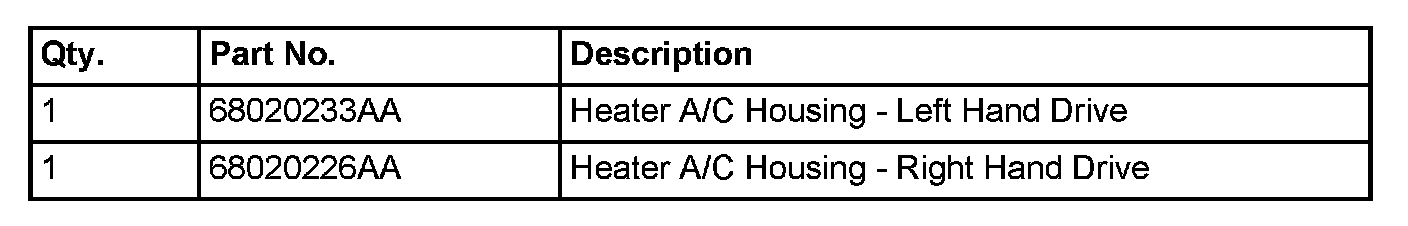

PARTS REQUIRED:
REPAIR PROCEDURE:
Using the procedures outlined in the Service Information on TechCONNECT, Section 24, remove the heater A/C housing assembly and install the revised assembly listed in the Parts required Section.
POLICY:
Reimbursable within the provisions of the warranty.

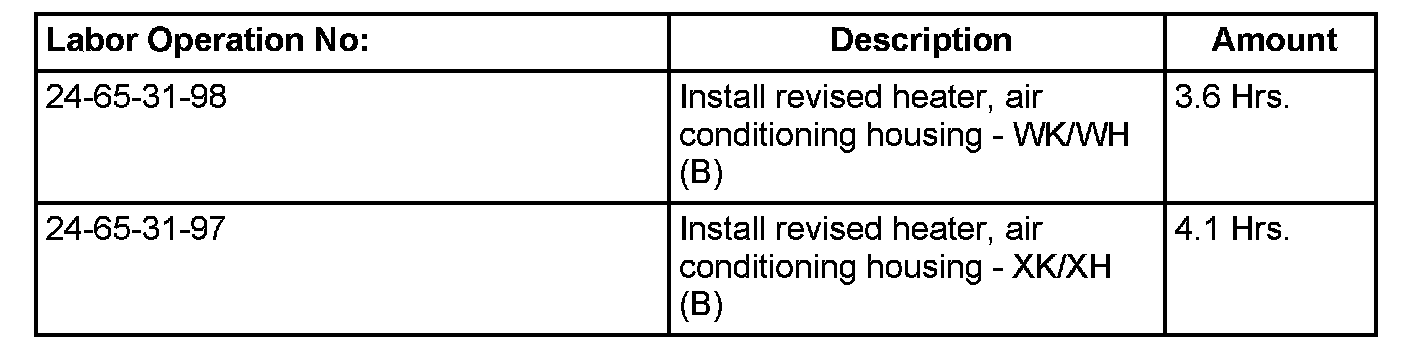

TIME ALLOWANCE:

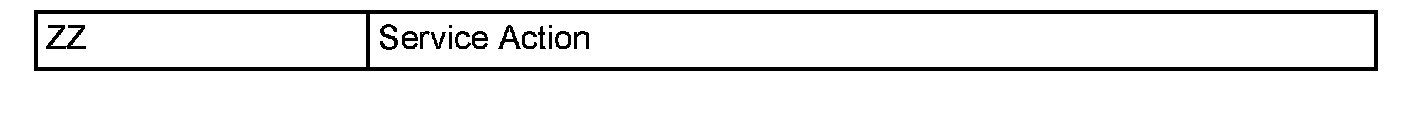

FAILURE CODE:
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
