A. Seat Belt Inspection and Bracket Cover Installation

1. Inspect the third row seat belts for fraying by pulling the seat belt out until it stops. If any portion of the seat belt is frayed at the edges, continue to Section "B" Seat Belt Replacement. If the seat belts are not frayed at the edges, continue to step 2.

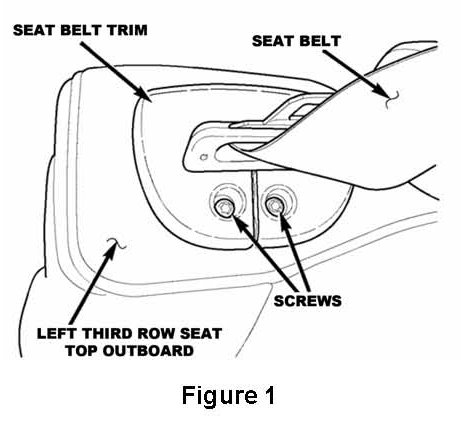

2. From the rear of the vehicle, move the seat belt away from the plastic seat belt trim cover on the seat back and remove the two screws (Figure 1).

3. Using a trim stick, gently pry up the seat belt trim cover at both rear corners.

4. Remove the seat belt trim cover.





5. Gently pull back on the seat back cover fabric to expose the seat belt metal bracket (Figure 2).

6. Insert the plastic bracket cover between the seat back fabric and the seat back plastic bolster (Figure 2).

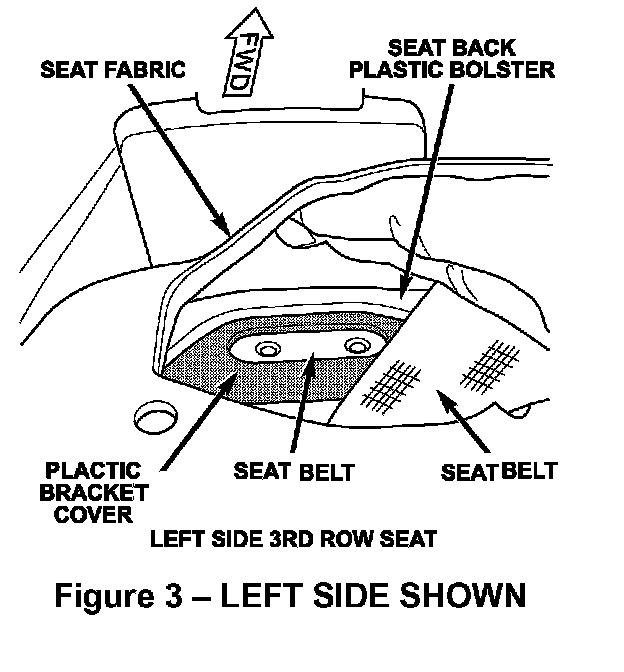

7. Slide the plastic bracket cover rearward and tuck the front corners of the plastic bracket cover underneath the seat back plastic bolster as shown in Figure 3.

8. Slide the plastic bracket cover forward until seated. The two threaded screw holes for the seat belt trim cover should be centered in the opening of plastic bracket cover.

9. Install the seat belt trim cover.

10. Install the two screws for the seat belt trim cover.

11. Repeat Steps 1 through 10 for the other seat belt.
