Wiper Blade: Description and Operation

WIPER BLADE

DESCRIPTION

FRONT

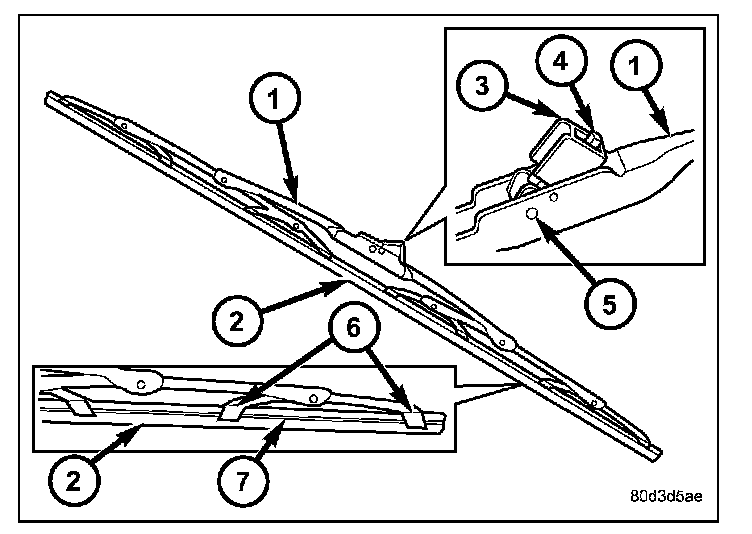

Each front wiper blade is secured by an integral latching pivot block (3) to the hook formation on the tip of each wiper arm, and rests on the glass near the base of the windshield when the wipers are not in operation. The wiper blade consists of the following components:
- Superstructure (1) - The superstructure includes several stamped steel bridges and links with claw formations that grip the wiper blade element. Also included in this unit is the latching, molded plastic pivot block that secures the superstructure to the wiper arm. All of the metal components of the wiper blade have a satin black finish applied.
- Element (2) - The wiper element or squeegee is the resilient rubber member of the wiper blade that contacts the glass.
- Flexor (7) - The flexor is a rigid metal component running along the length of each side of the wiper element where it is gripped by the claws (6) of the superstructure.

All vehicles have two interchangeable 45.00 centimeter (17.72 inch) long windshield wiper blades with non-replaceable rubber elements (squeegees). The wiper blades cannot be adjusted or repaired and, if ineffective, worn, or damaged, the entire wiper blade unit must be replaced.

REAR




The rear wiper blade is secured by two integral latching pivot pins (1) to a receptacle in the small end at the tip of the rear wiper arm, and rests below the liftgate glass when the wiper is not in operation. The rear wiper blade consists of the following components:
- Superstructure (4) - The superstructure includes a molded black plastic bridge and plastic links with claw formations that grip the wiper blade element. Also included in this unit are the two latching pivot pins that secure the superstructure to the wiper arm.
- Element (2) - The wiper element or squeegee is the resilient rubber member of the wiper blade that contacts the glass.
- Flexor (3) - The flexor is a rigid metal component running along the length of each side of the wiper element where it is gripped by the claws of the superstructure.

The rear wiper blade is 34 centimeters (13.39 inches) long with a replaceable element (squeegee). The wiper blade superstructure cannot be adjusted or repaired. If ineffective, worn, or damaged the entire wiper blade unit must be replaced.

OPERATION

FRONT
The wiper blades are moved back and forth across the glass by the wiper arms when the wipers are being operated. The wiper blade superstructure is the flexible frame that grips the wiper blade element and evenly distributes the force of the spring-loaded wiper arm along the length of the element. The combination of the wiper arm force and the flexibility of the superstructure makes the element conform to and maintain proper contact with the glass, even as the blade is moved over the varied curvature that may be encountered across the glass surface.

The wiper element flexor provides the claws of the blade superstructure with a rigid, yet flexible component on the element which can be gripped. The rubber element is designed to be stiff enough to maintain an even cleaning edge as it is drawn across the glass, yet resilient enough to conform to the glass surface and flip from one cleaning edge to the other each time the wiper blade changes directions. The airfoil used on the driver side wiper blade of vehicles manufactured for certain markets is designed to reduce the lifting effect caused by air moving over the vehicle at higher highway speeds.

REAR
The rear wiper blade is moved back and forth across the liftgate glass by the wiper arm when the rear wiper system is in operation. The wiper blade superstructure is the flexible frame that grips the wiper blade element and evenly distributes the force of the spring-loaded wiper arm along the length of the element. The combination of the wiper arm force and the flexibility of the superstructure makes the element conform to and maintain proper contact with the glass, even as the blade is moved over the varied curvature found across the glass surface.

The wiper element flexor provides the claws of the blade superstructure with a rigid, yet flexible component on the element which can be gripped. The rubber element is designed to be stiff enough to maintain an even cleaning edge as it is drawn across the glass, but resilient enough to conform to the glass surface and flip from one cleaning edge to the other each time the wiper blade changes directions.
