Shifter A/T

Component ID: 18
Component : ASSEMBLY-SHIFTER LEVER

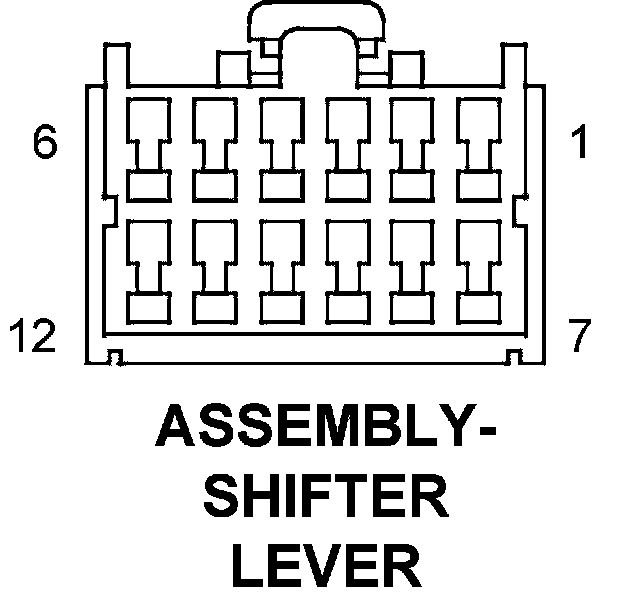

Connector:
Name : ASSEMBLY-SHIFTER LEVER
Color :
# of pins : 12




Pin Description Circuit
1 BRAKE SWITCH NO. 1 SIGNAL B15 20DG/WT
2 AUTOSTICK UP/DOWN (ERS) SIGNAL T5 20DG/YL
3 PANEL LAMPS DRIVER E2 20OR/BR
4 CAN C BUS (+) D65 20WT/LG
5 - -
6 - -
7 GROUND Z907 20BK
8 - -
9 SENSOR GROUND K900 20DB/DG
10 - -
11 CAN C BUS (-) D64 20WT/LB
12 FUSED IGNITION SWITCH OUTPUT (RUN-START) F1 20PK/WT

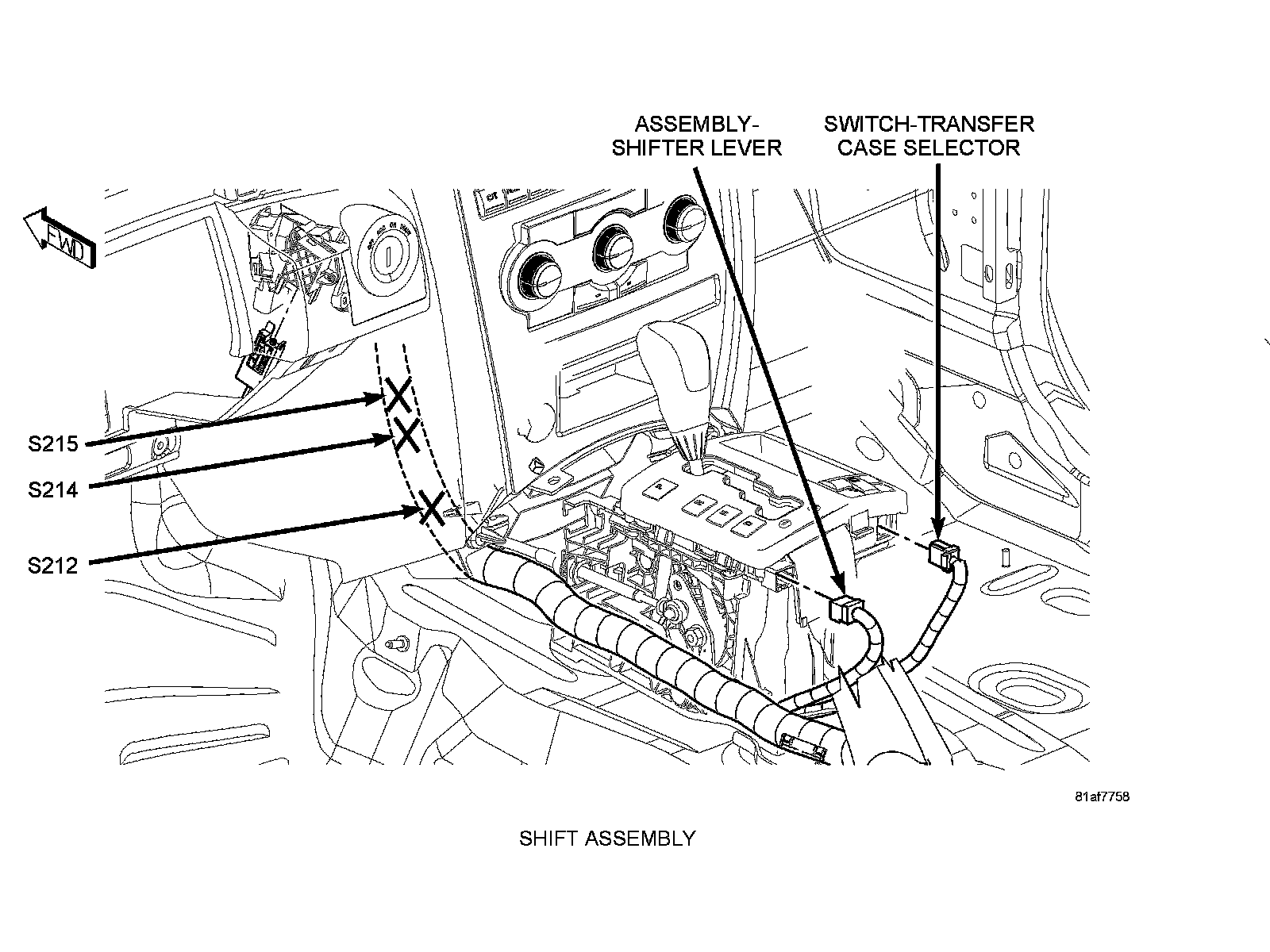

Component Location - 52
