B1D50

B1D50-ADJUSTABLE PEDAL INHIBIT CIRCUIT HIGH





For a complete wiring diagram Diagrams/Electrical. Electrical Diagrams


- When Monitored:

With the ignition on.

- Set Condition:

When the Front Control Module fails the Adjustable Pedal Inhibit Relay circuit.








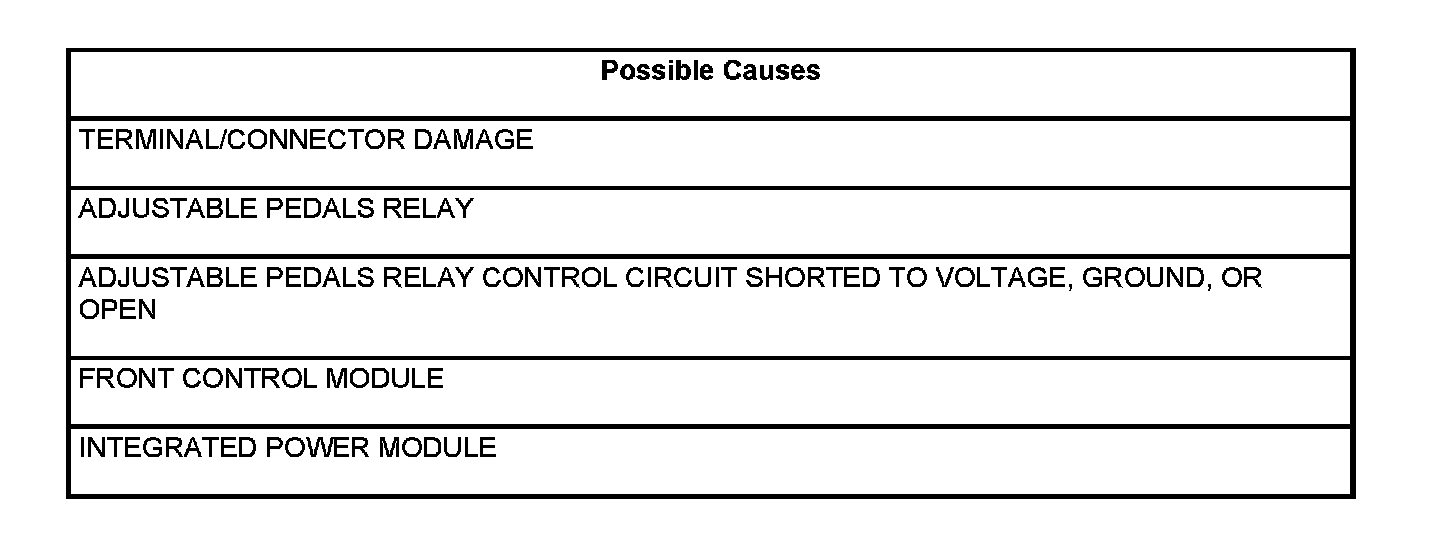

Diagnostic Test


1. CHECK FOR A DTC B1D50-ADJUSTABLE PEDAL INHIBIT CIRCUIT HIGH

NOTE: This DTC must be active for the results of this test to be valid.

Turn the ignition on.

With the scan tool, read and record DTCs.

With the scan tool, read and record Freeze Frame information.

With the scan tool, erase DTCs.

Cycle the ignition switch from off to on.

With the scan tool, read and record DTCs.

Does the scan tool display: B1D50-ADJUSTABLE PEDAL INHIBIT CIRCUIT HIGH?

Yes

- Go To 2

No

- The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
- Refer to the APS-INTERMITTENT CONDITION TEST. Initial Inspection and Diagnostic Overview



2. CHECK THE TERMINALS/CONNECTORS FOR DAMAGE


NOTE: Check all related wiring for bruised, chafed, pierced, or partially broken wires.


NOTE: Check all related connectors for broken, bent, pushed out, or corroded terminals.

Turn the ignition off.

Visually inspect the wiring for damage.

Were any problems found?

Yes

- Repair as necessary.
- Perform APS VERIFICATION TEST. APS Verification Test

No

- Go To 3



3. SWAP OUT THE ADJUSTABLE PEDALS RELAY

Install a known good relay in place of the Adjustable Pedals Relay.

Turn the ignition on.

With the scan tool, erase DTC's.

Cycle the ignition switch from off to on.

With the scan tool, read and record DTC's

Does the scan tool display: B1D4F-ADJUSTABLE PEDAL INHIBIT CIRCUIT LOW?

Yes

- Go To 4

No

- Replace the Adjustable Pedals Relay.
- Perform APS VERIFICATION TEST. APS Verification Test



4. CHECK THE VOLTAGE ON THE FUSED B(+) CIRCUIT FOR THE ADJUSTABLE PEDALS RELAY

Turn the ignition off.

Remove the Adjustable Pedals Relay from the IPM.

Measure the voltage of the internal Fused B(+) circuit at the IPM.

Is the voltage above 10 volts?

Yes

- Go To 5

No

- Replace the IPM.
- Perform APS VERIFICATION TEST. APS Verification Test



5. CHECK THE ADJUSTABLE PEDALS RELAY CONTROL CIRCUIT FOR A SHORT TO GROUND

Disconnect the Front Control Module harness connector.

Using a 12-volt test light connected to 12-volts, check the Adjustable Pedals Relay Control circuit.

Does the test light illuminate brightly?

Yes

- Repair the Adjustable Pedals Relay Control circuit for a short to ground.
- Perform APS VERIFICATION TEST. APS Verification Test

No

- Go To 6



6. CHECK THE ADJUSTABLE PEDALS RELAY CONTROL CIRCUIT FOR A SHORT TO VOLTAGE

Turn the ignition on.

Using a 12-volt test light connected to ground, check the Adjustable Pedals Relay Control circuit.

Does the test light illuminate brightly?

Yes

- Repair the Adjustable Pedals Relay Control circuit for a short to voltage.
- Perform APS VERIFICATION TEST. APS Verification Test

No

- Go To 7



7. CHECK THE ADJUSTABLE PEDALS RELAY CONTROL CIRCUIT FOR AN OPEN

Turn the ignition off.

Connect a jumper wire between the Adjustable Pedals Relay Control circuit and ground.

Using a 12-volt test light connected to 12-volts, check the Adjustable Pedals Relay Control circuit.

Does the test light illuminate brightly

Yes

- Replace the Front Control Module.
- Perform APS VERIFICATION TEST. APS Verification Test

No

- Repair the Adjustable Pedals Relay Control circuit for an open.
- Perform APS VERIFICATION TEST. APS Verification Test
